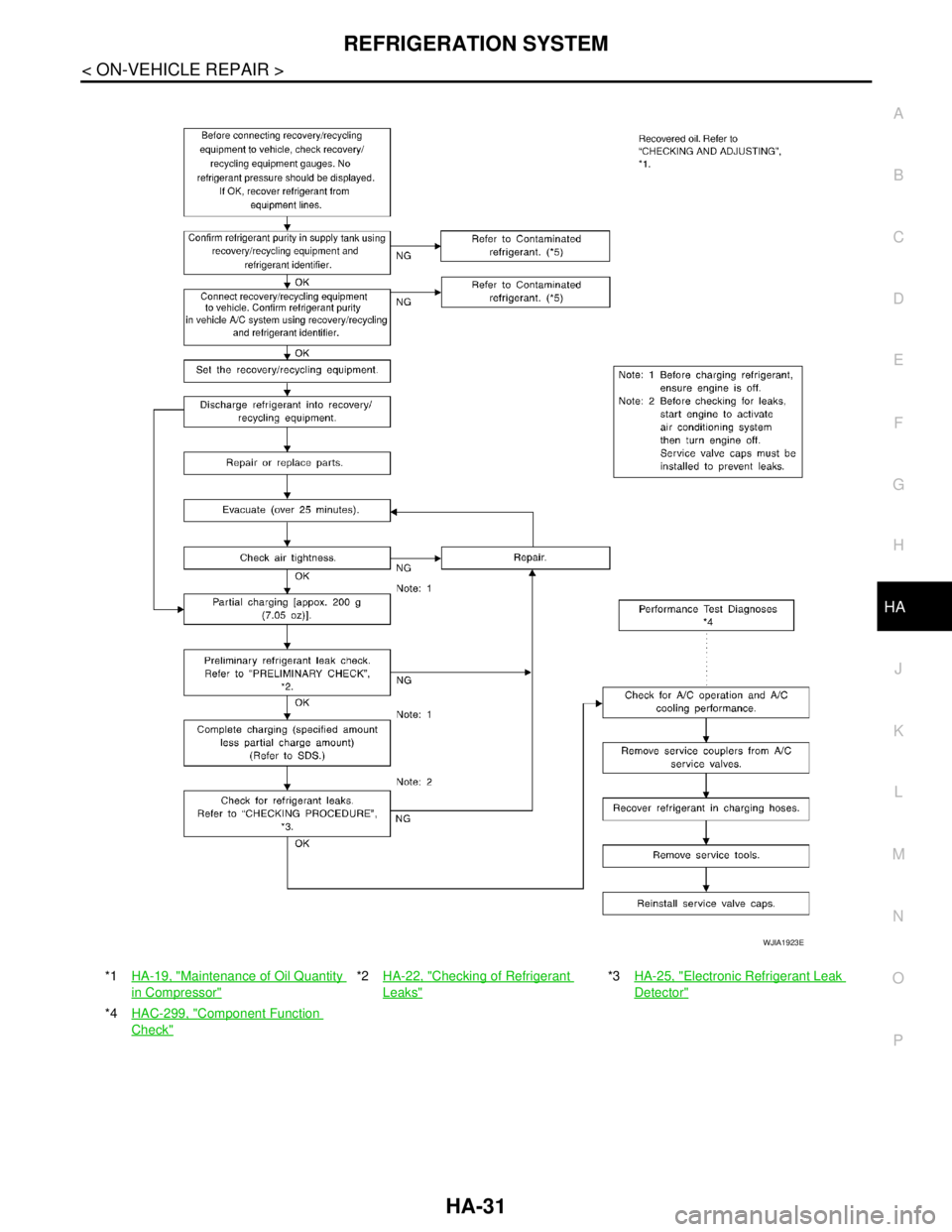

Page 3313 of 5883

NISSAN TIIDA 2007 Service Repair Manual REFRIGERATION SYSTEM HA-31 < ON-VEHICLE REPAIR > C D E F G H J K L MA B HA N O P *1HA-19, "Maintenance of Oil Quantity in Compressor" *2HA-22, "Checking of Refrigerant Leaks" *3HA-25, "Electronic Re

Page 3314 of 5883

NISSAN TIIDA 2007 Service Repair Manual HA-32 < ON-VEHICLE REPAIR > COMPRESSOR COMPRESSOR Removal and Installation of Compressor - MR18DEINFOID:0000000001404149 MR18DE REMOVAL 1. Use the recovery/recycling equipment to evacuate the refriger

Page 3315 of 5883

NISSAN TIIDA 2007 Service Repair Manual COMPRESSOR HA-33 < ON-VEHICLE REPAIR > C D E F G H J K L MA B HA N O P 6. Remove bolts (A) from compressor (1), using power tools. 7. Remove compressor (1) downward from the engine compart- ment. INSP

Page 3316 of 5883

NISSAN TIIDA 2007 Service Repair Manual HA-34 < ON-VEHICLE REPAIR > COMPRESSOR Removal and Installation of Compressor - HR16DE INFOID:0000000001523298 HR16DE REMOVAL 1. Use the recovery/recycling equipment to evacuate the refrigerant. Refer

Page 3317 of 5883

NISSAN TIIDA 2007 Service Repair Manual COMPRESSOR HA-35 < ON-VEHICLE REPAIR > C D E F G H J K L MA B HA N O P 1. Check the clearance around the entire periphery of the clutch disc.  Measure the clearance for the compressor as shown. 2. If

Page 3318 of 5883

NISSAN TIIDA 2007 Service Repair Manual HA-36 < ON-VEHICLE REPAIR > COMPRESSOR 4. Reposition the RH air guide out of the way. 5. Remove the nut (A) to disconnect the low-pressure flexible hose (1) from the compressor, and disconnect the hig

Page 3319 of 5883

NISSAN TIIDA 2007 Service Repair Manual COMPRESSOR HA-37 < ON-VEHICLE REPAIR > C D E F G H J K L MA B HA N O P  When recharging refrigerant, check for leaks. Refer to HA-22, "Checking of Refrigerant Leaks".

Page 3320 of 5883

NISSAN TIIDA 2007 Service Repair Manual HA-38 < ON-VEHICLE REPAIR > LOW-PRESSURE FLEXIBLE HOSE LOW-PRESSURE FLEXIBLE HOSE Removal and Installation of Low-Pressure Flexible Hose - MR18DE, HR16DE INFOID:0000000001404150 REMOVAL 1. Use the rec
