EC-820
< COMPONENT DIAGNOSIS >[MR18DE]
P0133 HO2S1
5. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK HEATED OXYGEN SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between HO2S1 harness connector and ECM harness connector.
2. Check the continuity between HO2S1 harness connector or ECM harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
8.CHECK MASS AIR FLOW SENSOR
Check mass air flow sensor.
Refer to EC-801, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 9.
NO >> Replace mass air flow sensor.
9.CHECK PCV VALVE
Refer to EC-987, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 10.
NO >> Repair or replace PCV valve.
10.CHECK HEATED OXYGEN SENSOR 1
Perform EC-820, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace heated oxygen sensor 1.
11 .CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000001161792
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK HEATED OXYGEN SENSOR 1
HO2S1 ECM
Continuity
Connector Terminal Connector Terminal
F12 4 F11 49 Existed
HO2S1 ECM
Ground Continuity
Connector Terminal Connector Terminal
F12 4 F11 49 Ground Not existed
Page 2170 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P0133 HO2S1
EC-821
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Set “POST TRIGGER” to 100% i NISSAN TIIDA 2007 Service Repair Manual P0133 HO2S1
EC-821
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Set “POST TRIGGER” to 100% i](/manual-img/5/57395/w960_57395-2169.png)
P0133 HO2S1
EC-821
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Set “POST TRIGGER” to 100% in “DATA MONITOR” mode with CONSULT-III.
3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the following steps.
5. Touch “RECORD” on CONSULT-III screen.
6. Check the following.
- “HO2S1 MNTR (B1)” in “DATA MONITOR” mode changes from
“RICH” to “LEAN” to “RICH” more than 5 times in 10 seconds.

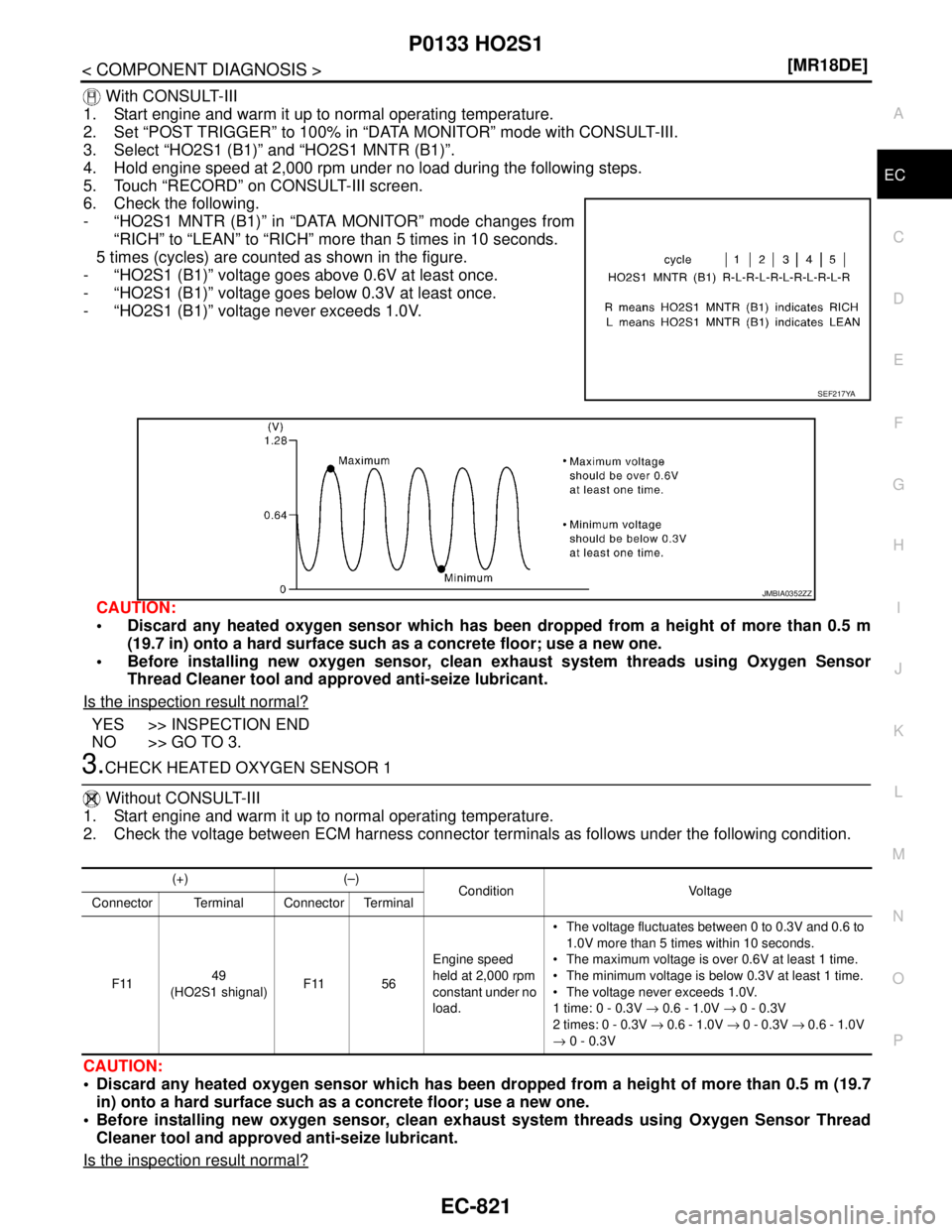

5 times (cycles) are counted as shown in the figure.
