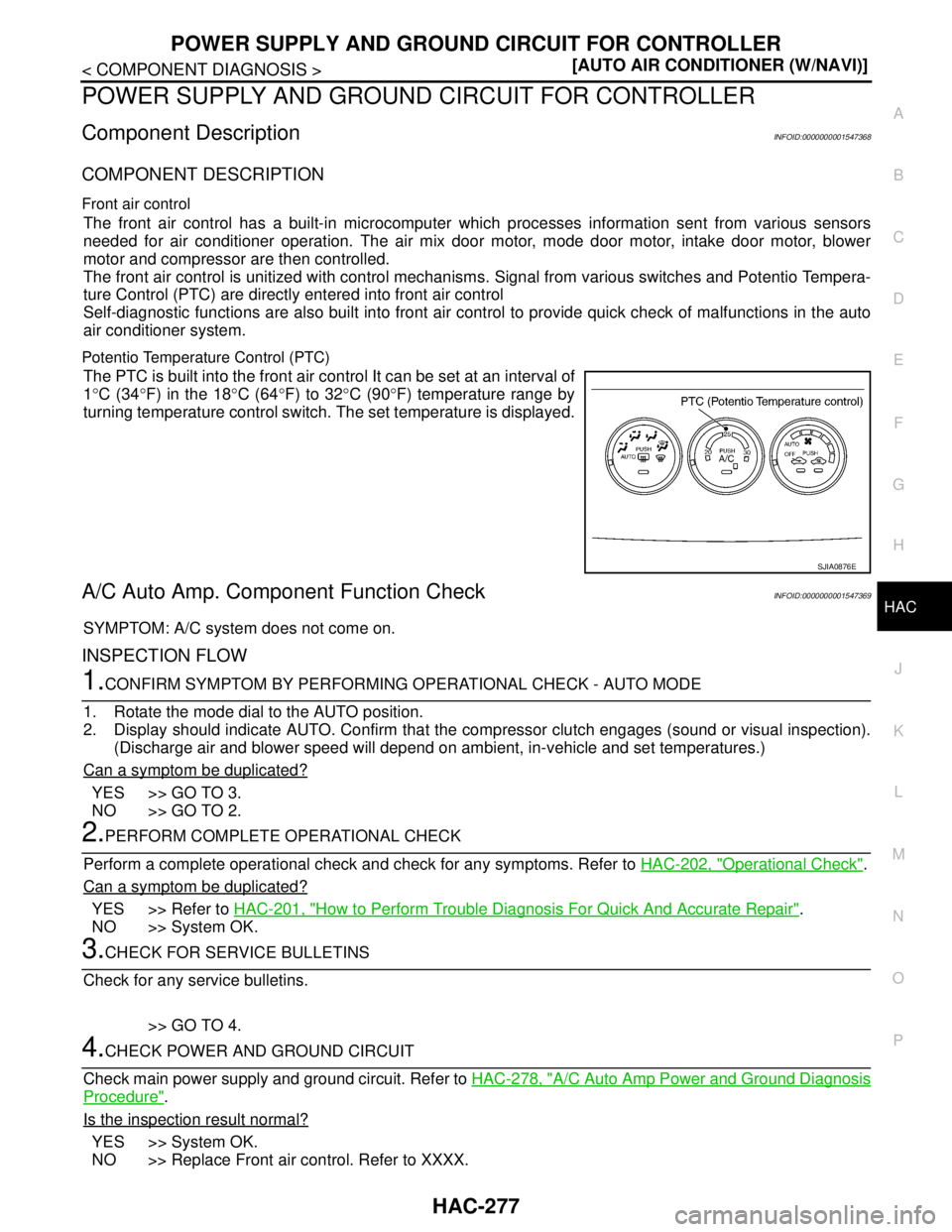

POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER
HAC-277
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER
Component DescriptionINFOID:0000000001547368
COMPONENT DESCRIPTION
Front air control
The front air control has a built-in microcomputer which processes information sent from various sensors
needed for air conditioner operation. The air mix door motor, mode door motor, intake door motor, blower
motor and compressor are then controlled.
The front air control is unitized with control mechanisms. Signal from various switches and Potentio Tempera-
ture Control (PTC) are directly entered into front air control
Self-diagnostic functions are also built into front air control to provide quick check of malfunctions in the auto
air conditioner system.
Potentio Temperature Control (PTC)
The PTC is built into the front air control It can be set at an interval of
1°C (34°F) in the 18°C (64°F) to 32°C (90°F) temperature range by
turning temperature control switch. The set temperature is displayed.
A/C Auto Amp. Component Function CheckINFOID:0000000001547369
SYMPTOM: A/C system does not come on.
INSPECTION FLOW
1.CONFIRM SYMPTOM BY PERFORMING OPERATIONAL CHECK - AUTO MODE
1. Rotate the mode dial to the AUTO position.
2. Display should indicate AUTO. Confirm that the compressor clutch engages (sound or visual inspection).
(Discharge air and blower speed will depend on ambient, in-vehicle and set temperatures.)
Can a symptom be duplicated?
YES >> GO TO 3.
NO >> GO TO 2.
2.PERFORM COMPLETE OPERATIONAL CHECK
Perform a complete operational check and check for any symptoms. Refer to HAC-202, "
Operational Check".
Can a symptom be duplicated?
YES >> Refer to HAC-201, "How to Perform Trouble Diagnosis For Quick And Accurate Repair".
NO >> System OK.
3.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 4.
4.CHECK POWER AND GROUND CIRCUIT
Check main power supply and ground circuit. Refer to HAC-278, "
A/C Auto Amp Power and Ground Diagnosis
Procedure".
Is the inspection result normal?
YES >> System OK.
NO >> Replace Front air control. Refer to XXXX.
SJIA0876E
Page 3611 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-278
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER
A/C Auto Amp Power and Ground Diagnosis Procedure
INFOID:0000000001547370
DIAGNOSTIC PROCE NISSAN TIIDA 2007 Service Repair Manual HAC-278
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER
A/C Auto Amp Power and Ground Diagnosis Procedure
INFOID:0000000001547370
DIAGNOSTIC PROCE](/manual-img/5/57395/w960_57395-3610.png)
HAC-278
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
POWER SUPPLY AND GROUND CIRCUIT FOR CONTROLLER
A/C Auto Amp Power and Ground Diagnosis Procedure
INFOID:0000000001547370
DIAGNOSTIC PROCEDURE FOR A/C SYSTEM
SYMPTOM: A/C system does not come on.
1.CHECK POWER SUPPLY CIRCUIT FOR FRONT AIR CONTROL.
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check voltage between front air control harness connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> Check 10A fuses Nos. 2, 13 and 16, located in the fuse block (J/B).
If fuses are OK, check harness for open circuit. Repair or replace if necessary.
If fuses are NG, replace fuse and check harness for short circuit. Repair or replace if necessary.
2.CHECK GROUND CIRCUIT FOR FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Check continuity between front air control harness connector
and ground.
OK or NG
OK >> Replace front air control Refer to XX.
NG >> Repair or replace harness.
SJIA0877E
Terminals Ignition switch position
(+) (-)
OFF ACC ON
Connector Terminal
Ground
front air control:
M8519Battery
voltageBattery
voltageBattery
voltage
11Approx.
0VApprox.
0VBattery
voltage
18Approx.
0VApprox.
0VBattery
voltage
SJIA0878E
Connector Terminal
GroundContinuity
front air control:
M8520 Yes
SJIA0879E
Page 3612 of 5883
![NISSAN TIIDA 2007 Service Repair Manual AIR CONDITIONER CONTROL
HAC-279
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
ECU DIAGNOSIS
AIR CONDITIONER CONTROL
Front Air Control Terminals Reference ValuesINFO NISSAN TIIDA 2007 Service Repair Manual AIR CONDITIONER CONTROL
HAC-279
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
ECU DIAGNOSIS
AIR CONDITIONER CONTROL
Front Air Control Terminals Reference ValuesINFO](/manual-img/5/57395/w960_57395-3611.png)

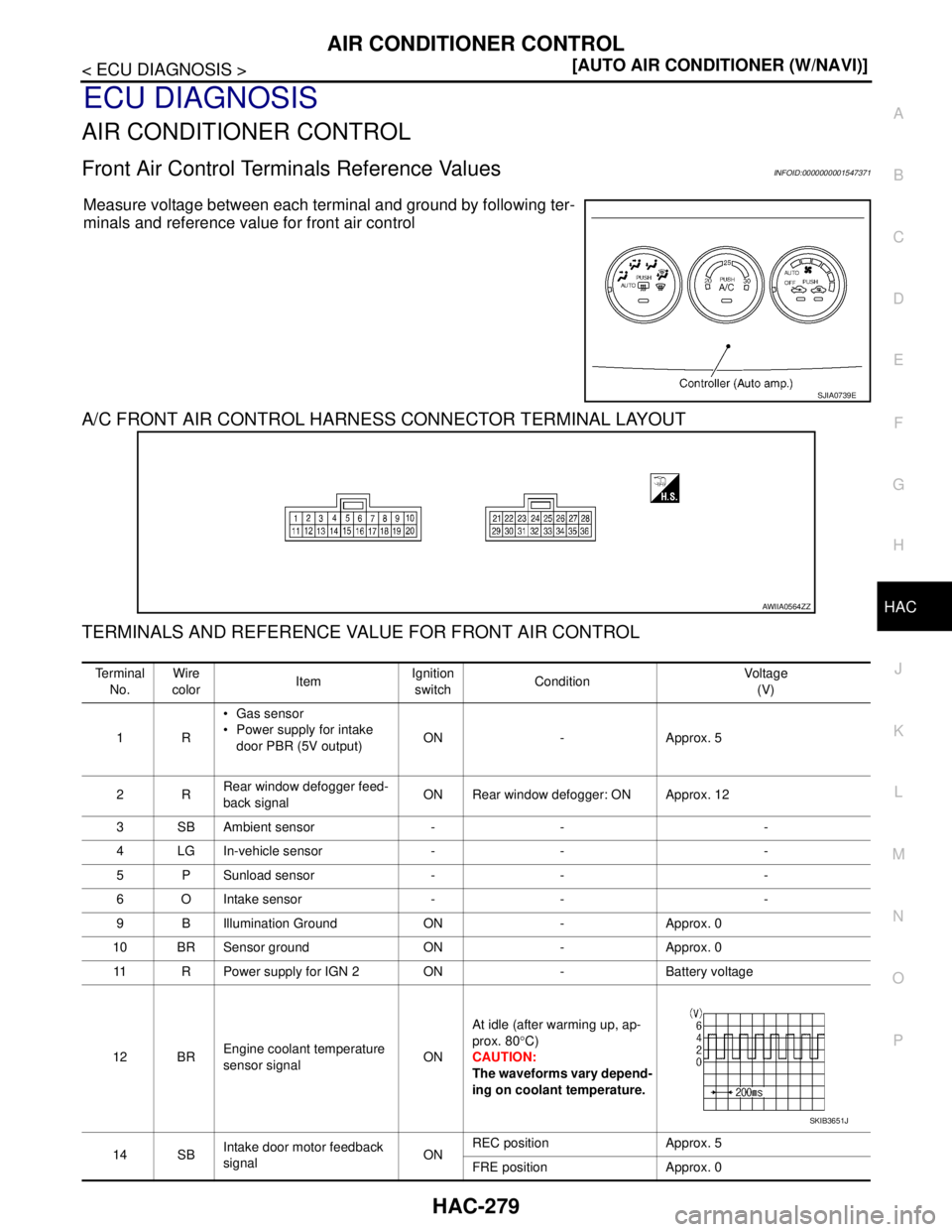

AIR CONDITIONER CONTROL
HAC-279
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
ECU DIAGNOSIS
AIR CONDITIONER CONTROL
Front Air Control Terminals Reference ValuesINFOID:0000000001547371
Measure voltage between each terminal and ground by following ter-
minals and reference value for front air control
A/C FRONT AIR CONTROL HARNESS CONNECTOR TERMINAL LAYOUT
TERMINALS AND REFERENCE VALUE FOR FRONT AIR CONTROL
SJIA0739E
AWIIA0564ZZ
Te r m i n a l
No.Wire
colorItemIgnition
switchConditionVo l ta g e
(V)
1R Gas sensor
Power supply for intake
door PBR (5V output)ON - Approx. 5
2RRear window defogger feed-
back signalON Rear window defogger: ON Approx. 12
3 SB Ambient sensor - - -
4 LG In-vehicle sensor - - -
5 P Sunload sensor - - -
6 O Intake sensor - - -
9 B Illumination Ground ON - Approx. 0
10 BR Sensor ground ON - Approx. 0
11 R Power supply for IGN 2 ON - Battery voltage
12 BREngine coolant temperature
sensor signalONAt idle (after warming up, ap-
prox. 80°C)
CAUTION:
The waveforms vary depend-
ing on coolant temperature.
14 SBIntake door motor feedback
signalONREC position Approx. 5
FRE position Approx. 0
SKIB3651J
Page 3613 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-280
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AIR CONDITIONER CONTROL
16 GR Illumination signal ON Light switch: ON Approx. 12
18 O Power supply for IGN 1 ON - Battery voltage
19 LG Power s NISSAN TIIDA 2007 Service Repair Manual HAC-280
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AIR CONDITIONER CONTROL
16 GR Illumination signal ON Light switch: ON Approx. 12
18 O Power supply for IGN 1 ON - Battery voltage
19 LG Power s](/manual-img/5/57395/w960_57395-3612.png)

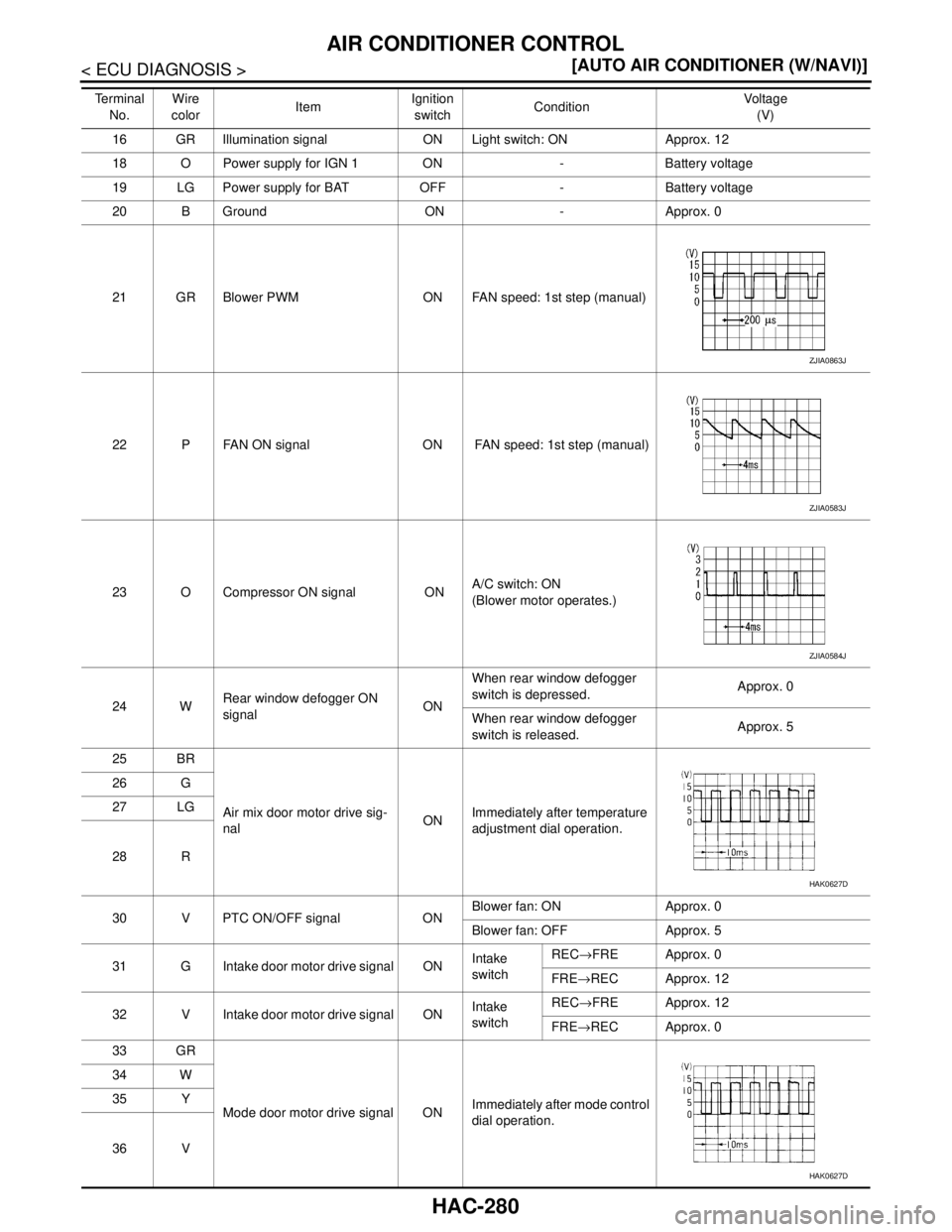

HAC-280
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AIR CONDITIONER CONTROL
16 GR Illumination signal ON Light switch: ON Approx. 12
18 O Power supply for IGN 1 ON - Battery voltage
19 LG Power supply for BAT OFF - Battery voltage
20 B Ground ON - Approx. 0
21 GR Blower PWM ON FAN speed: 1st step (manual)
22 P FAN ON signal ON FAN speed: 1st step (manual)
23 O Compressor ON signal ONA/C switch: ON
(Blower motor operates.)
24 WRear window defogger ON
signalONWhen rear window defogger
switch is depressed.Approx. 0
When rear window defogger
switch is released.Approx. 5
25 BR
Air mix door motor drive sig-
nalONImmediately after temperature
adjustment dial operation. 26 G
27 LG
28 R
30 V PTC ON/OFF signal ONBlower fan: ON Approx. 0
Blower fan: OFF Approx. 5
31 G Intake door motor drive signal ONIntake
switchREC→FRE Approx. 0
FRE→REC Approx. 12
32 V Intake door motor drive signal ONIntake
switchREC→FRE Approx. 12
FRE→REC Approx. 0
33 GR
Mode door motor drive signal ONImmediately after mode control
dial operation. 34 W
35 Y
36 V Te r m i n a l
No.Wire
colorItemIgnition
switchConditionVoltag e
(V)
ZJIA0863J
ZJIA0583J
ZJIA0584J
HAK0627D
HAK0627D
Page 3614 of 5883
AIR CONDITIONER CONTROL
HAC-281
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

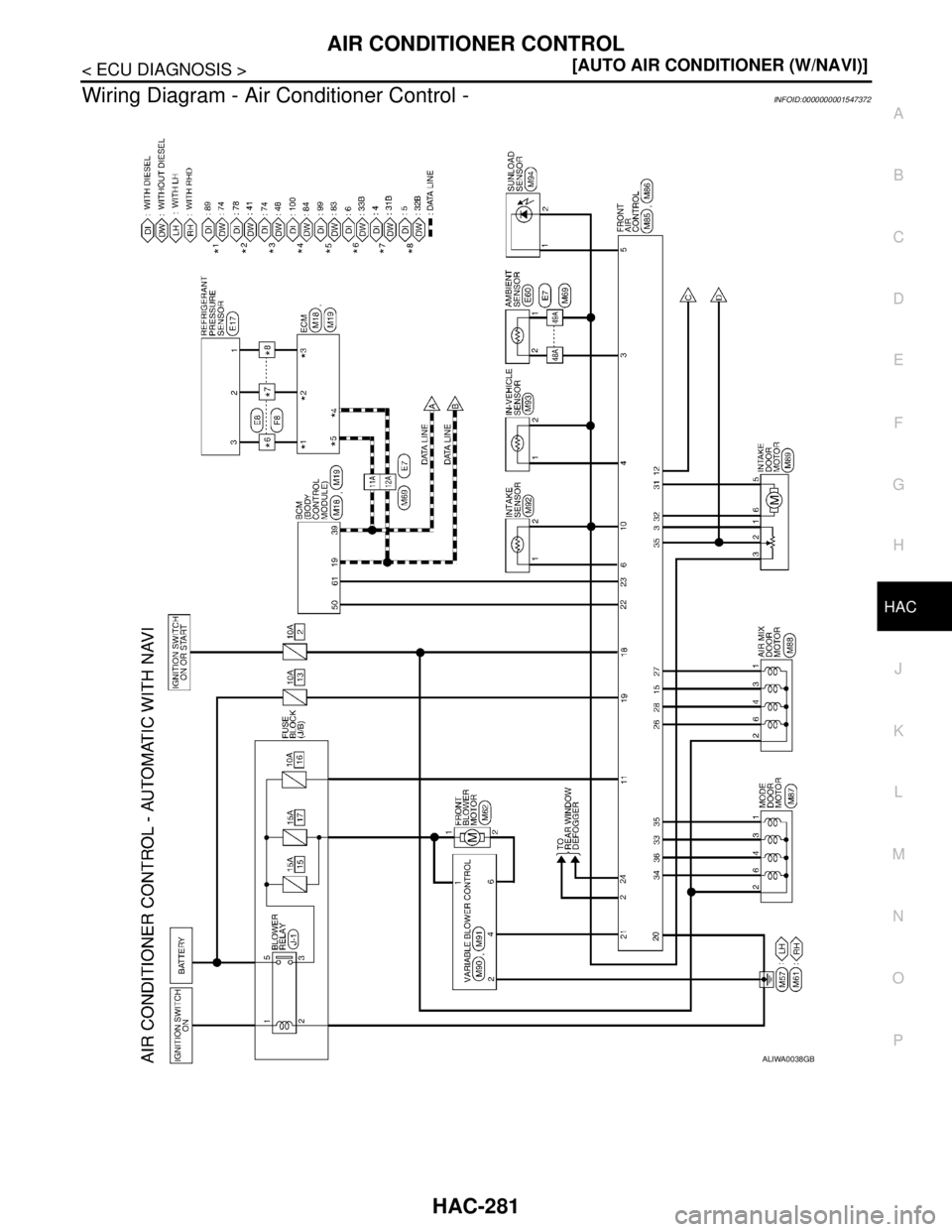

Wiring Diagram - Air Conditioner Control -INFOID:0000000001547372
ALIWA0038GB
Page 3615 of 5883
HAC-282
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AIR CONDITIONER CONTROL

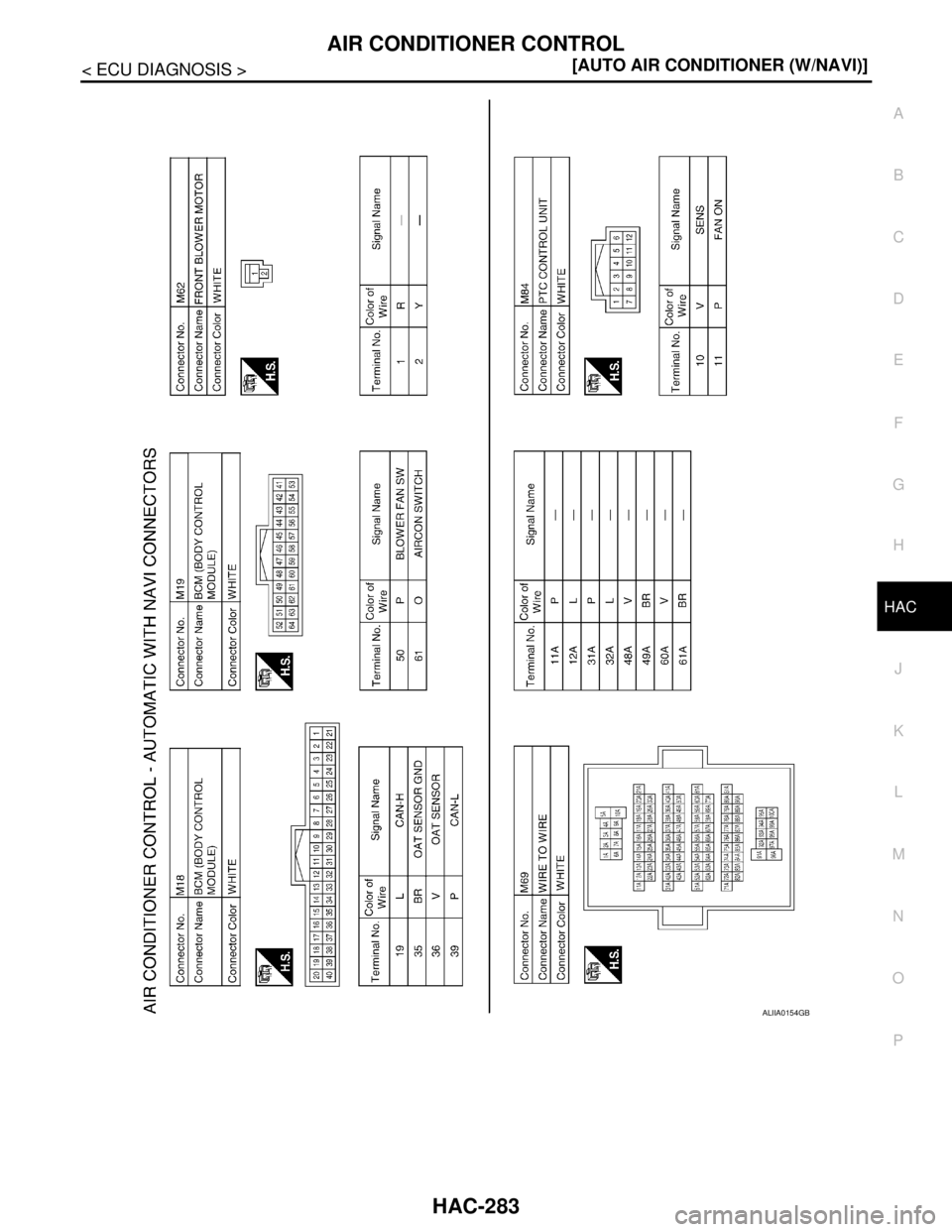

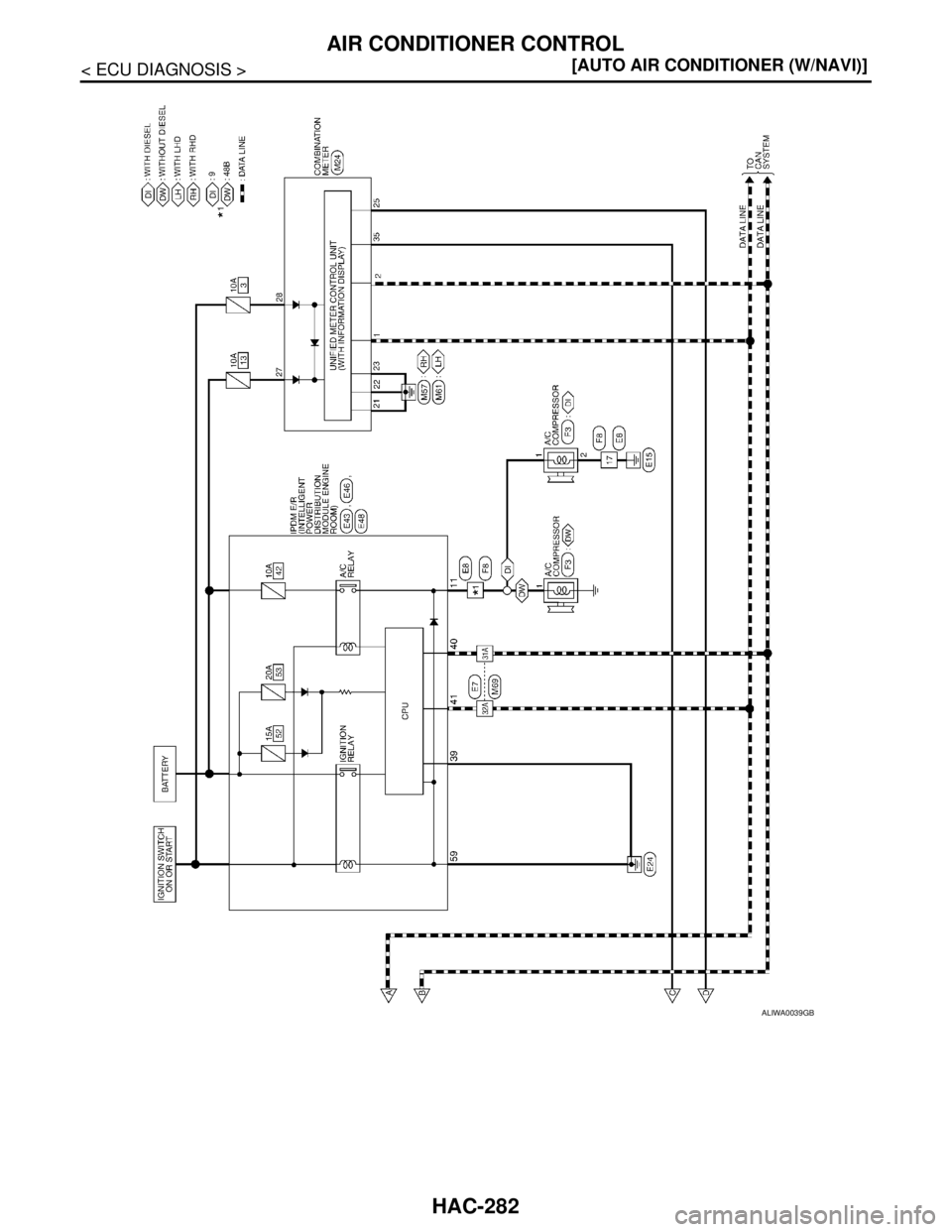

ALIWA0039GB
Page 3616 of 5883
AIR CONDITIONER CONTROL
HAC-283
< ECU DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
ALIIA0154GB
