NISSAN TIIDA 2007 Service Repair Manual A/T CONTROL SYSTEM
TM-343
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

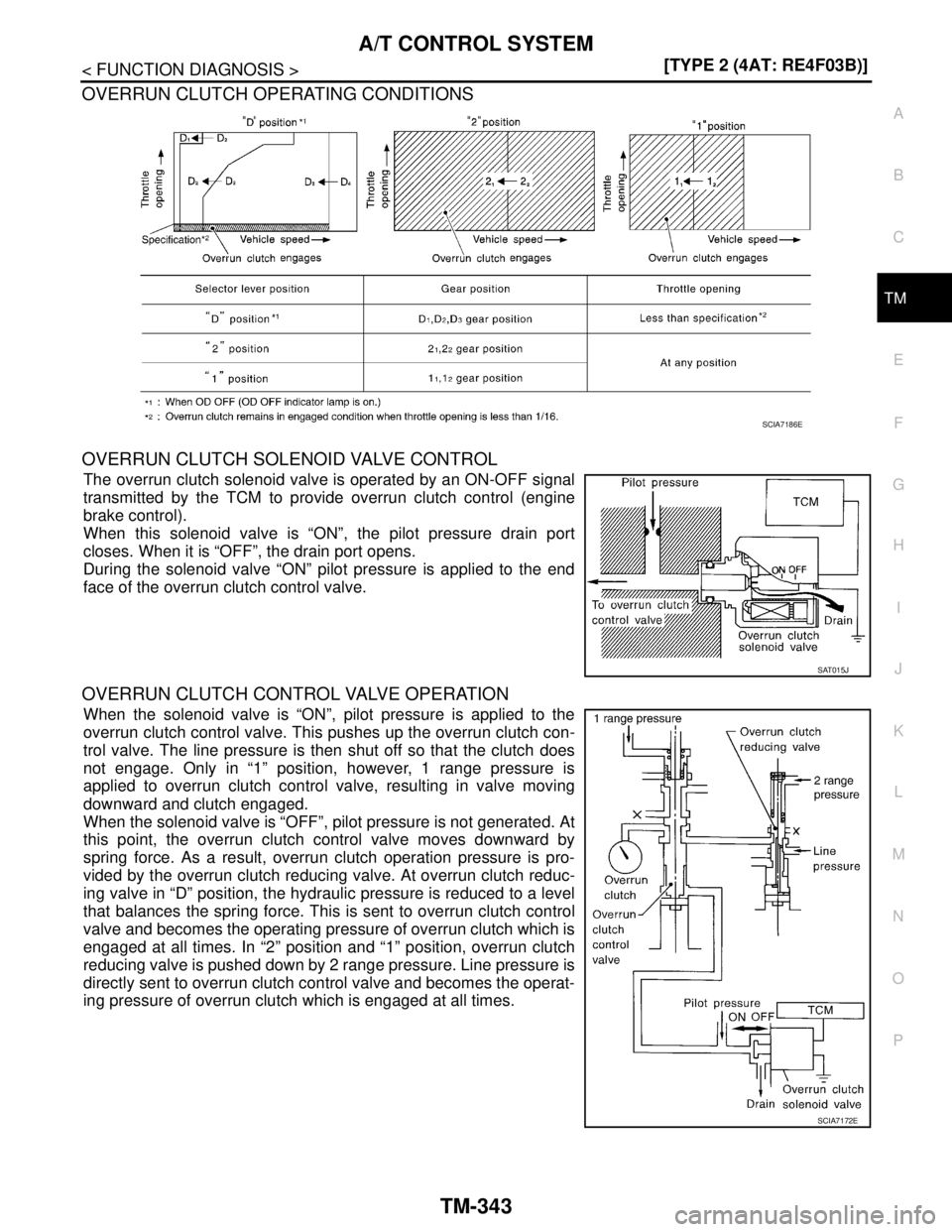

OVERRUN CLUTCH OPERATING CONDITIONS
OVERRUN CLUTCH SOLENOID VALVE CONTROL
The overrun clutch sol

Page 5290 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-344
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T CONTROL SYSTEM
Control Valve
INFOID:0000000001714318
FUNCTION OF CONTROL VALVES
Centrifugal Cancel MechanismINFOID:0000000001714319
FUNCTION
Th

TM-344
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T CONTROL SYSTEM
Control Valve
INFOID:0000000001714318
FUNCTION OF CONTROL VALVES

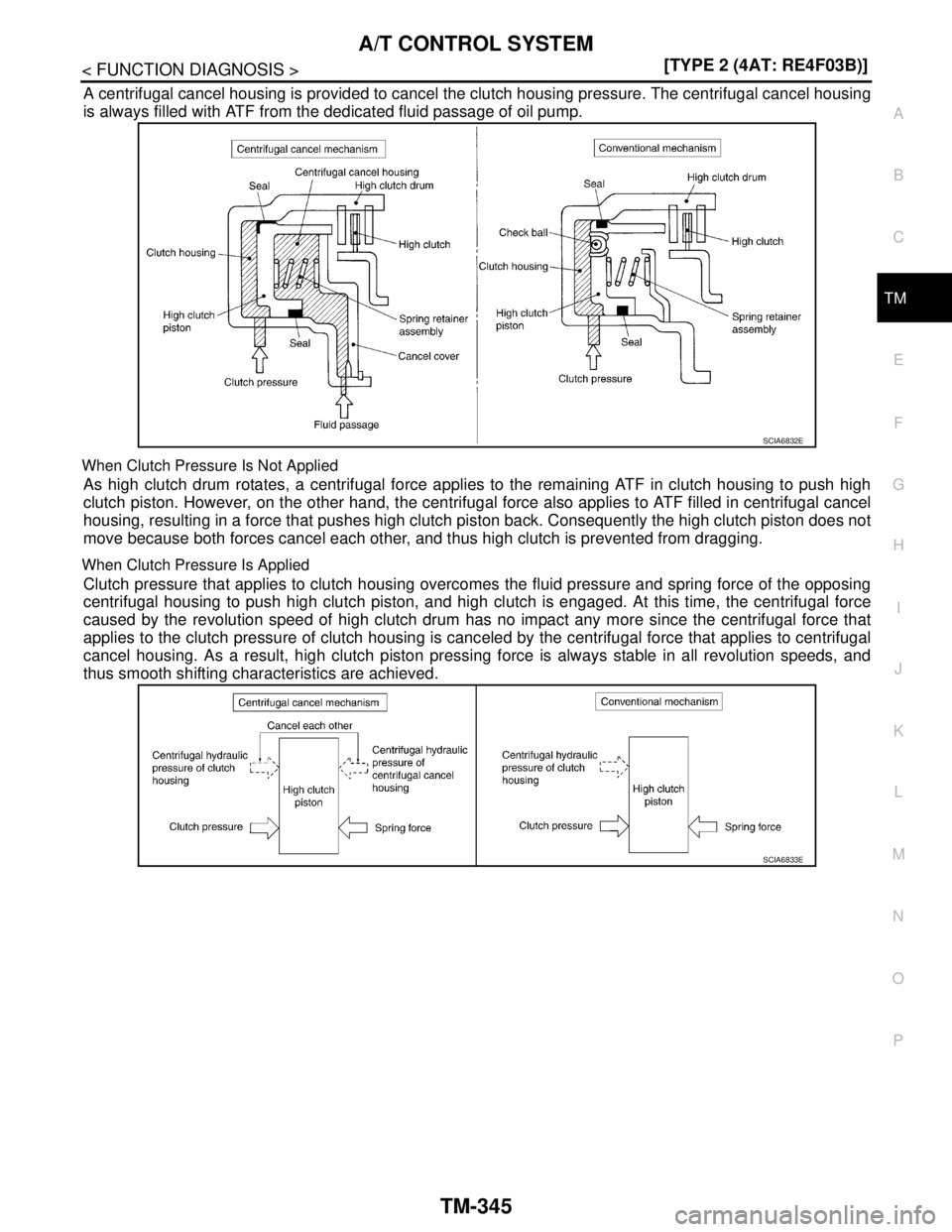

Centrifugal Cancel MechanismINFOID:0000000001714319
FUNCTION
The centrifugal cancel mechanism is a mechanism to cancel the centrifugal hydraulic pressure instead of the
conventional check balls. It cancels the centrifugal hydraulic pressure which is generated as high clutch drum
rotates, and it allows for preventing high clutch from dragging and for providing stable high clutch piston press-
ing force in all revolution speeds.
STRUCTURE/OPERATION
Valve name Function
Pressure regulator valve, plug and sleeve
plugRegulates oil discharged from the oil pump to provide optimum line pressure for all driving
conditions.
Pressure modifier valve and sleeve Used as a signal supplementary valve to the pressure regulator valve. Regulates pres-
sure-modifier pressure (signal pressure) which controls optimum line pressure for all driv-
ing conditions.
Pilot valve Regulates line pressure to maintain a constant pilot pressure level which controls lock-up
mechanism, overrun clutch, shift timing.
Accumulator control valve Regulates accumulator back-pressure to pressure suited to driving conditions.
Manual valve Directs line pressure to oil circuits corresponding to select positions.
Hydraulic pressure drains when the shift lever is in Neutral.
Shift valve A Simultaneously switches three oil circuits using output pressure of shift solenoid valve A
to meet driving conditions (vehicle speed, throttle opening, etc.).
Provides automatic downshifting and upshifting (1st → 2nd → 3rd → 4th gears/4th → 3rd
→ 2nd → 1st gears) in combination with shift valve B.
Shift valve B Simultaneously switches two oil circuits using output pressure of shift solenoid valve B in
relation to driving conditions (vehicle speed, throttle opening, etc.).
Provides automatic downshifting and upshifting (1st → 2nd → 3rd → 4th gears/4th → 3rd
→ 2nd → 1st gears) in combination with shift valve A.
Overrun clutch control valve Switches hydraulic circuits to prevent engagement of the overrun clutch simultaneously
with application of the brake band in D
4. (Interlocking occurs if the overrun clutch engages
during D
4.)
1st reducing valve Reduces low & reverse brake pressure to dampen engine-brake shock when downshift-
ing from the 1st position 1
2 to 11.
Overrun clutch reducing valve Reduces oil pressure directed to the overrun clutch and prevents engine-brake shock.
In the 1st and 2nd positions, line pressure acts on the overrun clutch reducing valve to
increase the pressure-regulating point, with resultant engine brake capability.
Torque converter relief valve Prevents an excessive rise in torque converter pressure.
Torque converter clutch control valve, plug
and sleeveActivates or inactivates the lock-up function.
Also provides smooth lock-up through transient application and release of the lock-up
system.
1-2 accumulator valve and piston Lessens the shock find when the 2nd gear band servo contracts, and provides smooth
shifting.
3-2 timing valve Switches the pace that oil pressure is released depending on vehicle speed; maximizes
the high clutch release timing, and allows for soft downshifting.
Shuttle valve Determines if the overrun clutch solenoid valve should control the 3-2 timing valve or the
overrun clutch control valve and switches between the two.
Cooler check valve At low speeds and with a small load when a little heat is generated, saves the volume of
cooler flow, and stores the oil pressure for lock-up.

Page 5291 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T CONTROL SYSTEM
TM-345
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A centrifugal cancel housing is provided to cancel the clutch housing pressure. The centrifugal

Page 5292 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-346
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T CONTROL SYSTEM

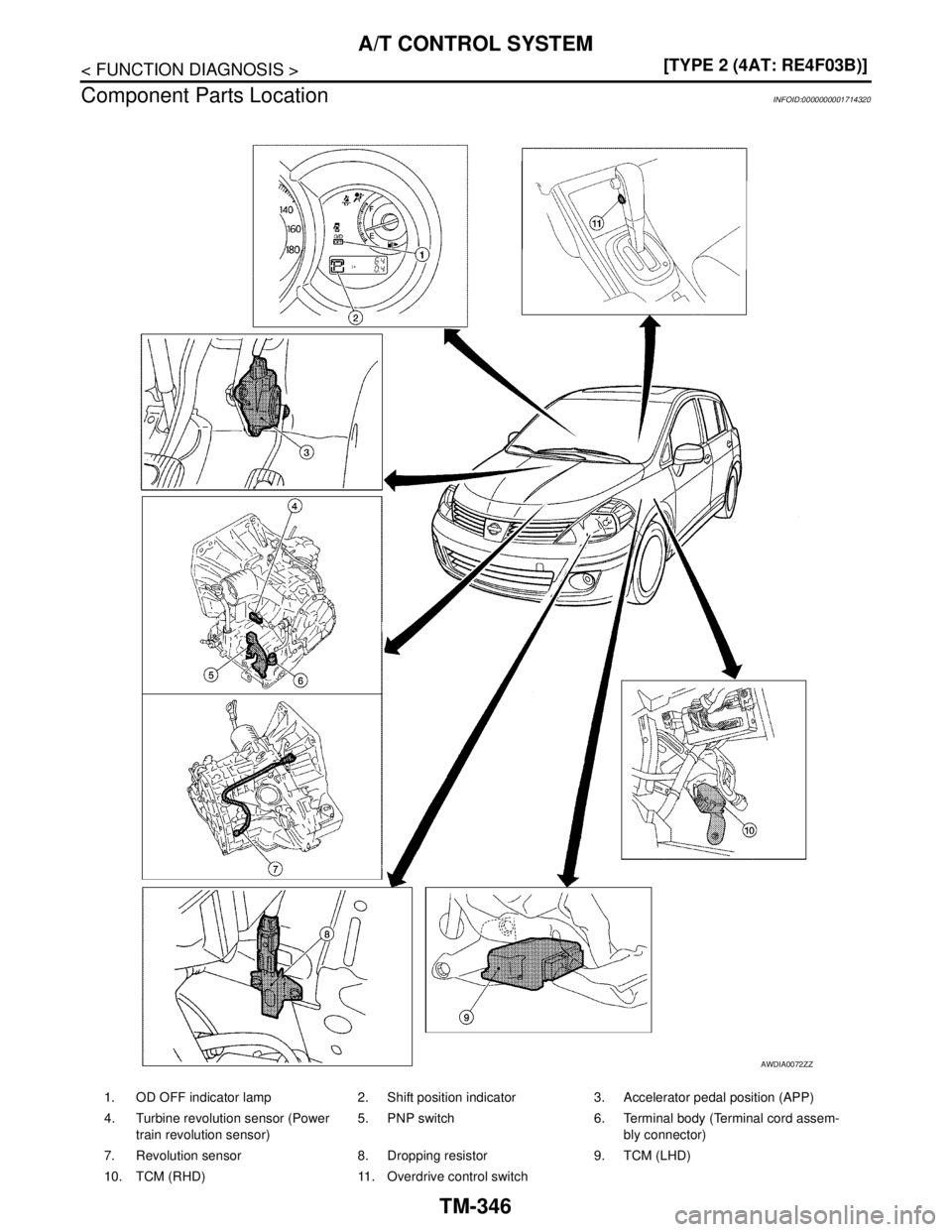

Component Parts Location
INFOID:0000000001714320
1. OD OFF indicator lamp 2. Shift position indicator 3. Accelerator pedal posit

Page 5293 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T SHIFT LOCK SYSTEM
TM-347
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T SHIFT LOCK SYSTEM
System DescriptionINFOID:0000000001714321
The mechanical key interloc

Page 5294 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-348
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS SYSTEM (TCM)
CONSULT-III Function (TRANSMISSION)INFOID:0000000001714329
CONSULT-III can display each diagnostic it

TM-348
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS SYSTEM (TCM)
CONSULT-III Function (TRANSMISSION)INFOID:0000000001714329
CONSULT-III can display each diagnostic item using the diagnostic test models shown following.
SELF-DIAGNOSTIC RESULT MODE
Operation Procedure
After performing TM-38, "Diagnosis Procedure without CONSULT-III", place check marks for results on the
XX-XX, "*****"
. Reference pages are provided following the items.
Display Items List
TCM diagnostic mode Description
WORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the TCM for setting the status
suitable for required operation, input/output signals are received from the TCM and received data is
displayed.
SELF-DIAG RESULTS Displays TCM self-diagnosis results.
DATA MONITOR Displays TCM input/output data in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
FUNCTION TEST Conducted by CONSULT-III instead of a technician to determine whether each system is “OK” or “NG”.
ECU PART NUMBER TCM part number can be read.
Items (CONSULT-III screen terms) Malfunction is detected when... Reference page
VHCL SPEED SEN-A/T TCM does not receive the proper voltage signal from the sensor.XX-XX, "*****"
VHCL SPEED SEN-MTR TCM does not receive the proper voltage signal from the sensor.XX-XX, "*****"
SHIFT SOLENOID/V A TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.XX-XX, "*****"
SHIFT SOLENOID/V B TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.XX-XX, "*****"
OVERRUN CLUTCH S/V TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.XX-XX, "*****"
T/C CLUTCH SOL/V TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.XX-XX, "*****"
BATT/FLUID TEMP SEN TCM receives an excessively low or high voltage from the sensor.XX-XX, "*****"
ENGINE SPEED SIG TCM does not receive the proper voltage signal from the ECM.XX-XX, "*****"
TURBINE SENSOR TCM does not receive proper voltage signal from sensor.XX-XX, "*****"
LINE PRESSURE S/V TCM detects an improper voltage drop when it tries to operate the sole-
noid valve.XX-XX, "*****"
CAN COMM CIRCUIT When malfunction is detected in CAN communication line.XX-XX, "*****"
A/T 1ST GR FNCTN A/T cannot be shifted to the 1st gear position even if electrical circuit is
good.XX-XX, "*****"
A/T 2ND GR FNCTN A/T cannot be shifted to the 2nd gear position even if electrical circuit is
good.XX-XX, "*****"
A/T 3RD GR FNCTN A/T cannot be shifted to the 3rd gear position even if electrical circuit is
good.XX-XX, "*****"
A/T 4TH GR FNCTN A/T cannot be shifted to the 4th gear position even if electrical circuit is
good.XX-XX, "*****"
A/T TCC S/V FNCTN A/T cannot perform lock-up even if electrical circuit is good.XX-XX, "*****"
CONTROL UNIT (RAM) TCM memory (RAM) is malfunctioning.XX-XX, "*****"
CONTROL UNIT (ROM) TCM memory (ROM) is malfunctioning.XX-XX, "*****"

Page 5295 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS SYSTEM (TCM)
TM-349
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DATA MONITOR MODE
Display Items List
X: Standard, —: Not applicable, : Option
INITIAL ST

Page 5296 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-350
< FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
DIAGNOSIS SYSTEM (TCM)
Diagnosis Procedure without CONSULT-III
INFOID:0000000001714330
TCM SELF-DIAGNOSTIC PROCEDURE
Description
If a malfunction
