Page 1073 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-484
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
WARNING FUNCTION
Component Description
INFOID:0000000001397015
Item Function
BCM Controls the warning function.
Combination meter Sounds the

Page 1074 of 5883

NISSAN TIIDA 2007 Service Repair Manual HAZARD REMINDER FUNCTION
DLK-485
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
HAZARD REMINDER FUNCTION

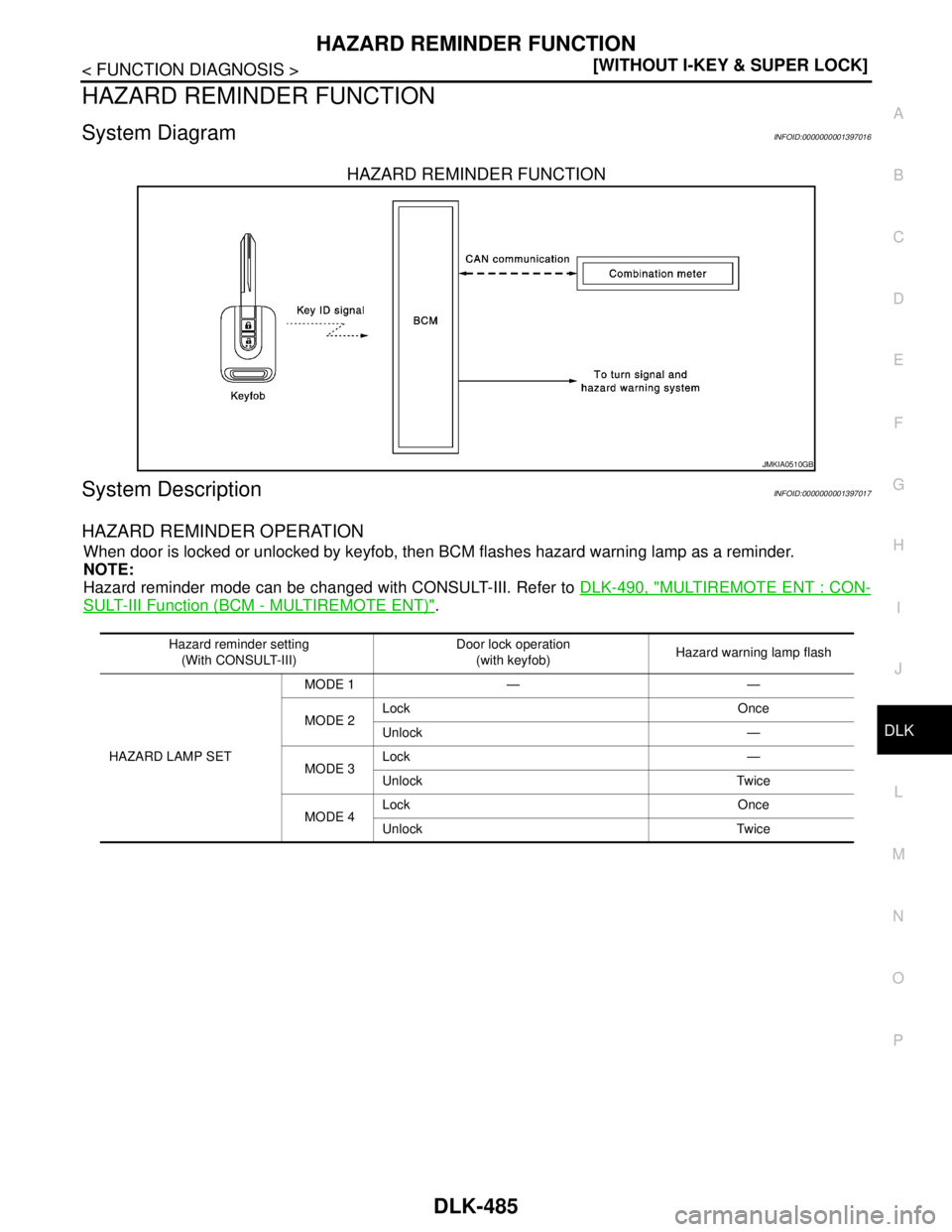

System DiagramINFOID:0000000001397016
HAZARD REMINDER FUNC

Page 1075 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-486
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
HAZARD REMINDER FUNCTION

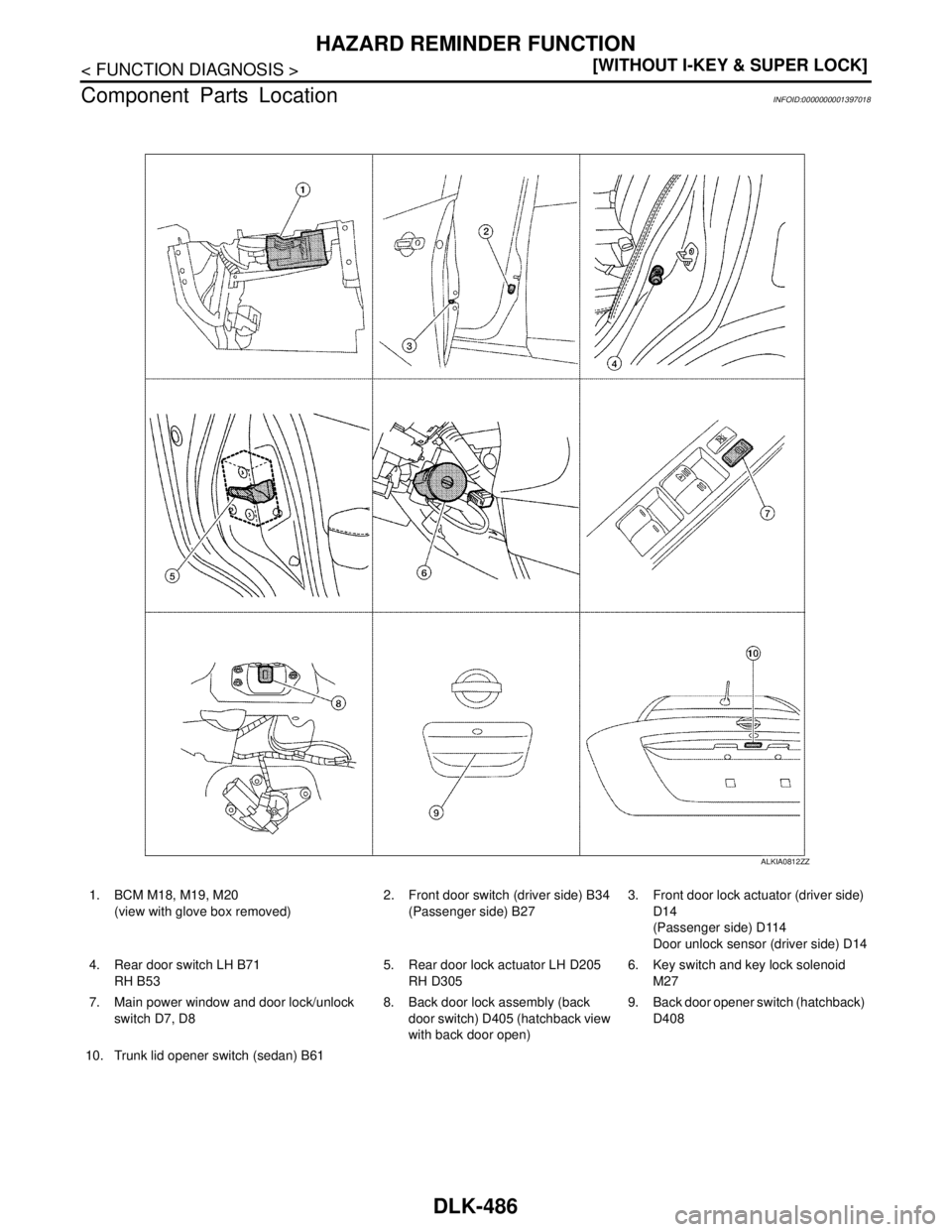

Component Parts Location
INFOID:0000000001397018
ALKIA0812ZZ
1. BCM M18, M19, M20
(view with glove box removed)2. Fr

Page 1076 of 5883

NISSAN TIIDA 2007 Service Repair Manual HAZARD REMINDER FUNCTION
DLK-487
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Component DescriptionINFOID:0000000001397019
Item Function
BCM Controls the hazard

Page 1077 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-488
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)INFOID:0000000001397020
APPLI

Page 1078 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS SYSTEM (BCM)
DLK-489
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
MULTIREMOTE ENT
Diagnosis mode Function Descrip

DIAGNOSIS SYSTEM (BCM)
DLK-489
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
MULTIREMOTE ENT
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
Monitor Item Condition
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
CDL LOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
BACK DOOR OPNR SW Indicates [ON/OFF] condition of back door opener switch.
KEYLESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
UNLOCK WITH DR This item is indicated, but not monitored.
UNLOCK SHOCKIndicates [ON/OFF] condition of signal from air bag diagnosis unit.
ON: During the unlock operation interlock with air bag.
OFF: Other than above.
SHOCK SENSORIndicates [NOMAL/ON/OFF] condition of circuit between BCM and air bag diagnosis sen-
sor unit.
NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag di-
agnosis sensor unit.)
ON: During the receiving of air bag deployment signal from air bag diagnosis sensor
unit.
OFF: After the receiving of air bag deployment signal from air bag diagnosis sensor unit.
VEHICLE SPEEDDisplays the vehicle speed signal received from combination meter by numerical value
[km/h].
Test item Description
DOOR LOCK INDThis test is able to check door lock indicator (built in door lock and unlock switch on center
console) operation [ON/OFF].
DOOR LOCKThis test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].
Test item Description
SECURITY DOOR LOCK SETAnti hijack function mode can be changed in this mode.
ON: Anti hijack mode is active.
OFF: Anti hijack mode is inactive.

Page 1079 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-490
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS SYSTEM (BCM)
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)
INFOID:0000000001397022
BCM CONSULT-III FUNCTION
CONSUL

DLK-490
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS SYSTEM (BCM)
MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)
INFOID:0000000001397022
BCM CONSULT-III FUNCTION
CONSULT-III performs the following functions via CAN communication with BCM.
DATA MONITOR
ACTIVE TEST
WORK SUPPORT
Diagnosis mode Function Description
WORK SUPPORT Changes the setting for each system function.
DATA MONITOR The BCM input/output signals are displayed.
ACTIVE TEST The signals used to activate each device are forcibly supplied from BCM.
Monitor Item Condition
IGN ON SW Indicates [ON/OFF] condition of ignition switch in ON position.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
KEYKESS LOCK Indicates [ON/OFF] condition of lock signal from key fob.
KEYLESS UNLOCK Indicates [ON/OFF] condition of unlock signal from key fob.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch (driver side).
DOOR SW-AS Indicates [ON/OFF] condition of front door switch (passenger side).
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW Indicates [ON/OFF] condition of back door switch.
CDL LOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
CDL UNLOCK SW Indicates [ON/OFF] condition of door lock and unlock switch.
RKE LOCK AND UNLOCK This item is indicated, but not monitored.
KEYFOB 1 Indicates [ON/OFF] condition of remote controller ID code registration.
KEYFOB 2 Indicates [ON/OFF] condition of remote controller ID code registration.
KEYFOB 3 Indicates [ON/OFF] condition of remote controller ID code registration.
KEYFOB 4 Indicates [ON/OFF] condition of remote controller ID code registration.
KEYFOB 5 Indicates [ON/OFF] condition of remote controller ID code registration.
Test item Description
DOOR LOCKThis test is able to check warning chime in combination meter operation. [ALL LOCK/ALL UN-
LOCK/DR UNLOCK/OTHER UNLOCK]
INT LAMP This test is able to check interior lamp operation [ON/OFF].
FLASHER This test is able to check flasher operation [LH/RH/OFF].
Test item Description
HAZARD LAMP SETAnswer back function (hazard) mode can be changed in this mode.
For the detail of the setting, refer to DLK-485, "
System Description".
AUTO LOCK SETAuto relock time can be changed in this mode.
MODE 1: 1 minute
MODE 2: 2 minutes
MODE 3: 3 minutes
MODE 4: 4 minutes
MODE 5: 5 minutes

Page 1080 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS SYSTEM (BCM)
DLK-491
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK
TRUNK : CONSULT-III Function (BCM - TRUNK)INFOID:0000000001397023
APPLICATION I
