EC-228
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1124, P1126 THROTTLE CONTROL MOTOR RELAY
P1124, P1126 THROTTLE CONTROL MOTOR RELAY
DescriptionINFOID:0000000001670996
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
DTC LogicINFOID:0000000001670997
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.
Witch DTC is detected?
P1126 >> GO TO 2.
P1124 >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P1126
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES >> Go to EC-228, "Diagnosis Procedure".
NO >> INSPECTION END
3.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P1124
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-228, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001670998
1.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Turn ignition switch OFF.
2. Check the voltage between ECM harness connector terminals as follows.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1124Throttle control motor
relay circuit openECM detects a voltage of power source for
throttle control motor is excessively low. Harness or connectors
(Throttle control motor relay circuit is
open)
Throttle control motor relay
P1126Throttle control motor
relay circuit shortECM detect the throttle control motor relay is
stuck ON. Harness or connectors
(Throttle control motor relay circuit is
shorted)
Throttle control motor relay
Page 1578 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-229
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK NISSAN TIIDA 2007 Service Repair Manual P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-229
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK](/manual-img/5/57395/w960_57395-1577.png)
P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-229
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between ECM harness connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E8, F8
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness connectors.
4.CHECK FUSE
1. Disconnect 15A fuse (No. 52) from IPDM E/R.
2. Check 15A fuse for blown.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace 15A fuse.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Check the voltage between ECM harness connector terminals as follows.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Check the continuity between ECM harness connector and IPDM E/R harness connector.
2. Also check harness for short to ground and short to power.
(+) (–)
Vo l ta g e
Connector Terminal Connector Terminal
F10 15 E16 108 Battery voltage
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
E46 46 F10 15 Existed
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F10 2 E16 108Ignition switch OFF Approx. 0V
Ignition switch ON Battery voltage
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
E43 8 F10 2 Existed
Page 1579 of 5883
EC-230
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1124, P1126 THROTTLE CONTROL MOTOR RELAY
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E8, F8
Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> Replace IPDM E/R.
NO >> Repair or replace harness or connectors.
Page 1580 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P1128 THROTTLE CONTROL MOTOR
EC-231
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1128 THROTTLE CONTROL MOTOR
DescriptionINFOID:0000000001670999
The throttle control NISSAN TIIDA 2007 Service Repair Manual P1128 THROTTLE CONTROL MOTOR
EC-231
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1128 THROTTLE CONTROL MOTOR
DescriptionINFOID:0000000001670999
The throttle control](/manual-img/5/57395/w960_57395-1579.png)
P1128 THROTTLE CONTROL MOTOR
EC-231
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1128 THROTTLE CONTROL MOTOR
DescriptionINFOID:0000000001670999
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
DTC LogicINFOID:0000000001671000
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES >> Go to EC-231, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001671001
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.
3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1128Throttle control motor
circuit shortECM detects short in both circuits between
ECM and throttle control motor. Harness or connectors
(Throttle control motor circuit is shorted.)
Electric throttle control actuator
(Throttle control motor)
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F75
F101 Not existed
4 Existed
61 Existed
4 Not existed
Page 1581 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-232
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1128 THROTTLE CONTROL MOTOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> NISSAN TIIDA 2007 Service Repair Manual EC-232
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1128 THROTTLE CONTROL MOTOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >>](/manual-img/5/57395/w960_57395-1580.png)
EC-232
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1128 THROTTLE CONTROL MOTOR
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace.
3.CHECK THROTTLE CONTROL MOTOR
Refer to EC-232, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harness or connectors.
5.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-232, "
Special Repair Requirement".
>> INSPECTION END
Component InspectionINFOID:0000000001671002
1.CHECK THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.
2. Check resistance between electric throttle control actuator terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-232, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001671003
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 2
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
Terminals Resistance
5 and 6 Approx. 1 - 15 Ω [at 25 °C (77°F)]
Page 1582 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P1143 HO2S1
EC-233
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1143 HO2S1
DescriptionINFOID:0000000001671004
The heated oxygen sensor 1 is placed into the exhaust NISSAN TIIDA 2007 Service Repair Manual P1143 HO2S1
EC-233
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1143 HO2S1
DescriptionINFOID:0000000001671004
The heated oxygen sensor 1 is placed into the exhaust](/manual-img/5/57395/w960_57395-1581.png)
P1143 HO2S1
EC-233
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1143 HO2S1
DescriptionINFOID:0000000001671004
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the

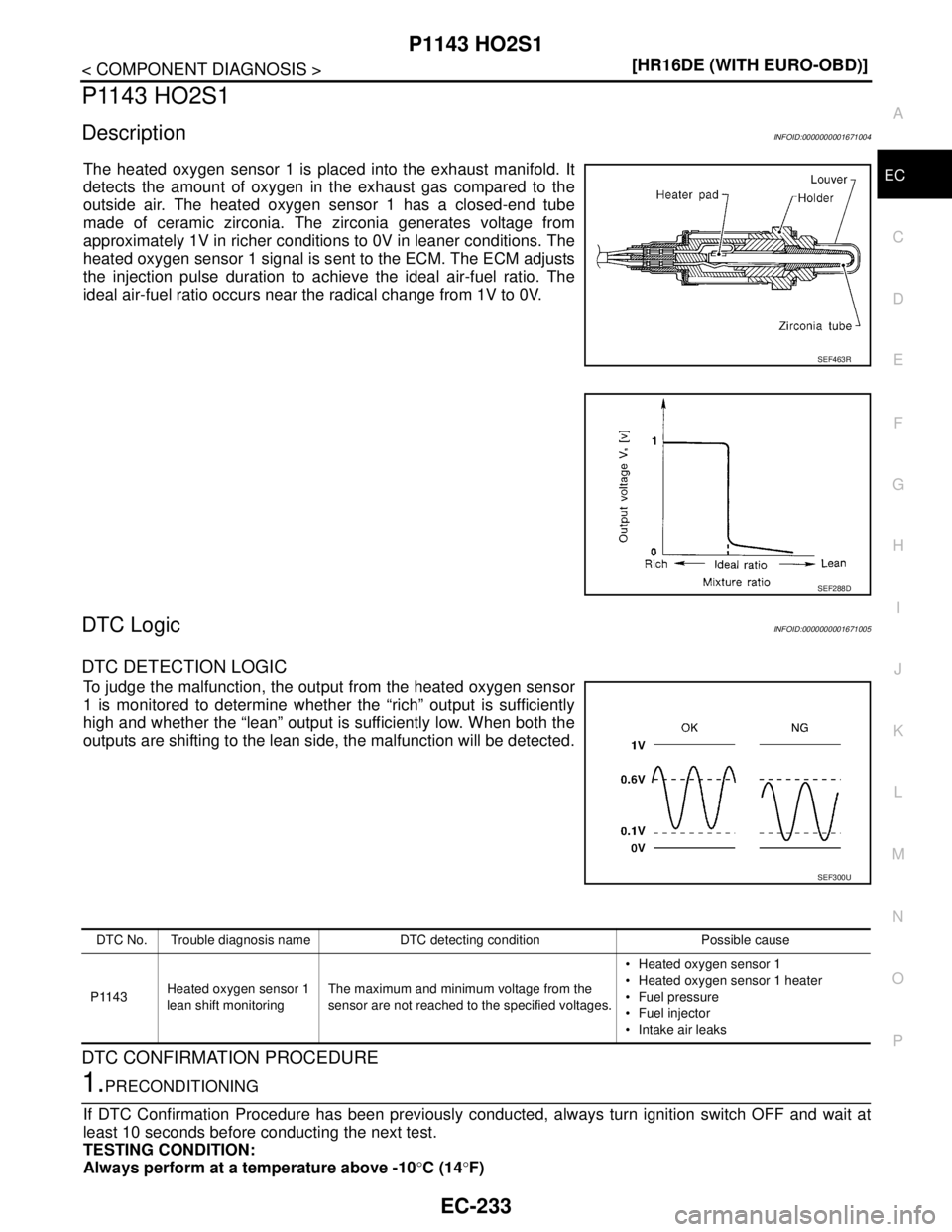

outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.
DTC LogicINFOID:0000000001671005
DTC DETECTION LOGIC
To judge the malfunction, the output from the heated oxygen sensor
1 is monitored to determine whether the “rich” output is sufficiently
high and whether the “lean” output is sufficiently low. When both the
outputs are shifting to the lean side, the malfunction will be detected.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform at a temperature above -10°C (14°F)
SEF463R
SEF288D
SEF300U
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1143Heated oxygen sensor 1
lean shift monitoringThe maximum and minimum voltage from the
sensor are not reached to the specified voltages. Heated oxygen sensor 1
Heated oxygen sensor 1 heater
Fuel pressure
Fuel injector
Intake air leaks
Page 1583 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-234
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1143 HO2S1
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Do you have CONSULT-III?
YES >> GO NISSAN TIIDA 2007 Service Repair Manual EC-234
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1143 HO2S1
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Do you have CONSULT-III?
YES >> GO](/manual-img/5/57395/w960_57395-1582.png)
EC-234
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1143 HO2S1
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and wait at least 10 seconds.
3. Turn ignition switch ON and select “HO2S1 (B1) P1143” of “HO2S1” in “DTC WORK SUPPORT” mode
with CONSULT-III.
4. Touch “START”.
5. Start engine and let it idle for at least 3 minutes.
NOTE:
Never raise engine speed above 3,600 rpm after this step. If the engine speed limit is exceeded,
return to step 5.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-III screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take approximately 50
seconds or more.)
CAUTION:
Always drive vehicle at a safe speed.
If “TESTING” is not displayed after 5 minutes, retry from step 2.
7. Touch “SELF-DIAG RESULT”
Which is displayed on CONSULT-III screen?
OK >> INSPECTION END
NG >> Go to EC-234, "
Diagnosis Procedure".
3.PERFORM COMPONENT FUNCTION CHECK
With GST
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM harness connector terminals as follows under the following condition.
NOTE:
Use component function check to check the overall function of the heated oxygen sensor 1 circuit. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-234, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001671006
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
ENG SPEED 1,375 - 2,600 rpm
VHCL SPEED SE Less than 100 km/h (62 MPH)
B/FUEL SCHDL 3.7 - 10.0 msec
Shift lever Suitable position
ECM Ground
Condition Voltage
Connector Terminal Connector Terminal
F1149
(HO2S1 signal)F11 56Engine speed held at
2,000 rpm constant under
no load The maximum voltage is over 0.6 at least 1
time.
The minimum voltage is over 0.1 at least 1
time.
Page 1584 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P1143 HO2S1
EC-235
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen NISSAN TIIDA 2007 Service Repair Manual P1143 HO2S1
EC-235
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen](/manual-img/5/57395/w960_57395-1583.png)
P1143 HO2S1
EC-235
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen and retighten heated oxygen sensor 1. Refer to EM-159, "
Removal and Installation".
>> GO TO 3.
3.CLEAR THE SELF-LEARNING DATA
1. Clear mixture ratio self-learning value, refer to EC-29, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 detected or difficult to start engine?
Yes >> Perform trouble diagnosis for DTC P0171. Refer to EC-179, "DTC Logic".
No >> GO TO 4.
4.CHECK HEATED OXYGEN SENSOR 1 HEATER
Refer to EC-164, "
Component Inspection".
Is inspection result normal?
YES >> GO TO 5.
NO >> Replace heated oxygen sensor 1.
5.CHECK INTERMITTENT INCIDENT
Perform GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace.
6.REPLACE HEATED OXYGEN SENSOR 1
Replace heated oxygen sensor 1.
>> INSPECTION END
Component InspectionINFOID:0000000001671007
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK HEATED OXYGEN SENSOR 1
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Set “POST TRIGGER” to 100% in “DATA MONITOR” mode with CONSULT-III.
3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the following steps.
5. Touch “RECORD” on CONSULT-III screen.
