NISSAN TIIDA 2007 Service Repair Manual EC-252
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1147 HO2S2
CAN NOT BE DIAGNOSED>>GO TO 10.
10.PERFORM PROCEDURE FOR COND3-II
1. Turn ignition switch OFF and leave the vehicle in a cool place (

EC-252
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1147 HO2S2
CAN NOT BE DIAGNOSED>>GO TO 10.
10.PERFORM PROCEDURE FOR COND3-II
1. Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).
2. Turn ignition switch ON and select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT-III.
3. Start engine and warm it up while monitoring “COOLAN TEMP/S” indication on CONSULT-III.
4. When “COOLAN TEMP/S” indication reaches to 70°C (158°F).
>> GO TO 5.
11 .PREFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-245, "
Component Function Check".
NOTE:
Use component function check the overall function of the heated oxygen sensor 2 circuit. During this check, a
1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-253, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000001671019
1.PERFORM COMPONENT FUNCTION CHECK-I
Without CONSULT-III
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.PERFORM COMPONENT FUNCTION CHECK-II
Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 3.
3.PERFORM COMPONENT FUNCTION CHECK-III
Check the voltage between ECM harness connector terminals as follows under the following condition.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Revving up to 4,000 rpm under no
load at least 10 timesThe voltage should be above 0.68V
at least once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Keeping engine speed at idle for 10
minutesThe voltage should be above 0.68V
at least once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Coasting from 80 km/h (50 MPH) in D
position (A/T), 4th gear position (M/T)The voltage should be above 0.68V
at least once during this procedure.

Page 1602 of 5883

NISSAN TIIDA 2007 Service Repair Manual P1147 HO2S2
EC-253
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Always drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go

P1147 HO2S2
EC-253
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Always drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-253, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001671020
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CLEAR THE SELF-LEARNING DATA
1. Clear mixture ratio self-learning value, refer to EC-29, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0172 detected? Is it difficult to start engine?
YES >> Perform trouble diagnosis for DTC P0172. Refer to EC-183, "DTC Logic".
NO >> GO TO 3.
3.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check the continuity between HO2S2 harness connector and ECM harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between HO2S2 harness connector and ECM harness connector.
2. Check the continuity between HO2S2 harness connector or ECM harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK HEATED OXYGEN SENSOR 2
HO2S2 ECM
Continuity
Connector Terminal Connector Terminal
F13 1 F11 59 Existed
HO2S2 ECM
Continuity
Connector Terminal Connector Terminal
F13 4 F11 50 Existed
HO2S2 ECM
Ground Continuity
Connector Terminal Connector Terminal
F13 4 F11 50 Ground Not existed

Page 1603 of 5883

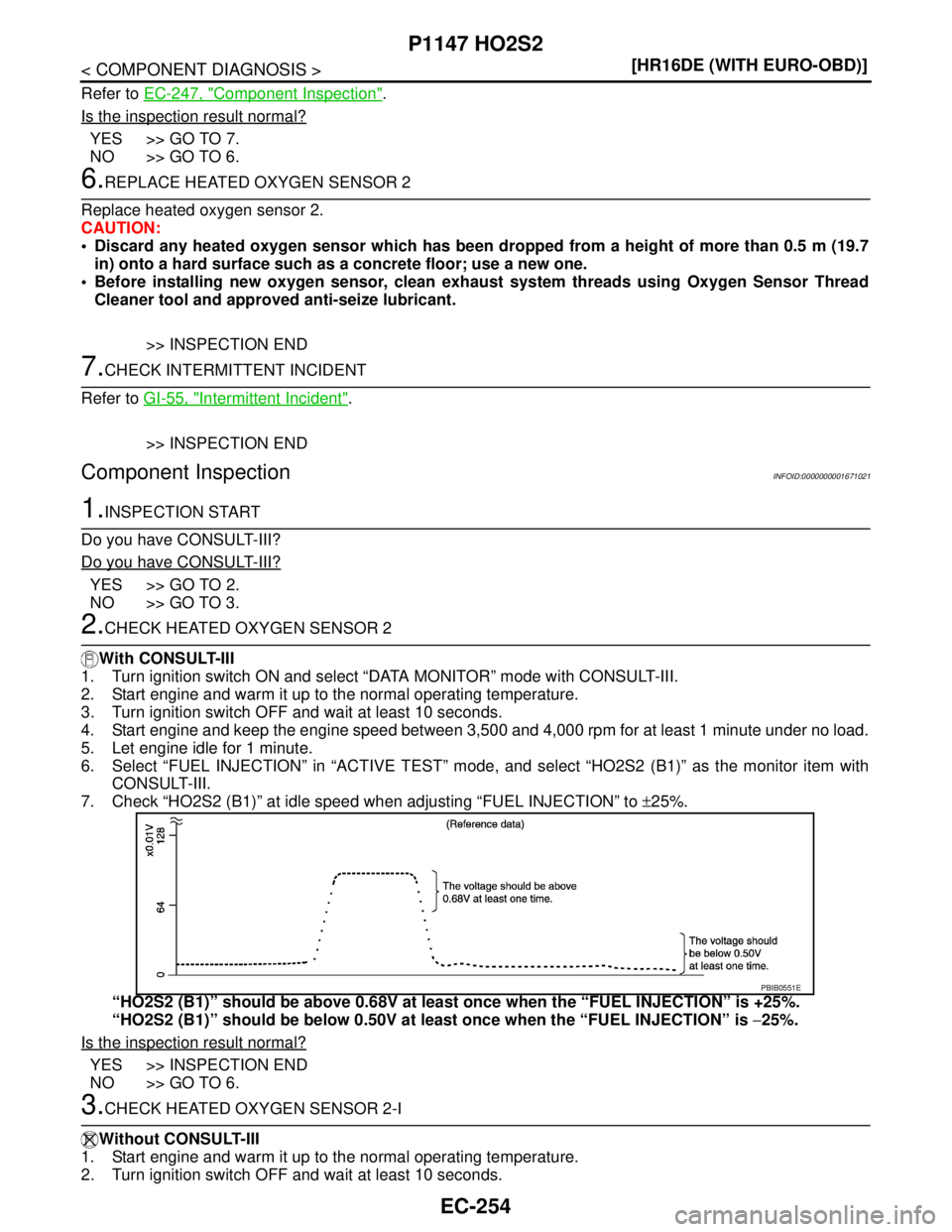

NISSAN TIIDA 2007 Service Repair Manual EC-254
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1147 HO2S2
Refer to EC-247, "Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENS

Page 1604 of 5883

NISSAN TIIDA 2007 Service Repair Manual P1147 HO2S2
EC-255
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no

P1147 HO2S2
EC-255
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 4.
4.CHECK HEATED OXYGEN SENSOR 2-II
Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.CHECK HEATED OXYGEN SENSOR 2-III
Check the voltage between ECM harness connector terminals as follows under the following condition.
Always drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Revving up to 4,000 rpm un-
der no load at least 10 timesThe voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Keeping engine speed at idle
for 10 minutesThe voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Coasting from 80 km/h (50
MPH) in D position (A/T), 4th
gear position (M/T)The voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.

Page 1605 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-256
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1212 TCS COMMUNICATION LINE
P1212 TCS COMMUNICATION LINE
DescriptionINFOID:0000000001671026
This CAN communication line is used to control the s

Page 1606 of 5883

NISSAN TIIDA 2007 Service Repair Manual P1217 ENGINE OVER TEMPERATURE
EC-257
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000001677294
DTC DETECTION LOGIC

P1217 ENGINE OVER TEMPERATURE
EC-257
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000001677294
DTC DETECTION LOGIC
NOTE:
If DTC P1217 is displayed with DTC U1000 U1001, first perform the trouble diagnosis for DTC U1000
U1001. Refer to EC-128, "
DTC Logic".
If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer
to EC-129, "
DTC Logic".
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction is
indicated.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-11, "
Inspection". Also,
replace the engine oil. Refer to LU-7, "
Draining".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-20, "
SAE Viscosity Number".
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
DTC CONFIRMATION PROCEDURE
1.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-257, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-258, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000001677295
1.PERFORM COMPONENT FUNCTION CHECK-I
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217Engine over tempera-
ture (Overheat) Cooling fan does not operate properly (Over-
heat).
Cooling fan system does not operate proper-
ly (Overheat).
Engine coolant was not added to the system
using the proper filling method.
Engine coolant is not within the specified
range. Harness or connectors
(The cooling fan circuit is open or short-
ed.)
IPDM E/R (Cooling fan relay-1, -2, -3)
Cooling fan motor
Radiator hose
Radiator
Radiator cap
Reservoir tank
Water pump
Thermostat

Page 1607 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-258
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P1217 ENGINE OVER TEMPERATURE

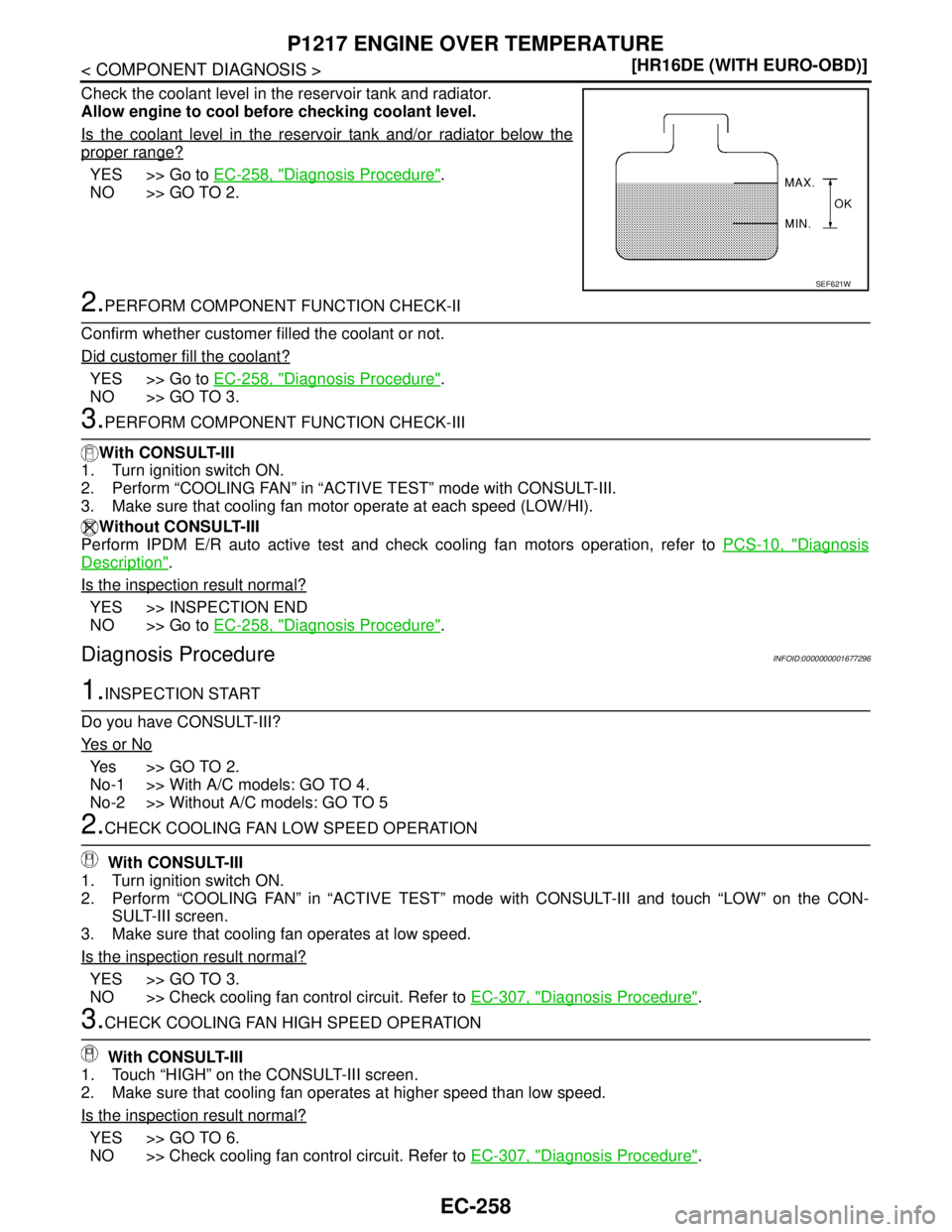

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
Is

Page 1608 of 5883

NISSAN TIIDA 2007 Service Repair Manual P1217 ENGINE OVER TEMPERATURE
EC-259
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-III
1. Start engine and le
