DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
TM-79
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
During TM-183, "Cruise Test - Part 1".
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 10.
NO >> Check control valve again. Repair or replace control
valve assembly.
10.CHECK DTC
Perform TM-76, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> GO TO 11. Check for proper lock-up.
11 .CHECK LOCK-UP
During TM-183, "
Cruise Test - Part 1".
A/T perform lock-up at the specified speed?
YES >> Perform “Cruise test — Part 1” again and return to the
start point of this test group.
NO >> GO TO 12.
12.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
- Torque converter clutch solenoid valve
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 13.
NG >> Replace solenoid valve assembly.
13.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to TM-191, "
Control Valve Assembly and Accumulators".
- Torque converter clutch solenoid valve
SCIA7190E
SCIA7191E
Solenoid valve TerminalResistance
(Approx.)
Torque converter clutch solenoid valve 5 Ground 5 - 20 Ω
SCIA2063E
Page 5026 of 5883

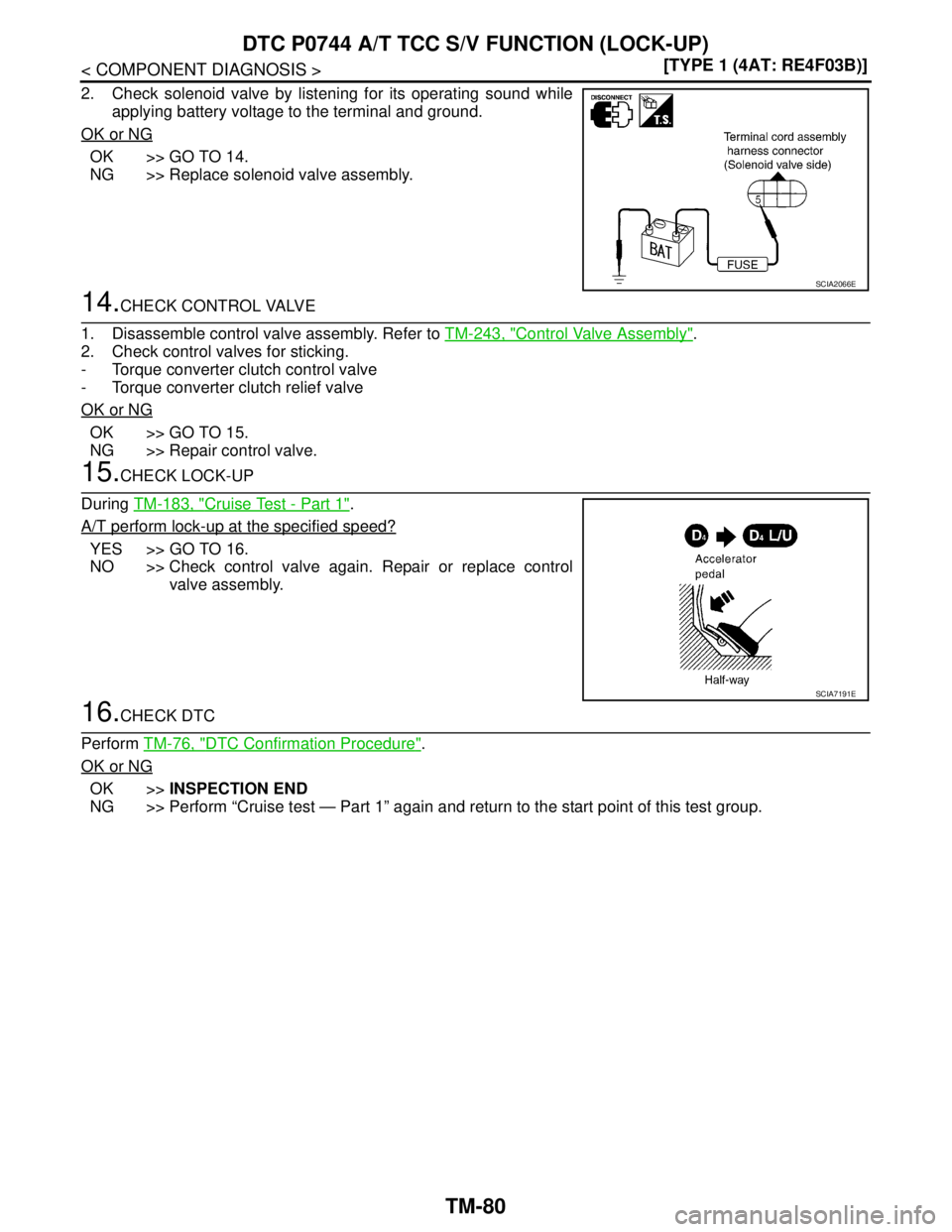

TM-80
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
OK or NG
OK >> GO TO 14.
NG >> Replace solenoid valve assembly.
14.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to TM-243, "
Control Valve Assembly".
2. Check control valves for sticking.
- Torque converter clutch control valve
- Torque converter clutch relief valve
OK or NG
OK >> GO TO 15.
NG >> Repair control valve.
15.CHECK LOCK-UP
During TM-183, "
Cruise Test - Part 1".
A/T perform lock-up at the specified speed?
YES >> GO TO 16.
NO >> Check control valve again. Repair or replace control
valve assembly.
16.CHECK DTC
Perform TM-76, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> Perform “Cruise test — Part 1” again and return to the start point of this test group.
SCIA2066E
SCIA7191E
Page 5027 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-81
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0745 LINE PRESSURE SOLENOID VALVE
DescriptionINFOID:0000000001694348
Th NISSAN TIIDA 2007 Service Repair Manual DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-81
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0745 LINE PRESSURE SOLENOID VALVE
DescriptionINFOID:0000000001694348
Th](/manual-img/5/57395/w960_57395-5026.png)
DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-81
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0745 LINE PRESSURE SOLENOID VALVE
DescriptionINFOID:0000000001694348
The line pressure solenoid valve regulates the oil pump discharge pressure to suit the driving condition in
response to signals sent from the TCM.
The line pressure duty cycle value is not constant when the closed throttle position switch is ON. To
confirm the line pressure duty cycle at low-pressure, the accelerator (throttle) should be open until the
closed throttle position switch is OFF.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001694349
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001694350
This is an OBD self-diagnostic item.
Diagnostic trouble code “P0745 LINE PRESSURE S/V” with CONSULT-III or 11th judgement flicker without
CONSULT-III is detected when TCM detects an improper voltage drop while it tries to operate the solenoid
valve.
Possible CauseINFOID:0000000001694351
Harness or connector
(The solenoid circuit is open or shorted.)
Line pressure solenoid valve
DTC Confirmation ProcedureINFOID:0000000001694352
CAUTION:
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-III.
2. Touch “START”.
3. Depress accelerator pedal completely and wait at least 1 second.
4. If the check result is NG, go to TM-81, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Start engine.
2. With brake pedal depressed, shift the lever from “P”→“N”→“D”→“N”→“P” positions.
3. Perform self-diagnosis. Refer to TM-38, "
Diagnosis Procedure without CONSULT-III".
4. If the check result is NG, go to TM-81, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001694354
1.CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.
3. Read out the value of “LINE PRES DTY” while driving. Check the value changes according to driving
speed.
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large
throttle opening (High line pressure)0% ⇔ 94%
Page 5028 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-82
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0745 LINE PRESSURE SOLENOID VALVE
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connecto NISSAN TIIDA 2007 Service Repair Manual TM-82
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0745 LINE PRESSURE SOLENOID VALVE
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connecto](/manual-img/5/57395/w960_57395-5027.png)

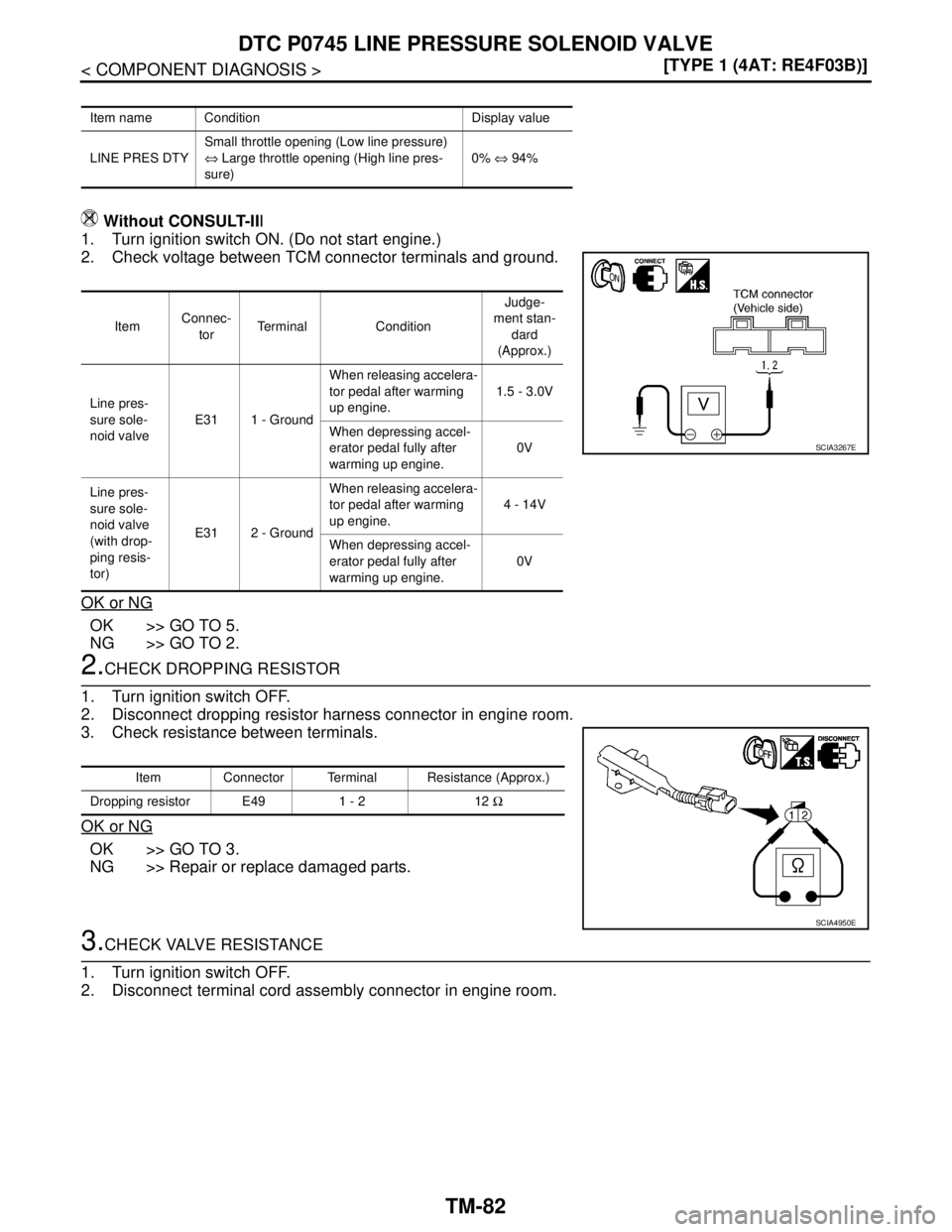

TM-82
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0745 LINE PRESSURE SOLENOID VALVE
Without CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK DROPPING RESISTOR
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector in engine room.
3. Check resistance between terminals.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3.CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
Item name Condition Display value
LINE PRES DTYSmall throttle opening (Low line pressure)
⇔ Large throttle opening (High line pres-
sure)0% ⇔ 94%
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Line pres-
sure sole-
noid valveE31 1 - GroundWhen releasing accelera-
tor pedal after warming
up engine.1.5 - 3.0V
When depressing accel-
erator pedal fully after
warming up engine.0V
Line pres-
sure sole-
noid valve
(with drop-
ping resis-
tor)E31 2 - GroundWhen releasing accelera-
tor pedal after warming
up engine.4 - 14V
When depressing accel-
erator pedal fully after
warming up engine.0V
SCIA3267E
Item Connector Terminal Resistance (Approx.)
Dropping resistor E49 1 - 2 12 Ω
SCIA4950E
Page 5029 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-83
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
3. Check resistance between terminal cord assembly harness con-
nector termi NISSAN TIIDA 2007 Service Repair Manual DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-83
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
3. Check resistance between terminal cord assembly harness con-
nector termi](/manual-img/5/57395/w960_57395-5028.png)

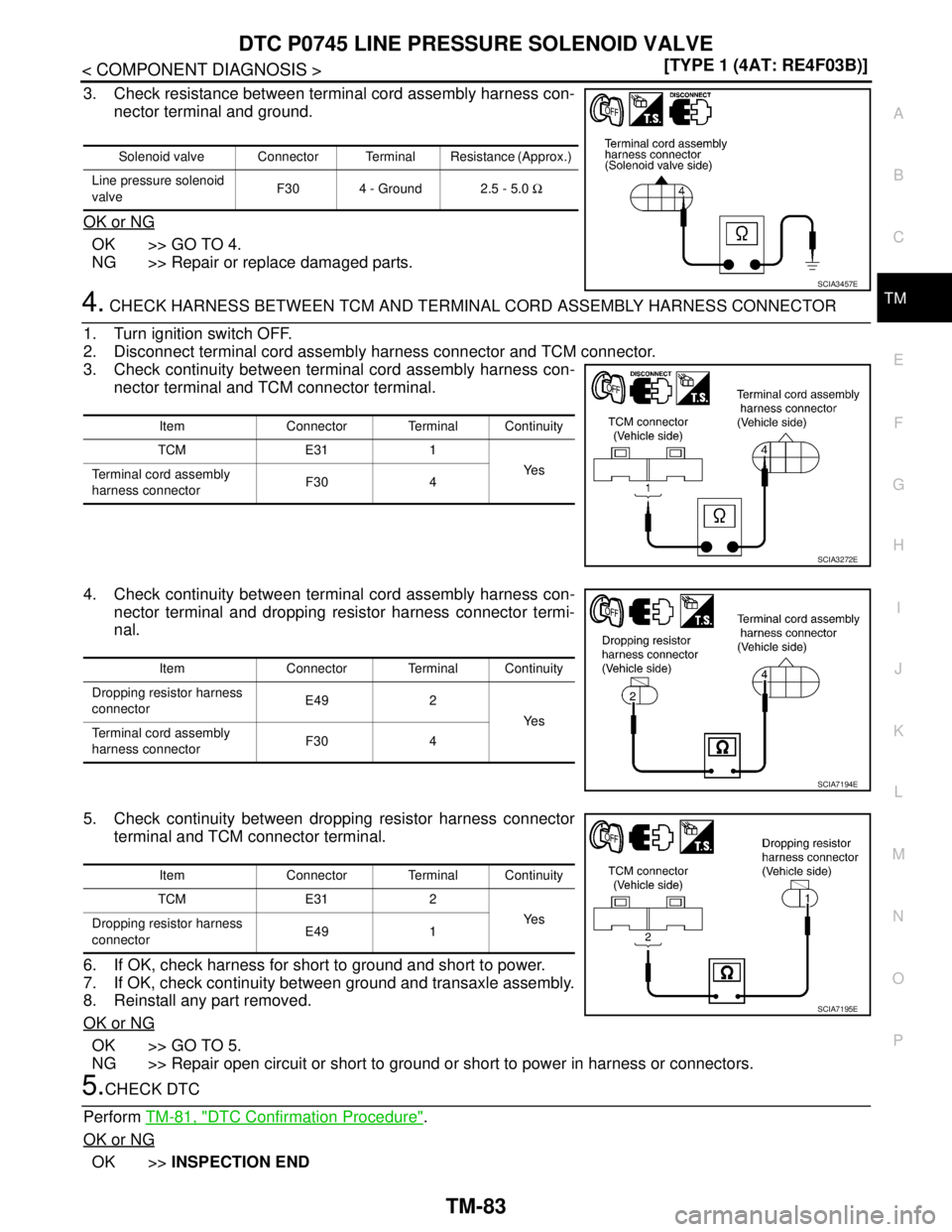

DTC P0745 LINE PRESSURE SOLENOID VALVE
TM-83
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.
4. Check continuity between terminal cord assembly harness con-
nector terminal and dropping resistor harness connector termi-
nal.
5. Check continuity between dropping resistor harness connector
terminal and TCM connector terminal.
6. If OK, check harness for short to ground and short to power.
7. If OK, check continuity between ground and transaxle assembly.
8. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK DTC
Perform TM-81, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
Solenoid valve Connector Terminal Resistance (Approx.)
Line pressure solenoid
valveF30 4 - Ground 2.5 - 5.0 Ω
SCIA3457E
Item Connector Terminal Continuity
TCM E31 1
Ye s
Terminal cord assembly
harness connectorF30 4
SCIA3272E
Item Connector Terminal Continuity
Dropping resistor harness
connectorE49 2
Ye s
Terminal cord assembly
harness connectorF30 4
SCIA7194E
Item Connector Terminal Continuity
TCM E31 2
Ye s
Dropping resistor harness
connectorE49 1
SCIA7195E
Page 5030 of 5883

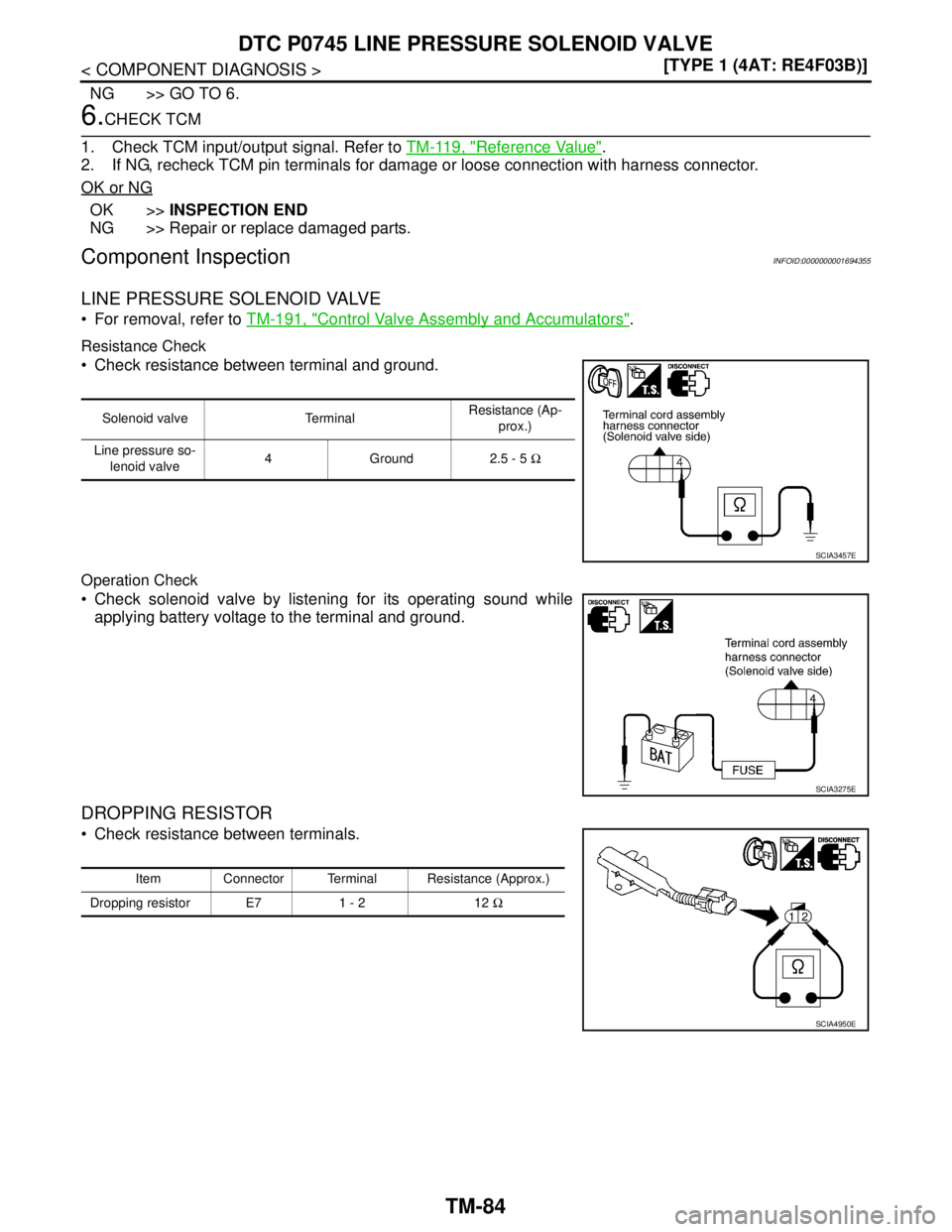

TM-84
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0745 LINE PRESSURE SOLENOID VALVE
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signal. Refer to TM-119, "
Reference Value".
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionINFOID:0000000001694355
LINE PRESSURE SOLENOID VALVE
For removal, refer to TM-191, "Control Valve Assembly and Accumulators".
Resistance Check
Check resistance between terminal and ground.
Operation Check
Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DROPPING RESISTOR
Check resistance between terminals.
Solenoid valve TerminalResistance (Ap-
prox.)
Line pressure so-
lenoid valve4 Ground 2.5 - 5 Ω
SCIA3457E
SCIA3275E
Item Connector Terminal Resistance (Approx.)
Dropping resistor E7 1 - 2 12 Ω
SCIA4950E
Page 5031 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
TM-85
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0750 SHIFT SOLENOID VALVE A
DescriptionINFOID:0000000001694356
Shift solenoid NISSAN TIIDA 2007 Service Repair Manual DTC P0750 SHIFT SOLENOID VALVE A
TM-85
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0750 SHIFT SOLENOID VALVE A
DescriptionINFOID:0000000001694356
Shift solenoid](/manual-img/5/57395/w960_57395-5030.png)
DTC P0750 SHIFT SOLENOID VALVE A
TM-85
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DTC P0750 SHIFT SOLENOID VALVE A
DescriptionINFOID:0000000001694356
Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP
switch, vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001694357
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001694358
This is an OBD self-diagnostic item.
Diagnostic trouble code “P0750 SHIFT SOLENOID/V A” with CONSULT-III or 4th judgement flicker without
CONSULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid
valve.
Possible CauseINFOID:0000000001694359
Harness or connector
(The solenoid circuit is open or shorted.)
Shift solenoid valve A
DTC Confirmation ProcedureINFOID:0000000001694360
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode for “A/T” with CONSULT-III.
2. Touch “START”.
3. Start engine.
4. Drive vehicle in “D” position and allow the transaxle to shift 1 → 2 (“GEAR”).
5. If the check result is NG, go to TM-85, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Start engine.
2. Drive vehicle in D
1→ D2 position.
3. Perform self-diagnosis. Refer to TM-38, "
Diagnosis Procedure without CONSULT-III".
4. If the check result is NG, go to TM-85, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001694362
1.CHECK INPUT SIGNAL
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in “D
1” or “D4”.)ON
When shift solenoid valve A does not operate.
(When driving in “D
2” or “D3”.)OFF
Page 5032 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-86
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0750 SHIFT SOLENOID VALVE A
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSU NISSAN TIIDA 2007 Service Repair Manual TM-86
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0750 SHIFT SOLENOID VALVE A
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSU](/manual-img/5/57395/w960_57395-5031.png)

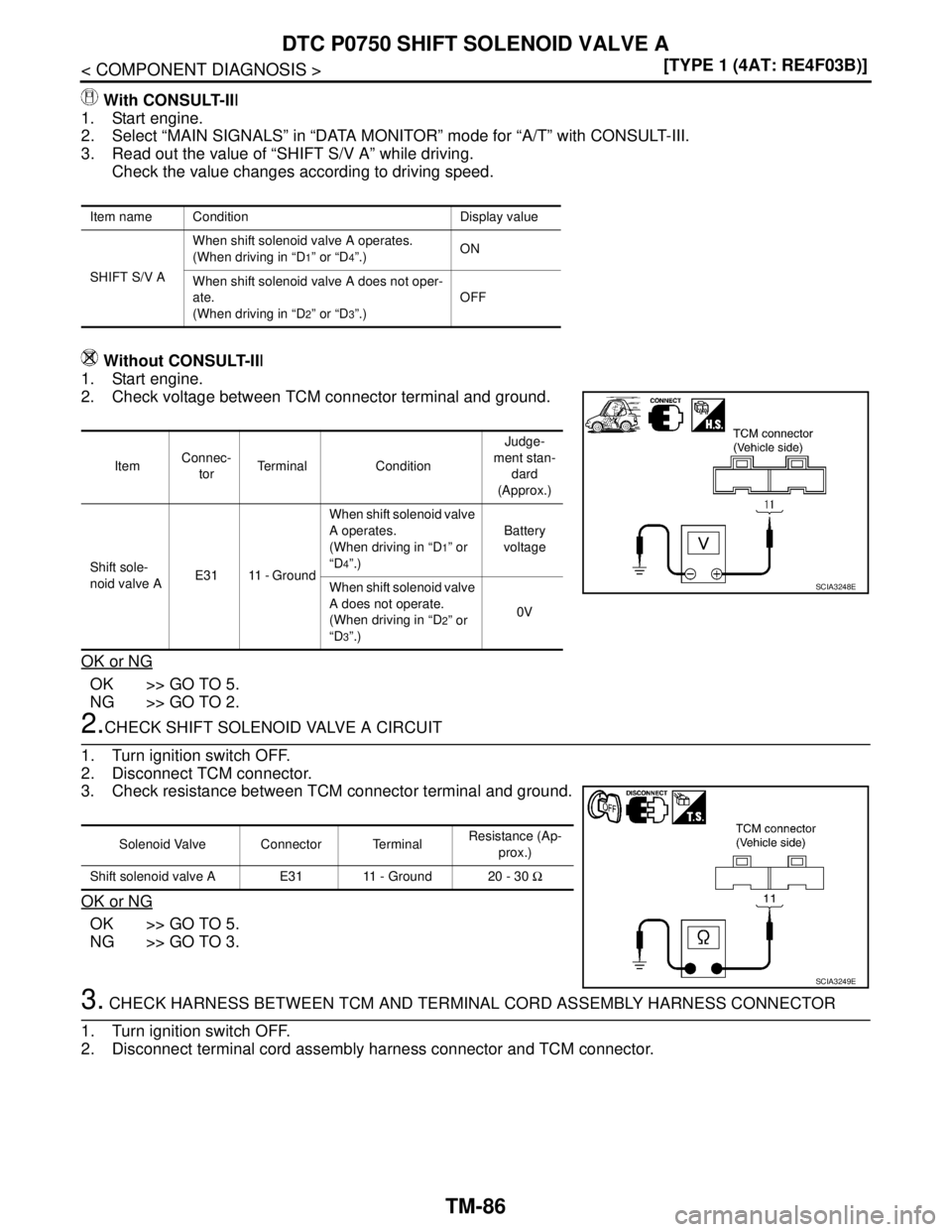

TM-86
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0750 SHIFT SOLENOID VALVE A
With CONSULT-III
1. Start engine.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.
3. Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK SHIFT SOLENOID VALVE A CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
Item name Condition Display value
SHIFT S/V AWhen shift solenoid valve A operates.
(When driving in “D
1” or “D4”.)ON
When shift solenoid valve A does not oper-
ate.
(When driving in “D
2” or “D3”.)OFF
ItemConnec-
torTerminal ConditionJudge-
ment stan-
dard
(Approx.)
Shift sole-
noid valve AE31 11 - GroundWhen shift solenoid valve
A operates.
(When driving in “D
1” or
“D
4”.)Battery
voltage
When shift solenoid valve
A does not operate.
(When driving in “D
2” or
“D
3”.)0V
SCIA3248E
Solenoid Valve Connector TerminalResistance (Ap-
prox.)
Shift solenoid valve A E31 11 - Ground 20 - 30 Ω
SCIA3249E
