EC-172
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0139 HO2S2
10.PERFORM PROCEDURE FOR COND3-III
1. Turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle).
2. Turn ignition switch ON and select “COOLAN TEMP/S” in “DATA MONITOR” mode with CONSULT-III.
3. Start engine and warm it up while monitoring “COOLAN TEMP/S” indication on CONSULT-III.
4. When “COOLAN TEMP/S” indication reaches to 70°C (158°F).
>> GO TO 5.
11 .PREFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-172, "
Component Function Check".
NOTE:
Use component function check the overall function of the heated oxygen sensor 2 circuit. During this check, a
1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-173, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000001670938
1.PERFORM COMPONENT FUNCTION CHECK-I
Without CONSULT-III
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.PERFORM COMPONENT FUNCTION CHECK-II
Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 3.
3.PERFORM COMPONENT FUNCTION CHECK-III
Check the voltage between ECM harness connector terminals as follows under the following condition.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Revving up to 4,000 rpm un-
der no load at least 10 timesA change of voltage should be more than 0.12
V for 1 second during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Keeping engine speed at idle
for 10 minutesA change of voltage should be more than
0.12 V for 1 second during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)F11 59Coasting from 80 km/h (50 MPH) in D
position (A/T), 4rd gear position (M/T)A change of voltage should be
more than 0.12 V for 1 second
during this procedure.
Page 1522 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P0139 HO2S2
EC-173
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
iAlways drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> G NISSAN TIIDA 2007 Service Repair Manual P0139 HO2S2
EC-173
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
iAlways drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> G](/manual-img/5/57395/w960_57395-1521.png)
P0139 HO2S2
EC-173
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
iAlways drive vehicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-173, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001670939
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CLEAR THE MIXTURE RATIO SELF-LEARNING VALUE
1. Clear the mixture ratio self-learning value. Refer to EC-29, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 or P0172 detected? Is it difficult to start engine?
YES >> Perform trouble diagnosis for DTC P0171 or P0172. Refer to EC-179, "DTC Logic" or EC-183,
"DTC Logic".
NO >> GO TO 3.
3.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check the continuity between HO2S2 harness connector and ECM harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between HO2S2 harness connector and ECM harness connector.
2. Check the continuity between HO2S2 harness connector or ECM harness connector and ground.
3. Also check harness for short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK HEATED OXYGEN SENSOR 2
HO2S2 ECM
Continuity
Connector Terminal Connector Terminal
F13 1 F11 59 Existed
HO2S2 ECM
Continuity
Connector Terminal Connector Terminal
F13 4 F11 50 Existed
HO2S2 ECM
Ground Continuity
Connector Terminal Connector Terminal
F13 4 F11 50 Ground Not existed
Page 1523 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-174
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0139 HO2S2
Refer to EC-174, "Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENS NISSAN TIIDA 2007 Service Repair Manual EC-174
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0139 HO2S2
Refer to EC-174, "Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENS](/manual-img/5/57395/w960_57395-1522.png)

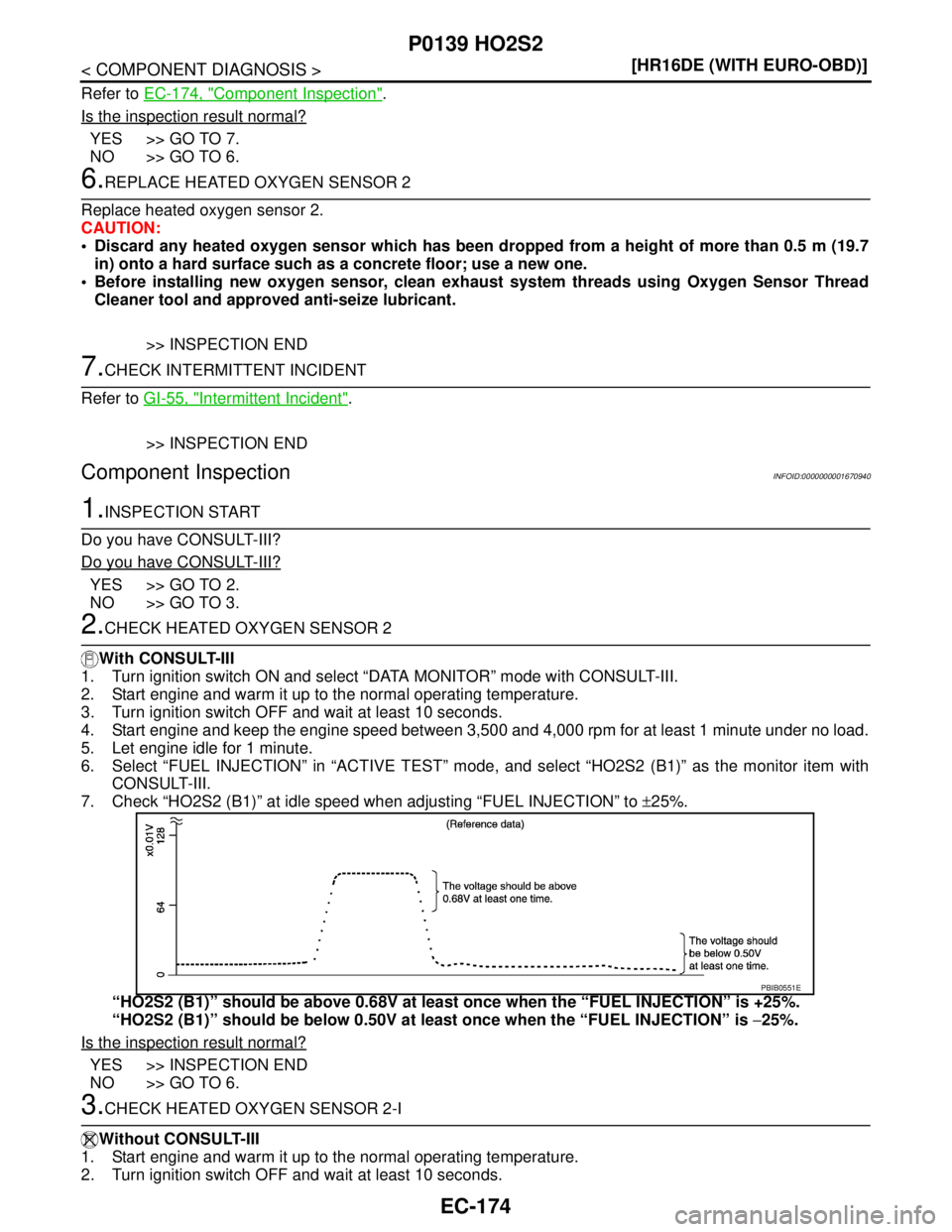

EC-174
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0139 HO2S2
Refer to EC-174, "Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000001670940
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK HEATED OXYGEN SENSOR 2
With CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. Select “FUEL INJECTION” in “ACTIVE TEST” mode, and select “HO2S2 (B1)” as the monitor item with
CONSULT-III.
7. Check “HO2S2 (B1)” at idle speed when adjusting “FUEL INJECTION” to ±25%.
“HO2S2 (B1)” should be above 0.68V at least once when the “FUEL INJECTION” is +25%.
“HO2S2 (B1)” should be below 0.50V at least once when the “FUEL INJECTION” is −25%.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 6.
3.CHECK HEATED OXYGEN SENSOR 2-I
Without CONSULT-III
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
PBIB0551E
Page 1524 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P0139 HO2S2
EC-175
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no NISSAN TIIDA 2007 Service Repair Manual P0139 HO2S2
EC-175
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no](/manual-img/5/57395/w960_57395-1523.png)
P0139 HO2S2
EC-175
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Start engine and keep the engine speed between 3,500 and 4,000 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 4.
4.CHECK HEATED OXYGEN SENSOR 2-II
Check the voltage between ECM harness connector terminals as follows under the following condition.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
5.CHECK HEATED OXYGEN SENSOR 2-III
Check the voltage between ECM harness connector terminals as follows under the following condition.
Always drive vhicle at a safe speed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)E11 59Revving up to 4,000 rpm un-
der no load at least 10 timesThe voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)E11 59Keeping engine speed at idle
for 10 minutesThe voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1150
(HO2S2 signal)E11 59Coasting from 80 km/h (50
MPH) in D position (A/T), 4th
gear position (M/T)The voltage should be above 0.68V at
least once during this procedure.
The voltage should be below 0.50V at least
once during this procedure.
Page 1525 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-176
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0141 HO2S2 HEATER
P0141 HO2S2 HEATER
DescriptionINFOID:0000000001670941
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen NISSAN TIIDA 2007 Service Repair Manual EC-176
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0141 HO2S2 HEATER
P0141 HO2S2 HEATER
DescriptionINFOID:0000000001670941
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen](/manual-img/5/57395/w960_57395-1524.png)
EC-176
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0141 HO2S2 HEATER
P0141 HO2S2 HEATER
DescriptionINFOID:0000000001670941
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
OPERATION
DTC LogicINFOID:0000000001670942
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check 1st trip DTC.
Is 1st tip DTC detected?
YES >> Go to EC-176, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001670943
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
Sensor Input signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Heated oxygen sensor 2
heater controlHeated oxygen sensor 2 heater
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,600OFF
Below 3,600 rpm after the following conditions are met.
Engine: After warming up
Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no loadON
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P0141Heated oxygen
sensor 2 heater
control circuit lowThe current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.) Harness or connectors
(The heated oxygen sensor 2 heater circuit is
open or shorted.)
Heated oxygen sensor 2 heater
Page 1526 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P0141 HO2S2 HEATER
EC-177
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK HO2S2 POWER SUPPLY CIRCUIT
NISSAN TIIDA 2007 Service Repair Manual P0141 HO2S2 HEATER
EC-177
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK HO2S2 POWER SUPPLY CIRCUIT](/manual-img/5/57395/w960_57395-1525.png)
P0141 HO2S2 HEATER
EC-177
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Turn ignition switch ON.
3. Check the voltage between HO2S2 harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
10A fuse (No. 54)
Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between HO2S2 harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-178, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 6.
6.REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
HO2S2
Ground Voltage
Connector Terminal
F13 2 Ground Battery voltage
HO2S2 ECM
Continuity
Connector Terminal Connector Terminal
F13 3 F10 5 Existed
Page 1527 of 5883
EC-178
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0141 HO2S2 HEATER
Component Inspection
INFOID:0000000001670944
1.CHECK HEATED OXYGEN SENSOR 2 HEATER
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Check resistance between HO2S2 terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2.
CAUTION:
Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END
Terminals Resistance [at 25°C (77°F)
2 and 3 3.3 - 4.4 Ω
1 and 2, 3, 4
∞ Ω
(Continuity should not exist)
4 and 1, 2, 3
Page 1528 of 5883
![NISSAN TIIDA 2007 Service Repair Manual P0171 FUEL INJECTION SYSTEM FUNCTION
EC-179
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0171 FUEL INJECTION SYSTEM FUNCTION
DTC LogicINFOID:0000000001670945
DTC DE NISSAN TIIDA 2007 Service Repair Manual P0171 FUEL INJECTION SYSTEM FUNCTION
EC-179
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0171 FUEL INJECTION SYSTEM FUNCTION
DTC LogicINFOID:0000000001670945
DTC DE](/manual-img/5/57395/w960_57395-1527.png)
P0171 FUEL INJECTION SYSTEM FUNCTION
EC-179
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0171 FUEL INJECTION SYSTEM FUNCTION
DTC LogicINFOID:0000000001670945
DTC DETECTION LOGIC
With the Air/Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the heated oxygen sensors 1. The
ECM calculates the necessary compensation to correct the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extremely large (The actual mixture ratio is too lean.), the
ECM judges the condition as the fuel injection system malfunction and lights up the MI (2 trip detection logic).
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
1. Clear the mixture ratio self-learning value. Refer to EC-29, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Start engine.
Is it difficult to start engine?
YES >> GO TO 3.
NO >> GO TO 4.
3.RESTART ENGINE
If it is difficult to start engine, the fuel injection system has a malfunction, too.
Crank engine while depressing accelerator pedal.
Does engine start?
YES >> Go to EC-180, "Diagnosis Procedure".
NO >> Check exhaust and intake air leak visually.
4.PERFORM DTC CONFIRMATION PROCEDURE-II
1. Start engine and let it idle for at least 10 minutes.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-180, "Diagnosis Procedure".
NO >> GO TO 5.
5.PERFORM DTC CONFIRMATION PROCEDURE-III
1. Turn ignition switch OFF and wait at least 10 seconds.
Sensor Input signal to ECM ECM function Actuator
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)Fuel injection control Fuel injector
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0171Fuel injection system too
lean Fuel injection system does not operate properly.
The amount of mixture ratio compensation is too
large. (The mixture ratio is too lean.) Intake air leaks
Heated oxygen sensor 1
Fuel injector
Exhaust gas leaks
Incorrect fuel pressure
Lack of fuel
Mass air flow sensor
Incorrect PCV hose connection
