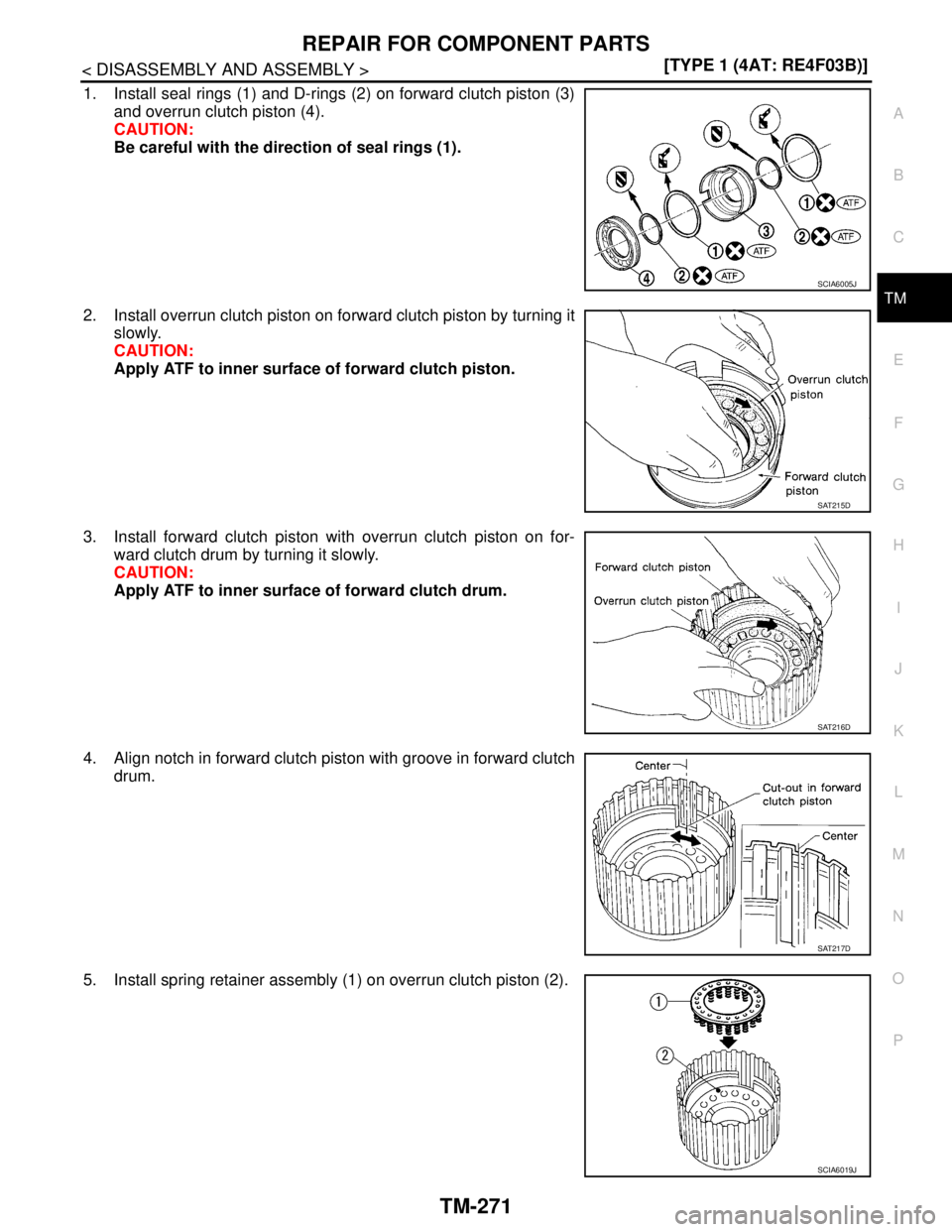

1. Install seal rings (1) and D-rings (2) on forward clutch piston (3)
and overrun clutch piston (4).
CAUTION:
Be careful with the direction of seal rings (1).
2. Install overrun clutch piston on forward clutch piston by turning it
slowly.
CAUTION:
Apply ATF to inner surface of forward clutch piston.
3. Install forward clutch piston with overrun clutch piston on for-
ward clutch drum by turning it slowly.
CAUTION:
Apply ATF to inner surface of forward clutch drum.
4. Align notch in forward clutch piston with groove in forward clutch
drum.
5. Install spring retainer assembly (1) on overrun clutch piston (2).
SCIA6005J
SAT215D
SAT216D
SAT217D
SCIA6019J
Page 5218 of 5883
TM-272
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.
CAUTION:
Set Tool directly over return springs.
Do not expand snap ring excessively.
Do not align snap ring gap with spring retainer assembly
stopper.

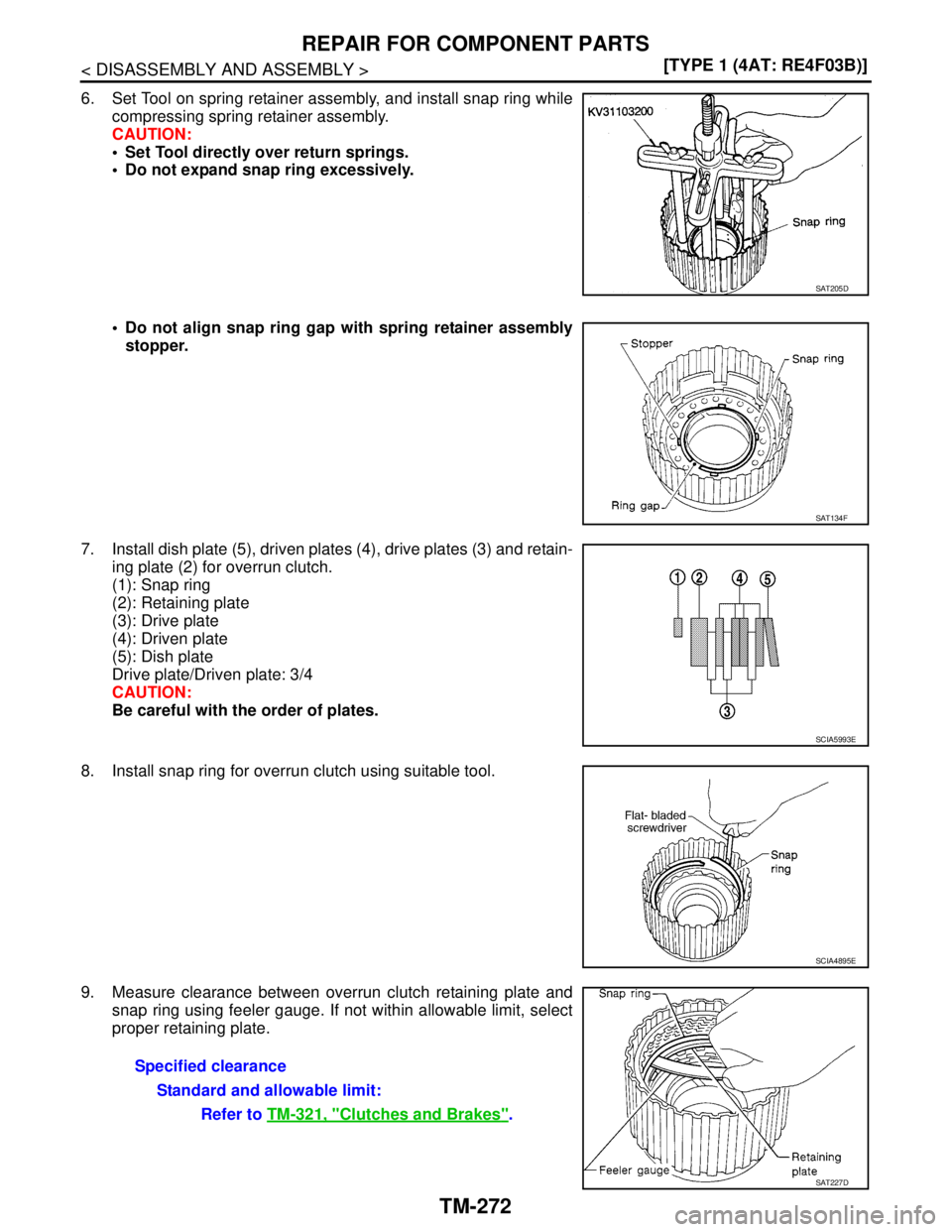

7. Install dish plate (5), driven plates (4), drive plates (3) and retain-
ing plate (2) for overrun clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 3/4
CAUTION:
Be careful with the order of plates.
8. Install snap ring for overrun clutch using suitable tool.
9. Measure clearance between overrun clutch retaining plate and
snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.
SAT205D
SAT134F
SCIA5993E
SCIA4895E
Specified clearance
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT227D
Page 5219 of 5883
REPAIR FOR COMPONENT PARTS
TM-273
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

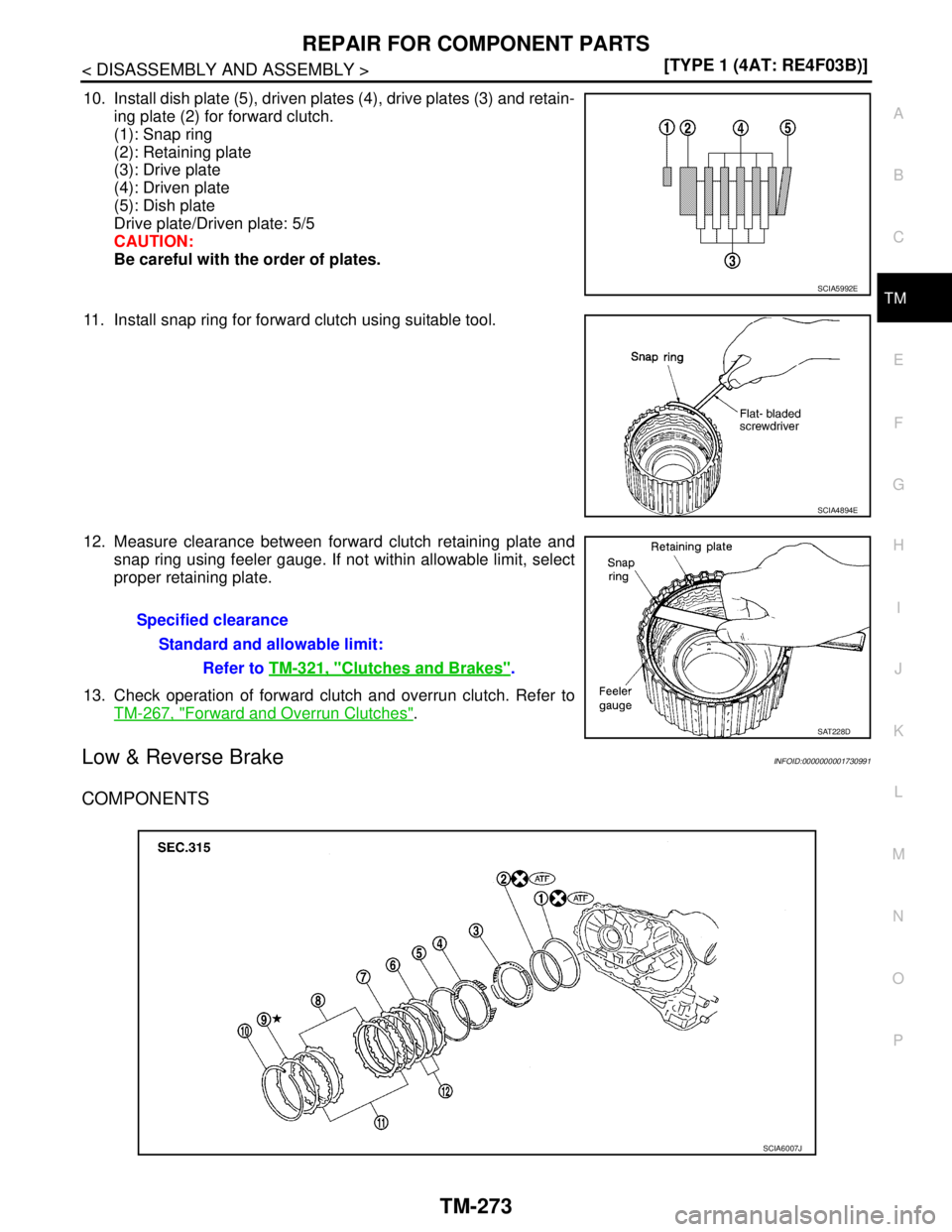

10. Install dish plate (5), driven plates (4), drive plates (3) and retain-
ing plate (2) for forward clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 5/5
CAUTION:
Be careful with the order of plates.
11. Install snap ring for forward clutch using suitable tool.
12. Measure clearance between forward clutch retaining plate and
snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.
13. Check operation of forward clutch and overrun clutch. Refer to
TM-267, "
Forward and Overrun Clutches".
Low & Reverse BrakeINFOID:0000000001730991
COMPONENTS
SCIA5992E
SCIA4894E
Specified clearance
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT228D
SCIA6007J
Page 5220 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-274
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Check operation of low & reverse brake.
a. Apply compressed air into oil hole of transaxle case at NISSAN TIIDA 2007 Service Repair Manual TM-274
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Check operation of low & reverse brake.
a. Apply compressed air into oil hole of transaxle case at](/manual-img/5/57395/w960_57395-5219.png)
TM-274
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Check operation of low & reverse brake.

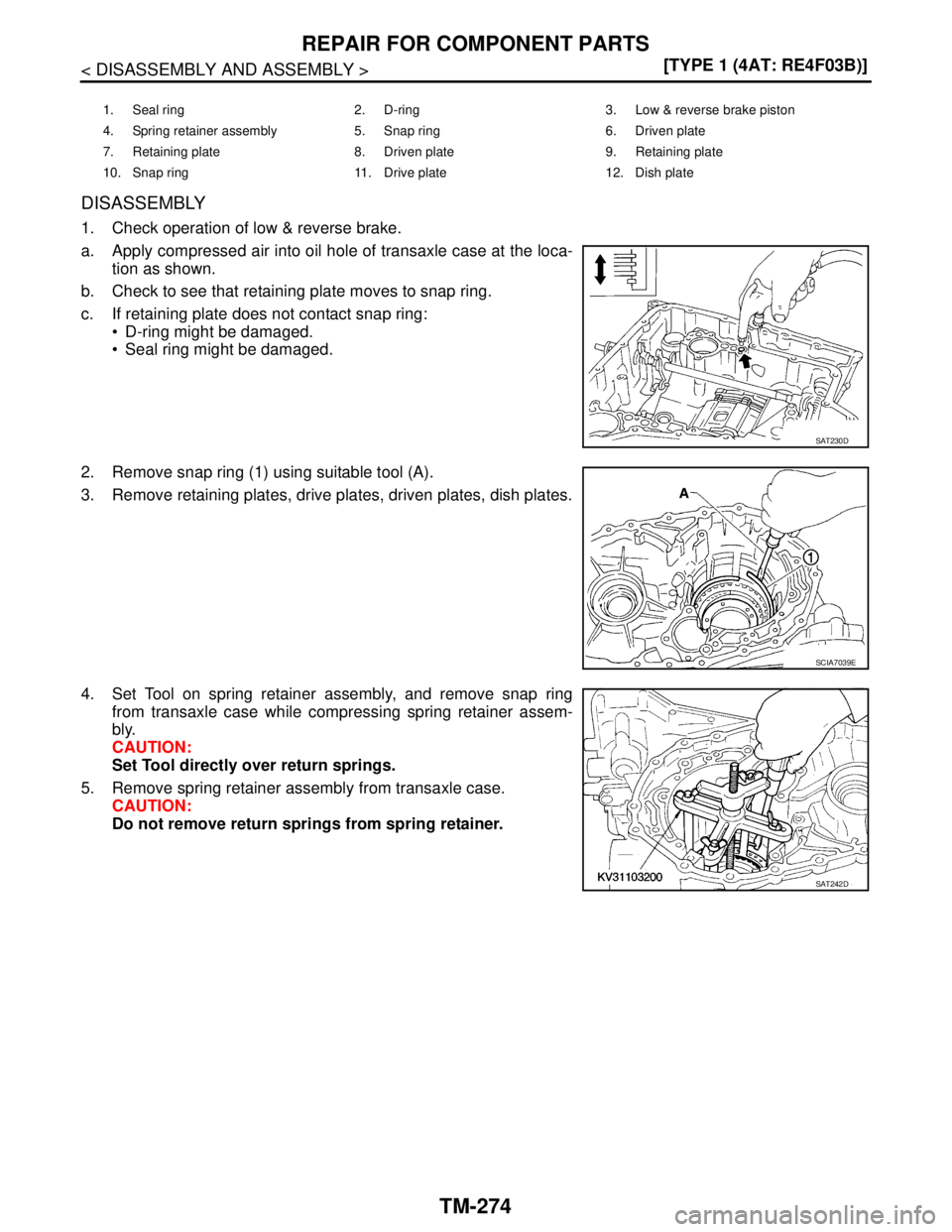

a. Apply compressed air into oil hole of transaxle case at the loca-
tion as shown.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
D-ring might be damaged.
Seal ring might be damaged.
2. Remove snap ring (1) using suitable tool (A).
3. Remove retaining plates, drive plates, driven plates, dish plates.
4. Set Tool on spring retainer assembly, and remove snap ring
from transaxle case while compressing spring retainer assem-
bly.
CAUTION:
Set Tool directly over return springs.
5. Remove spring retainer assembly from transaxle case.
CAUTION:
Do not remove return springs from spring retainer.
1. Seal ring 2. D-ring 3. Low & reverse brake piston
4. Spring retainer assembly 5. Snap ring 6. Driven plate
7. Retaining plate 8. Driven plate 9. Retaining plate
10. Snap ring 11. Drive plate 12. Dish plate
SAT230D
SCIA7039E
SAT242D
Page 5221 of 5883
![NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-275
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

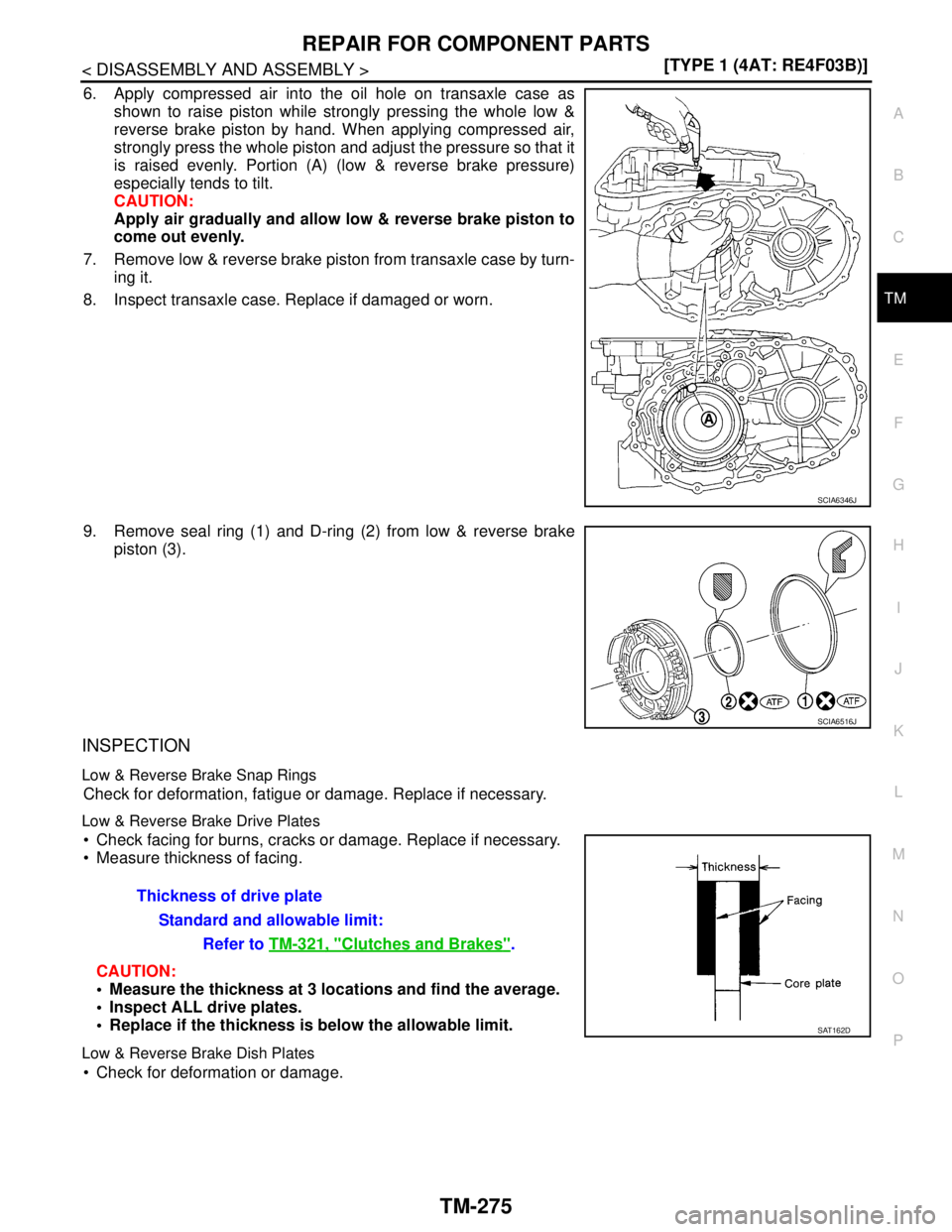

6. Apply compressed air into the oil hole on transaxle case as
shown to raise pist NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-275
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
6. Apply compressed air into the oil hole on transaxle case as
shown to raise pist](/manual-img/5/57395/w960_57395-5220.png)
REPAIR FOR COMPONENT PARTS
TM-275
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
6. Apply compressed air into the oil hole on transaxle case as
shown to raise piston while strongly pressing the whole low &
reverse brake piston by hand. When applying compressed air,
strongly press the whole piston and adjust the pressure so that it
is raised evenly. Portion (A) (low & reverse brake pressure)
especially tends to tilt.
CAUTION:
Apply air gradually and allow low & reverse brake piston to
come out evenly.
7. Remove low & reverse brake piston from transaxle case by turn-
ing it.
8. Inspect transaxle case. Replace if damaged or worn.
9. Remove seal ring (1) and D-ring (2) from low & reverse brake
piston (3).
INSPECTION
Low & Reverse Brake Snap Rings
Check for deformation, fatigue or damage. Replace if necessary.
Low & Reverse Brake Drive Plates
Check facing for burns, cracks or damage. Replace if necessary.
Measure thickness of facing.
CAUTION:
Measure the thickness at 3 locations and find the average.
Inspect ALL drive plates.
Replace if the thickness is below the allowable limit.
Low & Reverse Brake Dish Plates
Check for deformation or damage.
SCIA6346J
SCIA6516J
Thickness of drive plate
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT162D
Page 5222 of 5883
TM-276
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure thickness (t) of dish plate. Replace if damaged, deformed
or worn.
Low & Reverse Brake Spring Retainer Assembly
Check length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainer (B)
ASSEMBLY
1. Install seal ring (1) and D-ring (2) on low & reverse brake piston
(3).
2. Install low & reverse brake piston in transaxle case while turning
it.
CAUTION:
Apply ATF to inner surface of transaxle case.Thickness of dish plate (t): 2.93 mm (0.1154 in)
SAT163D
Length (L): 26.3 mm (1.035 in)
SCIA7025J
SCIA6516J
SAT239D
Page 5223 of 5883
REPAIR FOR COMPONENT PARTS
TM-277
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

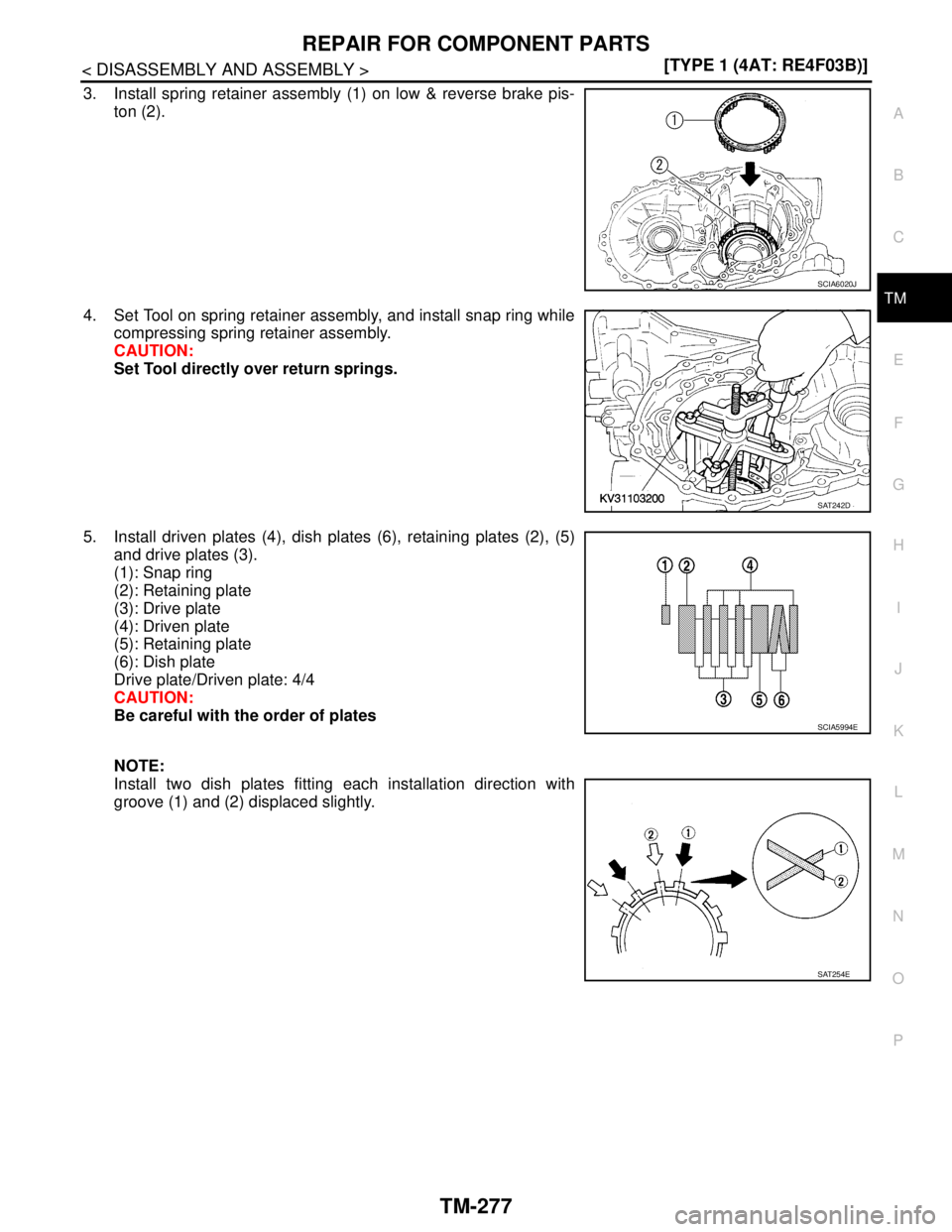

3. Install spring retainer assembly (1) on low & reverse brake pis-
ton (2).
4. Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.
CAUTION:
Set Tool directly over return springs.
5. Install driven plates (4), dish plates (6), retaining plates (2), (5)
and drive plates (3).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Retaining plate
(6): Dish plate
Drive plate/Driven plate: 4/4
CAUTION:
Be careful with the order of plates
NOTE:
Install two dish plates fitting each installation direction with
groove (1) and (2) displaced slightly.
SCIA6020J
SAT242D
SCIA5994E
SAT254E
Page 5224 of 5883
TM-278
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Install snap ring (1) using suitable tool (A).
7. Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate (front side).
8. Check operation of low & reverse brake. Refer to TM-273, "
Low
& Reverse Brake".
Rear Internal Gear and Forward Clutch HubINFOID:0000000001730992
COMPONENTS
DISASSEMBLY
SCIA7039E
Specified clearance
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT246D

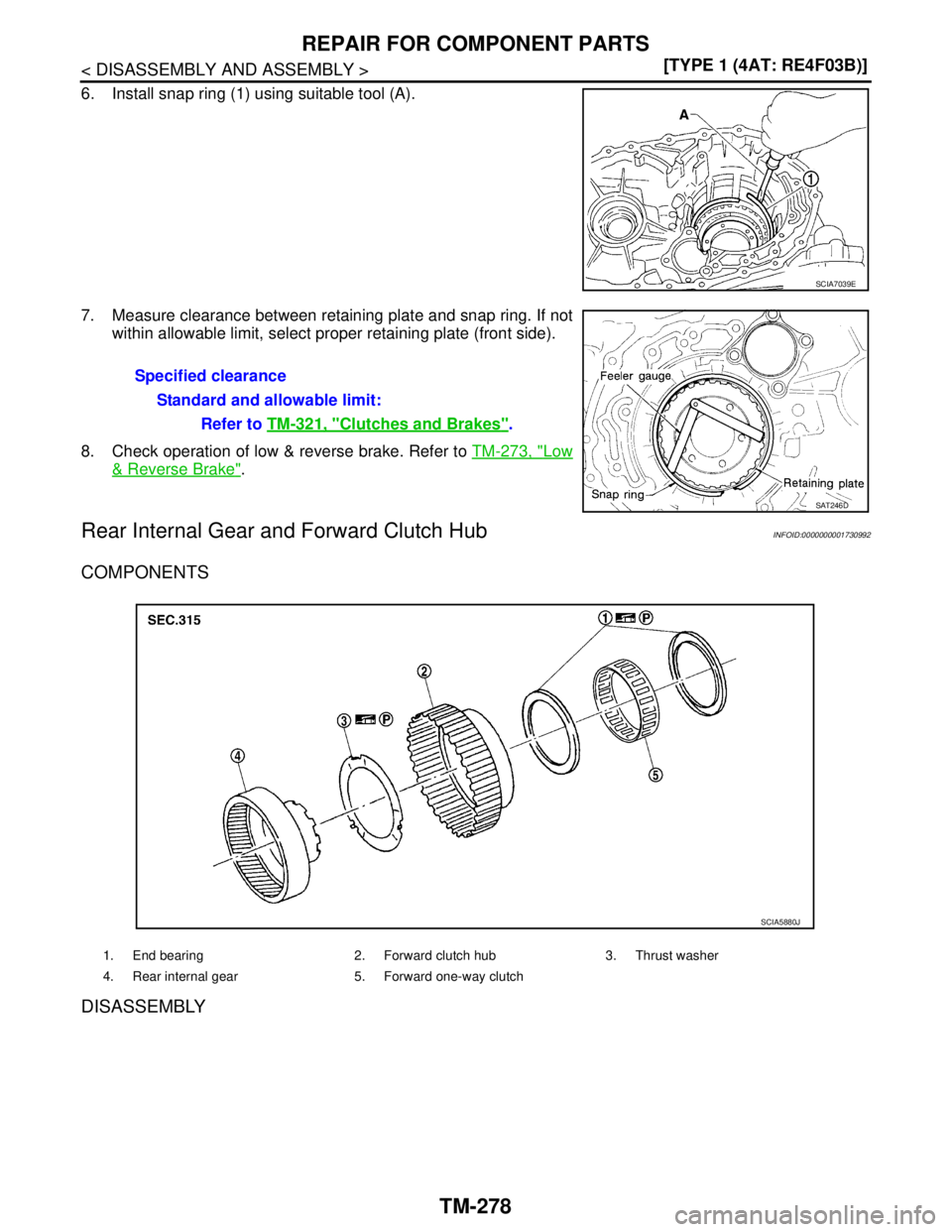

1. End bearing 2. Forward clutch hub 3. Thrust washer
4. Rear internal gear 5. Forward one-way clutch
SCIA5880J
