Page 1473 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-124
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000001670889
1.INSPECTION START
Start engine.
Is en

Page 1474 of 5883

NISSAN TIIDA 2007 Service Repair Manual POWER SUPPLY AND GROUND CIRCUIT
EC-125
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Harness connectors F8, E8
Harness for open or short between ECM and ground
>>

Page 1475 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-126
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
POWER SUPPLY AND GROUND CIRCUIT
NO >> Repair open circuit or short to power in harness or connectors.
11 .CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Di

Page 1476 of 5883

NISSAN TIIDA 2007 Service Repair Manual POWER SUPPLY AND GROUND CIRCUIT
EC-127
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>> Repair open circuit or short to power in harness or connectors.
17.CHECK INTER

Page 1477 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-128
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
U1000, U1001 CAN COMM CIRCUIT
U1000, U1001 CAN COMM CIRCUIT
DescriptionINFOID:0000000001670890
CAN (Controller Area Network) is a serial communic

Page 1478 of 5883

NISSAN TIIDA 2007 Service Repair Manual U1010 CONTROL UNIT (CAN)
EC-129
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
U1010 CONTROL UNIT (CAN)
DescriptionINFOID:0000000001670893
CAN (Controller Area Network

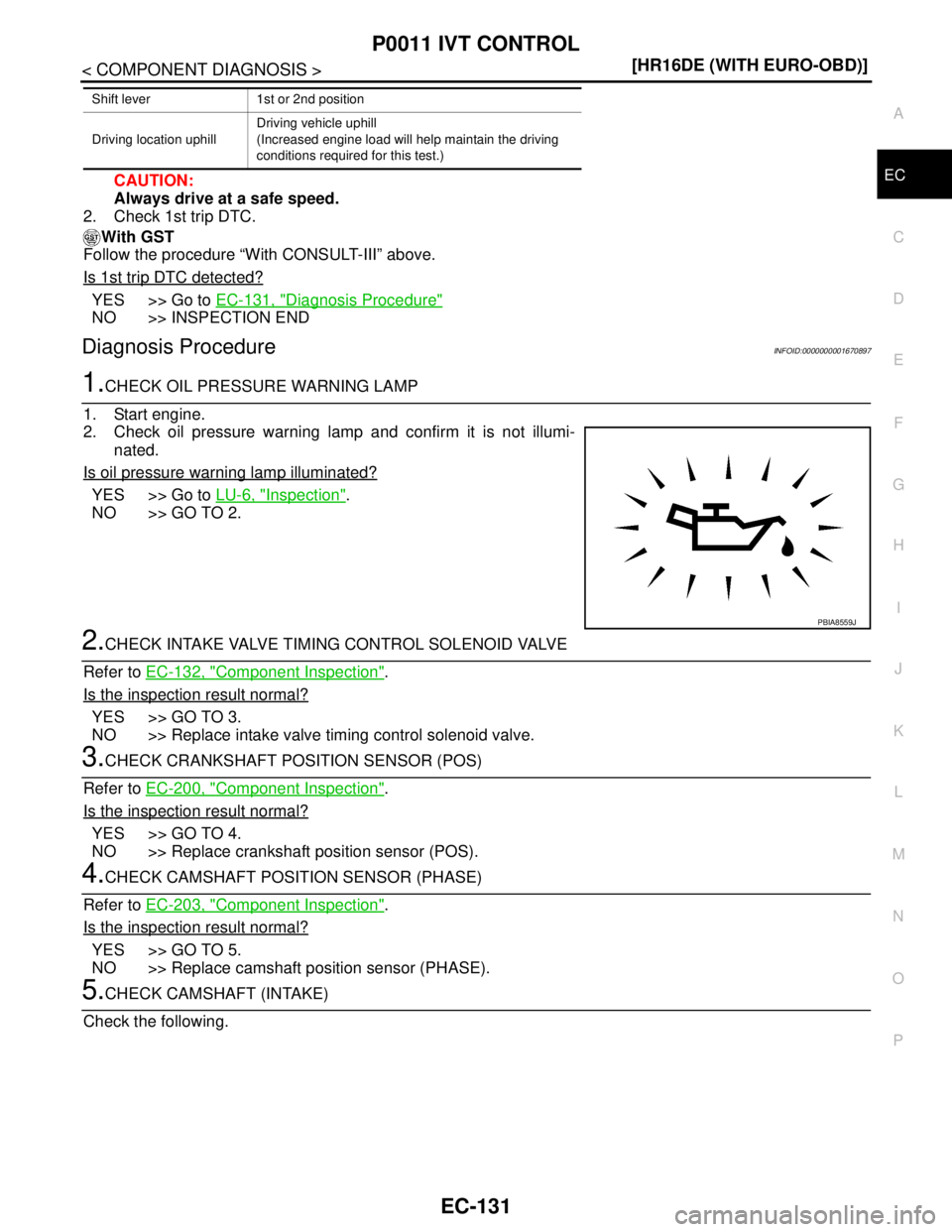

Page 1479 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-130
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0011 IVT CONTROL
P0011 IVT CONTROL
DTC LogicINFOID:0000000001670896
DTC DETECTION LOGIC
NOTE:
If DTC P0011 is displayed with DTC P1111, first pe

EC-130
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
P0011 IVT CONTROL
P0011 IVT CONTROL
DTC LogicINFOID:0000000001670896
DTC DETECTION LOGIC
NOTE:
If DTC P0011 is displayed with DTC P1111, first perform the trouble diagnosis for EC-219, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE-I
With CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to the normal operating temperature.
3. Maintain the following conditions for at least 6 consecutive seconds. Hold the accelerator pedal as steady
as possible.
4. Stop vehicle with engine running and let engine idle for 10 seconds.
5. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-131, "Diagnosis Procedure"
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE-II
With CONSULT-III
1. Maintain the following conditions for at least 20 consecutive seconds.
DTC No.Trouble diagnosis
nameDetecting condition Possible cause
P0011Intake valve timing
control performanceThere is a gap between angle of target and
phase-control angle degree. Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Intake valve control solenoid valve
Accumulation of debris to the signal pick-up
portion of the camshaft
Timing chain installation
Foreign matter caught in the oil groove for in-
take valve timing control
ENG SPEED 1,200 - 2,000 rpm
COOLAN TEMP/S More than 60°C (140°F)
B/FUEL SCHDL More than 4.2 msec
Shift leverP or N position (A/T)
Neutral position (M/T)
ENG SPEED 2,000 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70°C (221°F)

Page 1480 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0011 IVT CONTROL
EC-131
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P OCAUTION:
Always drive at a safe speed.
2. Check 1st trip DTC.
With GST
Follow the procedure “W
