EC-764
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
If one or more SRT related self-diagnoses showed NG results in 2 consecutive cycles, the SRT will also indi-
cate “CMPLT”. → Case 3 above
The table above shows that the minimum number of cycles for setting SRT as “INCMP” is one (1) for each
self-diagnosis (Case 1 & 2) or two (2) for one of self-diagnoses (Case 3). However, in preparation for the state
emissions inspection, it is unnecessary for each self-diagnosis to be executed twice (Case 3) for the following
reasons:
The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.
The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.
When, during SRT driving pattern, 1st trip DTC (NG) is detected prior to “CMPLT” of SRT, the self-diagnosis
memory must be erased from ECM after repair.
If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.
NOTE:
SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out
prior to the state emission inspection even though the SRT indicates “CMPLT”.
SRT Service Procedure
If a vehicle has failed the state emissions inspection due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence on the next page.
*1 “How to Read DTC and 1st Trip DTC” *2 “How to Display SRT code” *3 “How to Set SRT Code”
SEF573XB
Page 2114 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-765
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O How to Display SRT Code
WITH CONSULT-III
Selecting “SRT STATUS” in “DTC CONFIRMATION” mod NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-765
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O How to Display SRT Code
WITH CONSULT-III
Selecting “SRT STATUS” in “DTC CONFIRMATION” mod](/manual-img/5/57395/w960_57395-2113.png)
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-765
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O How to Display SRT Code
WITH CONSULT-III
Selecting “SRT STATUS” in “DTC CONFIRMATION” mode with CONSULT-III.
For items whose SRT codes are set, a “CMPLT” is displayed on the CONSULT-III screen; for items whose
SRT codes are not set, “INCMP” is displayed.
WITH GST
Selecting Service $01 with GST (Generic Scan Tool)
MALFUNCTION INDICATOR (MI)
Description
The MI is located on the instrument panel.
1. The MI will light up when the ignition switch is turned ON without
the engine running. This is a bulb check.
If the MI does not light up, check MI circuit. Refer to MWI-15,
"WARNING LAMPS/INDICATOR LAMPS : System Diagram".
2. When the engine is started, the MI should go off.
If the MI remains on, the on board diagnostic system has
detected an engine system malfunction.
On Board Diagnostic System Function
The on board diagnostic system has the following four functions.
Diagnostic Test Mode I — Bulb Check
SAT652J
Diagnostic Test
ModeKEY and ENG.
Sta tusFunction Explanation of Function
Mode I Ignition switch in
ON position
Engine stoppedBULB CHECK This function checks the MI bulb for damage (blown, open
circuit, etc.).
If the MI does not come on, check MI circuit.
Engine running MALFUNCTION
WARNINGThis is a usual driving condition. When a malfunction is de-
tected twice in two consecutive driving cycles (two trip de-
tection logic), the MI will light up to inform the driver that a
malfunction has been detected.
The following malfunctions will light up or blink the MI in the
1st trip.
Misfire (Possible three way catalyst damage)
One trip detection diagnoses
Mode II Ignition switch in
ON position
Engine stoppedSELF-DIAGNOSTIC
RESULTSThis function allows DTCs and 1st trip DTCs to be read.
Engine running HEATED OXYGEN SENSOR 1
MONITORThis function allows the fuel mixture condition (lean or rich),
monitored by heated oxygen sensor 1, to be read.
Page 2115 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-766
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check MI circuit. Refer to MWI-
15, "WARNING LAMP NISSAN TIIDA 2007 Service Repair Manual EC-766
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check MI circuit. Refer to MWI-
15, "WARNING LAMP](/manual-img/5/57395/w960_57395-2114.png)
EC-766
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
In this mode, the MI on the instrument panel should stay ON. If it remains OFF, check MI circuit. Refer to MWI-
15, "WARNING LAMPS/INDICATOR LAMPS : System Diagram".
Diagnostic Test Mode I — Malfunction Warning
This DTC number is clarified in Diagnostic Test Mode II (SELF-DIAGNOSTIC RESULTS)
Diagnostic Test Mode II — Self-diagnostic Results
In this mode, the DTC and 1st trip DTC are indicated by the number of blinks of the MI as shown below.
The DTC and 1st trip DTC are displayed at the same time. If the MI does not illuminate in diagnostic test mode
I (Malfunction warning), all displayed items are 1st trip DTCs. If only one code is displayed when the MI illumi-
nates in diagnostic test mode II (SELF-DIAGNOSTIC RESULTS), it is a DTC; if two or more codes are dis-
played, they may be either DTCs or 1st trip DTCs. DTC No. is same as that of 1st trip DTC. These unidentified
codes can be identified by using the CONSULT-III or GST. A DTC will be used as an example for how to read
a code.
A particular trouble code can be identified by the number of four-digit numeral flashes. The “zero” is indicated
by the number of ten flashes. The length of time the 1,000th-digit numeral flashes on and off is 1.2 seconds
consisting of an ON (0.6-second) - OFF (0.6-second) cycle.
The 100th-digit numeral and lower digit numerals consist of a 0.3-second ON and 0.3-second OFF cycle.
A change from one digit numeral to another occurs at an interval of 1.0-second OFF. In other words, the later
numeral appears on the display 1.3 seconds after the former numeral has disappeared.
A change from one trouble code to another occurs at an interval of 1.8-second OFF.
In this way, all the detected malfunctions are classified by their DTC numbers. The DTC 0000 refers to no mal-
function. (See EC-1020, "
DTCIndex".)
HOW TO ERASE DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to
“HOW to ERASE DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)”.
If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.
Be careful not to erase the stored memory before starting trouble diagnoses.
Diagnostic Test Mode II — Heated Oxygen Sensor 1 Monitor
In this mode, the MI displays the condition of the fuel mixture (lean or rich) which is monitored by the heated
oxygen sensor 1.
MI Condition
ON When the malfunction is detected.
OFF No malfunction.
PBIA3905E
MI Fuel mixture condition in the exhaust gas Air fuel ratio feedback control condition
ON Lean
Closed loop system
OFF Rich
*Remains ON or OFF Any condition Open loop system
Page 2116 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-767
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*: Maintains conditions just before switching to open loop.
To check the heated oxygen sensor 1 f NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-767
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*: Maintains conditions just before switching to open loop.
To check the heated oxygen sensor 1 f](/manual-img/5/57395/w960_57395-2115.png)
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-767
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*: Maintains conditions just before switching to open loop.
To check the heated oxygen sensor 1 function, start engine in the Diagnostic Test Mode II and warm it up until
engine coolant temperature indicator points to the middle of the gauge.
Next run engine at about 2,000 rpm for about 2 minutes under no load conditions. Then make sure that the MI
comes ON more than 5 times within 10 seconds with engine running at 2,000 rpm under no load.
MI FLASHING WITHOUT DTC
If the ECM is in Diagnostic Test Mode II, MI may flash when engine is running. In this case, check ECM diag-
nostic test mode. How to switch the diagnostic test (function) modes, and details of the above functions are
described later. Refer to “How to Switch Diagnostic Test Mode”.
The following emission-related diagnostic information is cleared when the ECM memory is erased.
Diagnostic trouble codes
1st trip diagnostic trouble codes
Freeze frame data
1st trip freeze frame data
System readiness test (SRT) codes
Test values
How to Switch Diagnostic Test Mode
NOTE:
It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
HOW to SET DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
a. Fully depress the accelerator pedal.
b. Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MI starts
blinking.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.
HOW to SET DIAGNOSTIC TEST MODE II (HEATED OXYGEN SENSOR 1 MONITOR)
1. Set the ECM in Diagnostic Test Mode II (Self-diagnostic results).
Refer to “HOW to SET DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)”.
2. Start Engine.
ECM has entered to Diagnostic Test Mode II (Heated oxygen sensor 1 monitor).
HOW to ERASE DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to “HOW to SET DIAGNOSTIC TEST
MODE II (SELF-DIAGNOSTIC RESULTS)”.
2. Fully depress the accelerator pedal and keep it for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.

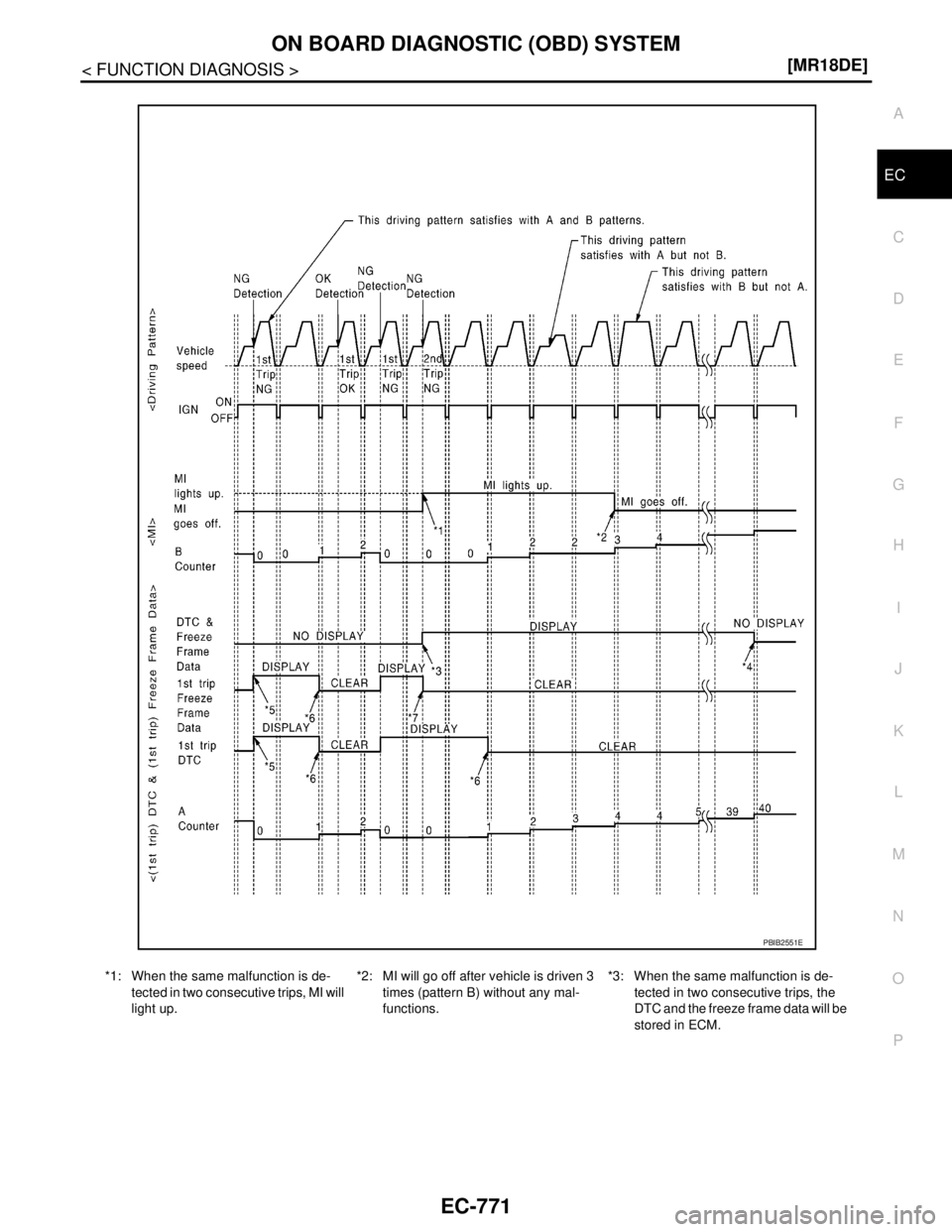

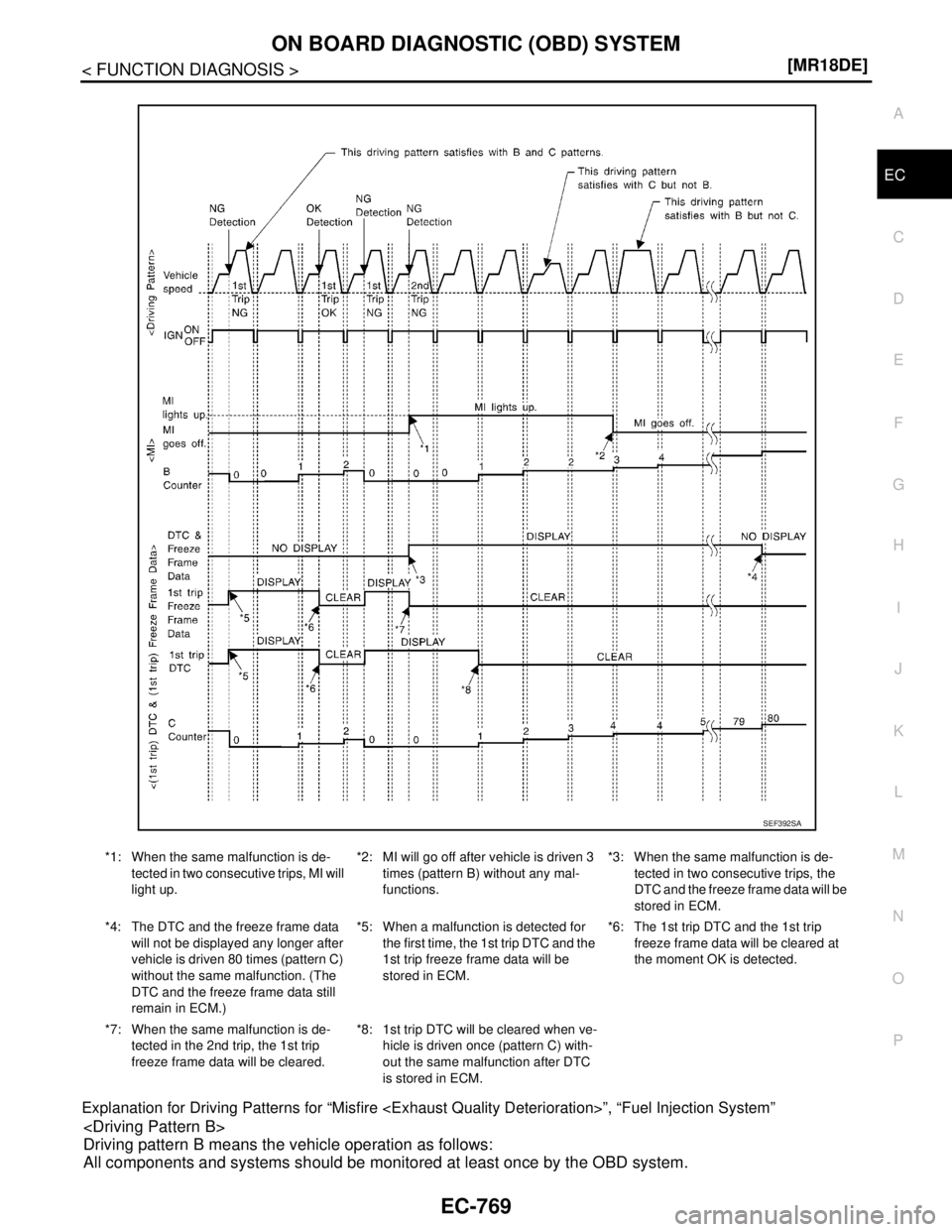

OBD System Operation Chart
Relationship Between MI, 1st Trip DTC, DTC and Detectable Items
PBIB0092E
Page 2117 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-768
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM me NISSAN TIIDA 2007 Service Repair Manual EC-768
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM me](/manual-img/5/57395/w960_57395-2116.png)
EC-768
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MI will come on.
The MI will go off after the vehicle is driven 3 times (pattern B) with no malfunction. The drive is counted only
when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs while count-
ing, the counter will reset.
The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (pattern A) without the
same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injection
System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (pattern C) without
the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-III will
count the number of times the vehicle is driven.
The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
Summary Chart
For details about patterns B and C under “Fuel Injection System” and “Misfire”, see “EXPLANATION FOR DRIVING PATTERNS FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”.
For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE
DETERIORATION>”, “FUEL INJECTION SYSTEM”.
*1: Clear timing is at the moment OK is detected.
*2: Clear timing is when the same malfunction is detected in the 2nd trip.
Relationship Between MI, DTC, 1st Trip DTC and Driving Patterns for “Misfire ”, “Fu-
el Injection System”
Items Fuel Injection System Misfire Other
MI (goes off) 3 (pattern B)3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display)80 (pattern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear)
1 (pattern C), *
11 (pattern C), *11 (pattern B)
1st Trip Freeze Frame Data
(clear)*1, *2 *1, *2 1 (pattern B)
Page 2118 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-769
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Explanation for Driving Patterns for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injec NISSAN TIIDA 2007 Service Repair Manual ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-769
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Explanation for Driving Patterns for “Misfire <Exhaust Quality Deterioration>”, “Fuel Injec](/manual-img/5/57395/w960_57395-2117.png)
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-769
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Explanation for Driving Patterns for “Misfire ”, “Fuel Injection System”
Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
*1: When the same malfunction is de-
tected in two consecutive trips, MI will
light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any mal-
functions.*3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.*6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de-
tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.*8: 1st trip DTC will be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
SEF392SA
Page 2119 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-770
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
The B counter will be NISSAN TIIDA 2007 Service Repair Manual EC-770
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
The B counter will be](/manual-img/5/57395/w960_57395-2118.png)
EC-770
< FUNCTION DIAGNOSIS >[MR18DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
The B counter will be counted up when driving pattern B is satisfied without any malfunction.
The MI will go off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)
Driving pattern C means the vehicle operation as follows:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
Calculated load value: (Calculated load value in the freeze frame data) x (1±0.1) [%]
Engine coolant temperature (T) condition:
When the freeze frame data shows lower than 70°C (158°F), T should be lower than 70°C (158°F).
When the freeze frame data shows higher than or equal to 70°C (158°F), T should be higher than or equal to
70°C (158°F).
Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80°C (176°F)
To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C
(158°F)
The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
The C counter will be counted up when vehicle conditions above is satisfied without the same malfunction.
The DTC will not be displayed after C counter reaches 80.
The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is
stored in ECM.
Relationship Between MI, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire
tion>”, “Fuel Injection System”
Page 2120 of 5883
ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-771
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*1: When the same malfunction is de-
tected in two consecutive trips, MI will
light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any mal-
functions.*3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
PBIB2551E
