DLK-740
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732057
REMOVAL
Radiator Core Support Upper
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
3. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-736
.
4. Remove the air guide and hood lock cable clip.
5. Remove the washer tank inlet. Refer to WW-64, "
Removal and Installation" .
6. Remove the radiator core support upper.
Radiator Core Support Lower
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the front bumper. Refer to EXT-13, "
Removal and Installation" .
3. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
4. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-736
.
5. Remove the air guide and hood lock cable mounting clip.
6. Remove the front bumper reinforcement. Refer to EXT-13, "
Removal and Installation".
7. Remove the radiator core lower stay.
8. Remove the undercover.
PIIB6515E
1. Radiator core support upper 2. Radiator core support lower 3. Radiator core support lower stay
4. Radiator core support side stay 5. Air guide
24.5 N·m (2.5 kg-m, 18 ft-lb)
Page 1330 of 5883
RADIATOR CORE SUPPORT
DLK-741
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
9. Remove radiator core support lower side stay.
10. Tie a cord to all radiator core upper supports of the radiator and
condenser.
NOTE:
To prevent the compressor and radiator from being dropped
when the radiator core lower support is removed.
11. Remove the bolts, and lower radiator core lower supports.
12. Remove the radiator core lower supports.
INSTALLATION
Installation is in the reverse order of removal. 55.0 N·m (5.6 kg-m, 41 ft-lb)
PIIB2800J
PIIB2799J
Page 1331 of 5883
DLK-742
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
FRONT FENDER
FRONT FENDER
Removal and InstallationINFOID:0000000001732058
REMOVAL
1. Remove the headlamp assemblies. Refer to EXL-84, "Removal and Installation".
2. Remove the cowl top cover (LH/RH). Refer to EXT-20, "
Removal and Installation".
3. Remove the front fender protector. Refer to DLK-742, "
Removal and Installation".
4. Remove the bolt and the front fender.
CAUTION:
While removing use a shop cloth to protect the vechicle body from damage.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint onto the head of the front fender bolts.
After installing, check front fender adjustment. Refer to DLK-734, "
Fitting Adjustment" and DLK-743,
"Fitting Adjustment".
1. Front fender 2 Bolt (LH 7 bolts required) (RH 8 bolts
required)
LIIA2657E
Page 1332 of 5883
DOOR
DLK-743
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR
Fitting AdjustmentINFOID:0000000001732059
FRONT DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
Access from inside the fender to loosen the hinge bolts. Raise the front door at rear end to adjust.
Surface Height Adjustment
Loosen the front door bolts, and adjust the surface height difference of fender and front door according to the
fitting standard dimension.
Striker Adjustment

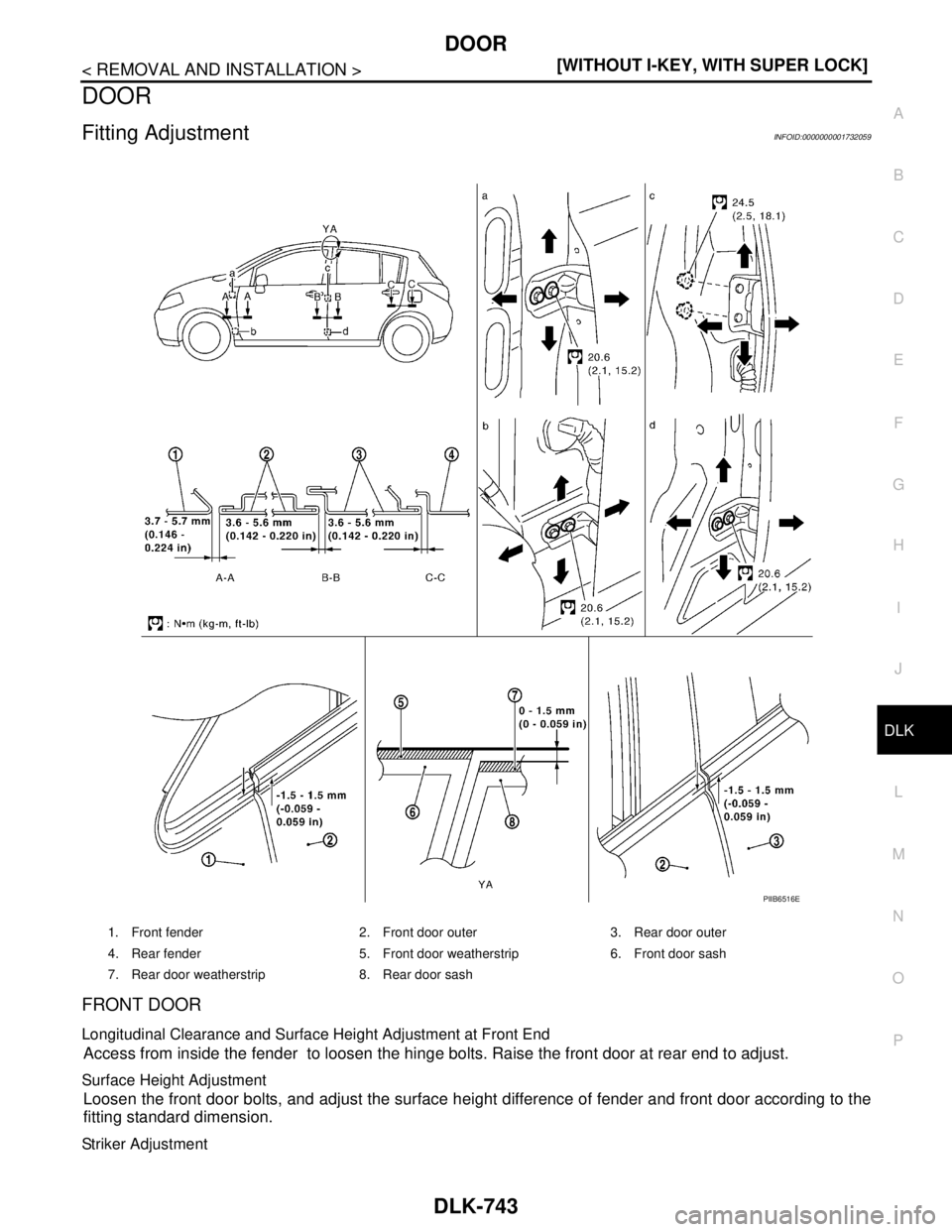

1. Front fender 2. Front door outer 3. Rear door outer
4. Rear fender 5. Front door weatherstrip 6. Front door sash
7. Rear door weatherstrip 8. Rear door sash
PIIB6516E
Page 1333 of 5883
DLK-744
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR
1.
REAR DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
1. Remove the center pillar upper and lower garnishes. Refer to INT-20, "Removal and Installation".
2. Access from inside the vehicle to loosen the hinge nuts. Open the rear door, and raise the rear door at
rear end to adjust.
Surface Height Adjustment
Loosen the front door striker bolts and rear door hinge nuts, and adjust the surface height difference of front
and rear doors according to the fitting standard dimension.
Striker Adjustment
1.
BACK DOOR
Longitudinal Clearance and Surface Height Adjustment
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
Page 1334 of 5883
DOOR
DLK-745
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
1. Open and support the back door.
2. Slightly loosen the hinge nuts.
3. Reposition the door as necessary and tighten the nuts.
4. Confirm the adjustment. Repeat as necessary to obtain the desired fit.
Striker Adjustment
1. Back door assembly 2. Back door hinge 3. Tail lamp assembly
4. Back window glass 5. Roof 6. Rear pillar

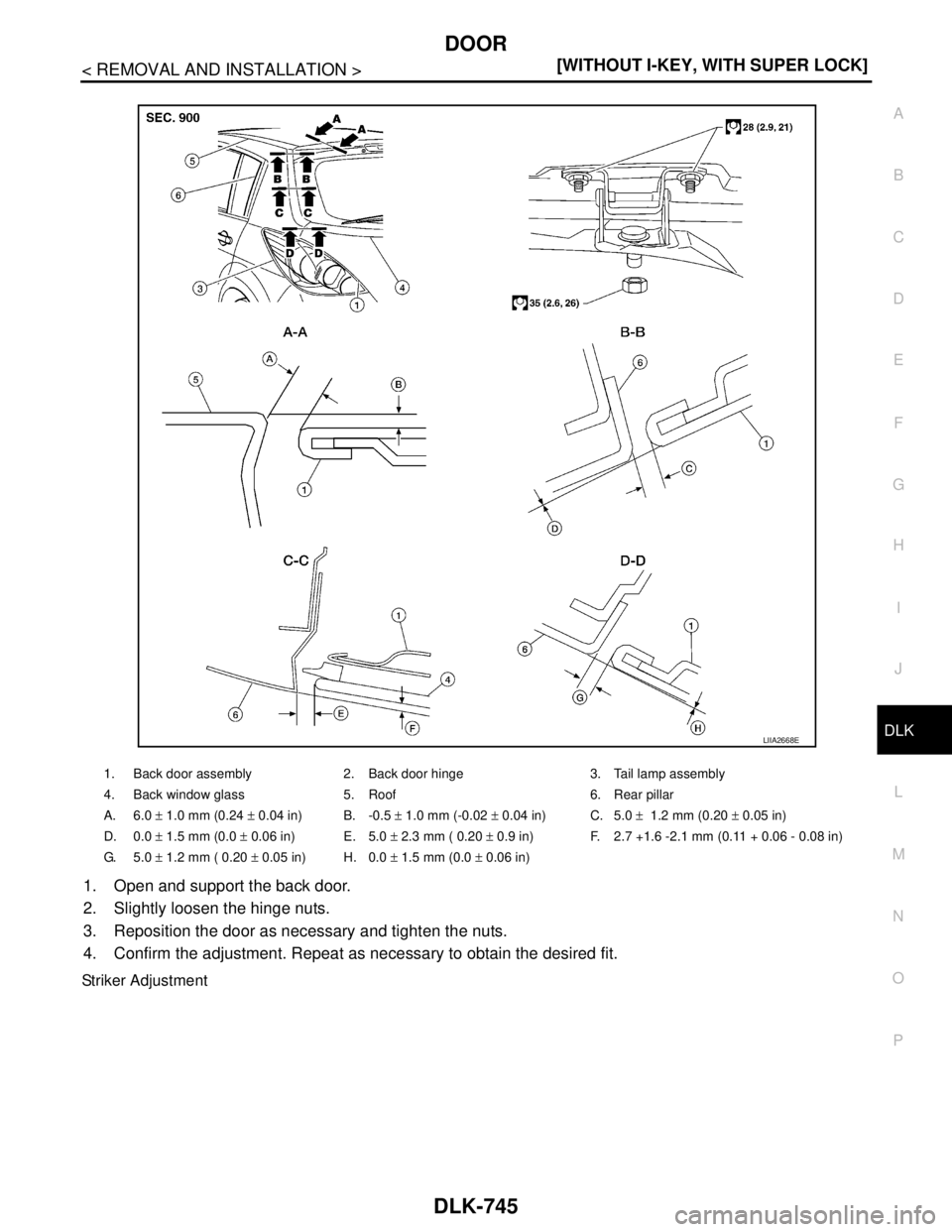

A. 6.0 ± 1.0 mm (0.24 ± 0.04 in) B. -0.5 ± 1.0 mm (-0.02 ± 0.04 in) C. 5.0 ± 1.2 mm (0.20 ± 0.05 in)
D. 0.0 ± 1.5 mm (0.0 ± 0.06 in) E. 5.0 ± 2.3 mm ( 0.20 ± 0.9 in) F. 2.7 +1.6 -2.1 mm (0.11 + 0.06 - 0.08 in)
G. 5.0 ± 1.2 mm ( 0.20 ± 0.05 in) H. 0.0 ± 1.5 mm (0.0 ± 0.06 in)
LIIA2668E
Page 1335 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-746
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732060
FRONT DOOR
CAUTION:
When removing and installing the front door assembly, NISSAN TIIDA 2007 Service Repair Manual DLK-746
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732060
FRONT DOOR
CAUTION:
When removing and installing the front door assembly,](/manual-img/5/57395/w960_57395-1334.png)
DLK-746
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732060
FRONT DOOR
CAUTION:
When removing and installing the front door assembly, support the door with a jack and cloth to pro-
tect the door and body.
When removing and installing front door assembly, be sure to carry out the fitting adjustment. Refer
to DLK-743, "
Fitting Adjustment".
After installing, apply touch-up paint onto the head of the hinge nuts.
Check the hinge rotating part for lubrication. If necessary, apply “body grease”.
Operate with two workers, because of its heavy weight.
Check front door open/close operation after installation.
Removal
1. Remove dash side finisher. Refer to INT-20, "Removal and Installation".
2. Disconnect the front door harness connectors.
3. Remove the front door harness grommet, and then remove the
harness from the vehicle.
4. Remove the check link bolt.Striker bolts 20 N·m (2.2 kg-m, 16 ft-lb)
LIIA2641E
PIIB6518E
14.7 N·m (1.5 kg-m, 11 ft-lb)
PIIB6543E
Page 1336 of 5883
DOOR
DLK-747
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
5. Remove the hinge nuts and then the door assembly.
Installation
Installation is in the reverse order of removal.
REAR DOOR
CAUTION:
When removing and installing the rear door assembly, support the door with a jack and cloth to pro-
tect the door and body.
When removing and installing rear door assembly, be sure to carry out the fitting adjustment. Refer
to DLK-743, "
Fitting Adjustment".
After installing, apply touch-up paint onto the head of the hinge nuts.
Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
Operate with two workers, because of its heavy weight.
Check rear door open/close operation after installation.
Removal
1. Remove the rear door harness grommet.
2. Disconnect the rear door harness connector. 24.5 N·m (2.5 kg-m, 18 ft-lb)
PIIB6519E
PIIB6520E
PIIB6521E
