Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001404297
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for SRS "AIR BAG" and "SEAT BELT PRE-TENSIONER" Service
INFOID:0000000001404298
Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
passed.
The air bag diagnosis sensor unit must always be installed with the arrow mark “⇐” pointing toward the front
of the vehicle for proper operation. Also check air bag diagnosis sensor unit for cracks, deformities or rust
before installation and replace as required.
The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to
turn steering wheel or column after removal of steering gear.
Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side
facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.
Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
After air bag inflates, the front instrument panel assembly should be replaced if damaged.
Page 4746 of 5883

PREPARATION
SR-3
< PREPARATION >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000001404303
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Tool number
Tool nameDescription
KV99105300
Air bag module bracketAnchoring air bag module
KV99106400
Deployment toolDisposing of air bag module and front seat
belt pre-tensioner
KV99110500
Deployment tool adapter for driver
air bag module (Yellow and or-
ange connectors)
Deployment tool adapter for seat
belt pre-tensioner (Yellow connec-
tor)
Deployment tool adapter for seat
belt pre-tensioner2 (Orange con-
nector)
Deployment tool adapter for front
passenger air bag module (Yellow
and orange connector) Connecting between the deployment tool
and driver air bag module
Connecting between the deployment tool
and front seat belt pre-tensioner
Connecting between the deployment tool
and seat belt pre-tensioner2
Connecting between the deployment tool
and front passenger air bag module
KV99109800
Deployment tool adapter for front
side air bag module, side curtain air
bag moduleConnecting between the deployment tool
and front side air bag module, side curtain
air bag module

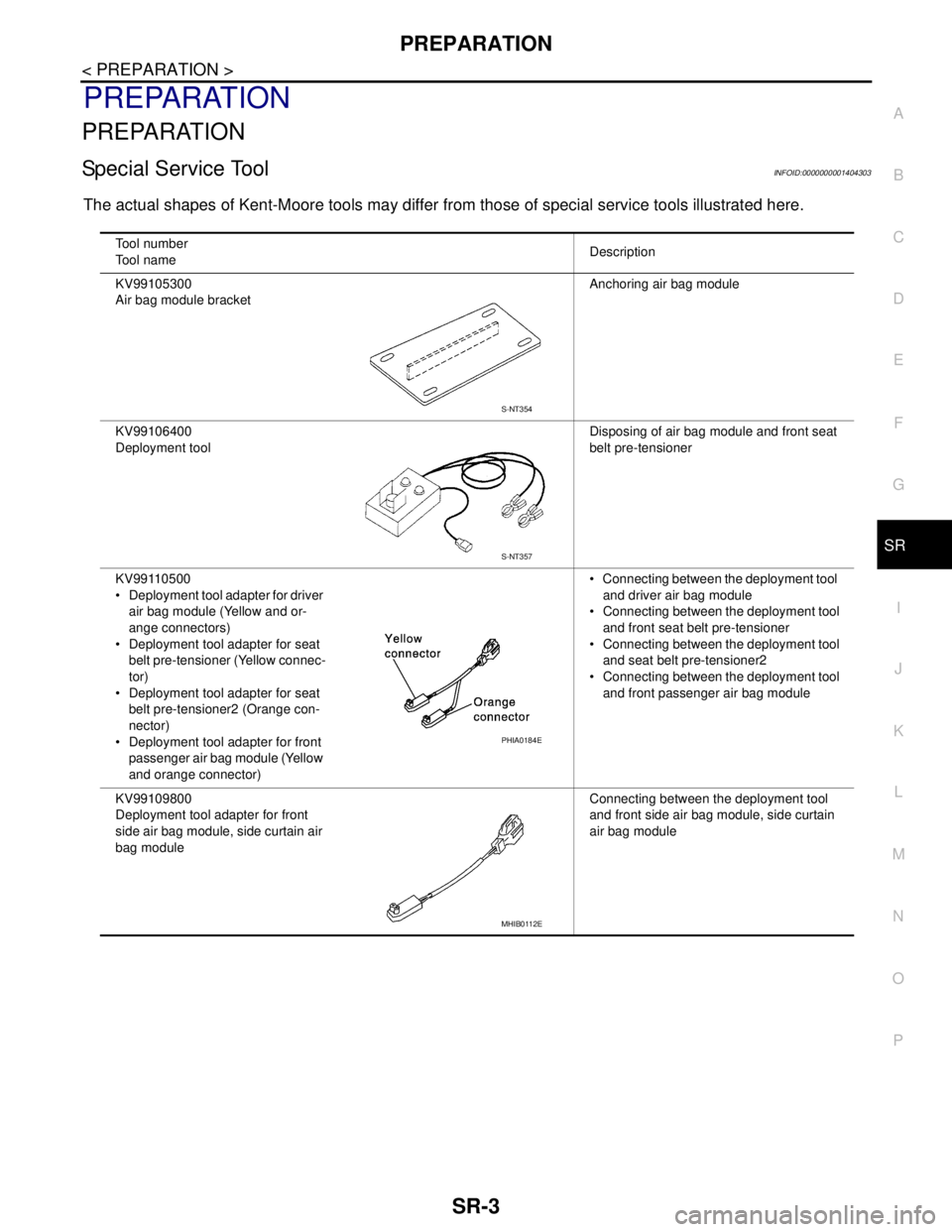

S-NT354
S-NT357
PHIA0184E
MHIB0112E
Page 4747 of 5883

SR-4
< ON-VEHICLE REPAIR >
DRIVER AIR BAG MODULE
ON-VEHICLE REPAIR
DRIVER AIR BAG MODULE
Removal and InstallationINFOID:0000000001404299
REMOVAL
WARNING:
When servicing the SRS, do not work from directly in front of air bag module.
Always place air bag module with pad side facing upward.
CAUTION:
Before servicing the SRS, turn ignition switch OFF, discon-
nect both battery cables, then wait at least 3 minutes.
Do not attempt to repair or replace damaged direct-connect
SRS component connectors. If a driver air bag direct-connect
harness connector is damaged, the spiral cable must be
replaced.
Do not insert any foreign objects (screwdriver, etc.) into air
bag module or harness connectors.
Do not disassemble air bag module.
Do not expose the air bag module to temperatures exceeding
90°C (194°F).
Replace the air bag module if it has been dropped or sus-
tained an impact.
Do not allow oil, grease or water to come in contact with the
air bag module.
1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
2. Remove the covers RH/LH.
3. Place the steering wheel in the straight ahead position.

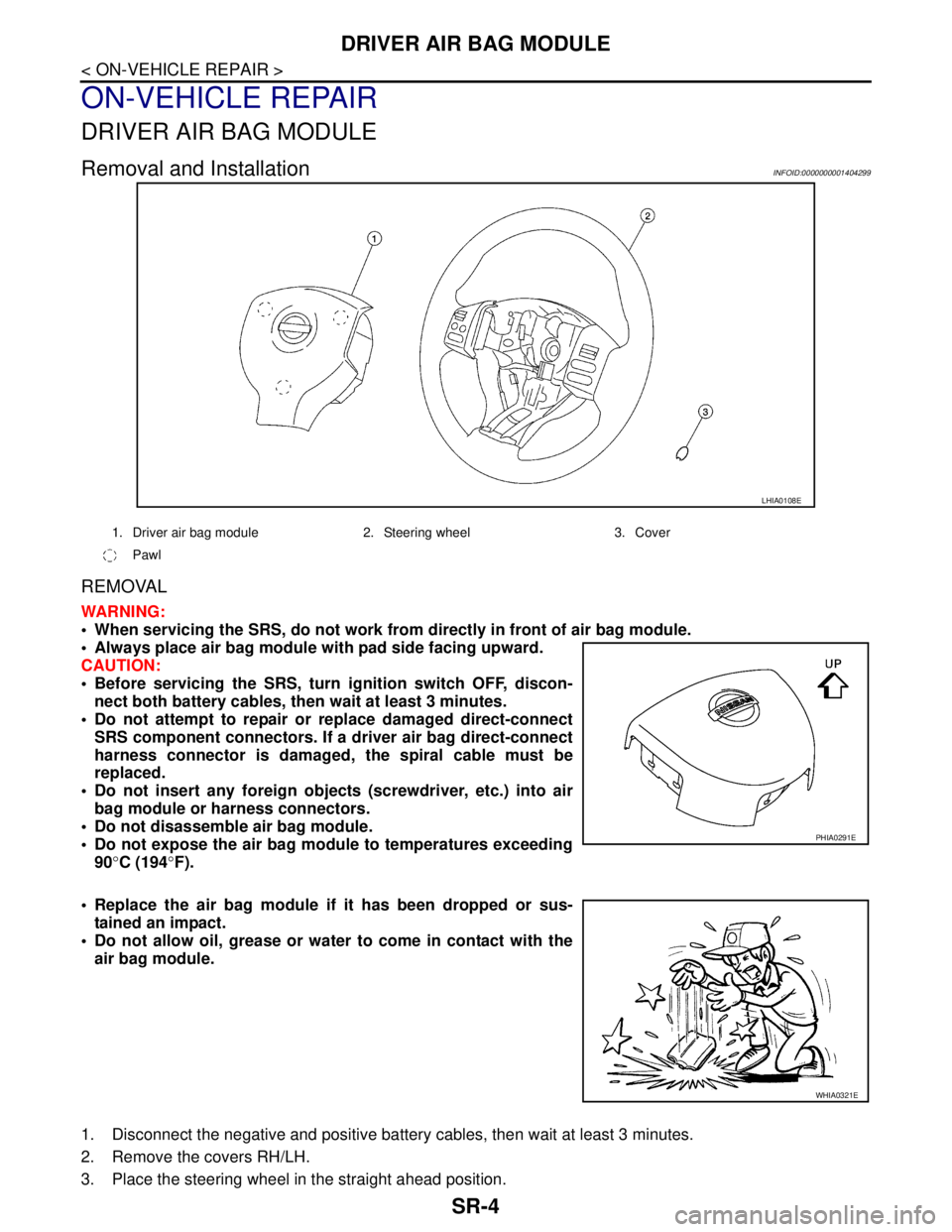

LHIA0108E
1. Driver air bag module 2. Steering wheel 3. Cover
Pawl
PHIA0291E

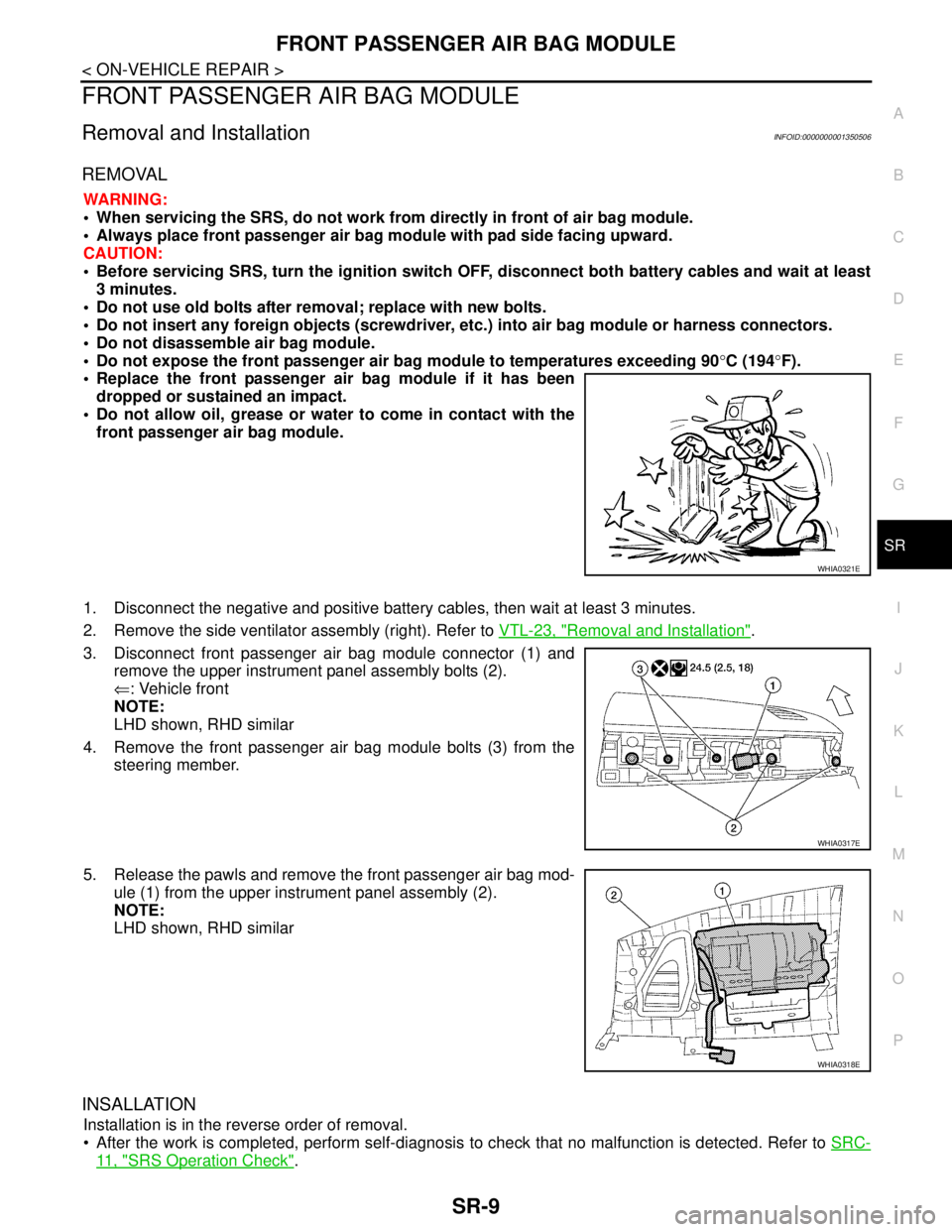

WHIA0321E
Page 4748 of 5883

DRIVER AIR BAG MODULE
SR-5
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
4. Release the driver air bag module retaining clips RH/LH.
Insert suitable 4mm - 6mm blunt tool (A) through LH access
hole on back side of steering wheel (1) and contact retaining
clip.
CAUTION:
Do not use sharp edged objects such as screwdrivers to
release driver air bag module from steering wheel, SRS
components may be unintentionally damaged.
Press tool inward with sufficient force on retaining clip (1) to
release LH pawl of driver air bag module from steering wheel.
Repeat for RH pawl of driver air bag module from steering
wheel.
Tilt top edge away from steering wheel, then lift upward releas-
ing lower pawl of driver air bag module from steering wheel.
5. Disconnect driver air bag module connector (1) and horn con-
nector (2).
For removal/installation of the direct-connect SRS connectors,
refer to SRC-13, "
CONSULT-III Function (AIR BAG)".
INSTALLATION
Installation is in the reverse order of removal.
For removal/installation of the direct-connect SRS connectors, refer to SRC-9, "
Direct-connect SRS Compo-
nent Connectors".
If driver air bag module is being replaced due to deployment, spiral cable must also be replaced. Refer to
SR-7, "
Removal and Installation".
After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to SRC-
11 , "SRS Operation Check".
CAUTION:

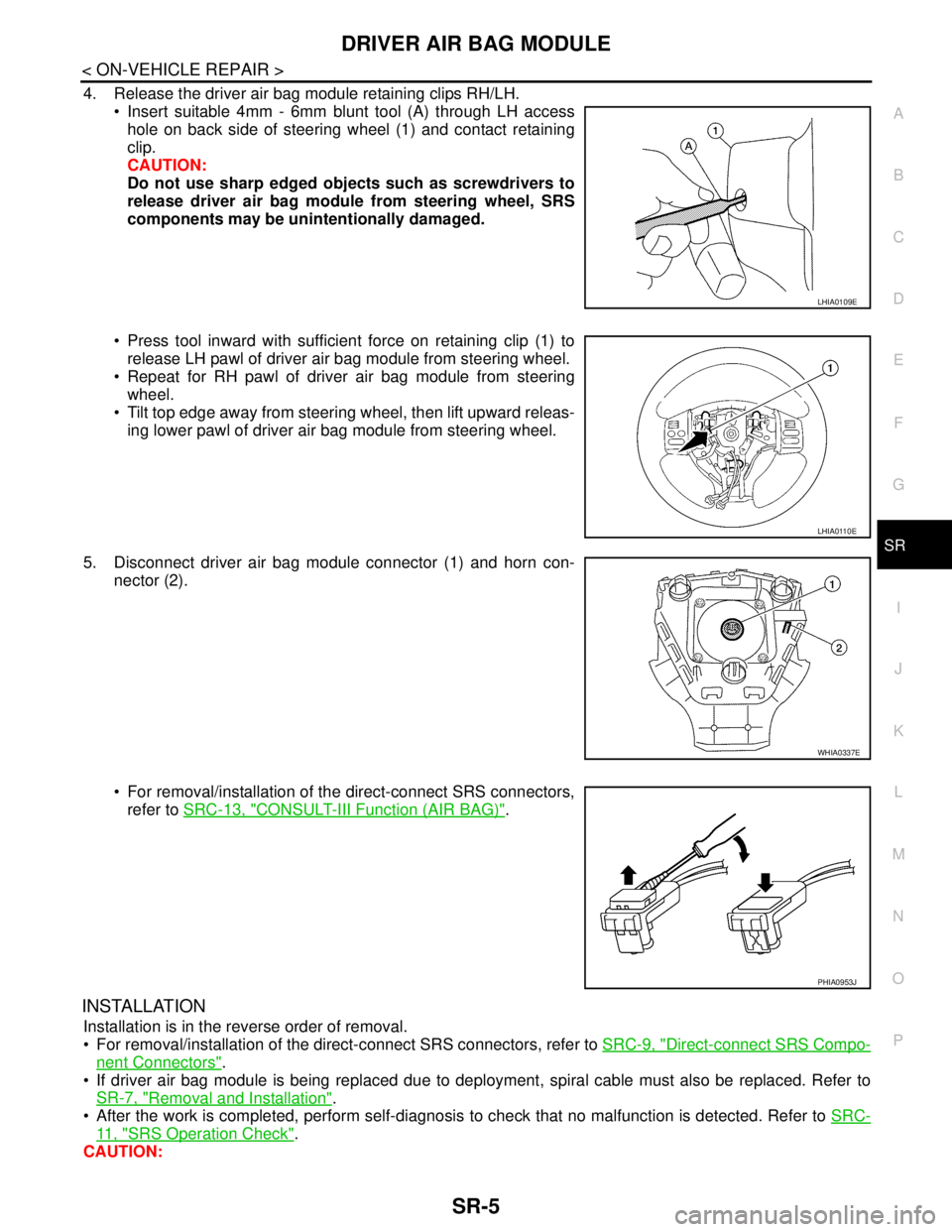

LHIA0109E
LHIA0110E
WHIA0337E
PHIA0953J
Page 4749 of 5883
SR-6
< ON-VEHICLE REPAIR >
DRIVER AIR BAG MODULE
Make sure driver air bag module harness (1) is routed prop-
erly to avoid SRS component damage during installation.
WHIA0338E
Page 4750 of 5883

SPIRAL CABLE
SR-7
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
SPIRAL CABLE
Removal and InstallationINFOID:0000000001404300
REMOVAL
WARNING:
When servicing the SRS, do not work from directly in front of air bag module.
CAUTION:
Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least
3 minutes.
Do not tap or bump the steering wheel.
Do not disassemble the spiral cable.
Do not allow oil, grease or water to come in contact with the spiral cable.
Replace the spiral cable if it has been dropped or sustained an impact.
With the steering linkage disconnected, the spiral cable may snap by turning the steering wheel
beyond the limited number of turns. The spiral cable can be turned counterclockwise about 2.5 turns
from the neutral position.
1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
2. Set the front wheels to the straight-ahead/neutral position.
3. Remove the steering wheel. Refer to ST-8, "
Removal and Installation".
4. Remove the column cover upper and lower.
5. Disconnect wiper and washer switch connector (1). Then while
pressing tabs (2), pull wiper and washer switch away from spiral
cable to remove.

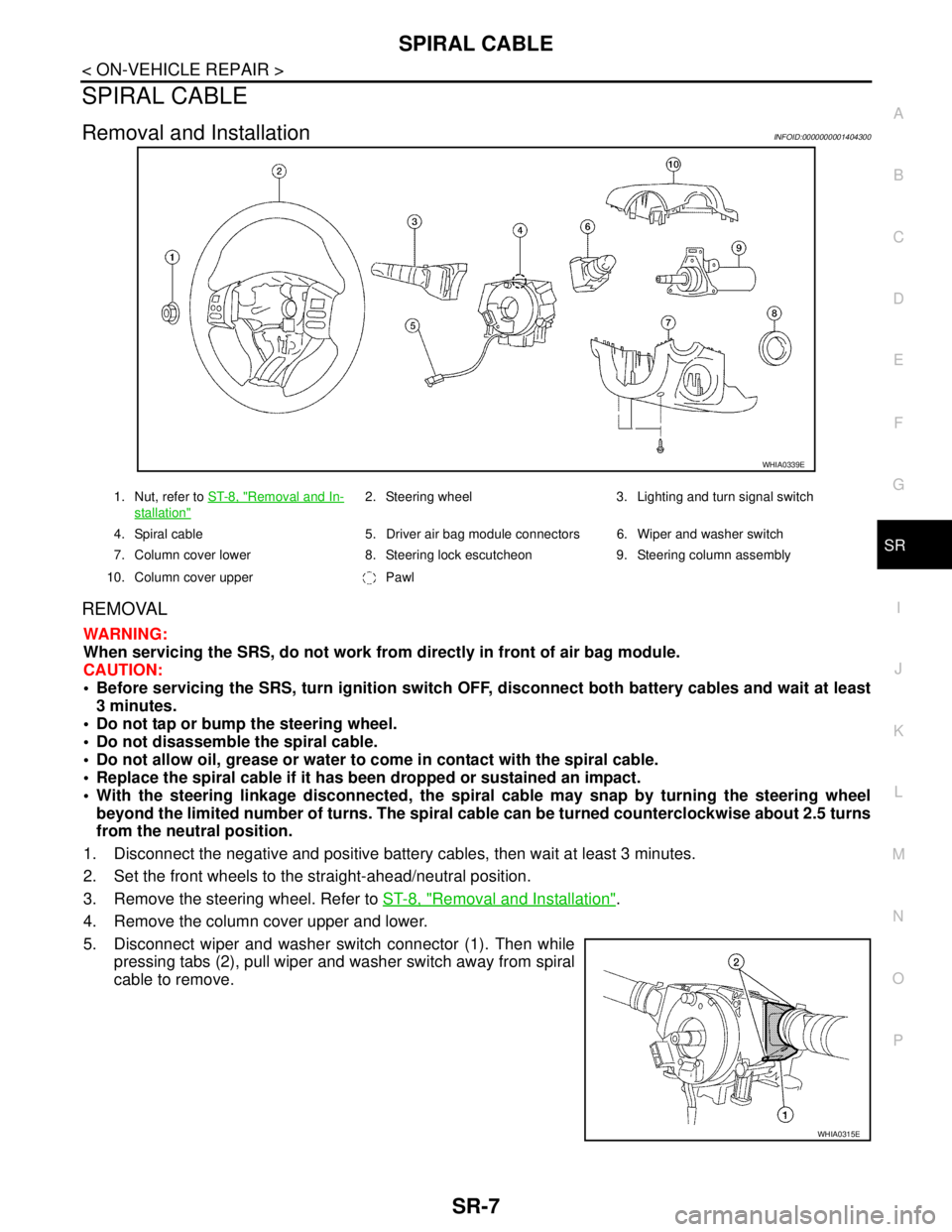

WHIA0339E
1. Nut, refer to ST-8, "Removal and In-
stallation"
2. Steering wheel 3. Lighting and turn signal switch
4. Spiral cable 5. Driver air bag module connectors 6. Wiper and washer switch
7. Column cover lower 8. Steering lock escutcheon 9. Steering column assembly
10. Column cover upper Pawl
WHIA0315E
Page 4751 of 5883

SR-8
< ON-VEHICLE REPAIR >
SPIRAL CABLE
6. Disconnect lighting and turn signal switch connector (1). Then
while pressing tabs (2), pull lighting and turn signal switch
toward driver door to remove.
7. Remove the screws, then release the tab at the top and pull the
spiral cable away from the steering column assembly.
8. Disconnect spiral cable connectors.
INSTALLATION
Installation is in the reverse order of removal.
Align spiral cable correctly when installing steering wheel, refer to
ST-8, "
Removal and Installation". Make sure spiral cable alignment
and centering marks (B) are matched and in the neutral position.
The neutral position is detected by turning left 2.6 revolutions from
the right end position, ending with the locating pin (A) at the top.
Place steering wheel in straight ahead position, then install it with
the locating pin hole (C) directly over spiral cable locating pin.
After the work is completed, perform self-diagnosis to make sure
no malfunction is detected. Refer to SRC-11, "
SRS Operation
Check".
WHIA0316E
PHIA1024J
Page 4752 of 5883

FRONT PASSENGER AIR BAG MODULE
SR-9
< ON-VEHICLE REPAIR >
C
D
E
F
G
I
J
K
L
MA
B
SR
N
O
P
FRONT PASSENGER AIR BAG MODULE
Removal and InstallationINFOID:0000000001350506
REMOVAL
WARNING:
When servicing the SRS, do not work from directly in front of air bag module.
Always place front passenger air bag module with pad side facing upward.
CAUTION:
Before servicing SRS, turn the ignition switch OFF, disconnect both battery cables and wait at least
3 minutes.
Do not use old bolts after removal; replace with new bolts.
Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
Do not disassemble air bag module.
Do not expose the front passenger air bag module to temperatures exceeding 90°C (194°F).
Replace the front passenger air bag module if it has been
dropped or sustained an impact.
Do not allow oil, grease or water to come in contact with the
front passenger air bag module.
1. Disconnect the negative and positive battery cables, then wait at least 3 minutes.
2. Remove the side ventilator assembly (right). Refer to VTL-23, "
Removal and Installation".
3. Disconnect front passenger air bag module connector (1) and
remove the upper instrument panel assembly bolts (2).
⇐: Vehicle front
NOTE:
LHD shown, RHD similar
4. Remove the front passenger air bag module bolts (3) from the
steering member.
5. Release the pawls and remove the front passenger air bag mod-
ule (1) from the upper instrument panel assembly (2).
NOTE:
LHD shown, RHD similar
INSALLATION
Installation is in the reverse order of removal.
After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to SRC-
11 , "SRS Operation Check".
WHIA0321E
