![NISSAN TIIDA 2007 Service Repair Manual LU-18
< ON-VEHICLE MAINTENANCE >[MR18DE]
OIL FILTER
OIL FILTER
Removal and InstallationINFOID:0000000001337829
REMOVAL
1. Remove oil filter using Tool (A).
⇐ Front
CAUTION:
Oil filter is provided NISSAN TIIDA 2007 Service Repair Manual LU-18
< ON-VEHICLE MAINTENANCE >[MR18DE]
OIL FILTER
OIL FILTER
Removal and InstallationINFOID:0000000001337829
REMOVAL
1. Remove oil filter using Tool (A).
⇐ Front
CAUTION:
Oil filter is provided](/manual-img/5/57395/w960_57395-4224.png)
LU-18
< ON-VEHICLE MAINTENANCE >[MR18DE]
OIL FILTER
OIL FILTER
Removal and InstallationINFOID:0000000001337829
REMOVAL
1. Remove oil filter using Tool (A).
⇐ Front
CAUTION:
Oil filter is provided with relief valve. Use Genuine NIS-
SAN Oil Filter or equivalent.
Be careful not to get burned when engine and engine oil
may be hot.
When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.
Do not allow engine oil to adhere to drive belt.
Completely wipe off any engine oil that adheres to engine and vehicle.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal contact surface of new oil fil-
ter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level. Refer to LU-6, "Inspection".
2. Start engine, and make sure there is no leaks of engine oil.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and adjust engine oil. Refer to LU-6, "
Inspection". Tool number : KV10115801 (J-38956)
PBIC3818E
SMA010
Oil filter: : 17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B
Page 4226 of 5883
OIL COOLER
LU-19
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
ON-VEHICLE REPAIR
OIL COOLER
ComponentsINFOID:0000000001532089
Removal and InstallationINFOID:0000000001532090
REMOVAL
WARNING:
Make sure engine is cool before performing this operation.
1. Remove engine undercover using power tool.
2. Remove coolant hoses from oil cooler.
NOTE:
Pinch hoses to prevent coolant leaking.
3. Remove oil filter. Refer to LU-18, "
Removal and Installation".
4. Remove connector bolt and oil cooler.
INSTALLATION
Installation is in the reverse order of removal.
PBIC4487E
1. Oil cooler hose 2. Oil cooler hose 3. O-ring
4. Oil cooler 5. Connector bolt 6. Oil filter
A. Refer to LU-19, "
Removal and Installation"
Page 4227 of 5883
LU-20
< ON-VEHICLE REPAIR >[MR18DE]
OIL PUMP
OIL PUMP
ComponentsINFOID:0000000001337951
Removal and InstallationINFOID:0000000001337952
REMOVAL
1. Remove the timing chain and oil pump drive chain. Refer to EM-177, "Removal and Installation".
AWBIA0156GB
1. Oil level gauge 2. Oil level gauge guide 3. Oil level sensor
4. Rear oil seal 5. O-ring 6. Oil pan (upper)
7. Oil pump drive chain 8. Crankshaft sprocket 9. Oil pump sprocket
10. Timing chain tensioner (for oil pump) 11. Oil pump 12. Drain plug
13. Drain plug washer 14. Oil pan (lower) 15. Oil filter
16. Connector bolt 17. Oil cooler 18. O-ring
19. O-ring A.Refer to EM-166, "
Removal and In-
stallation":Oil pan side
Page 4228 of 5883
OIL PUMP
LU-21
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
2. Remove oil pump.
Loosen bolts in reverse order as shown.
INSTALLATION
1. Install oil pump.
Tighten bolts in numerical order as shown.
2. Install the timing chain and oil pump drive chain. Refer to EM-177, "
Removal and Installation". 1 : Oil pump
2 : Oil pan (upper)
⇐: Engine front
PBIC3532J
1 : Oil pump
2 : Oil pan (upper)
⇐: Engine front
PBIC3532J
Page 4229 of 5883
LU-22
< SERVICE DATA AND SPECIFICATIONS (SDS) [MR18DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and LimitINFOID:0000000001337830
OIL PRESSURE
Oil Capacity
Unit: (Imp qt)
Engine speed rpm
Approximate discharge pressure kPa (bar, kg/cm2, psi)
Idle speed
2,00071.5 (0.70, 0.70, 10)
200 (2.0, 2.0, 29)
Drain and refillWith oil filter change Approximately 4.4 (3 7/8)
Without oil filter change Approximately 4.2 (3 3/4)
Dry engine (engine overhaul) Approximately 5.5 (4 7/8)
Page 4230 of 5883
![NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
LU-23
< PRECAUTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O

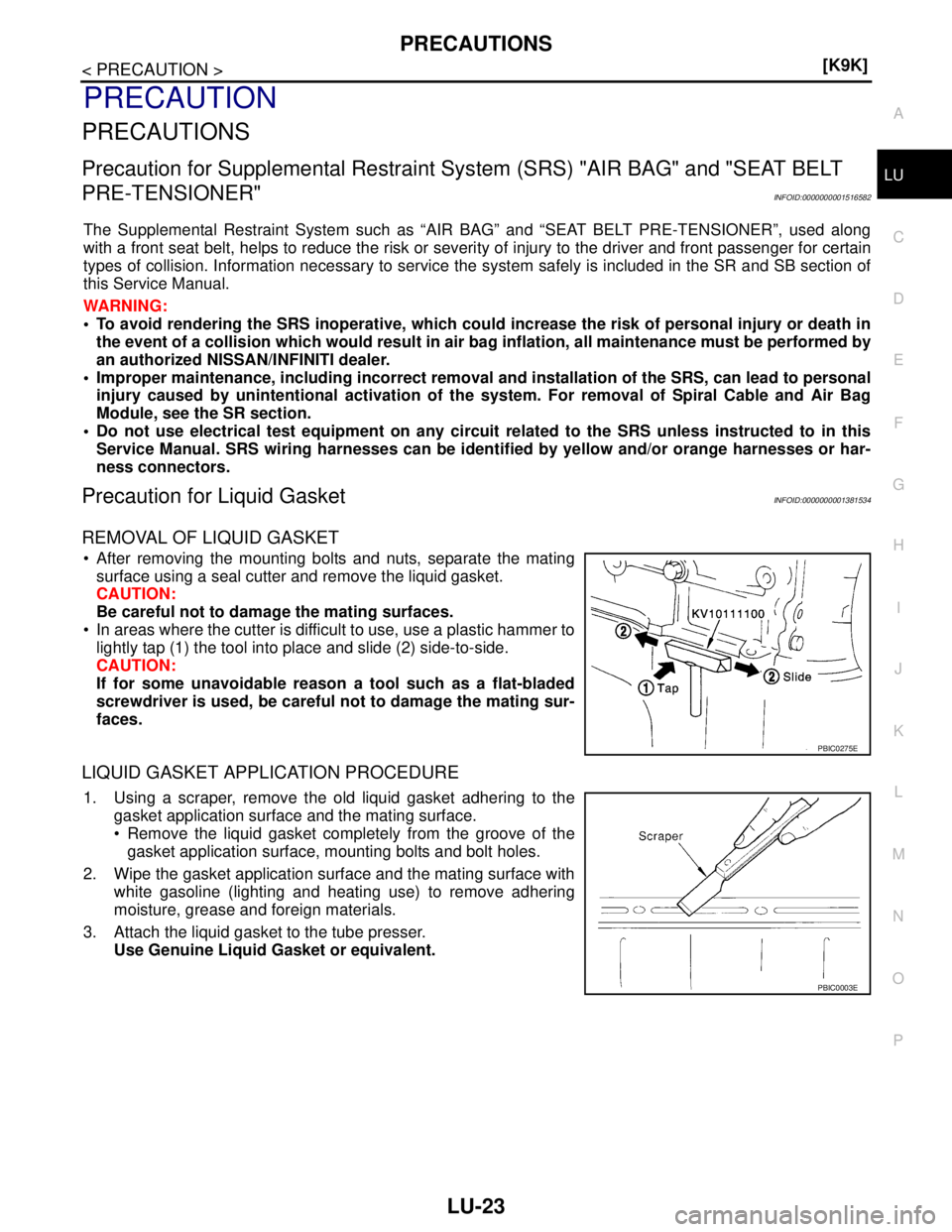

PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000 NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
LU-23
< PRECAUTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:00000000](/manual-img/5/57395/w960_57395-4229.png)
PRECAUTIONS
LU-23
< PRECAUTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001516582
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for Liquid GasketINFOID:0000000001381534
REMOVAL OF LIQUID GASKET
After removing the mounting bolts and nuts, separate the mating
surface using a seal cutter and remove the liquid gasket.
CAUTION:
Be careful not to damage the mating surfaces.
In areas where the cutter is difficult to use, use a plastic hammer to
lightly tap (1) the tool into place and slide (2) side-to-side.
CAUTION:
If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the
gasket application surface and the mating surface.
Remove the liquid gasket completely from the groove of the
gasket application surface, mounting bolts and bolt holes.
2. Wipe the gasket application surface and the mating surface with
white gasoline (lighting and heating use) to remove adhering
moisture, grease and foreign materials.
3. Attach the liquid gasket to the tube presser.
Use Genuine Liquid Gasket or equivalent.
PBIC0275E
PBIC0003E
Page 4231 of 5883
LU-24
< PRECAUTION >[K9K]
PRECAUTIONS
4. Apply the gasket without breaks to the specified location with the
specified dimensions.
If there is a groove for the liquid gasket application, apply the
gasket to the groove.
As for the bolt holes, normally apply the gasket inside the
holes. If specified, it should be applied outside the holes. Make
sure to read the instruction in this manual.
Within five minutes of gasket application, install the mating
component.
If the liquid gasket protrudes, wipe it off immediately.
Do not retighten after the installation.
After 30 minutes or more have passed from the installation, fill
the engine oil and coolant.
CAUTION:
If there are instructions in this manual, observe them.
EMA0622D
SEM159F
Page 4232 of 5883
PREPARATION
LU-25
< PREPARATION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O

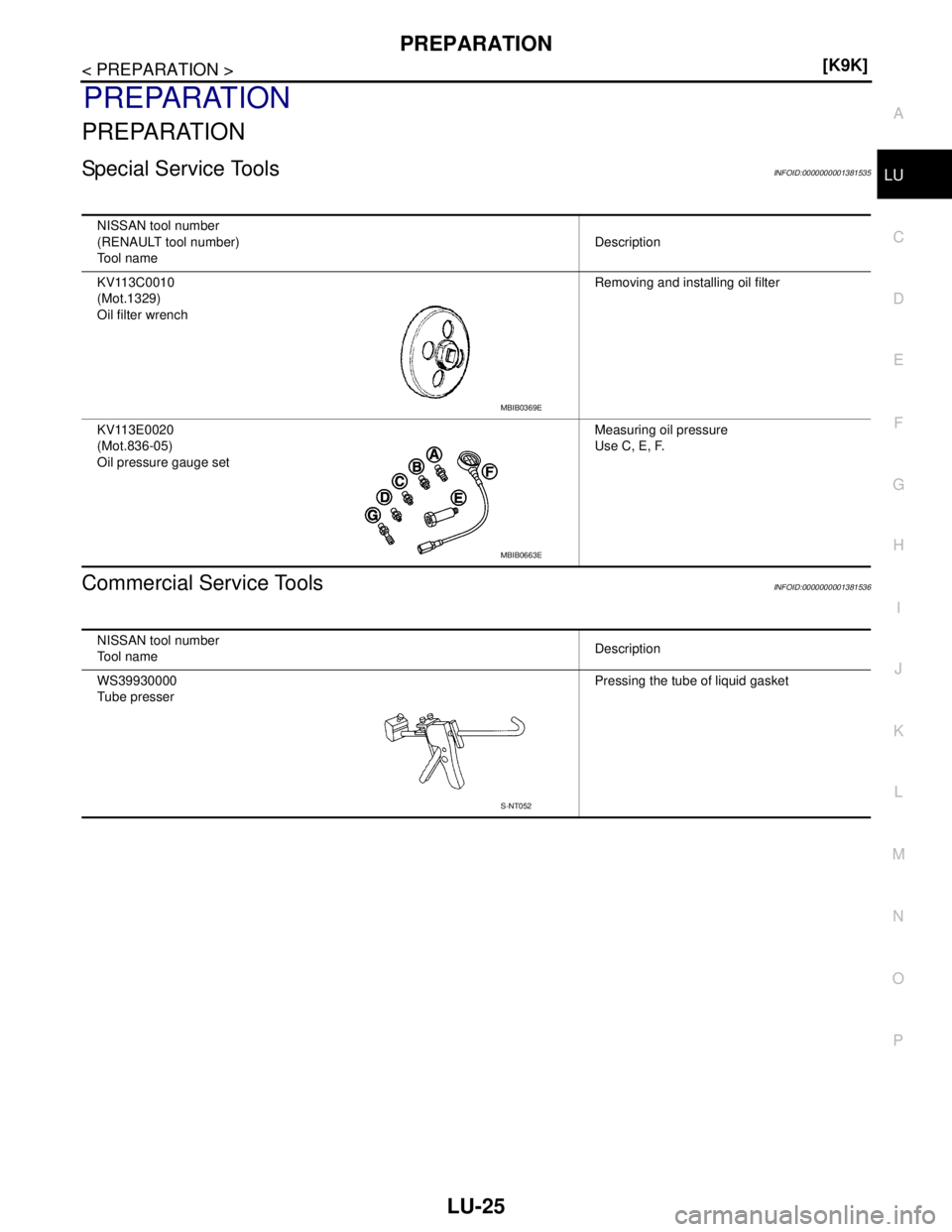

PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000001381535
Commercial Service ToolsINFOID:0000000001381536
NISSAN tool number
(RENAULT tool number)
Tool nameDescription
KV113C0010
(Mot.1329)
Oil filter wrenchRemoving and installing oil filter
KV113E0020
(Mot.836-05)
Oil pressure gauge setMeasuring oil pressure
Use C, E, F.
MBIB0369E
MBIB0663E
NISSAN tool number
Tool nameDescription
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT052
