DISASSEMBLY
TM-223
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
5. Remove turbine revolution sensor (power train revolution sen-
sor) (1) from transaxle case (2).
: Bolt (1)
6. Remove O-ring (3) from turbine revolution sensor (power train
revolution sensor) (1).
7. Remove revolution sensor (1) from transaxle case (2).
: Bolt (2)
8. Set manual shaft (1) in “P” position.
9. Remove PNP switch (2) from transaxle case.
: Bolt (3)
10. Remove oil pan bolts.
11. Remove oil pan and oil pan gasket.
12. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, frictional material (clutches, band) may need
replacement. A tacky film that will not wipe clean indicates var-
nish build up. Varnish can cause valves, servo, and clutches to
stick and can inhibit pump pressure.
If frictional material is detected, clean the A/T fluid cooler
after repair of A/T. Refer to TM-172, "
A/T Fluid Cooler
Cleaning".
13. Remove magnets from oil pan.
SCIA7004J
SCIA7170J
SCIA5904J
SCIA3476E
Page 5170 of 5883
TM-224
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY
14. Remove control valve assembly according to the following pro-
cedures.
a. Remove snap ring (1) from terminal body (2).
CAUTION:
Do not expand snap ring (1) excessively.
b. Push terminal body (2) into transaxle case.
c. Remove control valve assembly bolts (A), (B) and (C).
Bolt length, number and location:
d. Remove control valve assembly from transaxle case.
CAUTION:
Do not drop manual valve.
15. Remove manual valve from control valve assembly.
Inspect the sliding surfaces of manual valve and valve
body, and replace if damaged or dented.
CAUTION:
Do not drop manual valve.
16. Remove O-ring from terminal body.
17. Remove return spring from servo release accumulator piston.
SCIA6030J
Bolt symbol A B C
Bolt length “ ” [mm (in)]
40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SCIA5911J
SCIA3150E
SCIA3477E
Page 5171 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DISASSEMBLY
TM-225
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
18. Apply compressed air into the oil hole as shown, and remove
servo release accumulator piston NISSAN TIIDA 2007 Service Repair Manual DISASSEMBLY
TM-225
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
18. Apply compressed air into the oil hole as shown, and remove
servo release accumulator piston](/manual-img/5/57395/w960_57395-5170.png)
DISASSEMBLY
TM-225
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
18. Apply compressed air into the oil hole as shown, and remove
servo release accumulator piston from transaxle case.
CAUTION:
Strong flow of air will push the accumulator piston out
along with a splash of ATF. Cover the area with lint-free
cloth and blow air little by little to avoid this.
19. Apply compressed air into the oil hole as shown, and remove N-
D accumulator piston and return spring from transaxle case.
CAUTION:
Strong flow of air will push the accumulator piston out
along with a splash of ATF. Cover the area with lint free-
cloth and blow air little by little to avoid this.
20. Remove O-rings (1) from servo release accumulator piston (2)
and N-D accumulator piston (3).
CAUTION:
Wrap the removed servo release accumulator piston (2) and
N-D accumulator piston (3) in a lint-free cloth.
Inspect the sliding surfaces of each accumulator piston and
transaxle case, and replace if damaged or dented.
(1): Servo release accumulator piston
(2): N-D accumulator piston
SAT019DA
SAT020D
SCIA6033J
SCIA6035J
Page 5172 of 5883
TM-226
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY
Inspect each return spring, and replace if deformed or worn. Refer
to TM-321, "
Accumulator" for free length (L1) and length (L2).
(1): Return spring (Servo release accumulator)
(2): Return spring (N-D accumulator)
CAUTION:
Do not remove spring retainer (3).
21. Remove lip seals (1) from transaxle case.
22. Remove converter housing according to the following procedures.
a. Remove converter housing fitting bolts (1), (2) and (3) using a
power tool.
b. Remove bracket from converter housing
c. Remove converter housing by tapping it lightly.
SCIA6955E
SCIA5895J
SCIA6956E
Page 5173 of 5883
DISASSEMBLY
TM-227
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

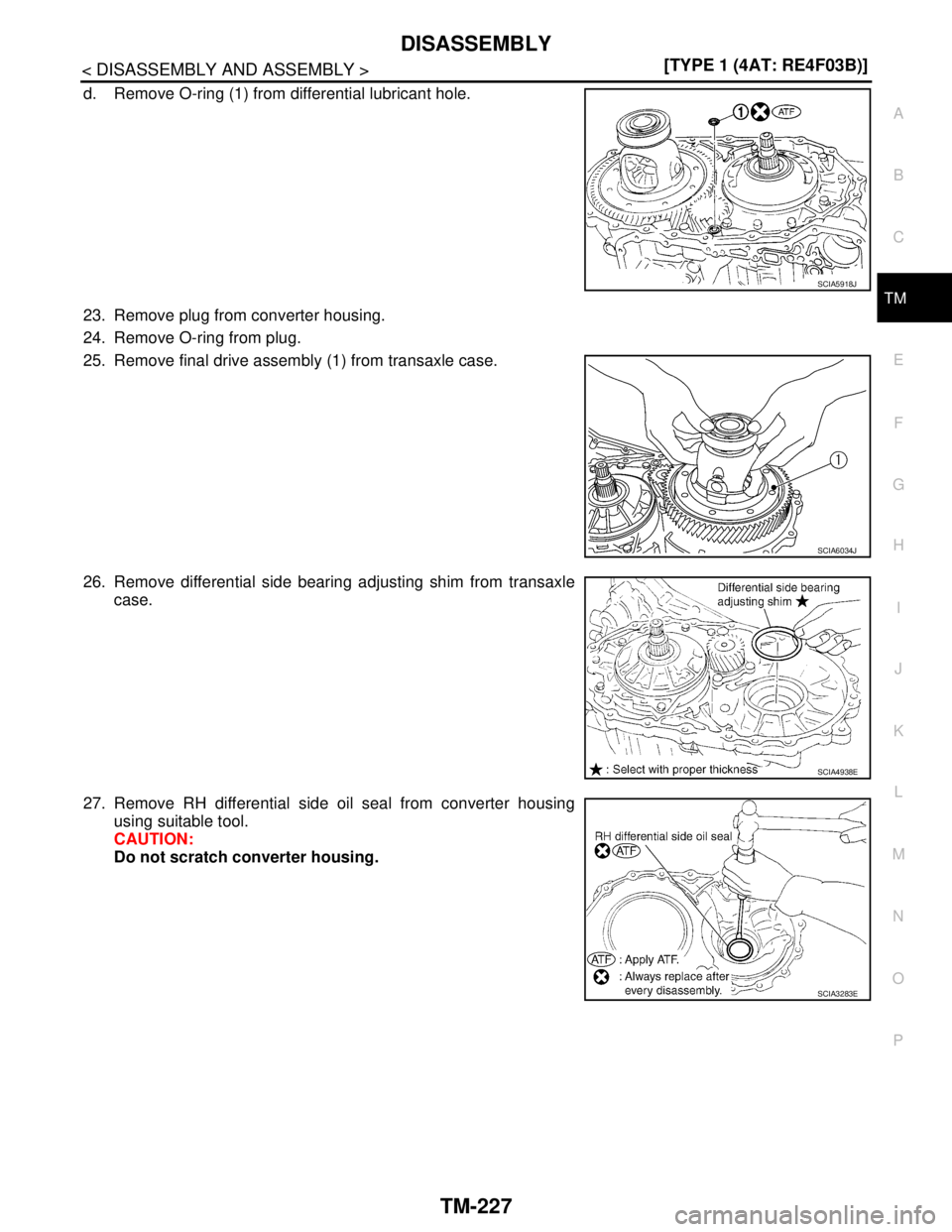

d. Remove O-ring (1) from differential lubricant hole.
23. Remove plug from converter housing.
24. Remove O-ring from plug.
25. Remove final drive assembly (1) from transaxle case.
26. Remove differential side bearing adjusting shim from transaxle
case.
27. Remove RH differential side oil seal from converter housing
using suitable tool.
CAUTION:
Do not scratch converter housing.
SCIA5918J
SCIA6034J
SCIA4938E
SCIA3283E
Page 5174 of 5883
TM-228
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY

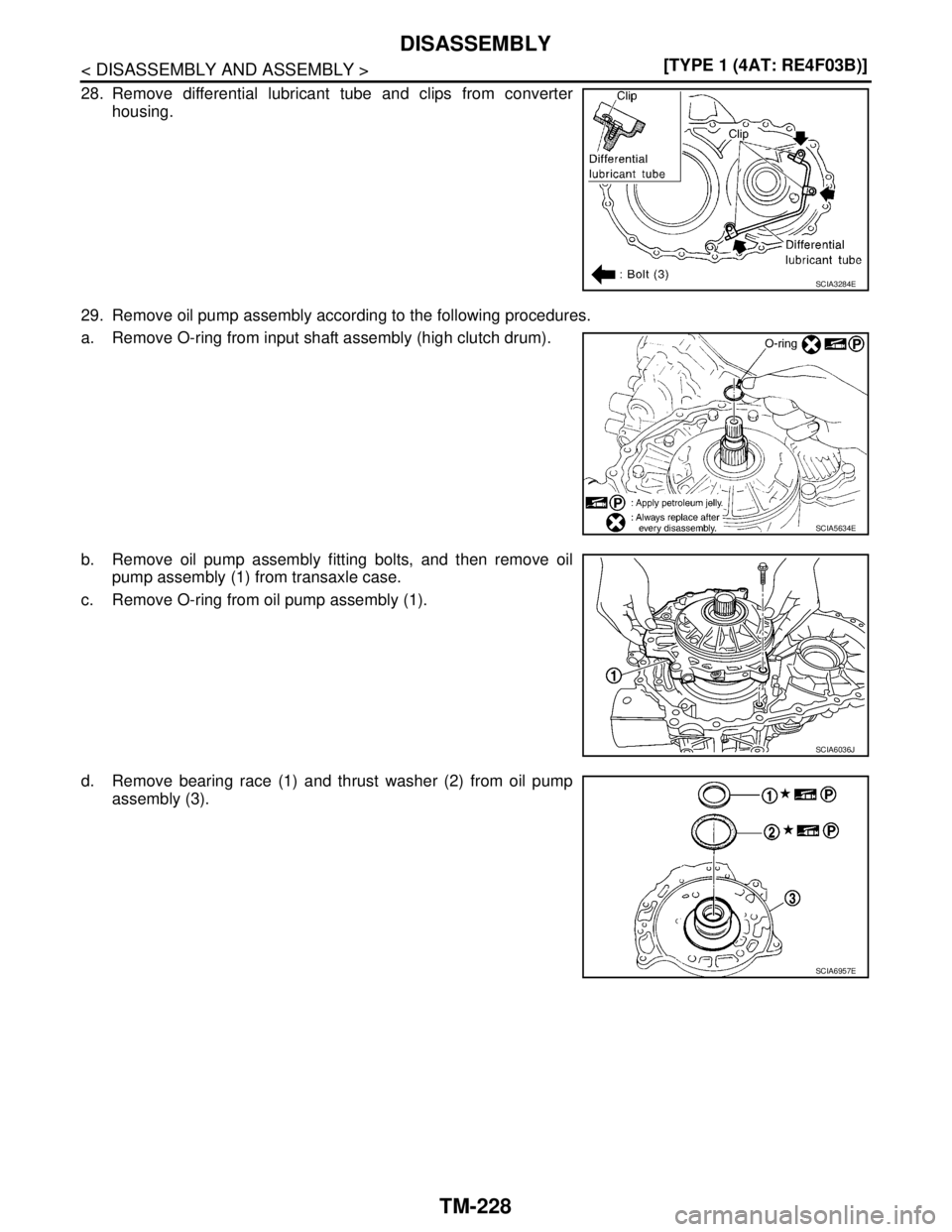

28. Remove differential lubricant tube and clips from converter
housing.
29. Remove oil pump assembly according to the following procedures.
a. Remove O-ring from input shaft assembly (high clutch drum).
b. Remove oil pump assembly fitting bolts, and then remove oil
pump assembly (1) from transaxle case.
c. Remove O-ring from oil pump assembly (1).
d. Remove bearing race (1) and thrust washer (2) from oil pump
assembly (3).
SCIA3284E
SCIA5634E
SCIA6036J
SCIA6957E
Page 5175 of 5883
DISASSEMBLY
TM-229
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

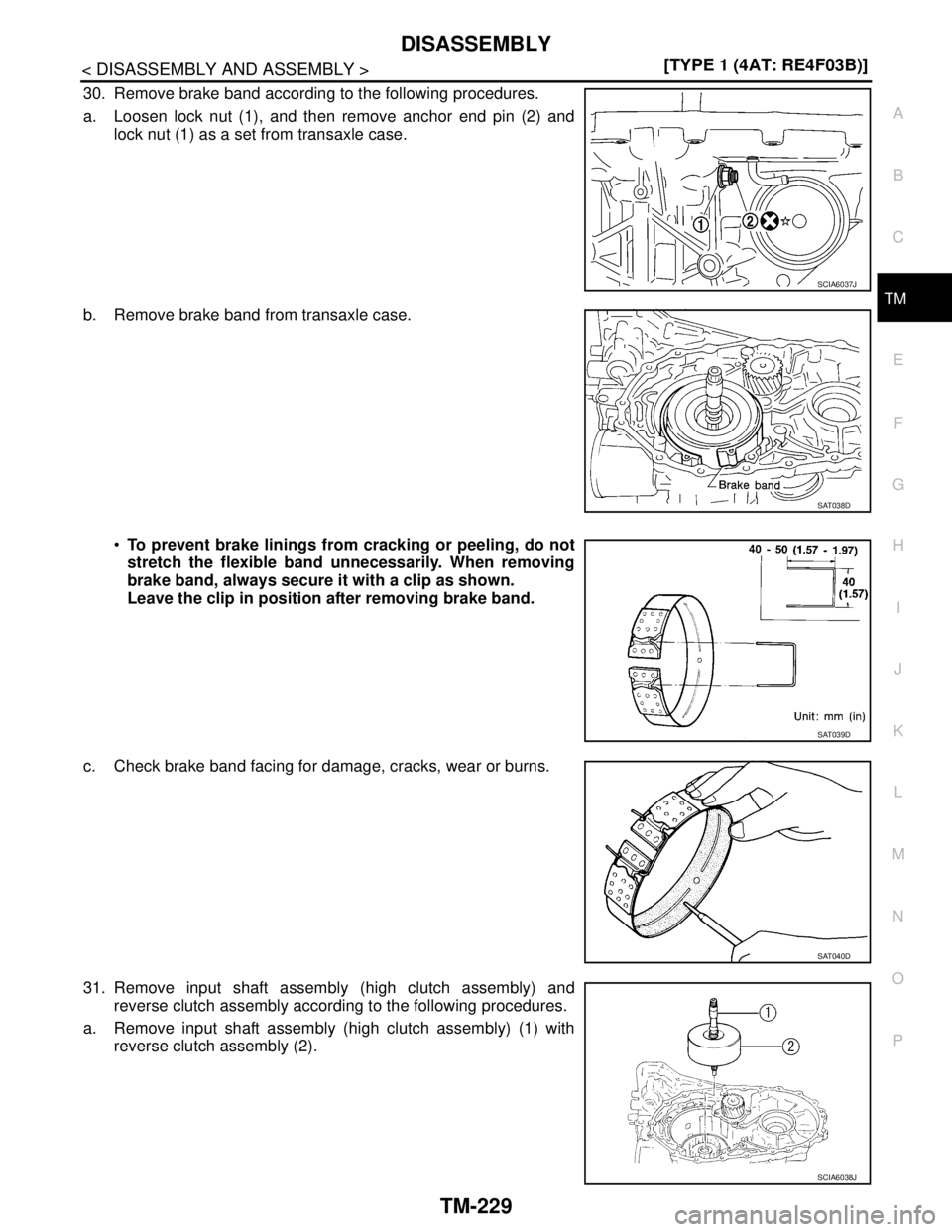

30. Remove brake band according to the following procedures.
a. Loosen lock nut (1), and then remove anchor end pin (2) and
lock nut (1) as a set from transaxle case.
b. Remove brake band from transaxle case.
To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
brake band, always secure it with a clip as shown.
Leave the clip in position after removing brake band.
c. Check brake band facing for damage, cracks, wear or burns.
31. Remove input shaft assembly (high clutch assembly) and
reverse clutch assembly according to the following procedures.
a. Remove input shaft assembly (high clutch assembly) (1) with
reverse clutch assembly (2).
SCIA6037J
SAT038D
SAT039D
SAT040D
SCIA6038J
Page 5176 of 5883
TM-230
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY
b. Remove input shaft assembly (high clutch assembly) (1) from
reverse clutch assembly (2).
c. Remove needle bearing (1) from input shaft assembly (high
clutch drum) (2).
Inspect needle bearing (1) and input shaft assembly (high
clutch drum) (2), and replace if damaged or worn.
32. Remove needle bearing from high clutch hub.
Inspect needle bearing, and replace if damaged or worn.
33. Remove high clutch hub from front sun gear.
Inspect high clutch hub, and replace if damaged or worn.
34. Remove needle bearing from front sun gear.
Inspect needle bearing, and replace if damaged or worn.
SCIA6958E
SCIA6959E
SAT371D
SAT370D
SAT369D
