EC-716
< FUNCTION DIAGNOSIS >[MR18DE]
ELECTRIC IGNITION SYSTEM

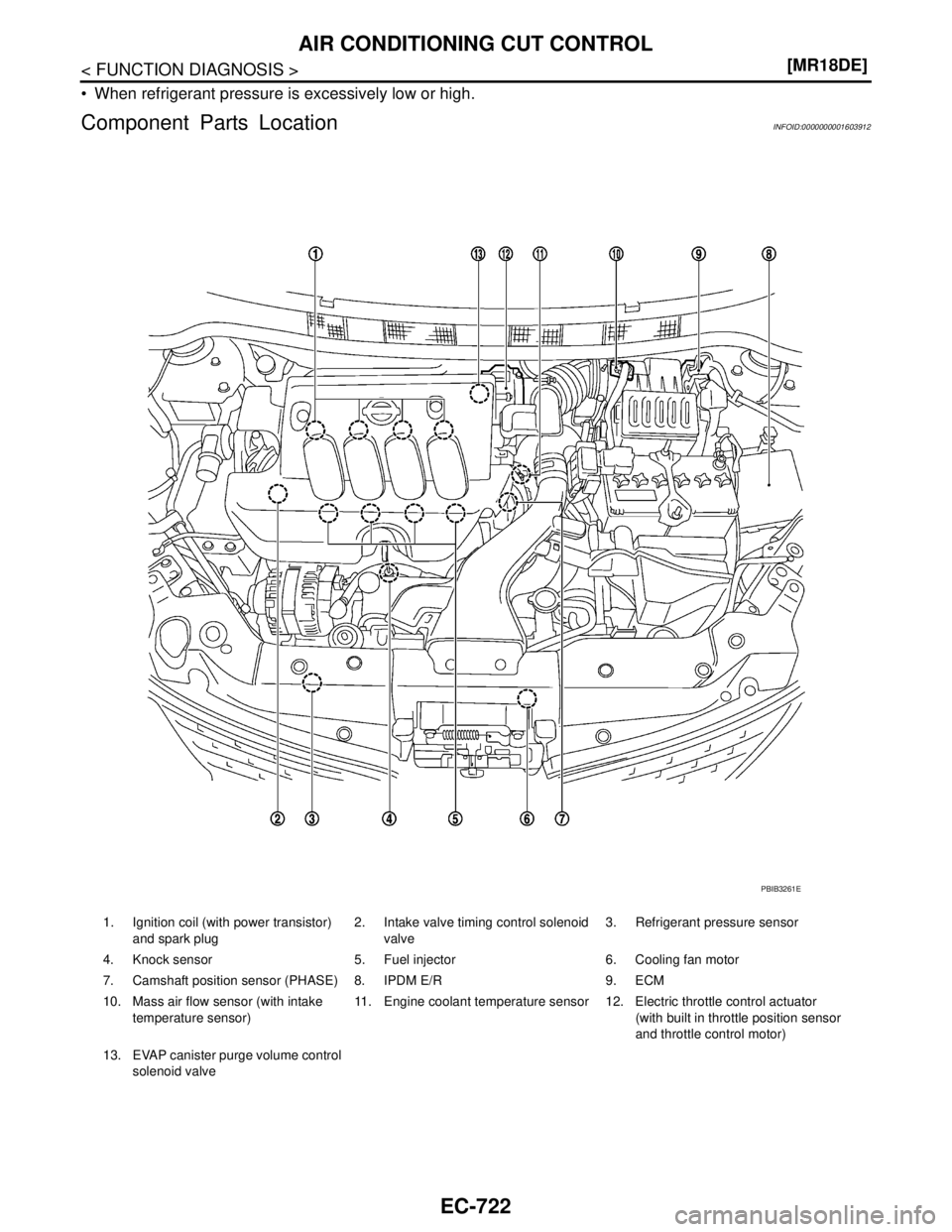

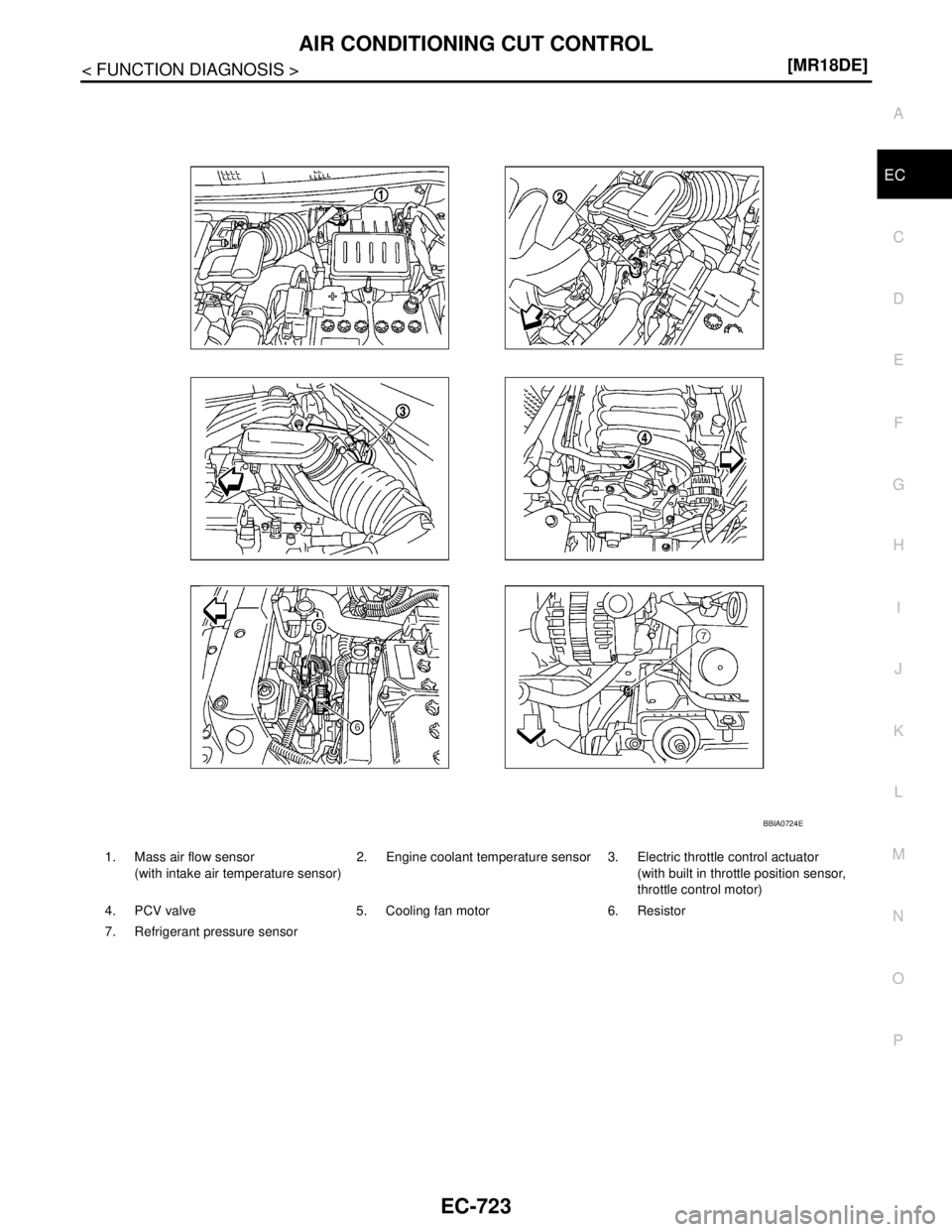

1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
(with built in throttle position sensor,
throttle control motor)
4. PCV valve 5. Cooling fan motor 6. Resistor
7. Refrigerant pressure sensor
BBIA0724E
Page 2066 of 5883
ELECTRIC IGNITION SYSTEM
EC-717
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Intake valve timing control solenoid
valve2. Knock sensor 3. IPDM E/R
4. Fuel pump fuse 5. Fuel level sensor unit and fuel pump
harness connector
(view with inspection hole cover re-
moved)6. Fuel level sensor unit and fuel pump
7. Fuel pressure regulator 8. Fuel level sensor 9. Fuel tank temperature sensor
10. Ignition coil 11. Fuel injector
BBIA0735E
Page 2067 of 5883
EC-718
< FUNCTION DIAGNOSIS >[MR18DE]
ELECTRIC IGNITION SYSTEM
1. Heated oxygen sensor 1 2. Three way catalyst (Manifold) 3. Heated oxygen sensor 2
4. Three way catalyst (Under floor) 5. Muffler 6. Heated oxygen sensor 1 harness
connector
7. Heated oxygen sensor 2 harness
connector
BBIA0733E
Page 2068 of 5883
ELECTRIC IGNITION SYSTEM
EC-719
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Crankshaft position sensor (POS) 2. Comshaft position sensor (PHASE) 3. EVAP canistor purge volume control
solenoid valve
4. ECM 5. Stop lamp switch 6. Accelerator pedal position sensor
PBIA9902J
Page 2069 of 5883
EC-720
< FUNCTION DIAGNOSIS >[MR18DE]
ELECTRIC IGNITION SYSTEM
Component Description
INFOID:0000000001161730
1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELEATE switch 6. Stop lamp switch
7. ASCD brake switch 8. ASCD clutch switch 9. Cluch pedal
ALBIA0273ZZ
Component Reference
Accelerator pedal position sensorEC-959, "
Description"
Camshaft position sensor (PHASE)EC-866, "Description"
Crankshaft position sensor (POS)EC-862, "Description"
Engine coolant temperature sensorEC-807, "Description"
Ignition signalEC-981, "Description"
Knock sensorEC-860, "Description"
Mass air flow sensorEC-799, "Description"
Park/neutral position (PNP) switchEC-942, "Description"
Throttle position sensorEC-810, "Description"
Vehicle speed sensorEC-878, "Description"
Page 2070 of 5883
![NISSAN TIIDA 2007 Service Repair Manual AIR CONDITIONING CUT CONTROL
EC-721
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000001161731
System DescriptionINFOID:000000000 NISSAN TIIDA 2007 Service Repair Manual AIR CONDITIONING CUT CONTROL
EC-721
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000001161731
System DescriptionINFOID:000000000](/manual-img/5/57395/w960_57395-2069.png)
AIR CONDITIONING CUT CONTROL
EC-721
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
AIR CONDITIONING CUT CONTROL
System DiagramINFOID:0000000001161731
System DescriptionINFOID:0000000001161732

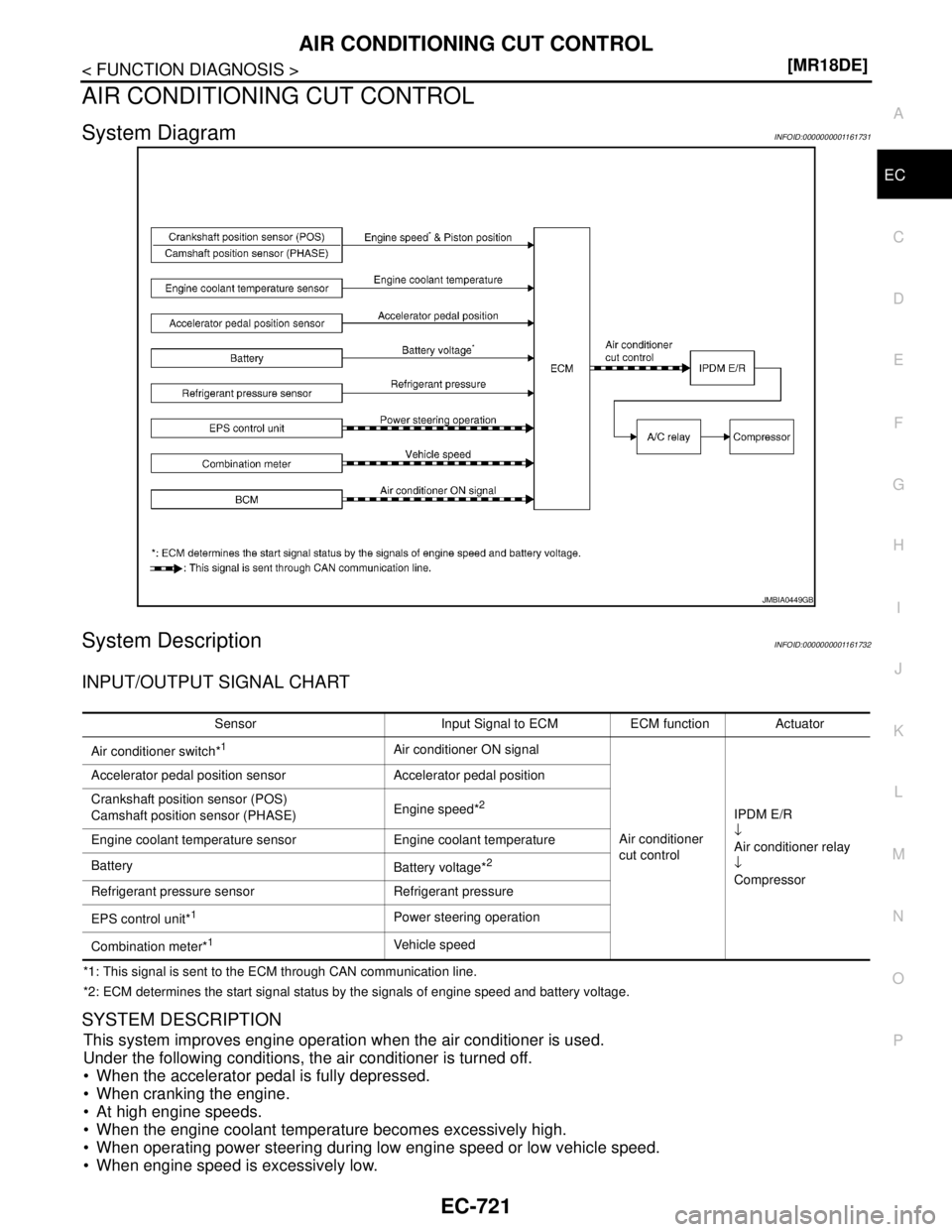

INPUT/OUTPUT SIGNAL CHART
