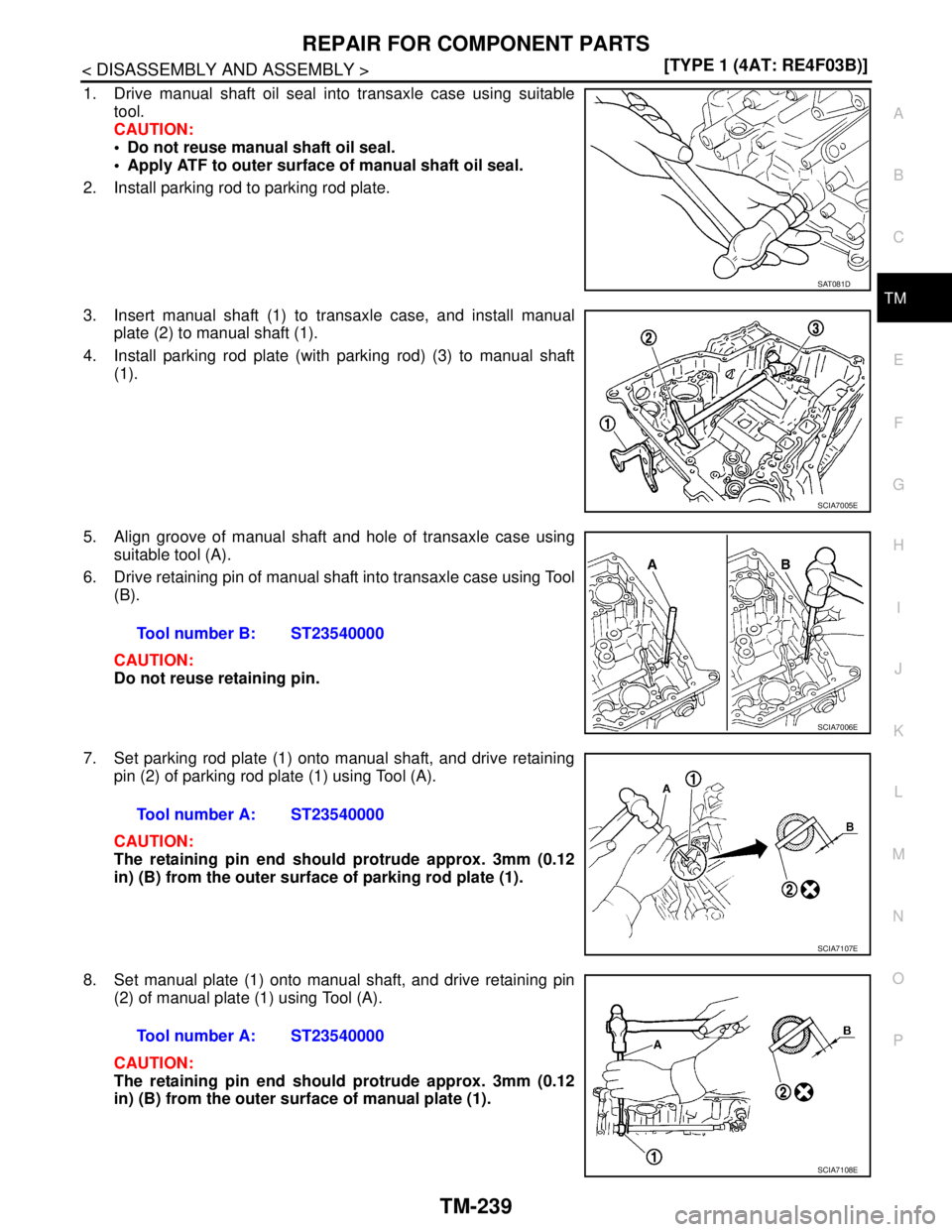

1. Drive manual shaft oil seal into transaxle case using suitable
tool.
CAUTION:
Do not reuse manual shaft oil seal.
Apply ATF to outer surface of manual shaft oil seal.
2. Install parking rod to parking rod plate.
3. Insert manual shaft (1) to transaxle case, and install manual
plate (2) to manual shaft (1).
4. Install parking rod plate (with parking rod) (3) to manual shaft
(1).
5. Align groove of manual shaft and hole of transaxle case using
suitable tool (A).
6. Drive retaining pin of manual shaft into transaxle case using Tool
(B).
CAUTION:
Do not reuse retaining pin.
7. Set parking rod plate (1) onto manual shaft, and drive retaining
pin (2) of parking rod plate (1) using Tool (A).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of parking rod plate (1).
8. Set manual plate (1) onto manual shaft, and drive retaining pin
(2) of manual plate (1) using Tool (A).
CAUTION:
The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of manual plate (1).
SAT081D
SCIA7005E
Tool number B: ST23540000
SCIA7006E
Tool number A: ST23540000
SCIA7107E
Tool number A: ST23540000
SCIA7108E
Page 5186 of 5883
TM-240
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
9. Install detent spring on transaxle case.
10. Tighten detent spring bolt to the specified torque. Refer to TM-
213, "Component".
Oil PumpINFOID:0000000001730984
COMPONENTS
DISASSEMBLY
1. Remove seal rings (1) from oil pump assembly (2).
SAT042F
1. Oil pump housing oil seal 2. Oil pump housing 3. Outer gear
4. Inner gear 5. Oil pump cover 6. Seal ring
SCIA5908J
SCIA7016E
Page 5187 of 5883
REPAIR FOR COMPONENT PARTS
TM-241
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. Remove bolts in the order as shown, and remove oil pump
cover.
3. Remove inner gear and outer gear from oil pump housing.
4. Remove oil pump housing oil seal using suitable tool.
CAUTION:
Do not scratch oil pump housing.
INSPECTION
Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear
Check for wear or damage. Replace if necessary.
Side Clearances
SAT091D
SAT092D
SCIA2840E
Page 5188 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-242
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure side clearance of inner gear and outer gear in at least
four places around each outside edge. Maximum me NISSAN TIIDA 2007 Service Repair Manual TM-242
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure side clearance of inner gear and outer gear in at least
four places around each outside edge. Maximum me](/manual-img/5/57395/w960_57395-5187.png)
TM-242
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

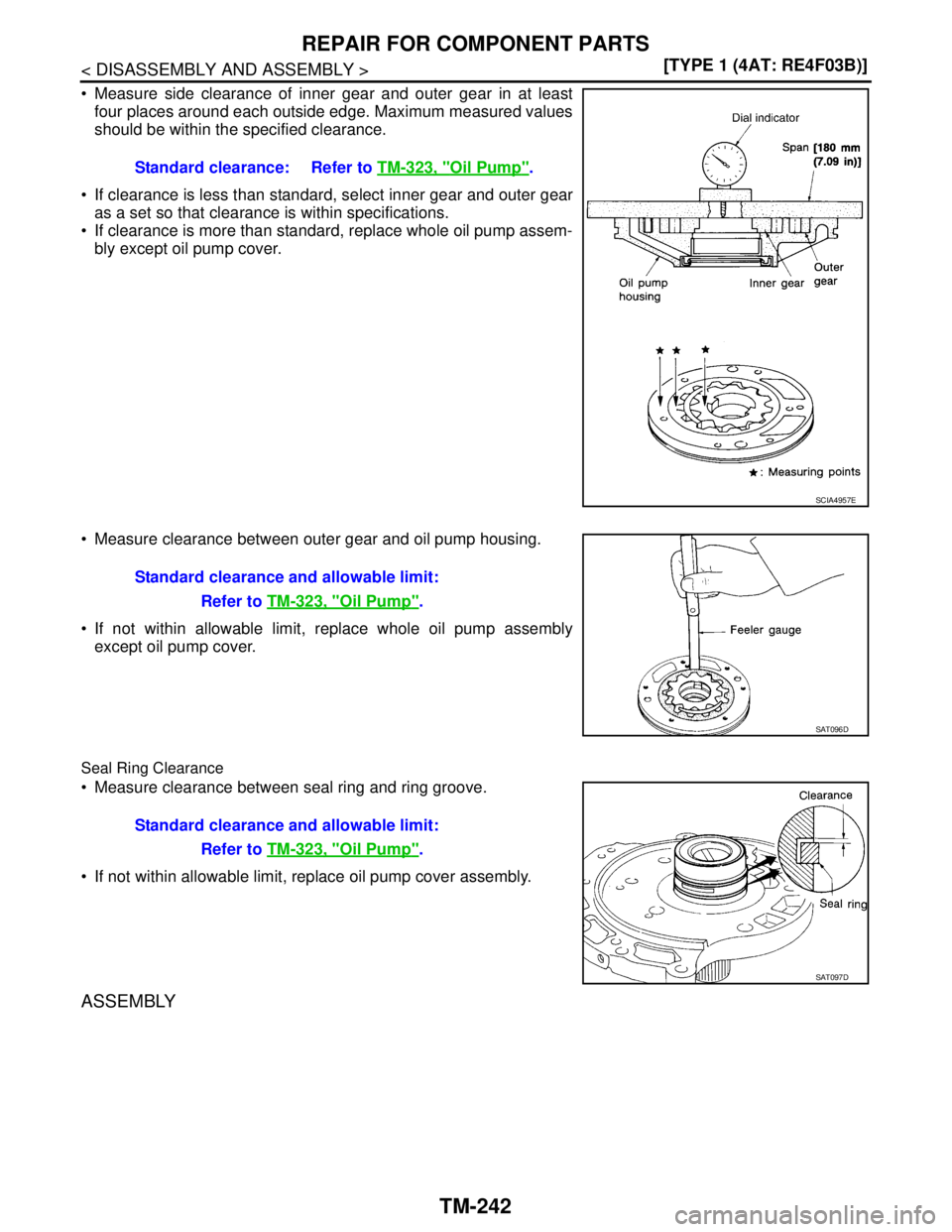

Measure side clearance of inner gear and outer gear in at least
four places around each outside edge. Maximum measured values
should be within the specified clearance.
If clearance is less than standard, select inner gear and outer gear
as a set so that clearance is within specifications.
If clearance is more than standard, replace whole oil pump assem-
bly except oil pump cover.
Measure clearance between outer gear and oil pump housing.
If not within allowable limit, replace whole oil pump assembly
except oil pump cover.
Seal Ring Clearance
Measure clearance between seal ring and ring groove.
If not within allowable limit, replace oil pump cover assembly.
ASSEMBLY
Standard clearance: Refer to TM-323, "Oil Pump".
SCIA4957E
Standard clearance and allowable limit:
Refer to TM-323, "
Oil Pump".
SAT096D
Standard clearance and allowable limit:
Refer to TM-323, "
Oil Pump".
SAT097D
Page 5189 of 5883
![NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-243
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
Do not reuse NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-243
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
Do not reuse](/manual-img/5/57395/w960_57395-5188.png)
REPAIR FOR COMPONENT PARTS
TM-243
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
1. Install oil pump housing oil seal on oil pump housing.
CAUTION:
Do not reuse oil pump housing oil seal.
Apply ATF to outer surface of oil pump housing oil seal.
2. Install inner gear and outer gear on oil pump housing.
CAUTION:
Be careful with the direction of inner gear.
3. Install oil pump cover on oil pump housing.
a. Wrap masking tape around splines of oil pump cover assembly
to protect seal. Position oil pump cover assembly on oil pump
housing assembly, then remove masking tape.
b. Tighten oil pump cover fitting bolts in the order as shown, and
then tighten them to the specified torque in the same order.
4. Install seal rings (1) to oil pump assembly (2) carefully after
packing ring groove with petroleum jelly.
CAUTION:
Do not spread gap of seal rings (1) excessively while install-
ing. The seal rings (1) may be deformed.
Control Valve AssemblyINFOID:0000000001730985
COMPONENTS
SAT900DA
SAT092D
SAT101D
SCIA7016E
Page 5190 of 5883
TM-244
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
Place control valve assembly with control valve upper body (1) side
down. Remove bolts (A) to (G), reamer bolts (F), nuts and support
plates (4) according to the following procedures. Separate control
valve upper body (1), control valve inter body (2) and control valve
lower body (3).

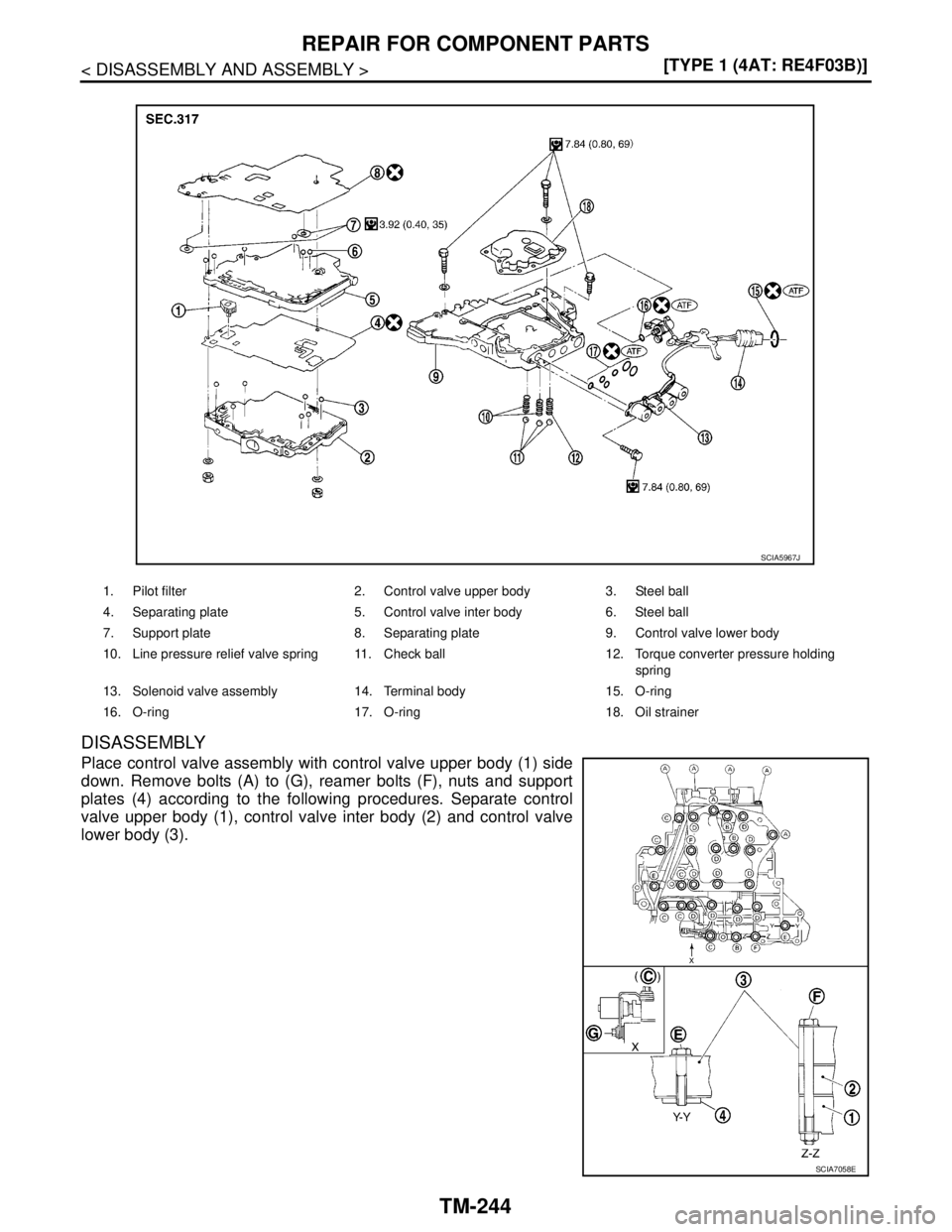

1. Pilot filter 2. Control valve upper body 3. Steel ball
4. Separating plate 5. Control valve inter body 6. Steel ball
7. Support plate 8. Separating plate 9. Control valve lower body
10. Line pressure relief valve spring 11. Check ball 12. Torque converter pressure holding
spring
13. Solenoid valve assembly 14. Terminal body 15. O-ring
16. O-ring 17. O-ring 18. Oil strainer
SCIA5967J
SCIA7058E
Page 5191 of 5883
REPAIR FOR COMPONENT PARTS
TM-245
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Bolt length, number and location:
*: Reamer bolt and nut.

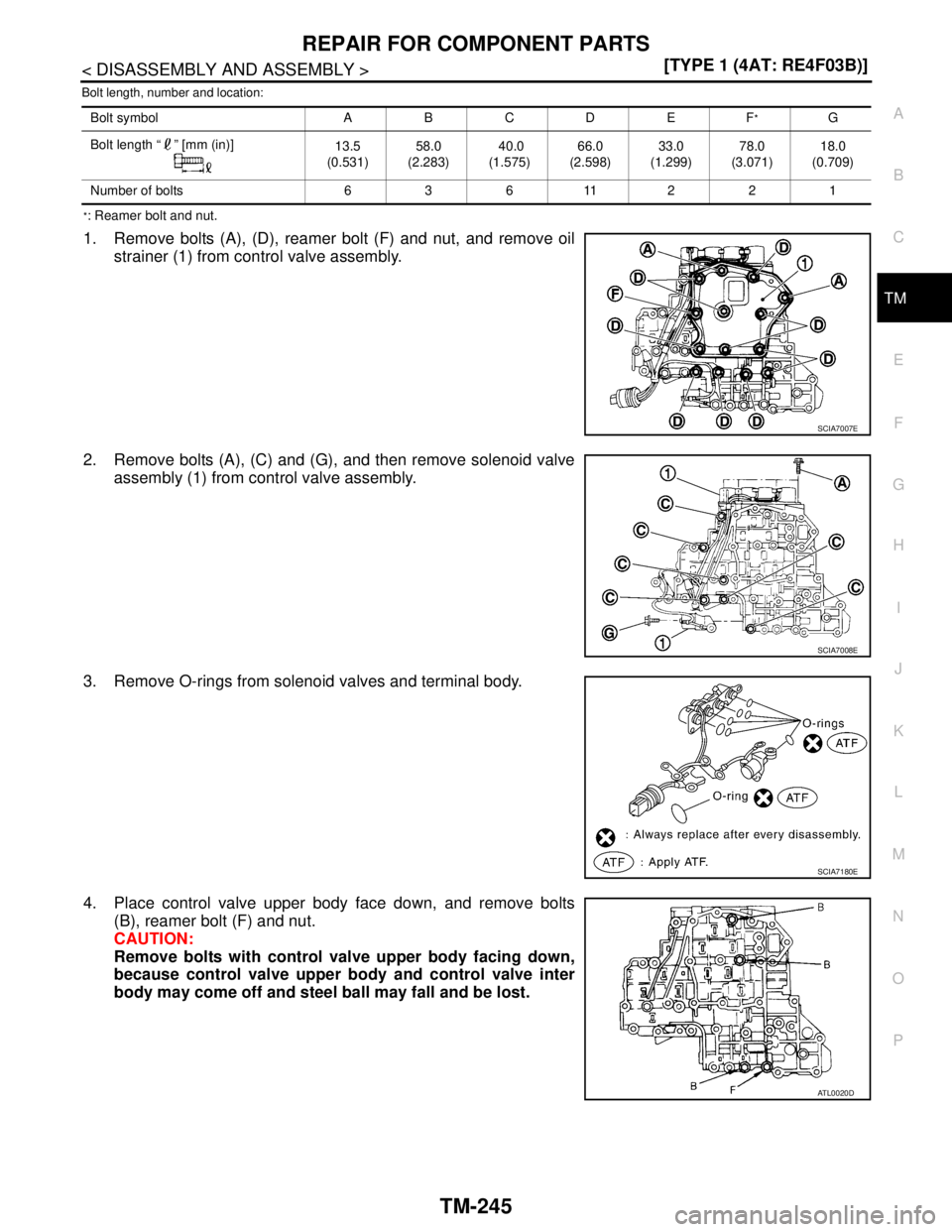

1. Remove bolts (A), (D), reamer bolt (F) and nut, and remove oil
strainer (1) from control valve assembly.
2. Remove bolts (A), (C) and (G), and then remove solenoid valve
assembly (1) from control valve assembly.
3. Remove O-rings from solenoid valves and terminal body.
4. Place control valve upper body face down, and remove bolts
(B), reamer bolt (F) and nut.
CAUTION:
Remove bolts with control valve upper body facing down,
because control valve upper body and control valve inter
body may come off and steel ball may fall and be lost.
Bolt symbol A B C D E F*G
Bolt length “ ” [mm (in)]
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
SCIA7007E
SCIA7008E
SCIA7180E
ATL0020D
Page 5192 of 5883
TM-246
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

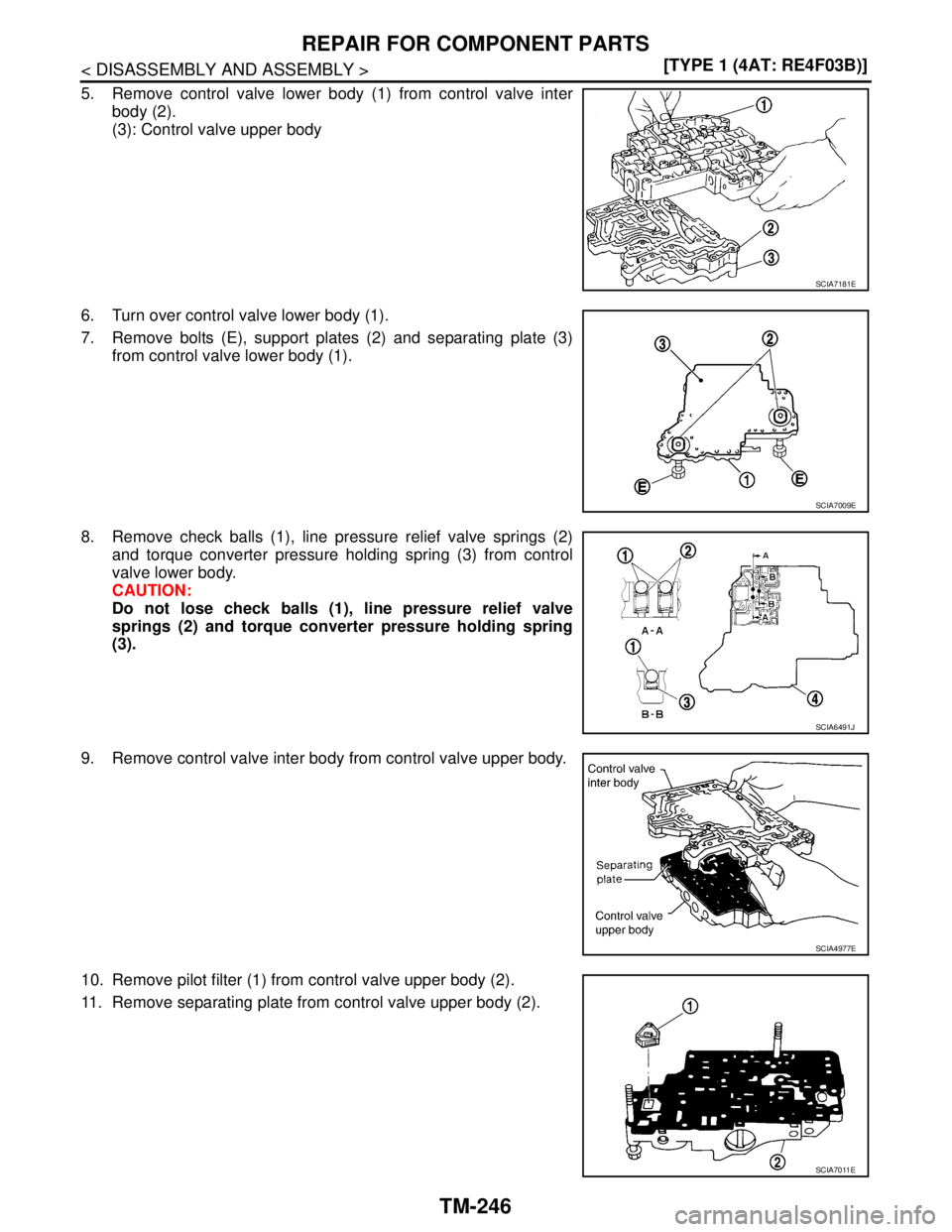

5. Remove control valve lower body (1) from control valve inter
body (2).
(3): Control valve upper body
6. Turn over control valve lower body (1).
7. Remove bolts (E), support plates (2) and separating plate (3)
from control valve lower body (1).
8. Remove check balls (1), line pressure relief valve springs (2)
and torque converter pressure holding spring (3) from control
valve lower body.
CAUTION:
Do not lose check balls (1), line pressure relief valve
springs (2) and torque converter pressure holding spring
(3).
9. Remove control valve inter body from control valve upper body.
10. Remove pilot filter (1) from control valve upper body (2).
11. Remove separating plate from control valve upper body (2).
SCIA7181E
SCIA7009E
SCIA6491J
SCIA4977E
SCIA7011E
