Page 3577 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-244
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AMBIENT SENSOR
AMBIENT SENSOR
Component DescriptionINFOID:0000000001547357
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is att NISSAN TIIDA 2007 Service Repair Manual HAC-244
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AMBIENT SENSOR
AMBIENT SENSOR
Component DescriptionINFOID:0000000001547357
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is att](/manual-img/5/57395/w960_57395-3576.png)
HAC-244
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AMBIENT SENSOR
AMBIENT SENSOR
Component DescriptionINFOID:0000000001547357
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is attached on the radiator core support upper. It
detects ambient temperature and converts it into a resistance value
which is then input into the front air control
AMBIENT TEMPERATURE INPUT PROCESS
The front air control includes a processing circuit for the ambient sensor input. However, when the tempera-
ture detected by the ambient sensor increases quickly, the processing circuit retards the front air control func-
tion. It only allows the front air control to recognize an ambient temperature increase of 0.33°C (0.6°F) per 100
seconds.
As an example, consider stopping for a few minutes after high speed driving. Although the actual ambient tem-
perature has not changed, the temperature detected by the ambient sensor will increase. This is because the
heat from the engine compartment can radiate to the front grille area, location of the ambient sensor.
Ambient Sensor Diagnosis ProcedureINFOID:0000000001547358
DIAGNOSTIC PROCEDURE FOR AMBIENT SENSOR
SYMPTOM: Ambient sensor circuit is open or shorted.
LEDs of intake switch (FRE, REC) does not illuminate as a result of
performing self-diagnosis STEP-2.
1.CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect ambient sensor connector.
3. Turn ignition switch ON.
4. Check voltage between ambient sensor harness connector E60
terminal 2 and ground.
Is the inspection result normal
YES >> GO TO 2.
AWIIA0600ZZ
AWIIA0345GB
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
Ambient sensor:
E6025V
AWIIA0307ZZ
Page 3578 of 5883
![NISSAN TIIDA 2007 Service Repair Manual AMBIENT SENSOR
HAC-245
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1 NISSAN TIIDA 2007 Service Repair Manual AMBIENT SENSOR
HAC-245
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1](/manual-img/5/57395/w960_57395-3577.png)
AMBIENT SENSOR
HAC-245
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between ambient sensor harness connector
E60 (A) terminal 1 and front air control harness connector M85
(B) terminal 3.
Is the inspection result normal
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK AMBIENT SENSOR
Refer to HAC-245, "
Ambient Sensor Component Inspection"
Is the inspection result normal
YES >> 1. Replace front air control. Refer to XXXX
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
NO >> 1. Replace ambient sensor.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
4.CHECK CIRCUIT CONTINUITY BETWEEN AMBIENT SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between ambient sensor harness connector
E60 (A) terminal 1 and front air control harness connector M85
(B) terminal.
4. Check continuity between ambient sensor harness connector
(A) and ground.
Is the inspection result normal
YES >> 1. Replace front air control. Refer to XXXX.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis-.
NO >> Repair harness or connector.
Ambient Sensor Component InspectionINFOID:0000000001547359
COMPONENT INSPECTION
Ambient Sensor
AB
Continuity
Connector Terminal Connector Terminal
Ambient sensor:
E601Front air control:
M8610 Yes
AWIIA0558ZZ
AB
Continuity
Connector Terminal Connector Terminal
Ambient sensor:
E602Front air control:
M863Yes
A
GroundContinuity
Connector Terminal
Ambient sensor:
E602No
AWIIA0559ZZ
Page 3579 of 5883
HAC-246
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
AMBIENT SENSOR
After disconnecting ambient sensor connector E60, measure resis-
tance between terminals 1 and 2 at sensor side, using the table
below.
If NG, replace ambient sensor. Refer to XXXX.
Temperature °C (°F) Resistance kΩ
−15 (5) 12.73
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
AWIIA0603ZZ
Page 3580 of 5883
IN-VEHICLE SENSOR
HAC-247
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

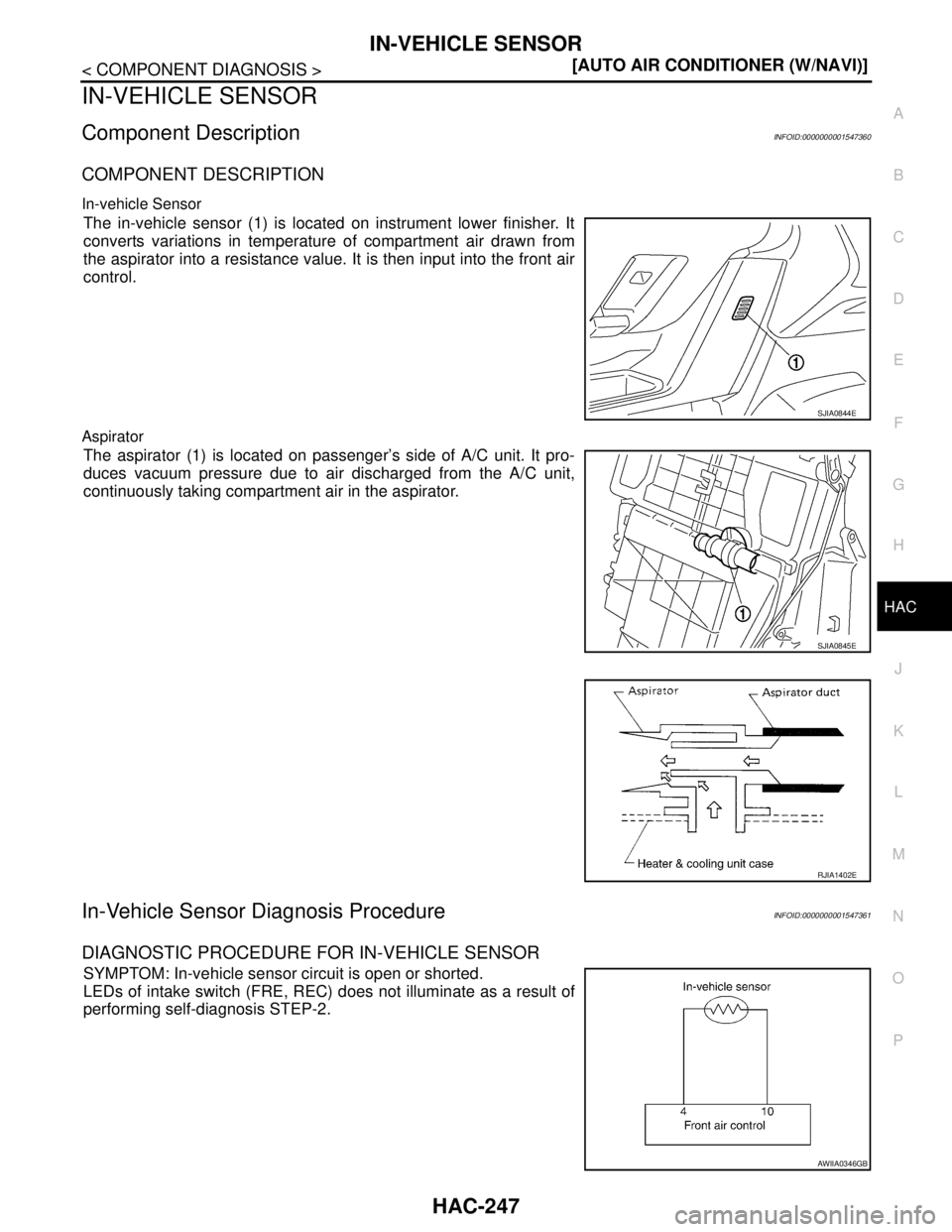

IN-VEHICLE SENSOR
Component DescriptionINFOID:0000000001547360
COMPONENT DESCRIPTION
In-vehicle Sensor
The in-vehicle sensor (1) is located on instrument lower finisher. It
converts variations in temperature of compartment air drawn from
the aspirator into a resistance value. It is then input into the front air
control.
Aspirator
The aspirator (1) is located on passenger’s side of A/C unit. It pro-
duces vacuum pressure due to air discharged from the A/C unit,
continuously taking compartment air in the aspirator.
In-Vehicle Sensor Diagnosis ProcedureINFOID:0000000001547361
DIAGNOSTIC PROCEDURE FOR IN-VEHICLE SENSOR
SYMPTOM: In-vehicle sensor circuit is open or shorted.
LEDs of intake switch (FRE, REC) does not illuminate as a result of
performing self-diagnosis STEP-2.
SJIA0844E
SJIA0845E
RJIA1402E
AWIIA0346GB
Page 3581 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-248
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
IN-VEHICLE SENSOR
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor conne NISSAN TIIDA 2007 Service Repair Manual HAC-248
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
IN-VEHICLE SENSOR
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor conne](/manual-img/5/57395/w960_57395-3580.png)

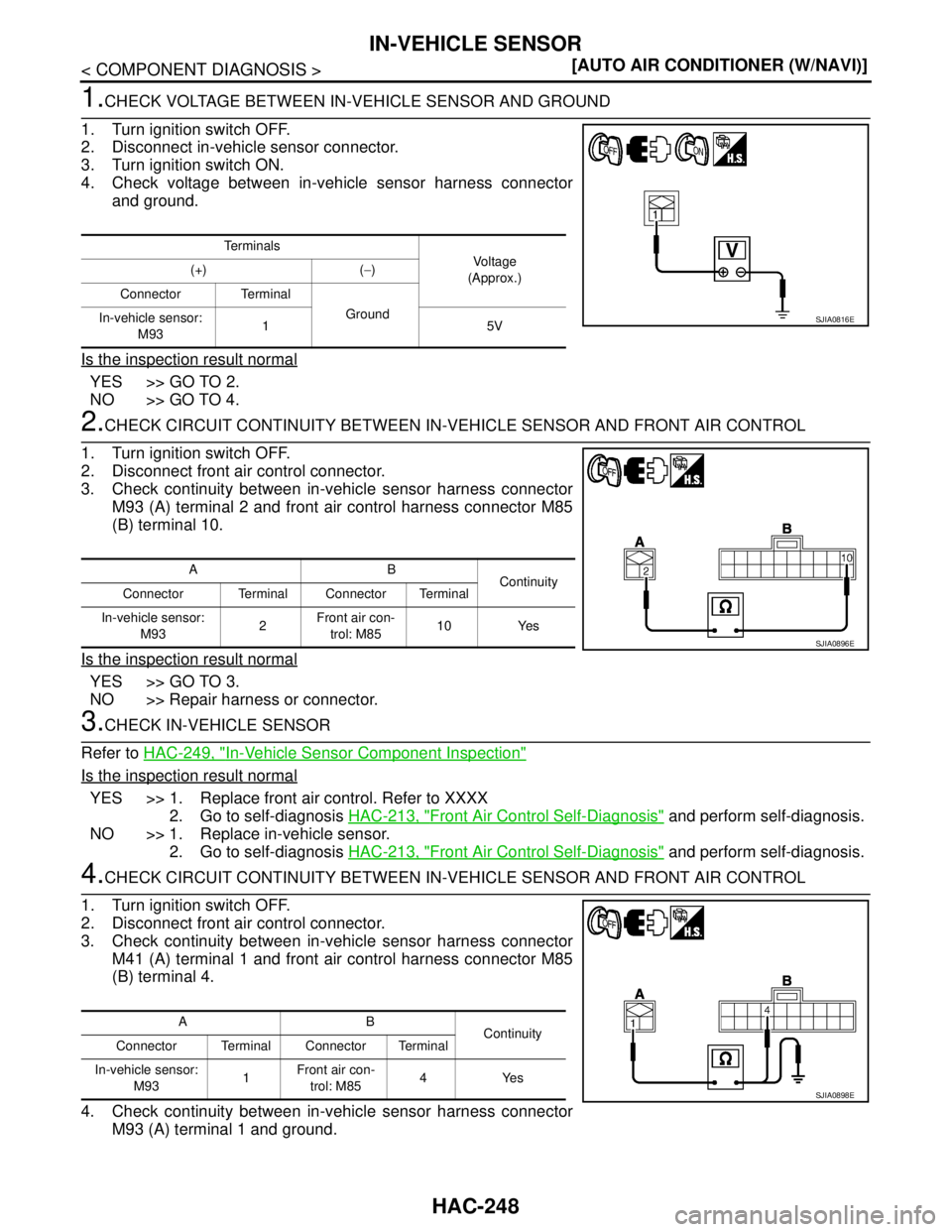

HAC-248
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
IN-VEHICLE SENSOR
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor connector.
3. Turn ignition switch ON.
4. Check voltage between in-vehicle sensor harness connector
and ground.
Is the inspection result normal
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 2 and front air control harness connector M85
(B) terminal 10.
Is the inspection result normal
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK IN-VEHICLE SENSOR
Refer to HAC-249, "
In-Vehicle Sensor Component Inspection"
Is the inspection result normal
YES >> 1. Replace front air control. Refer to XXXX
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
NO >> 1. Replace in-vehicle sensor.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
4.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between in-vehicle sensor harness connector
M41 (A) terminal 1 and front air control harness connector M85
(B) terminal 4.
4. Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 1 and ground.
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
In-vehicle sensor:
M9315V
SJIA0816E
AB
Continuity
Connector Terminal Connector Terminal
In-vehicle sensor:
M932Front air con-
trol: M8510 Yes
SJIA0896E
AB
Continuity
Connector Terminal Connector Terminal
In-vehicle sensor:
M931Front air con-
trol: M854Yes
SJIA0898E
Page 3582 of 5883
IN-VEHICLE SENSOR
HAC-249
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Is the inspection result normal
YES >> 1. Replace front air control.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
NO >> Repair harness or connector.

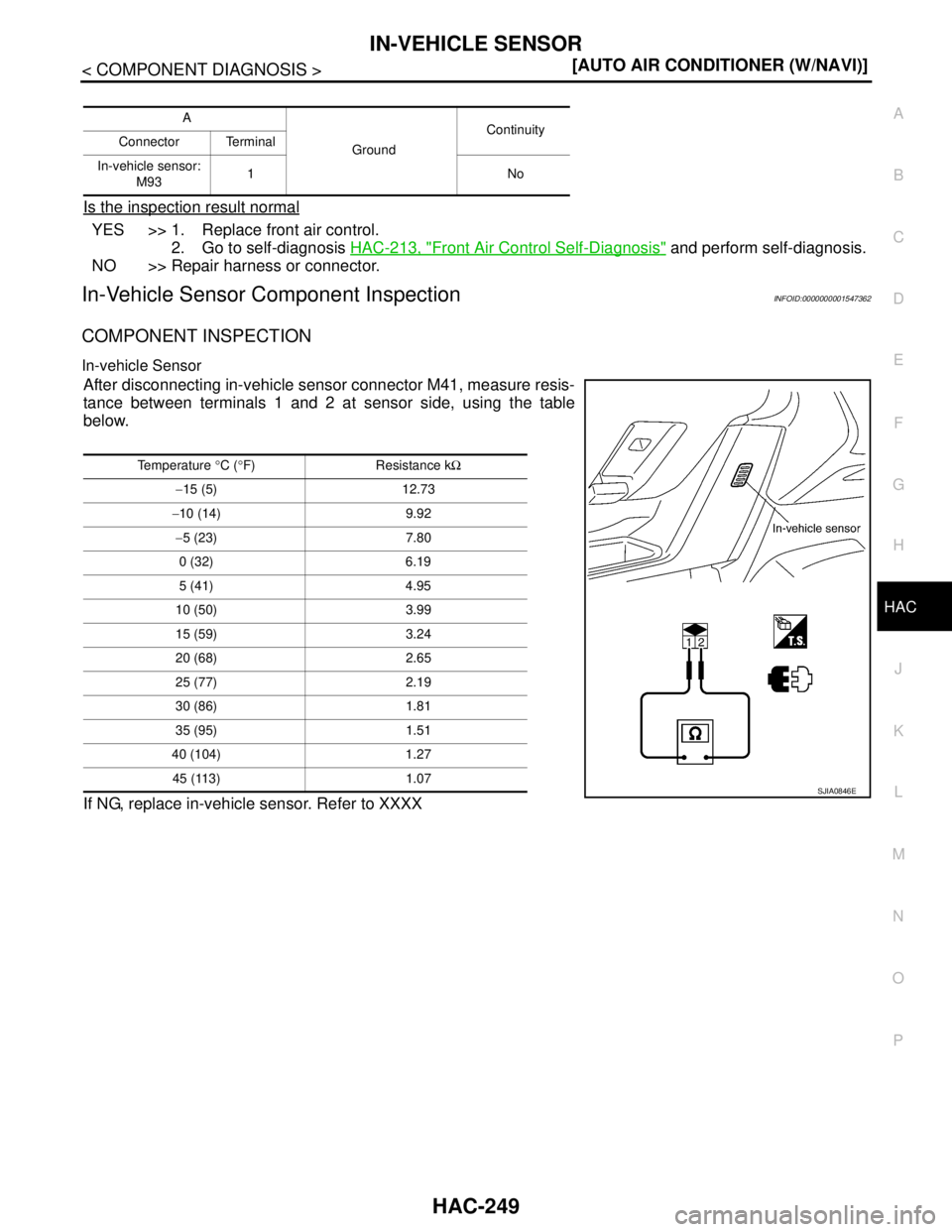

In-Vehicle Sensor Component InspectionINFOID:0000000001547362
COMPONENT INSPECTION
In-vehicle Sensor
After disconnecting in-vehicle sensor connector M41, measure resis-
tance between terminals 1 and 2 at sensor side, using the table
below.
If NG, replace in-vehicle sensor. Refer to XXXX
A
GroundContinuity
Connector Terminal
In-vehicle sensor:
M931No
Temperature °C (°F) Resistance kΩ
−15 (5) 12.73
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
SJIA0846E
Page 3583 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-250
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
Component DescriptionINFOID:0000000001547363
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is NISSAN TIIDA 2007 Service Repair Manual HAC-250
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
Component DescriptionINFOID:0000000001547363
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is](/manual-img/5/57395/w960_57395-3582.png)

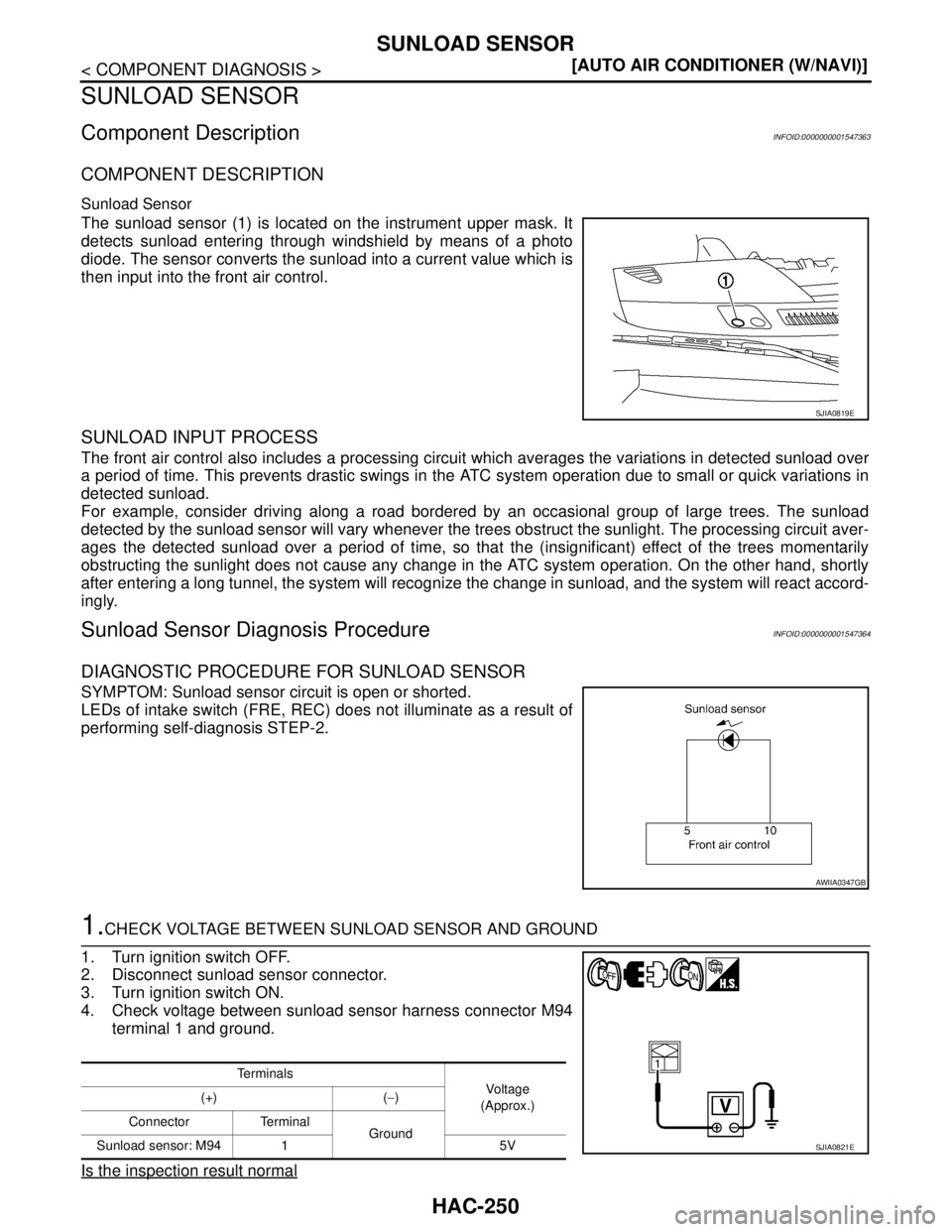

HAC-250
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
Component DescriptionINFOID:0000000001547363
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is located on the instrument upper mask. It
detects sunload entering through windshield by means of a photo
diode. The sensor converts the sunload into a current value which is
then input into the front air control.
SUNLOAD INPUT PROCESS
The front air control also includes a processing circuit which averages the variations in detected sunload over
a period of time. This prevents drastic swings in the ATC system operation due to small or quick variations in
detected sunload.
For example, consider driving along a road bordered by an occasional group of large trees. The sunload
detected by the sunload sensor will vary whenever the trees obstruct the sunlight. The processing circuit aver-
ages the detected sunload over a period of time, so that the (insignificant) effect of the trees momentarily
obstructing the sunlight does not cause any change in the ATC system operation. On the other hand, shortly
after entering a long tunnel, the system will recognize the change in sunload, and the system will react accord-
ingly.
Sunload Sensor Diagnosis ProcedureINFOID:0000000001547364
DIAGNOSTIC PROCEDURE FOR SUNLOAD SENSOR
SYMPTOM: Sunload sensor circuit is open or shorted.
LEDs of intake switch (FRE, REC) does not illuminate as a result of
performing self-diagnosis STEP-2.
1.CHECK VOLTAGE BETWEEN SUNLOAD SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect sunload sensor connector.
3. Turn ignition switch ON.
4. Check voltage between sunload sensor harness connector M94
terminal 1 and ground.
Is the inspection result normal
SJIA0819E
AWIIA0347GB
Te r m i n a l s
Voltag e
(Approx.) (+) (−)
Connector Terminal
Ground
Sunload sensor: M94 1 5V
SJIA0821E
Page 3584 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SUNLOAD SENSOR
HAC-251
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRON NISSAN TIIDA 2007 Service Repair Manual SUNLOAD SENSOR
HAC-251
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRON](/manual-img/5/57395/w960_57395-3583.png)
SUNLOAD SENSOR
HAC-251
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.

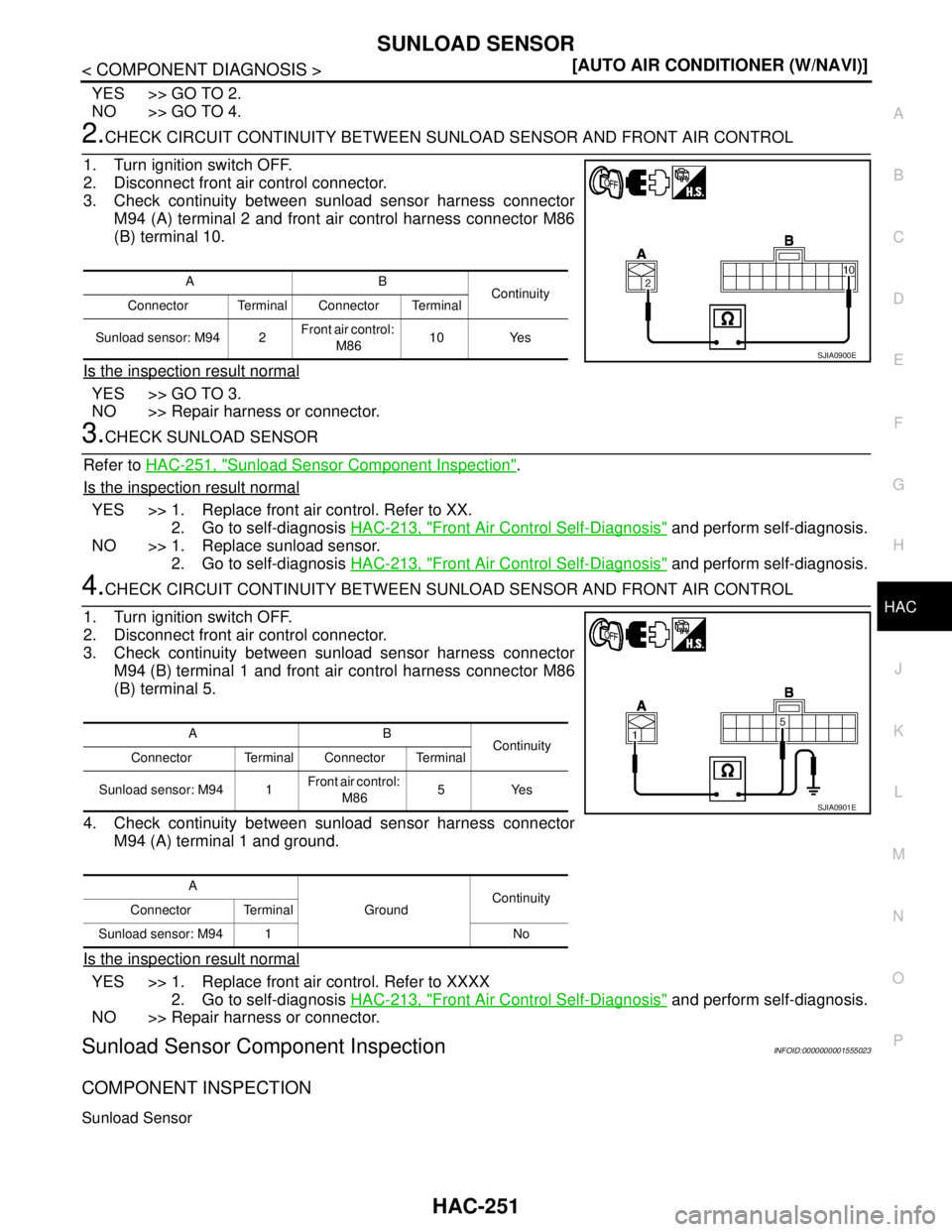

2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between sunload sensor harness connector
M94 (A) terminal 2 and front air control harness connector M86
(B) terminal 10.
Is the inspection result normal
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK SUNLOAD SENSOR
Refer to HAC-251, "
Sunload Sensor Component Inspection".
Is the inspection result normal
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
NO >> 1. Replace sunload sensor.
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
4.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector.
3. Check continuity between sunload sensor harness connector
M94 (B) terminal 1 and front air control harness connector M86
(B) terminal 5.
4. Check continuity between sunload sensor harness connector
M94 (A) terminal 1 and ground.
Is the inspection result normal
YES >> 1. Replace front air control. Refer to XXXX
2. Go to self-diagnosis HAC-213, "
Front Air Control Self-Diagnosis" and perform self-diagnosis.
NO >> Repair harness or connector.
Sunload Sensor Component InspectionINFOID:0000000001555023
COMPONENT INSPECTION
Sunload Sensor
AB
Continuity
Connector Terminal Connector Terminal
Sunload sensor: M94 2Front air control:
M8610 Yes
SJIA0900E
AB
Continuity
Connector Terminal Connector Terminal
Sunload sensor: M94 1Front air control:
M865Yes
A
GroundContinuity
Connector Terminal
Sunload sensor: M94 1 No
SJIA0901E
