Page 1705 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-356
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM

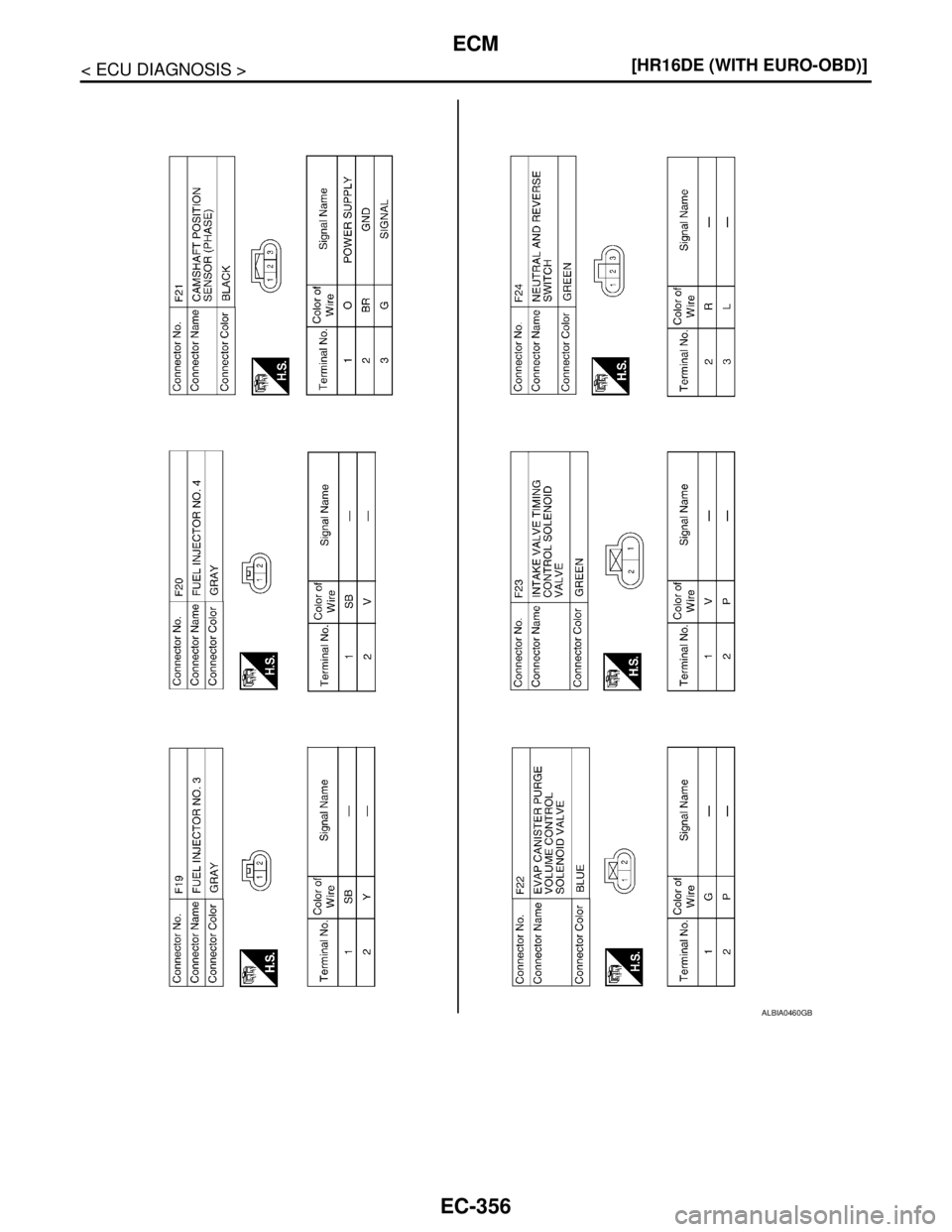

ALBIA0460GB

Page 1706 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-357
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
ALBIA0461GB

Page 1707 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-358
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
Fail Safe
INFOID:0000000001161407
NON DTC RELATED ITEM
ALBIA0462GB

Page 1708 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-359
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC RELATED ITEM
Engine operating condi-
tion in fail-safe modeDetected items RemarksReference
page
Engine speed w

ECM
EC-359
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC RELATED ITEM
Engine operating condi-
tion in fail-safe modeDetected items RemarksReference
page
Engine speed will not
rise more than 2,500 rpm
due to the fuel cutMalfunction indicator
lamp circuitWhen there is an open circuit on MI circuit, the ECM cannot warn the
driver by lighting up MI when there is malfunction on engine control
system.
Therefore, when electrical controlled throttle and part of ECM related
diagnoses are continuously detected as NG for 5 trips, ECM warns the
driver that engine control system malfunctions and MI circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI
circuit are detected and demands the driver to repair the malfunction.EC-324
DTC No. Detected items Engine operating condition in fail-safe mode
P0011 Intake valve timing control The signal is not energized to the intake valve timing control solenoid valve and the valve
control does not function.
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-III displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON
or START40°C (104°F)
More than approx. 4 minutes after
ignition ON or START80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0605 ECM (When ECM calculation function is malfunctioning:)
ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
ECM deactivates ASCD operation.
P1121 Electric throttle control ac-
tuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in P or N (A/T), Neutral (M/T) position, and engine speed will not
exceed 1,000 rpm or more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

Page 1709 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-360
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
DTC Inspection Priority Chart
INFOID:0000000001161408
If some DTCs are displayed at the same time, perform inspections one by one based on the foll

EC-360
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
DTC Inspection Priority Chart
INFOID:0000000001161408
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switch ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor. DTC No. Detected items Engine operating condition in fail-safe mode
Priority Detected items (DTC)
1 U1000 U1001 CAN communication line
U1010 CAN communication
P0102 P0103 Mass air flow sensor
P0112 P0113 Intake air temperature sensor
P0117 P0118 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 Camshaft position sensor (PHASE)
P0500 Vehicle speed sensor
P0605 ECM
P1229 Sensor power supply
P1610 - P1615 NATS
P0705 P1706 Park/neutral position (PNP) switch
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2 P0132 P0133 P0134 P1143 P1144 Heated oxygen sensor 1
P0135 Heated oxygen sensor 1 heater
P0138 P0139 P1146 P1147 Heated oxygen sensor 2
P0141 Heated oxygen sensor 2 heater
P0444 EVAP canister purge volume control solenoid valve
P1065 ECM
P 1111 I n t a k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e
P1122 Electric throttle control function
P1124 P1126 Throttle control motor relay
P1128 Throttle control motor
P1217 Engine over temperature (OVERHEAT)
P1805 Brake switch
P1564 ASCD steering switch
P1572 ASCD brake switch
P1574 ASCD vehicle speed sensor
3 P0011 Intake valve timing control
P0171 P0172 Fuel injection system function
P0300 - P0304 Misfire
P0420 Three way catalyst function
P0710 P0720 P0725 P0731 P0732 P0733 P0734 P0740 P0744 P0745 P0750 P0755 P1705 P1760 A/T related sensors,
solenoid valves and switches
P1121 Electric throttle control actuator
P1212 ESP communication line

Page 1710 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-361
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC IndexINFOID:0000000001161409
×:Applicable —: Not applicable
DTC*1Items
(CONSULT-III screen
terms)SRT codeT

Page 1711 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-362
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
P0705 0705 PNP SW/CIRC — — 2×TM-44
P0710 0710 ATF TMP SEN/CIRC — — 2×TM-48
P0720 0720
VEH SPD SEN/CIR AT*6—— 2×TM-52
P0725 0725 ENGI

EC-362
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
P0705 0705 PNP SW/CIRC — — 2×TM-44
P0710 0710 ATF TMP SEN/CIRC — — 2×TM-48
P0720 0720
VEH SPD SEN/CIR AT*6—— 2×TM-52
P0725 0725 ENGINE SPEED SIG — — 2×TM-56
P0731 0731 A/T 1ST GR FUNCTN — — 2×TM-59
P0732 0732 A/T 2ND GR FUNCTN — — 2×TM-62
P0733 0733 A/T 3RD GR FUNCTN — — 2×TM-65
P0734 0734 A/T 4TH GR FUNCTN — — 2×TM-68
P0740 0740 TCC SOLENOID/CIRC — — 2×TM-73
P0744 0744 A/T TCC S/V FNCTN — — 2×TM-76
P0745 0745 L/PRESS SOL/CIRC — — 2×TM-81
P0750 0750 SFT SOL A/CIRC — — 1×TM-85
P0755 0755 SFT SOL B/CIRC — — 1×TM-89
P1065 1065 ECM BACK UP/CIRCUIT — — 2×EC-217
P 1111 1111 I N T / V T I M C / C I R C — — 2×EC-219
P1121 1121 ETC ACTR-B1 — — 1×EC-222
P1122 1122ETC FUNCTION/CIRC-
B1—— 1×EC-224
P1124 1124 ETC MOT PWP — — 1×EC-228
P1126 1126 ETC MOT PWP-B1 — — 1×EC-228
P1128 1128 ETC MOT-B1 — — 1×EC-231
P1143 1143 HO2S1 (B1)××2×EC-233
P1144 1144 HO2S1 (B1)××2×EC-238
P1146 1146 HO2S2 (B1)××2×EC-243
P1147 1147 HO2S2 (B1)××2×EC-250
P1212 1212 TCS/CIRC — — 2 —EC-256
P1217 1217 ENG OVER TEMP — — 1×EC-257
P1225 1225 CTP LEARNING-B1 — — 2 —EC-261
P1226 1226 CTP LEARNING-B1 — — 2 —EC-263
P1229 1129 SENSOR POWER/CIRC — — 1×EC-265
P1564 1564 ASCD SW — — 1 —EC-267
P1572 1572 ASCD BRAKE SW — — 1 —EC-270
P1574 1574 ASCD VHL SPD SEN — — 1 —EC-278
P1610 1610 LOCK MODE — — 2 —SEC-12
P1611 1611 ID DISCARD IMM-ECM — — 2 —SEC-12
P1615 1615 DIFFERENCE OF KEY — — 2 —SEC-12
P1706 1706 P-N POS SW/CIRCUIT — — 2×EC-280
P1760 1760 O/R CLTCH SOL/CIRC — — 2×TM-93
P1805 1805 BRAKE SW/CIRCUIT — — 2 —EC-283
P2122 2122 APP SEN 1/CIRC — — 1×EC-286
P2123 2123 APP SEN 1/CIRC — — 1×EC-286
P2127 2127 APP SEN 2/CIRC — — 1×EC-290
DTC*1Items
(CONSULT-III screen
terms)SRT codeTest value/
Test limit
(GST only)Trip MIReference
page CONSULT-III
GST*
2ECM*3

Page 1712 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-363
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by ISO 15031-5.
*3: In Diagnostic Test Mo
