Page 1025 of 5883
DLK-436
< SYMPTOM DIAGNOSIS >[WITH I-KEY & SUPER LOCK]

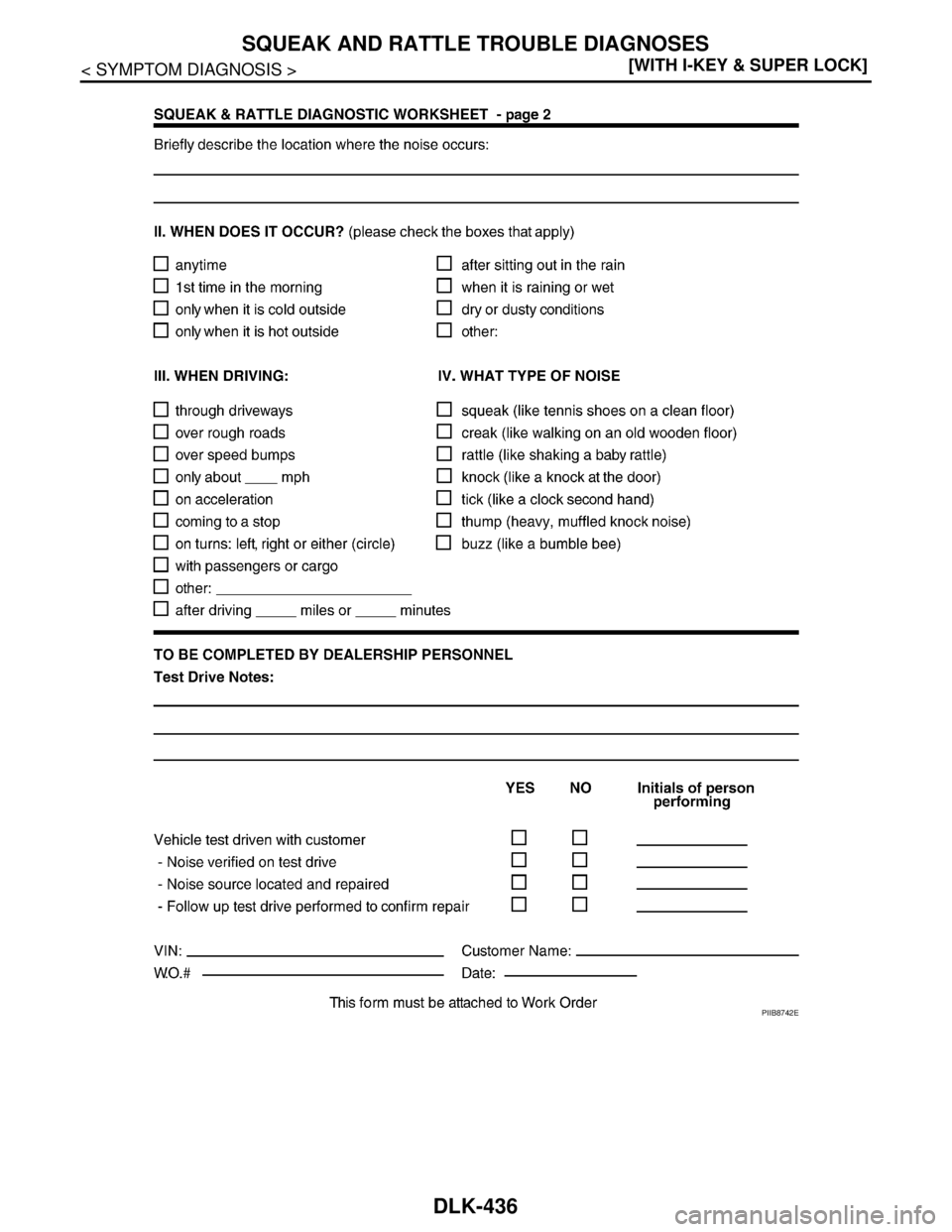

SQUEAK AND RATTLE TROUBLE DIAGNOSES
PIIB8742E
Page 1026 of 5883
![NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
DLK-437
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TEN NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
DLK-437
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TEN](/manual-img/5/57395/w960_57395-1025.png)
PRECAUTIONS
DLK-437
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001530406
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Procedure without Cowl Top CoverINFOID:0000000001396895
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Steering Wheel Rotation after Battery DisconnectINFOID:0000000001396896
NOTE:
Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-
tion, then disconnect both battery cables.
After finishing work, confirm that all control unit connectors are connected properly, then re-connect both
battery cables.
Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.
This vehicle is equipped with a push-button ignition switch and a steering lock unit.
If the battery is disconnected or discharged, the steering wheel will lock and cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the procedure
below before starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Carry the Intelligent Key or insert it to the key slot and turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)
3. Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.
4. Perform the necessary repair operation.
PIIB3706J
Page 1027 of 5883
DLK-438
< PRECAUTION >[WITH I-KEY & SUPER LOCK]
PRECAUTIONS
5. When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)
6. Perform self-diagnosis check of all control units using CONSULT-III.
WorkINFOID:0000000001396897
After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their
operational.
Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.
Page 1028 of 5883
PREPARATION
DLK-439
< PREPARATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
PREPARATION
PREPARATION
Commercial Service ToolsINFOID:0000000001396898
Tool name Description
Engine ear Locating the noise
Remover tool Remove the clips, pawls, and metal clips
Power tool Removing nuts and bolts
SIIA0995E
PIIB7923J
PIIB1407E
Page 1029 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-440
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
PRE-INSPECTION FOR DIAGNOSTIC
ON-VEHICLE MAINTENANCE
PRE-INSPECTION FOR DIAGNOSTIC
Basic InspectionINFOID:0000000001396899
BASIC INSPECTION
NISSAN TIIDA 2007 Service Repair Manual DLK-440
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
PRE-INSPECTION FOR DIAGNOSTIC
ON-VEHICLE MAINTENANCE
PRE-INSPECTION FOR DIAGNOSTIC
Basic InspectionINFOID:0000000001396899
BASIC INSPECTION](/manual-img/5/57395/w960_57395-1028.png)
DLK-440
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
PRE-INSPECTION FOR DIAGNOSTIC
ON-VEHICLE MAINTENANCE
PRE-INSPECTION FOR DIAGNOSTIC
Basic InspectionINFOID:0000000001396899
BASIC INSPECTION
1.CHECK POWER DOOR LOCK AND UNLOCK SWITCH OPERATION
Check door lock and unlock operation by operating door lock and unlock switch.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Refer to XX-XX, "*****"
.
2.CHECK INTELLIGENT KEY OPERATION
Check door lock and unlock operation by operating the Intelligent Key remote control button.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Refer to XX-XX, "*****"
.
3.CHECK DOOR REQUEST SWITCH OPERATION
Check door lock and unlock operation by operating door request switch.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Refer to XX-XX, "*****"
.
4.CHECK KEY REMINDER OPERATION
Check key reminder operation. Refer to DLK-255, "
KEY REMINDER : System Description".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Refer to XX-XX, "*****"
.
5.CHECK AUTO DOOR LOCK OPERATION
Check auto door lock operation. Refer to XX-XX, "*****"
.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Refer to XX-XX, "*****"
.
6.CHECK VEHICLE SPEED SENSING AUTO DOOR LOCK OPERATION
Check vehicle speed sensing auto door lock operation. Refer to XX-XX, "*****"
.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Refer to XX-XX, "*****"
.
7.CHECK BACK DOOR OPENER OPERATION
Check back door opener operation by operating the back door opener switch.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Refer to XX-XX, "*****"
.
8.CHECK WARNING FUNCTION
Check warning function. Refer to DLK-264, "
System Description".
Is the inspection result normal?
YES >> GO TO 9.
NO [Buzzer (combination meter)]>> Refer to XX-XX, "*****"
.
NO (Intelligent Key warning buzzer)>> Refer to XX-XX, "*****"
.
Page 1030 of 5883
PRE-INSPECTION FOR DIAGNOSTIC
DLK-441
< ON-VEHICLE MAINTENANCE >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
NO (Warning lamp)>> Refer to XX-XX, "*****".
NO (Back door open warning)>> Refer to XX-XX, "*****"
.
9.CHECK HAZARD AND BUZZER REMINDER FUNCTION
Check hazard and buzzer reminder function by Intelligent Key or request switch. Refer to DLK-270, "
System
Description".
Is the inspection result normal?
YES >> GO TO 10.
NO (Hazard warning lamp)>> Refer to XX-XX, "*****"
.
NO (Intelligent Key warning buzzer)>> Refer to XX-XX, "*****"
.
10.CHECK OUT
CHECK OUT.
>> INSPECTION END
Page 1031 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-442
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
REMOVAL AND INSTALLATION
HOOD
Fitting AdjustmentINFOID:0000000001732017
FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANC NISSAN TIIDA 2007 Service Repair Manual DLK-442
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
REMOVAL AND INSTALLATION
HOOD
Fitting AdjustmentINFOID:0000000001732017
FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANC](/manual-img/5/57395/w960_57395-1030.png)
DLK-442
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
REMOVAL AND INSTALLATION
HOOD
Fitting AdjustmentINFOID:0000000001732017
FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDINAL CLEARANCE ADJUST-
MENT
1. Remove the front grille. Refer to EXT-19, "Removal and Installation".
2. Remove hood lock. Rotate bumper rubber to adjust height until
hood becomes 1.0 to 1.5 mm lower than the fender.
3. Position hood lock and engage striker. Check hood lock and
striker for looseness. Tighten lock bolts to the specified torque.
4. Install the front grille. Refer to EXT-19, "
Removal and Installa-
tion".
CAUTION:
Adjust the clearance between hood and other parts so that the
dimensional difference left and right is as follows.
SURFACE MISMATCH ADJUSTMENT
1. Remove the front grille. Refer to EXT-19, "Removal and Installation".
2. Release hood lock, and adjust surface level difference of hood, fender, and headlamp according to the fit-
ting standard dimension, using RH and LH bumper rubbers.
3. Install and align the hood lock until the center of the striker and the hood lock are vertically aligned.
PIIB6508E
Hood and headlamp (B - B) : Less than 2.0 mm (0.08 in)
Hood and fender (C - C) : Less than 1.5 mm (0.06 in)
Hood and fender (D - D) : Less than 1.5 mm (0.06 in)PIIB2526J
Hood and front bumper (A - A) : -1.3 - 2.7 mm (-0.05 - 0.11 in)
Hood and fender (D - D) : -0.4 - 1.7 mm (-0.16 - 0.07 in)
Page 1032 of 5883
HOOD
DLK-443
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
4. Press the hood lightly with [approx. 29 N (3 kg] of force and adjust A and B as shown.
5. After adjustment tighten lock bolts to the specified torque.
6. Install the front grille. Refer to EXT-19, "
Removal and Installation".
Removal and InstallationINFOID:0000000001732018
HOOD ASSEMBLY
Removal
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
A : 20 mm (0.79 in)
B : 6.8 mm (0.268 in) min.
PIIB5794E
1. Hood hinge 2. Hood stay 3. Radiator core seal rubber
4. Hood assembly 5. Hood insulator 6. Hood stay holder
PIIB2528J
