NISSAN TIIDA 2007 Service Repair Manual DIFFERENTIAL SIDE OIL SEAL
TM-199
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DIFFERENTIAL SIDE OIL SEAL
Differential Side Oil SealINFOID:0000000001733162
COMPONENTS
R

Page 5146 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-200
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
SHIFT CONTROL SYSTEM
SHIFT CONTROL SYSTEM
Control Device Removal and InstallationINFOID:0000000001731375
CONTROL DEVICE COMPONENTS
CONTROL CABLE COM

Page 5147 of 5883

NISSAN TIIDA 2007 Service Repair Manual SHIFT CONTROL SYSTEM
TM-201
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
REMOVAL
CAUTION:
Make sure that parking brake is applied before removal/installation.
1. Place

Page 5148 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-202
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
SHIFT CONTROL SYSTEM

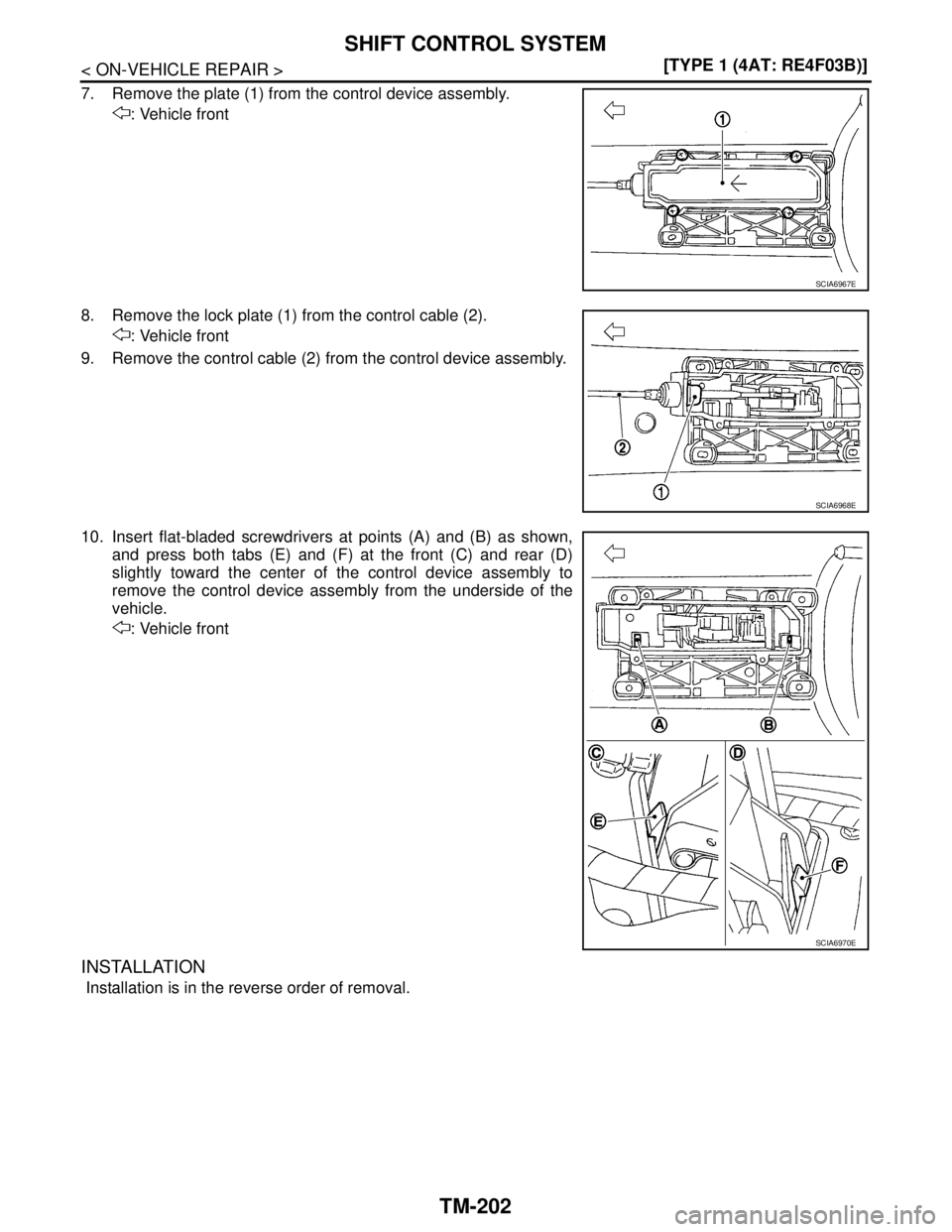

7. Remove the plate (1) from the control device assembly.
: Vehicle front
8. Remove the lock plate (1) from the control cable (

Page 5149 of 5883

NISSAN TIIDA 2007 Service Repair Manual SHIFT CONTROL SYSTEM
TM-203
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
When installing the control cable (1) to the control device assembly
(2), make sure that the

Page 5150 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-204
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
SHIFT CONTROL SYSTEM
1. Place the selector lever knob (1) in “N” position.
2. Slide knob cover (2) downward.
3. Pull out lock pin (3) from selec

TM-204
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
SHIFT CONTROL SYSTEM
1. Place the selector lever knob (1) in “N” position.
2. Slide knob cover (2) downward.
3. Pull out lock pin (3) from selector lever knob (1).
4. Remove selector lever knob (1) and knob cover (2) as a set from
selector lever.
CAUTION:
Do not push selector button.
INSTALLATION
1. Insert lock pin (1) to selector lever knob (2).
2. Install knob cover (3) to selector lever knob (2).
3. Place the selector lever in “N” position.
4. Install selector lever knob over selector lever until a click is felt.
CAUTION:
Do not tilt selector lever knob when installing. Install it
straight, and do not tap or apply any shock to install it.
Do not push selector button.
Adjustment of A/T PositionINFOID:0000000001731378
Move selector lever from “P” position to “1” position. You should be able to feel the detents in each position. If
the detents cannot be felt or if the position indicator is improperly aligned, the control cable needs adjustment.
CAUTION:
Make sure that parking brake is applied before adjustment.
1. Remove the air duct assembly. Refer to EM-27, "
Removal and Installation".
2. Remove the control cable nut (A) and control cable (1) and
place the manual lever (2) in the "P' position.
3. Place selector lever in “P” position.
4. Hold control cable (1) at the end and pull it with a force of 9.8 N
(approximately 1 kg, 2.2 lb). Release the control cable and tem-
porarily tighten control cable nut (A).
5. Tighten control cable nut (A) to the specified torque.
CAUTION:
Secure manual lever when tightening nut.
6. Move selector lever from “P” to “1” position again. Make sure that selector lever moves smoothly.
7. Check A/T position. Refer to TM-204, "
Checking of A/T Position".
8. Install air duct assembly. Refer to EM-27, "
Removal and Installation".
Checking of A/T PositionINFOID:0000000001731379
1. Place selector lever in “P” position, and turn ignition switch ON (Do not start engine).
2. Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.
3. Move selector lever and check for excessive effort, sticking, noise or rattle.
4. Confirm selector lever stops at each position with the feel of engagement when it is moved through all the
positions. Check whether or not the actual position selector lever is in matches the position shown by the
shift position indicator and the transaxle.
SCIA6971E
SCIA6972E
Control cable nut : Refer to TM-200, "Control De-
vice Removal and Installation".WCIA0635E

Page 5151 of 5883

NISSAN TIIDA 2007 Service Repair Manual SHIFT CONTROL SYSTEM
TM-205
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
5. The method of operating selector lever to individual positions
correctly should be as shown.

Page 5152 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-206
< ON-VEHICLE REPAIR >[TYPE 1 (4AT: RE4F03B)]
KEY INTERLOCK CABLE
KEY INTERLOCK CABLE
Removal and InstallationINFOID:0000000001731380

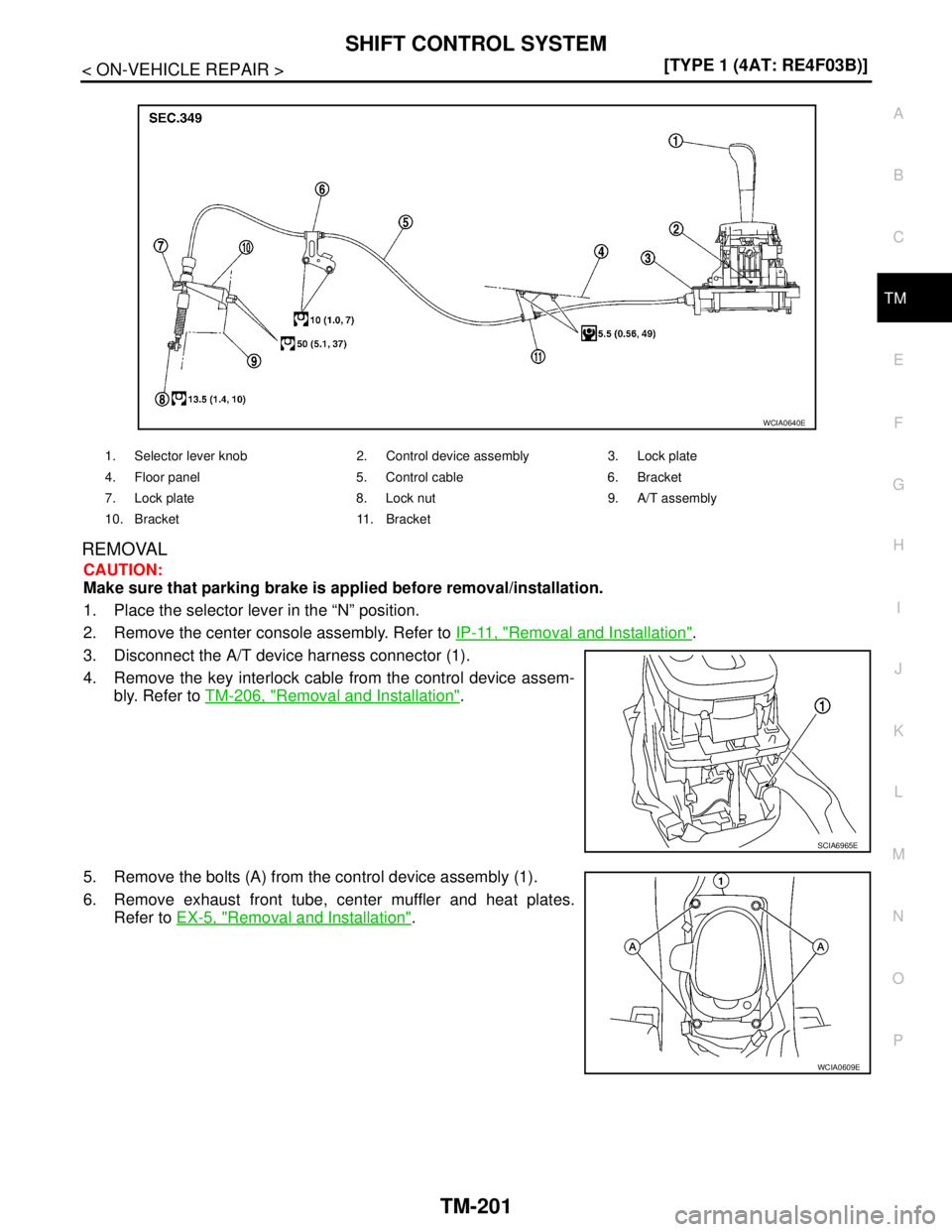

COMPONENTS
REMOVAL
CAUTION:
Make sure that parking brake is

Load next 8 pages
