NISSAN TIIDA 2007 Service Repair Manual ST-10
< ON-VEHICLE REPAIR >
STEERING COLUMN
8. Put matching mark on upper yoke of intermediate shaft and out-
put shaft of steering column assembly.
9. Remove bolt of intermediate shaft (upper side),

Page 4866 of 5883

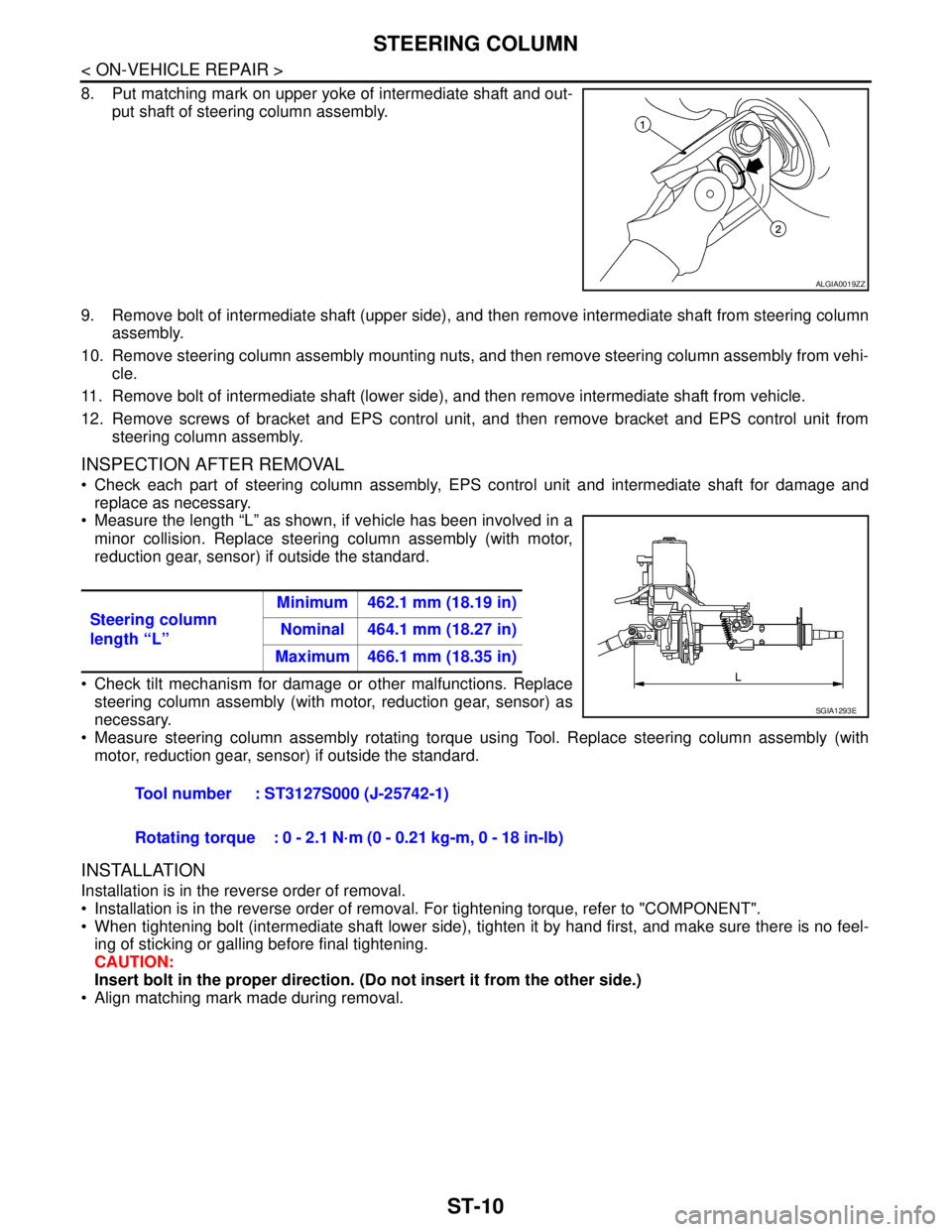

NISSAN TIIDA 2007 Service Repair Manual STEERING COLUMN
ST-11
< ON-VEHICLE REPAIR >
C
D
E
F
H
I
J
K
L
MA
B
ST
N
O
P
When connecting intermediate shaft upper side (1) and column
shaft, make sure the bolt is securely seated in groove (A) of

Page 4867 of 5883

NISSAN TIIDA 2007 Service Repair Manual ST-12
< ON-VEHICLE REPAIR >
STEERING GEAR
STEERING GEAR
Removal and InstallationINFOID:0000000001282501
COMPONENT
NOTE:
RHD shown LHD similar.
CAUTION:
Spiral cable may be cut if steering wheel turns

Page 4868 of 5883

NISSAN TIIDA 2007 Service Repair Manual STEERING GEAR
ST-13
< ON-VEHICLE REPAIR >
C
D
E
F
H
I
J
K
L
MA
B
ST
N
O
P
Check wheel alignment under unladen conditions with tires on level ground. Refer to FSU-6, "Wheel Align-
ment Inspection".
I

Page 4869 of 5883

NISSAN TIIDA 2007 Service Repair Manual ST-14
< DISASSEMBLY AND ASSEMBLY >
STEERING GEAR
DISASSEMBLY AND ASSEMBLY
STEERING GEAR
Disassembly and AssemblyINFOID:0000000001282504
COMPONENT (R24K TYPE)
NOTE:
RHD shown LHD similar.
CAUTION:
Clea

Page 4870 of 5883

NISSAN TIIDA 2007 Service Repair Manual STEERING GEAR
ST-15
< DISASSEMBLY AND ASSEMBLY >
C
D
E
F
H
I
J
K
L
MA
B
ST
N
O
P
3. Remove inner socket from rack assembly while holding the flat portion of the rack next to the inner socket
using a s

Page 4871 of 5883

NISSAN TIIDA 2007 Service Repair Manual ST-16
< DISASSEMBLY AND ASSEMBLY >
STEERING GEAR
Apply an axial load of 490 N (50 kg-f, 111 lb-f) to ball stud
using a dial gauge. Measure amount of stud movement, and
then make sure that the value

ST-16
< DISASSEMBLY AND ASSEMBLY >
STEERING GEAR
Apply an axial load of 490 N (50 kg-f, 111 lb-f) to ball stud
using a dial gauge. Measure amount of stud movement, and
then make sure that the value is within the specified range.
Replace outer socket and inner socket if the measured value
is outside the standard.
ASSEMBLY
1. Apply recommended grease to teeth part and bush part of rack assembly, if necessary.
2. Apply recommended grease to back of rack assembly, if necessary.
3. Install inner socket to rack assembly. Torque to specified value while holding the flat portion of the rack
next to the inner socket using a suitable tool.
4. Apply recommended grease to inner socket. For application points, refer to "COMPONENT (R24K
TYPE)" .
5. Decide on the neutral position for the rack assembly.

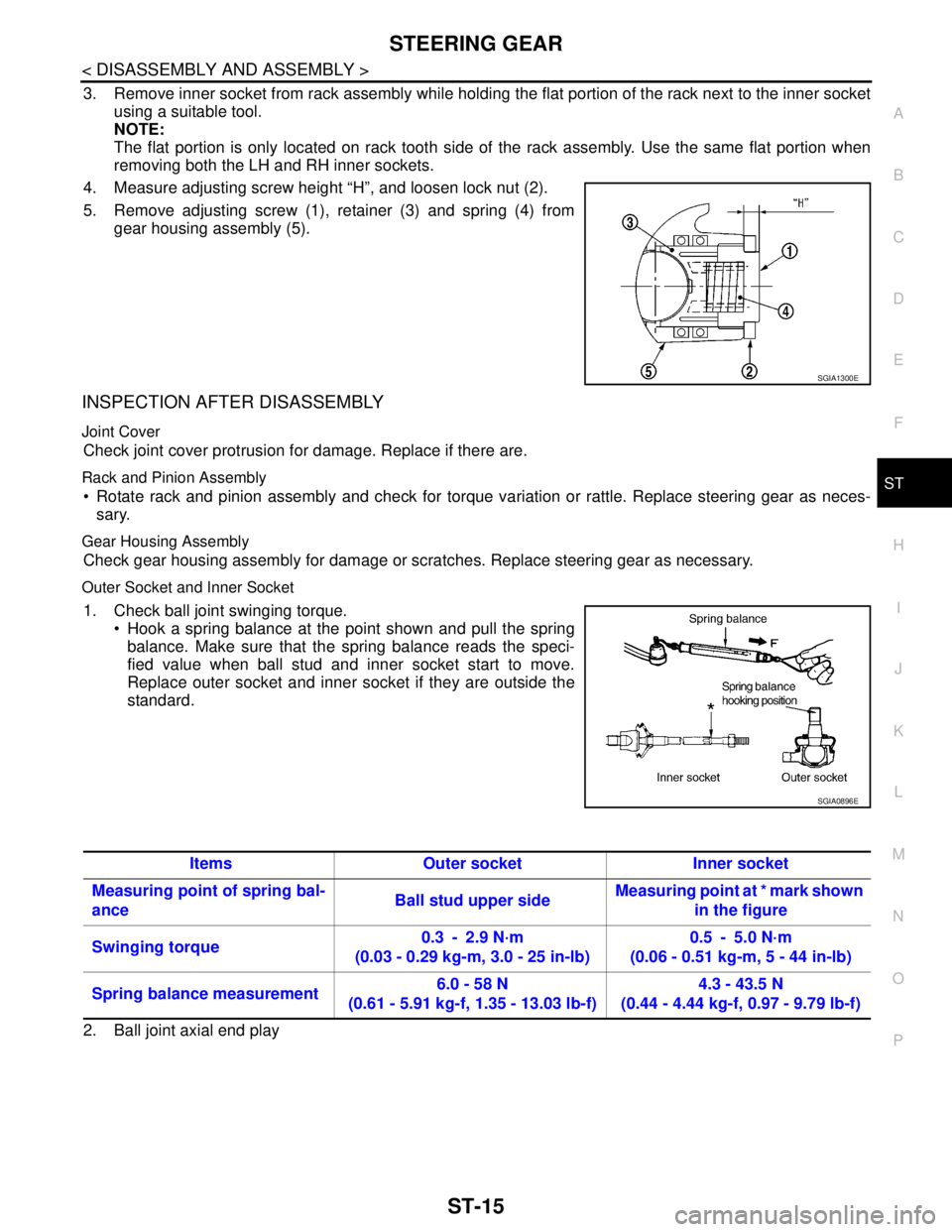

6. Apply recommended grease to around retainer (3), then install
retainer (3), spring (4) and adjusting screw (1) to gear housing
assembly (5).
7. Apply recommended thread locking sealant to the thread (2
turns thread), and then screw in the adjusting screw (1) until it
reaches height “H” from gear housing assembly (5) measured
before disassembling.
8. Tighten lock nut to (2) the specified torque securing it to prevent
adjusting screw (1) from freewheeling condition.
9. Move rack assembly 10 strokes throughout the full stroke so that
the parts can fit with each other.
10. Using Tools A and B, measure rotating torque of pinion assem-
bly. If the measurement is outside of the specified range, read-
just pinion rotating torque. If the measurement is outside of the
specified range for readjust, replace steering gear assembly. Outer socket 0.5 mm (0.020 in) or less
Inner socket 0.2 mm (0.008 in) or less
SGIA0057E
Rack stroke “L” : 65.0 mm (2.559 in)
AWGIA0016ZZ
SGIA1300E
Tool numbers A: ST3127S000 (J-25742-1)
B: KV48103400 ( — )
Pinion rotating torque standard
Around neutral position
(within±100°) Average A0.3 - 1.5 N·m (0.03 - 0.15 kg-m, 3
- 13 in-lb)
Maximum variation C 1.86 N·m (0.19 kg-m, 16 in-lb)
MGIA0017E

Page 4872 of 5883

NISSAN TIIDA 2007 Service Repair Manual STEERING GEAR
ST-17
< DISASSEMBLY AND ASSEMBLY >
C
D
E
F
H
I
J
K
L
MA
B
ST
N
O
P

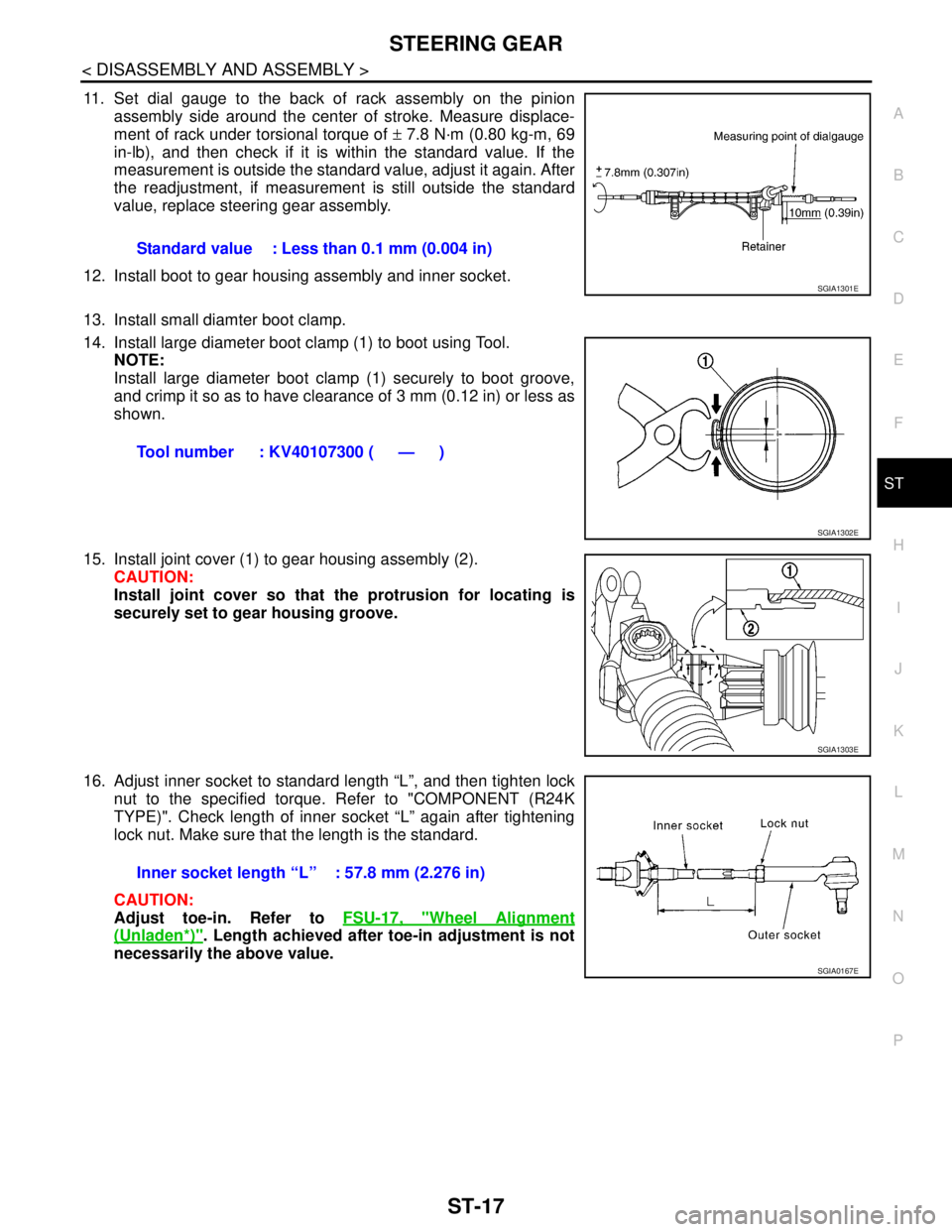

11. Set dial gauge to the back of rack assembly on the pinion
assembly side around the center of stroke. Measure displa
