Page 1049 of 5883
DLK-460
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
FRONT DOOR LOCK
8. Disconnect the inside handle cable and lock knob cable from the
inside handle.
CAUTION:
During removal and installation, work so as not to bend the
ends of the lock knob cable and inside handle cable.
9. Remove the door side grommet, and the door key cylinder
assembly (escutcheon) bolt.
10. Remove the key cylinder connecting rod (key cylinder side).
11. If equipped, disconnect the door antenna, the door request
switch connector and remove the harness clamp. (Vehicle with
intelligent key systems only).
12. Remove the door cylinder assembly while pulling the outside
handle forward.
13. Pull the outside door handle forward and then slide it toward the
rear of the vehicle to remove.
14. Remove the front and rear gaskets.
PIIB6525E
PIIB5808E
PIIB5809E
PIIB5810E
PIIB6526E
Page 1050 of 5883
FRONT DOOR LOCK
DLK-461
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
15. Remove the door lock assembly bolts.
16. Slide the outside handle bracket toward the rear of the vehicle,
and remove the assembly.
17. If equipped, disconnect the door lock assembly electrical connector.
18. Separate the outside handle cable from the outside handle
bracket.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
When installing door lock assembly, be careful when rotating the outside handle cable as shown in
the figure.
- Place the outside handle bracket cable on the inside of door
lock assembly before installing. 5.8 N·m (0.6 kg-m, 51.4 in-lb)
PIIB6527E
PIIB6528E
PIIB5815E
PIIB6529E
Page 1051 of 5883
DLK-462
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
REAR DOOR LOCK
REAR DOOR LOCK
Component Parts LocationINFOID:0000000001732028
Removal and InstallationINFOID:0000000001732029
REMOVAL
1. Remove the partition glass. Refer to XX-XX, "*****".
2. Support door glass while lifting it up to the door window completely closed position.
3. Remove inside handle bolt, slide handle toward rear of vehicle,
disconnect it from the door panel, and remove the inside handle.
4. Disconnect the inside handle and lock knob cables from the
inside handle.
CAUTION:
During removal and installation, do not to bend the ends of
the lock knob cable and inside handle cable.
1. Rear door 2. Inside handle 3. Inside handle cable
4. Door lock assembly 5. TORX bolt (T30) 6. Outside handle cable
7. Grommet 8. TORX bolt (T30) 9. Rear gasket
10. Outside handle escutcheon 11. Outside handle 12. Front gasket
13. Lock knob cable 14. Outside handle bracket
PIIB6530E
PIIB6524E
PIIB6525E
Page 1052 of 5883
REAR DOOR LOCK
DLK-463
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
5. Remove the door side grommet, and the outside handle
escutcheon screw.
6. Pull the outside handle forward (1), while removing outside han-
dle escutcheon (2).
7. Pull outside door handle forward (1), and slide it toward the rear
of the vehicle to remove (2).
8. Remove the front and rear gaskets.
9. Remove the door lock assembly screws.
PIIB5808E
PIIB5809E
PIIB5810E
PIIB6526E
: 5.8 N·m (0.6 kg-m, 51.4 in-lb)
PIIB6527E
Page 1053 of 5883
DLK-464
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
REAR DOOR LOCK
10. Slide the outside handle bracket toward the rear of vehicle,
remove the outside handle bracket and the door lock assembly.
11. If equipped, disconnect the door lock assembly electrical connector.
12. Disconnect the outside handle cable from the outside handle
bracket.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
When installing door lock assembly, be careful when rotating the outside handle cable as shown.
- Place the outside handle bracket cable on the inside of door
lock assembly before installing.
PIIB6528E
PIIB5815E
PIIB6529E
Page 1054 of 5883
BACK DOOR LOCK
DLK-465
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
BACK DOOR LOCK
Removal and InstallationINFOID:0000000001732030
BACK DOOR LOCK
Removal
1. Remove the back door finisher lower. Refer to XX-XX, "*****".
2. Remove the bolts, disconnect the electrical connector and sepa-
rate the lock from the door.
Installation
Installation is in the reverse order of removal.
BACK DOOR HANDLE
Removal
1. Remove the back door finisher lower. Refer to XX-XX, "*****".
2. Disconnect the harness connectors (1), remove the nuts and the
back door handle (A).
3. Release the clips and remove the switch from the housing.
Installation
Installation is in the reverse order of removal.
LIIA2607E
LIIA2669E
LIIA2609E
Page 1055 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-466
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
TRUNK LID
TRUNK LID
Fitting AdjustmentINFOID:0000000001732031
Longitudinal and lateral clearance adjustment
1. With the striker released, NISSAN TIIDA 2007 Service Repair Manual DLK-466
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
TRUNK LID
TRUNK LID
Fitting AdjustmentINFOID:0000000001732031
Longitudinal and lateral clearance adjustment
1. With the striker released,](/manual-img/5/57395/w960_57395-1054.png)

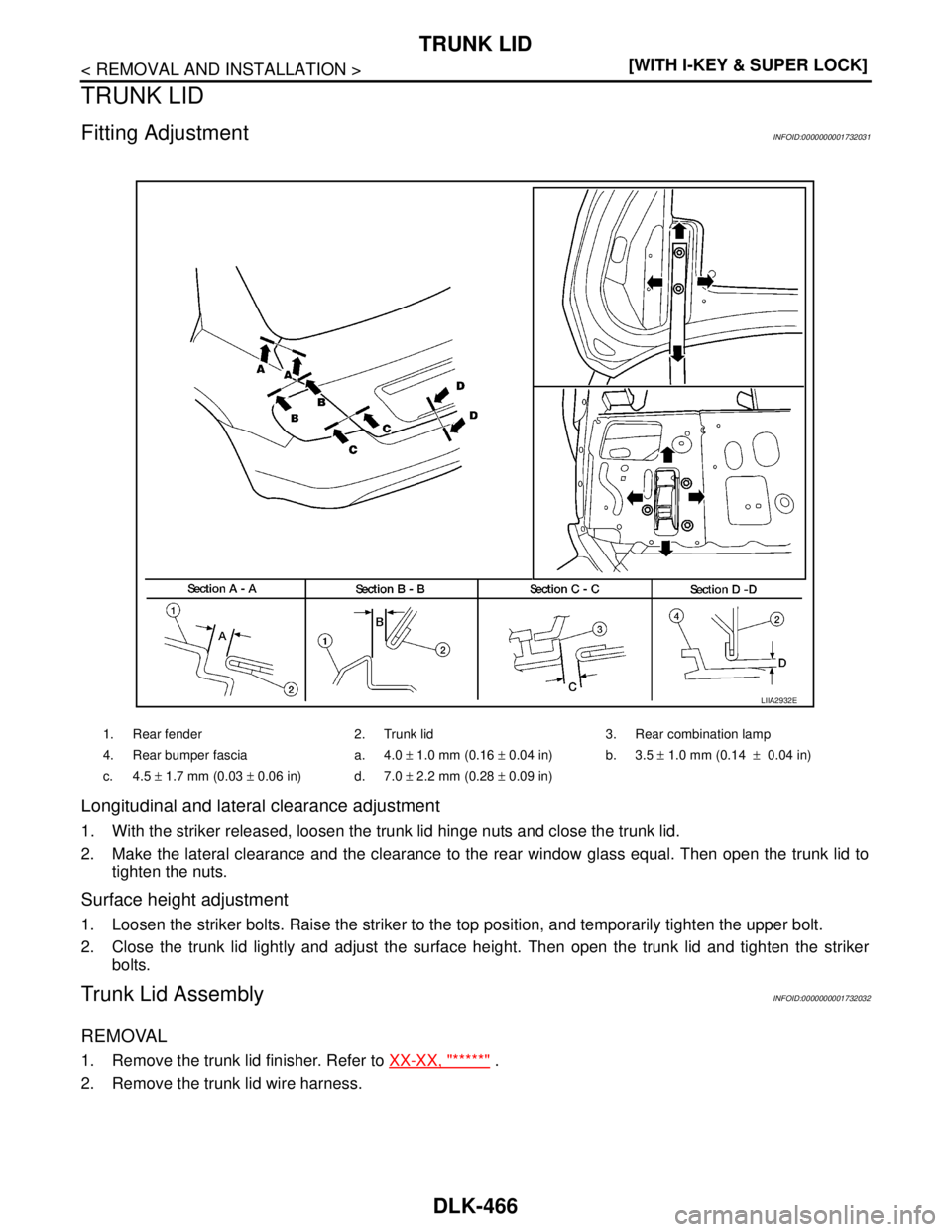

DLK-466
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
TRUNK LID
TRUNK LID
Fitting AdjustmentINFOID:0000000001732031
Longitudinal and lateral clearance adjustment
1. With the striker released, loosen the trunk lid hinge nuts and close the trunk lid.
2. Make the lateral clearance and the clearance to the rear window glass equal. Then open the trunk lid to
tighten the nuts.
Surface height adjustment
1. Loosen the striker bolts. Raise the striker to the top position, and temporarily tighten the upper bolt.
2. Close the trunk lid lightly and adjust the surface height. Then open the trunk lid and tighten the striker
bolts.
Trunk Lid AssemblyINFOID:0000000001732032
REMOVAL
1. Remove the trunk lid finisher. Refer to XX-XX, "*****" .
2. Remove the trunk lid wire harness.
1. Rear fender 2. Trunk lid 3. Rear combination lamp
4. Rear bumper fascia a. 4.0 ± 1.0 mm (0.16 ± 0.04 in) b. 3.5 ± 1.0 mm (0.14 ± 0.04 in)
c. 4.5 ± 1.7 mm (0.03 ± 0.06 in) d. 7.0 ± 2.2 mm (0.28 ± 0.09 in)
LIIA2932E
Page 1056 of 5883
TRUNK LID
DLK-467
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

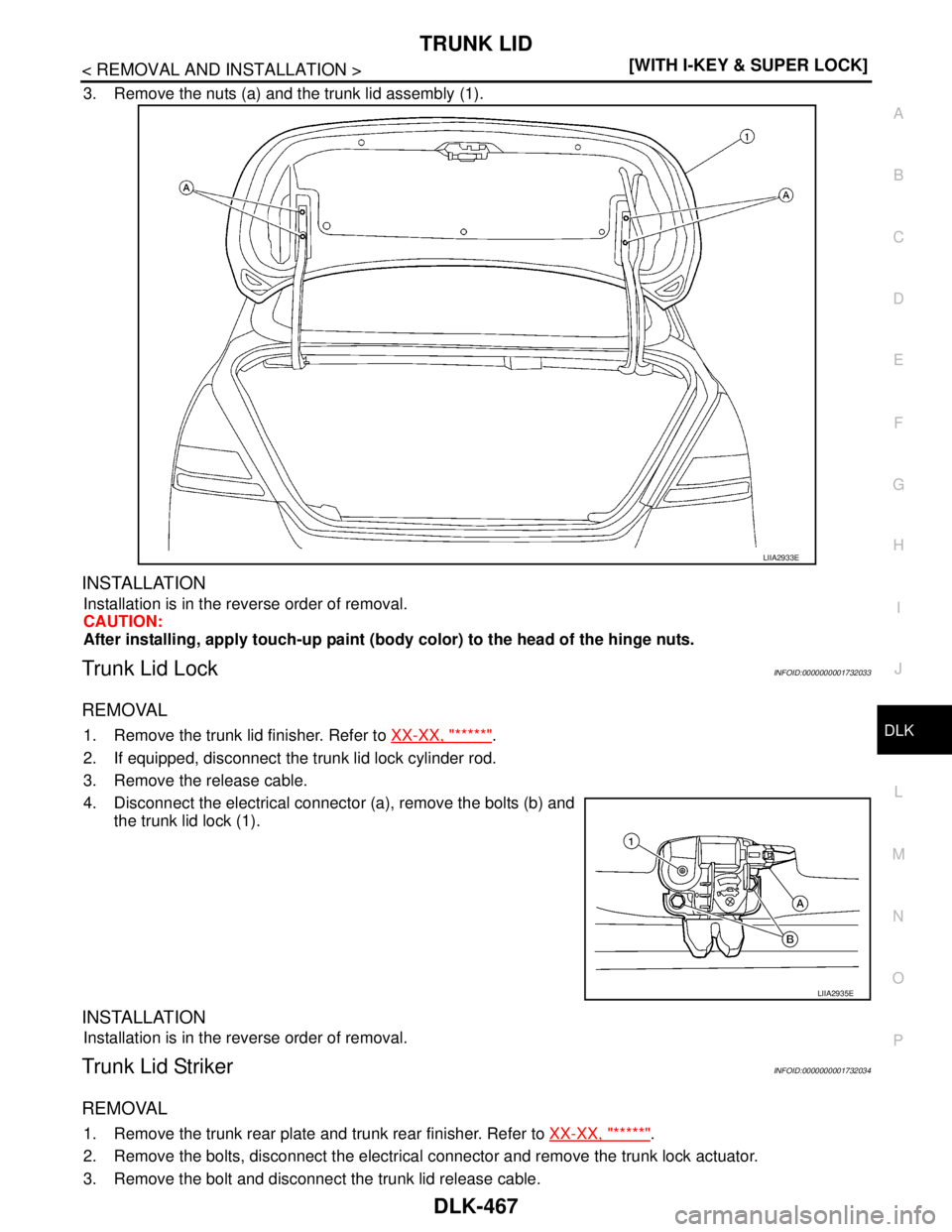

3. Remove the nuts (a) and the trunk lid assembly (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint (body color) to the head of the hinge nuts.
Trunk Lid LockINFOID:0000000001732033
REMOVAL
1. Remove the trunk lid finisher. Refer to XX-XX, "*****".
2. If equipped, disconnect the trunk lid lock cylinder rod.
3. Remove the release cable.
4. Disconnect the electrical connector (a), remove the bolts (b) and
the trunk lid lock (1).
INSTALLATION
Installation is in the reverse order of removal.
Trunk Lid StrikerINFOID:0000000001732034
REMOVAL
1. Remove the trunk rear plate and trunk rear finisher. Refer to XX-XX, "*****".
2. Remove the bolts, disconnect the electrical connector and remove the trunk lock actuator.
3. Remove the bolt and disconnect the trunk lid release cable.
LIIA2933E
LIIA2935E
