NISSAN TIIDA 2007 Service Repair Manual EC-1124
< COMPONENT DIAGNOSIS >[K9K]
P0100 MAF SENSOR
P0100 MAF SENSOR
DescriptionINFOID:0000000001162569
The mass air flow sensor is placed in the stream of intake air.
Intake air temperature sens

Page 2474 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0100 MAF SENSOR
EC-1125
< COMPONENT DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Harness for open or short between IPDM E/R and mass air flow sensor
Harness for open or short between ECM and

Page 2475 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-1126
< COMPONENT DIAGNOSIS >[K9K]
P0100 MAF SENSOR
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Turn ignition switch ON.
4. Check the voltage between mass air f

Page 2476 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0101 MAF SENSOR
EC-1127
< COMPONENT DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

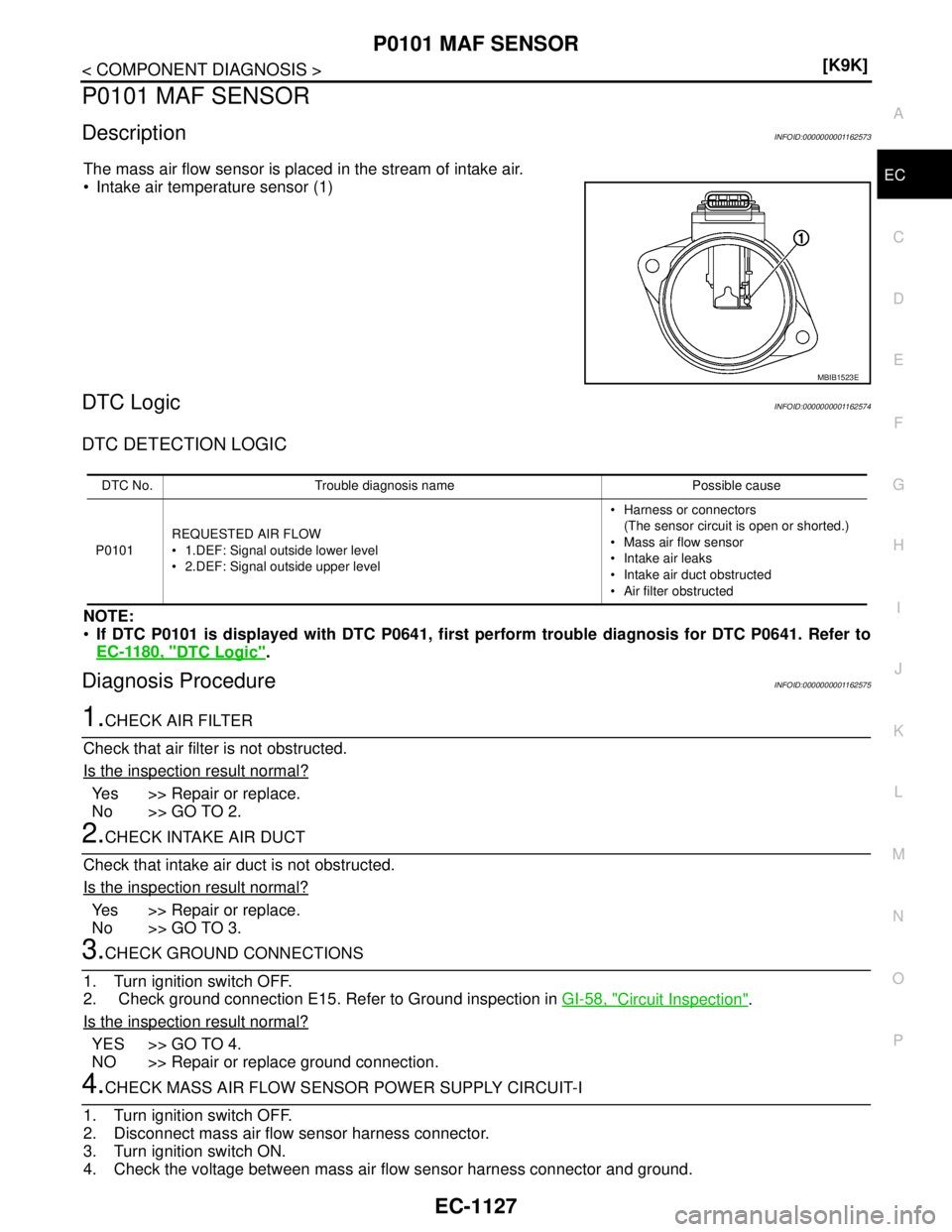

P0101 MAF SENSOR
DescriptionINFOID:0000000001162573
The mass air flow sensor is placed in the stream of intake air

Page 2477 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-1128
< COMPONENT DIAGNOSIS >[K9K]
P0101 MAF SENSOR
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK

Page 2478 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0101 MAF SENSOR
EC-1129
< COMPONENT DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component InspectionINFOID:0000000001162576
1.CHECK MASS AIR FLOW SENSOR
1. Turn ignition switch OFF.
2. Reconnect

Page 2479 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-1130
< COMPONENT DIAGNOSIS >[K9K]
P0110 IAT SENSOR
P0110 IAT SENSOR
DescriptionINFOID:0000000001162577
The intake air temperature sensor is built into mass air flow sensor. The sensor detects intak

EC-1130
< COMPONENT DIAGNOSIS >[K9K]
P0110 IAT SENSOR
P0110 IAT SENSOR
DescriptionINFOID:0000000001162577
The intake air temperature sensor is built into mass air flow sensor. The sensor detects intake air temperature
and transmits a signal to the ECM.
The temperature sensing unit uses a thermistor which is sensitive to the change in temperature. Electrical
resistance of the thermistor decreases in response to the temperature rise.
DTC LogicINFOID:0000000001162578
DTC DETECTION LOGIC
NOTE:
If DTC P0110 is displayed with DTC P0641, first perform trouble diagnosis for DTC P0641. Refer to
EC-1180, "
DTC Logic".
Conditions for applying the diagnostic procedure to the stored DTCs:
The DTC is declared present after the ignition has been switched on for at least 10 seconds.
Diagnosis ProcedureINFOID:0000000001162579
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT-II
1. Disconnect mass air flow sensor (with intake air temperature sensor) harness connector.
2. Turn ignition switch ON.
3. Check the voltage between mass air flow sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between mass air flow sensor harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
DTC No. Trouble diagnosis name Possible cause
P0110INTAKE AIR TEMPERATURE SENSOR CIRCUIT
CC.0: Short circuit to ground
CO.1: Open circuit or short circuit to +12V
1.DEF: Micro-breaks Harness or connectors
(Intake air temperature sensor circuit is
open or shorted.)
Intake air temperature sensor
Mass air flow sensor
Ground Voltage
Connector Terminal
F31 1 Ground Approx. 5V
Mass air flow sensor ECM
Continuity
Connector Terminal Connector Terminal
F31 2 F10 30 Existed

Page 2480 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0110 IAT SENSOR
EC-1131
< COMPONENT DIAGNOSIS >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK I
