OVERHAUL
TM-511
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
19. Oil pan gasket 20. Oil pan 21. Drain plug gasket
22. Drain plug 23. Magnet 24. Oil pan fitting bolt
25. Snap ring 26. O-ring 27. O-ring
28. N-D accumulator piston29. Return spring 30. O-ring
31. Lip seal 32. Turbine revolution sensor (power
train revolution sensor)33. O-ring
34. Retaining pin 35. Detent spring 36. Retaining pin
37. Manual shaft 38. Manual shaft oil seal 39. Manual plate
40. Parking rod plate 41. Parking rod 42. OD servo piston retainer
43. Snap ring 44. O-ring 45. OD servo piston
46. D-ring 47. Servo piston retainer 48. O-ring
49. E-ring 50. Spring retainer 51. OD servo return spring
52. D-ring 53. Band servo piston 54. Band servo thrust washer
55. Band servo piston stem 56. 2nd servo return spring 57. PNP switch
58. Parking shaft 59. Return spring 60. Output gear adjusting spacer
61. Output gear bearing 62. Output gear 63. Side cover gasket
64. Side cover 65. Side cover fitting bolt 66. Lock nut
67. Idler gear 68. Idler gear bearing 69. Reduction pinion gear adjusting
shim
70. Parking actuator support 71. Parking pawl 72. LH differential side oil seal
73. Revolution sensor
: Apply locking sealant (Loctite #518).
Page 5458 of 5883
TM-512
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
OVERHAUL

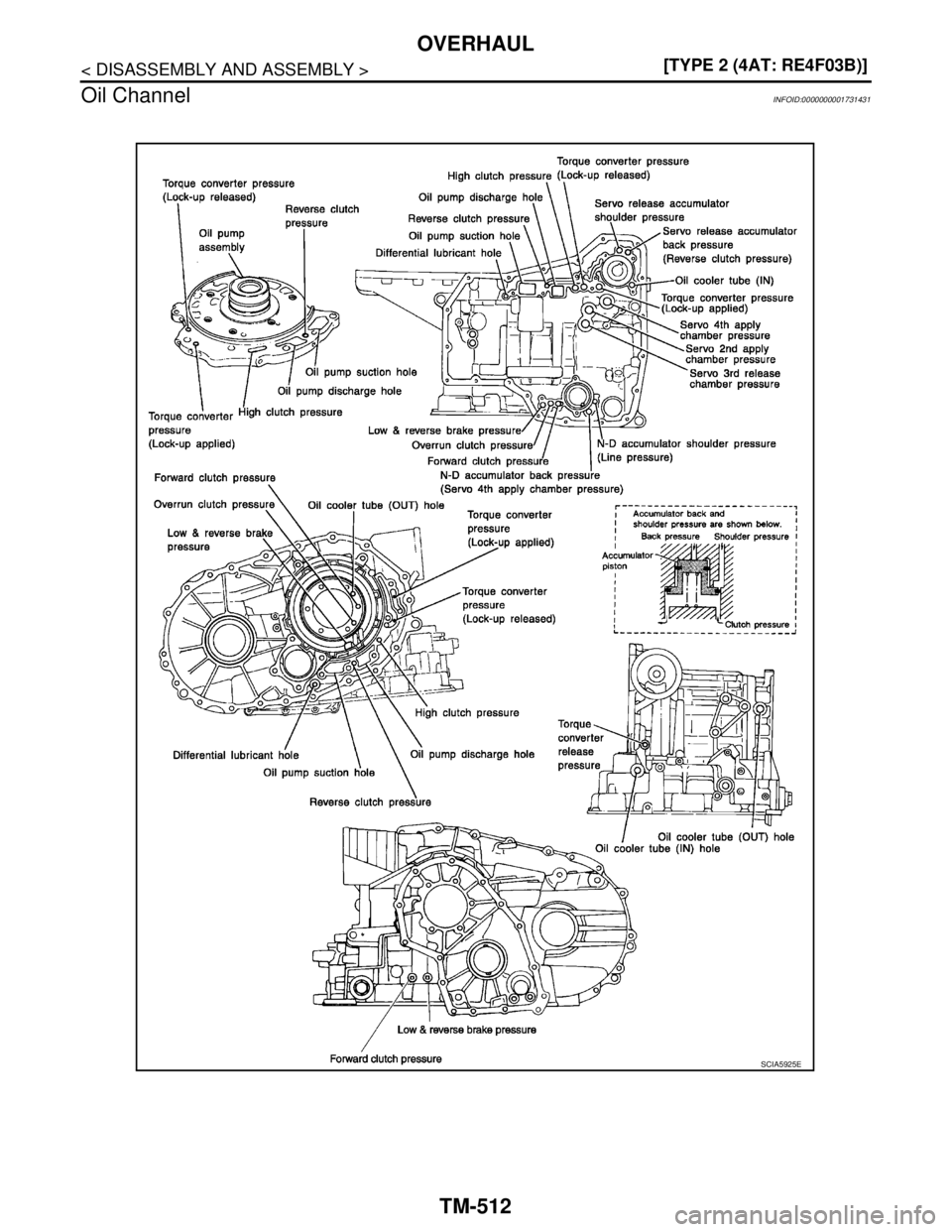

Oil Channel
INFOID:0000000001731431
SCIA5925E
Page 5459 of 5883
OVERHAUL
TM-513
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Location of Adjusting Shims, Needle Bearings and Thrust WashersINFOID:0000000001731432

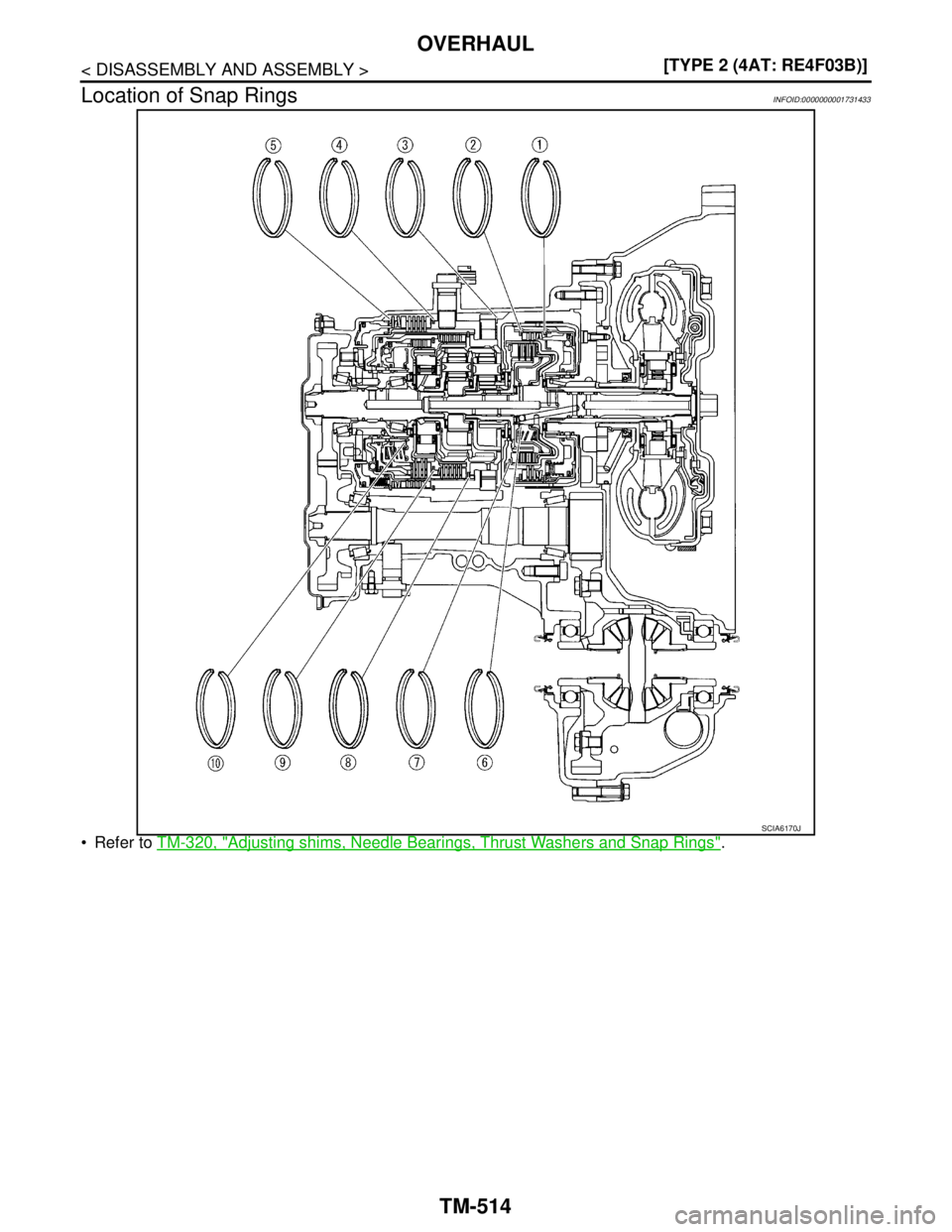

Refer to TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA6051J
Page 5460 of 5883
TM-514
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
OVERHAUL
Location of Snap Rings
INFOID:0000000001731433

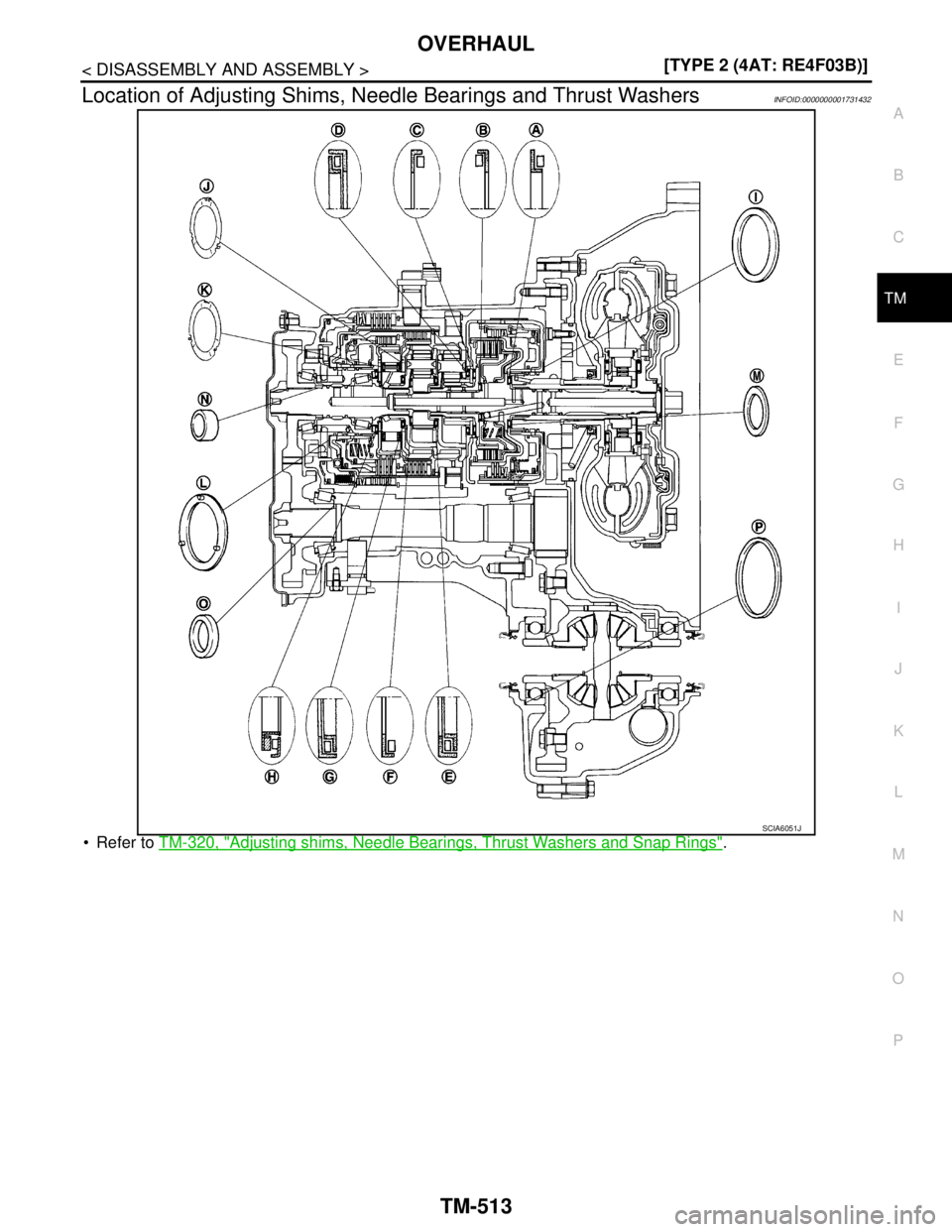

Refer to TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA6170J
Page 5461 of 5883
DISASSEMBLY
TM-515
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DISASSEMBLY
DisassemblyINFOID:0000000001731434
1. Drain ATF through drain hole.
2. Remove drain plug gasket from drain plug.
3. Remove torque converter.
4. Check torque converter one-way clutch using check tool as
shown.
a. Insert check tool into groove of bearing support built into one-
way clutch outer race.
b. When secring bearing support with check tool, rotate one-way
clutch spline using suitable tool.
c. Check that inner race rotates clockwise only. If not, replace
torque converter assembly.
SCIA0003E
SAT008D
SAT009D
Page 5462 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-516
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
DISASSEMBLY
5. Remove turbine revolution sensor (power train revolution sen-
sor) (1) from transaxle case (2).
: Bolt (1)
6. Remove O-ring (3 NISSAN TIIDA 2007 Service Repair Manual TM-516
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
DISASSEMBLY
5. Remove turbine revolution sensor (power train revolution sen-
sor) (1) from transaxle case (2).
: Bolt (1)
6. Remove O-ring (3](/manual-img/5/57395/w960_57395-5461.png)
TM-516
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
DISASSEMBLY
5. Remove turbine revolution sensor (power train revolution sen-
sor) (1) from transaxle case (2).
: Bolt (1)

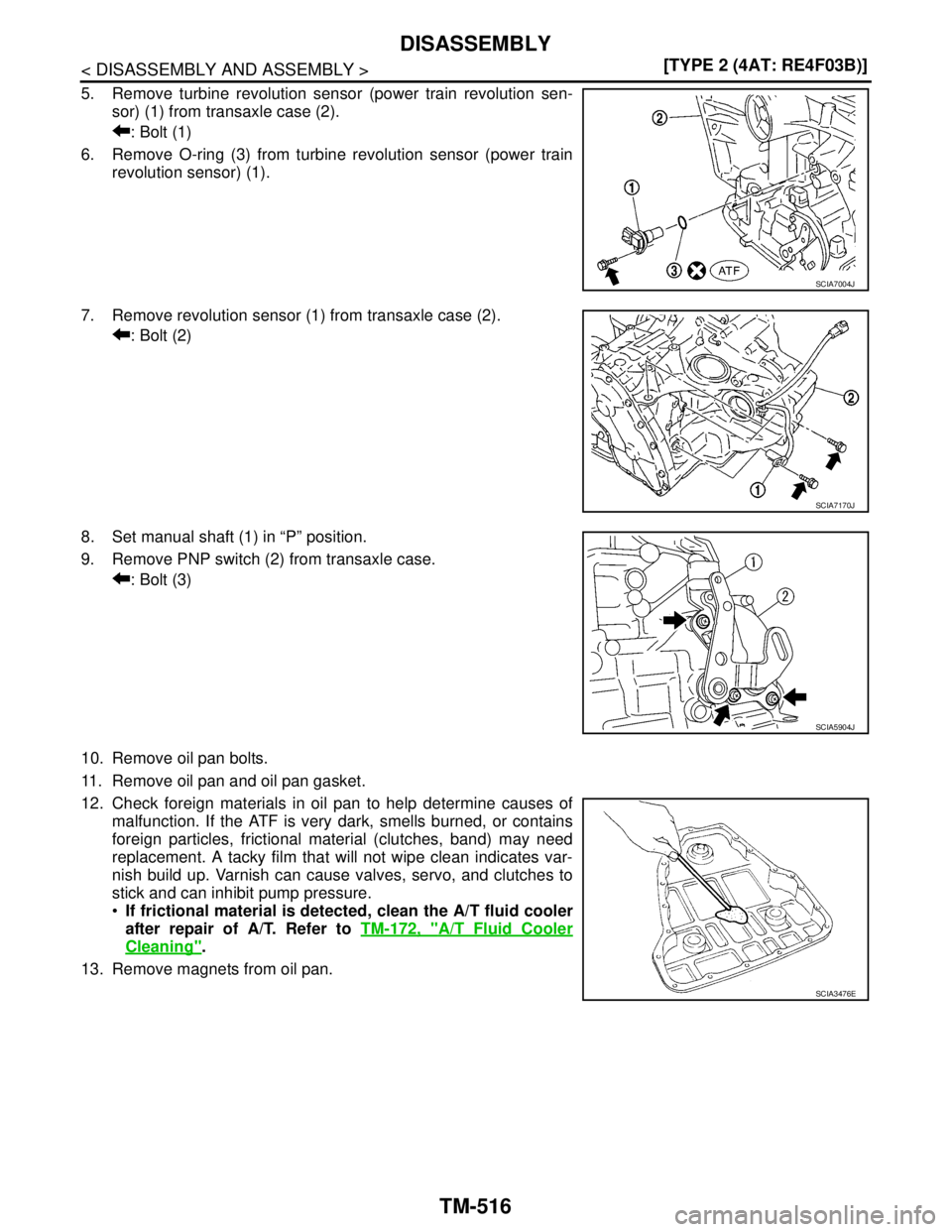

6. Remove O-ring (3) from turbine revolution sensor (power train
