HOOD
1. Remove hinge nuts on hood and remove hood assembly.
CAUTION:
Two technicians should be used to avoid damaging the
hood during removal.
Installation
Installation is in the reverse order of removal.
CAUTION:
Before installing hood hinge, apply anticorrosive agent onto the surfaces that make contact with the
vehicle body.
After installing, perform hood fitting adjustment. Refer to DLK-442, "
Fitting Adjustment".
HOOD HINGE
Removal
1. Remove hood assembly. Refer to DLK-443, "Removal and Installation".
2. Remove front fender. Refer to DLK-450, "
Removal and Installation".
3. Remove bolts and the hood hinge.
Installation
Installation is in the reverse order of removal.
Removal and Installation of Hood Lock ControlINFOID:0000000001732019
LH Drive
12.7 N·m (1.3 kg-m, 9.4 ft-lb)
PIIB2529J
12.7 N·m (1.3 kg-m, 9.4 ft-lb)
PIIB2530J
PIIB6509E
Page 1034 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HOOD
DLK-445
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RH Drive
REMOVAL
Hood Lock
1. Remove front grille (LH or RH as necessary). Refer to EXT-19, "Removal NISSAN TIIDA 2007 Service Repair Manual HOOD
DLK-445
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RH Drive
REMOVAL
Hood Lock
1. Remove front grille (LH or RH as necessary). Refer to EXT-19, "Removal](/manual-img/5/57395/w960_57395-1033.png)
HOOD
DLK-445
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RH Drive
REMOVAL
Hood Lock
1. Remove front grille (LH or RH as necessary). Refer to EXT-19, "Removal and Installation".
2. Remove hood lock bolts.
3. Remove hood lock from hood lock cable.
Hood Lock Reinforcement
1. Remove front bumper. Refer to EXT-15, "Removal and Installation - Hatchback" or EXT-17, "Removal and
Installation - Sedan".
2. Remove crash zone sensor.
3. Remove bolts, and the hood lock reinforcement.
Hood Lock Cable
1. Remove front grille (LH/RH). Refer to EXT-19, "Removal and Installation".
2. Remove fender protector (LH or RH as necessary). Refer to EXT-22, "
Removal and Installation".
3. Remove hood lock, and remove hood lock cable from hood lock.
4. Remove radiator core upper support, hood ledge, and then remove hood lock cable.
1. Hood lock 2. Hood lock cable 3. Hood ledge upper front
4. Clip
ALKIA0638GB
1. Hood lock 2. Hood lock cable 3. Hood ledge upper front
4. Clip
23.6 N·m (2.4 kg-m, 17 ft-lb)
23.6 N·m (2.4 kg-m, 17 ft-lb)
PIIB6511E
Page 1035 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-446
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
5. Remove hood opener on bottom left of instrument panel, and
then remove hood lock cable.
6. Remove grommet on lower dashboard, and NISSAN TIIDA 2007 Service Repair Manual DLK-446
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
5. Remove hood opener on bottom left of instrument panel, and
then remove hood lock cable.
6. Remove grommet on lower dashboard, and](/manual-img/5/57395/w960_57395-1034.png)
DLK-446
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
HOOD
5. Remove hood opener on bottom left of instrument panel, and
then remove hood lock cable.
6. Remove grommet on lower dashboard, and pull out hood lock
cable from passenger room side.
CAUTION:
While pulling the cable, be careful not to damage (peel)
hood opener cable outer surface on edges of body through
hole.
INSTALLATION
Installation is in the reverse order of removal.
Perform hood fitting adjustment. Refer to DLK-442, "
Fitting Adjustment".
Hood Lock Reinforcement
When installing hood lock reinforcement, loosen hood bolts, and
then tighten bolts in the order as shown.
Hood Lock Cable
1. Pull the hood lock cable through the panel hole to the engine compartment.
CAUTION:
Be careful not to bend the cable too much, keeping the
radius 100 mm (3.94 in) or more.
2. Check that the cable is not offset from the positioning grommet,
and push the grommet into the panel hole securely.
3. Apply the sealant around the grommet (at * mark).
4. Install cable securely to lock.
5. After installing, check hood lock adjustment and hood opener
operation.
Hood Lock Control InspectionINFOID:0000000001732020
CAUTION:
If the hood lock cable is bent or deformed, replace it.
LIIA2667E
23.6 N·m (2.4 kg-m, 17 ft-lb)
PIIB6513E
PIIB5801E
PIIB6537E
Page 1036 of 5883
HOOD
DLK-447
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
1. Check that the secondary latch is properly engaged with the secondary striker (B: 6.8 mm (0.268 in) with
hood's own weight.
2. While operating the hood release handle, carefully check that the front end of the hood is raised by
approx. 20 mm (0.79 in). Also check that the hood release handle returns to the original position.
3. Check that the secondary hood release operates at 29.4 N (3.0 kg) or below.
4. Confirm static closing force of the hood is 343 – 441 N·m (35 – 44 kg-m).
5. Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points as shown.
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
PIIB5794E
PIIB6514E
Page 1037 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-448
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732021
REMOVAL
Radiator Core Support Upper
1. Remove NISSAN TIIDA 2007 Service Repair Manual DLK-448
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732021
REMOVAL
Radiator Core Support Upper
1. Remove](/manual-img/5/57395/w960_57395-1036.png)
DLK-448
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
RADIATOR CORE SUPPORT
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732021
REMOVAL
Radiator Core Support Upper
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
3. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-444
.
4. Remove the air guide and hood lock cable clip.
5. Remove the washer tank inlet. Refer to WW-64, "
Removal and Installation" .
6. Remove the radiator core support upper.
Radiator Core Support Lower
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the front bumper. Refer to EXT-13, "
Removal and Installation" .
3. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
4. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-444
.
5. Remove the air guide and hood lock cable mounting clip.
6. Remove the front bumper reinforcement. Refer to EXT-13, "
Removal and Installation".
7. Remove the radiator core lower stay.
8. Remove the undercover.
PIIB6515E
1. Radiator core support upper 2. Radiator core support lower 3. Radiator core support lower stay
4. Radiator core support side stay 5. Air guide
24.5 N·m (2.5 kg-m, 18 ft-lb)
Page 1038 of 5883
RADIATOR CORE SUPPORT
DLK-449
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
9. Remove radiator core support lower side stay.
10. Tie a cord to all radiator core upper supports of the radiator and
condenser.
NOTE:
To prevent the compressor and radiator from being dropped
when the radiator core lower support is removed.
11. Remove the bolts, and lower radiator core lower supports.
12. Remove the radiator core lower supports.
INSTALLATION
Installation is in the reverse order of removal. 55.0 N·m (5.6 kg-m, 41 ft-lb)
PIIB2800J
PIIB2799J
Page 1039 of 5883
DLK-450
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
FRONT FENDER
FRONT FENDER
Removal and InstallationINFOID:0000000001732022
REMOVAL
1. Remove the headlamp assemblies. Refer to EXL-84, "Removal and Installation".
2. Remove the cowl top cover (LH/RH). Refer to EXT-20, "
Removal and Installation".
3. Remove the front fender protector. Refer to DLK-450, "
Removal and Installation".
4. Remove the bolt and the front fender.
CAUTION:
While removing use a shop cloth to protect the vechicle body from damage.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint onto the head of the front fender bolts.
After installing, check front fender adjustment. Refer to DLK-442, "
Fitting Adjustment" and DLK-451,
"Fitting Adjustment".
1. Front fender 2 Bolt (LH 7 bolts required) (RH 8 bolts
required)
LIIA2657E
Page 1040 of 5883
DOOR
DLK-451
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR
Fitting AdjustmentINFOID:0000000001732023
FRONT DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
Access from inside the fender to loosen the hinge bolts. Raise the front door at rear end to adjust.
Surface Height Adjustment
Loosen the front door bolts, and adjust the surface height difference of fender and front door according to the
fitting standard dimension.
Striker Adjustment

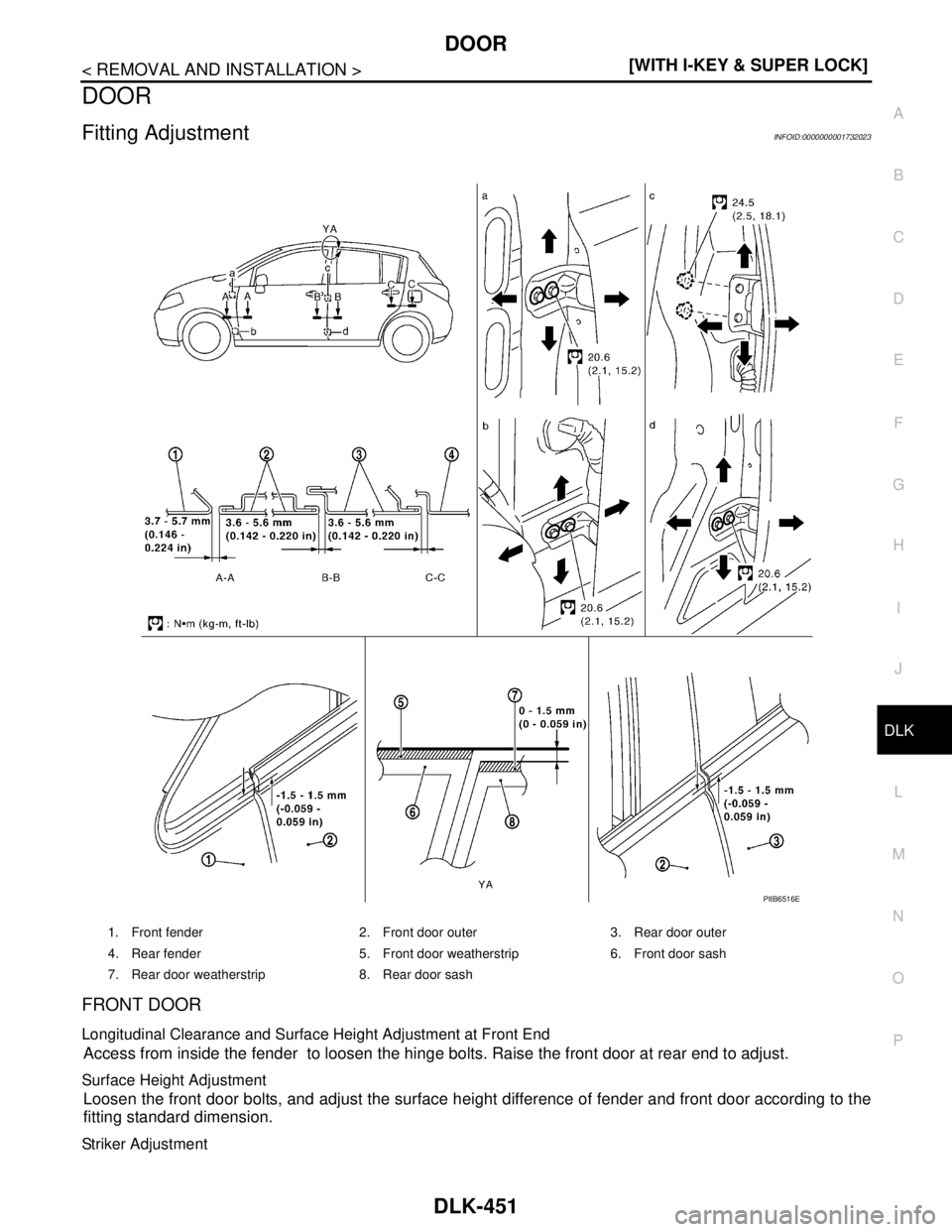

1. Front fender 2. Front door outer 3. Rear door outer
