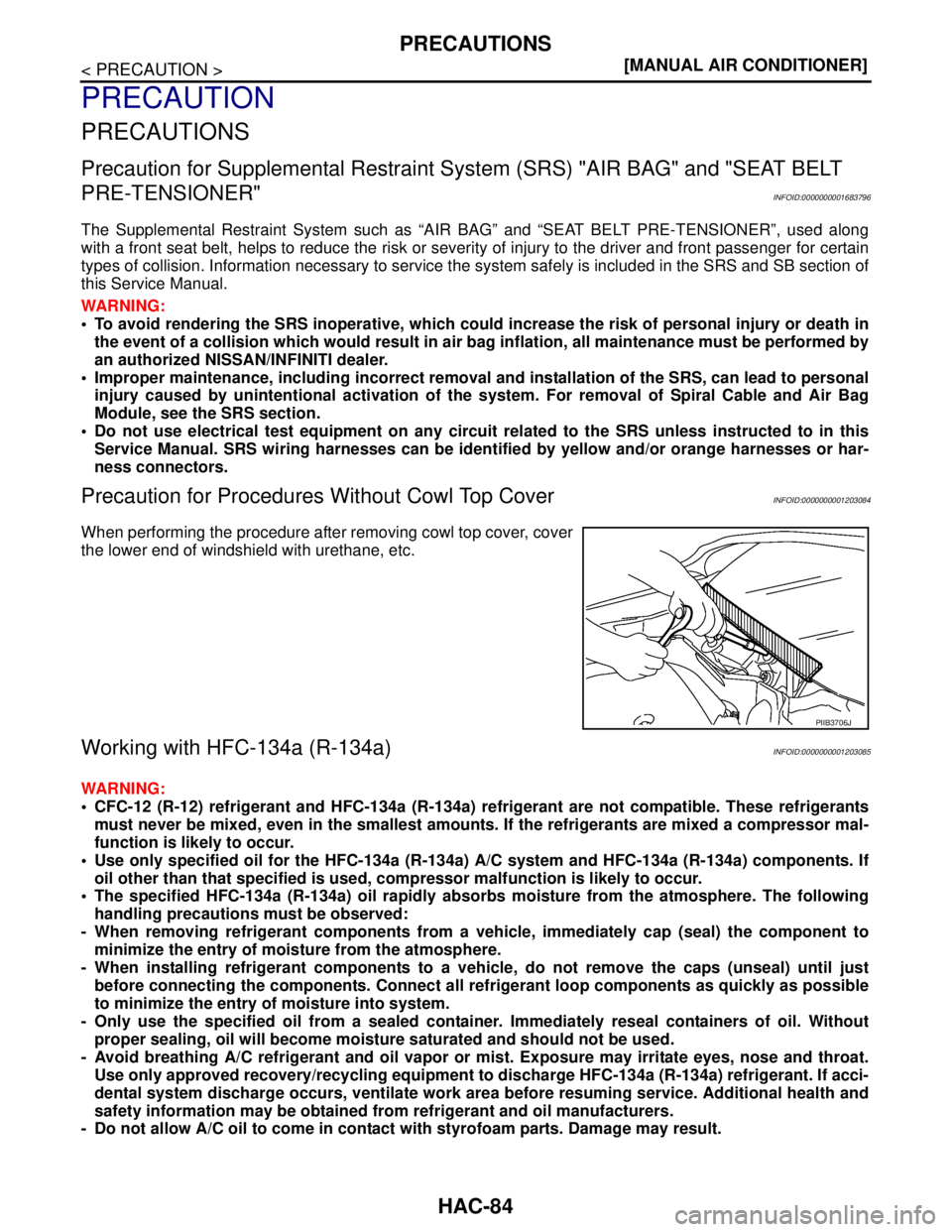

HAC-84
< PRECAUTION >[MANUAL AIR CONDITIONER]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001683796
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for Procedures Without Cowl Top CoverINFOID:0000000001203084
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Working with HFC-134a (R-134a)INFOID:0000000001203085
WARNING:
CFC-12 (R-12) refrigerant and HFC-134a (R-134a) refrigerant are not compatible. These refrigerants
must never be mixed, even in the smallest amounts. If the refrigerants are mixed a compressor mal-
function is likely to occur.
Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If
oil other than that specified is used, compressor malfunction is likely to occur.
The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following
handling precautions must be observed:
- When removing refrigerant components from a vehicle, immediately cap (seal) the component to
minimize the entry of moisture from the atmosphere.
- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just
before connecting the components. Connect all refrigerant loop components as quickly as possible
to minimize the entry of moisture into system.
- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without
proper sealing, oil will become moisture saturated and should not be used.
- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Use only approved recovery/recycling equipment to discharge HFC-134a (R-134a) refrigerant. If acci-
dental system discharge occurs, ventilate work area before resuming service. Additional health and
safety information may be obtained from refrigerant and oil manufacturers.
- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.
PIIB3706J
Page 3418 of 5883
![NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
HAC-85
< PRECAUTION >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Precaution for Service EquipmentINFOID:0000000001203086
MANIFOLD GAUGE SET
Be certain that the gauge face ind NISSAN TIIDA 2007 Service Repair Manual PRECAUTIONS
HAC-85
< PRECAUTION >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Precaution for Service EquipmentINFOID:0000000001203086
MANIFOLD GAUGE SET
Be certain that the gauge face ind](/manual-img/5/57395/w960_57395-3417.png)
PRECAUTIONS
HAC-85
< PRECAUTION >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Precaution for Service EquipmentINFOID:0000000001203086
MANIFOLD GAUGE SET
Be certain that the gauge face indicates R-134a or 134a. Make sure
the gauge set has 1/2″-16 ACME threaded connections for service
hoses. Confirm the set has been used only with refrigerant HFC-
134a (R-134a) along with specified oil.
SERVICE HOSES
Be certain that the service hoses display the markings described
(colored hose with black stripe). All hoses must include positive shut-
off devices (either manual or automatic) near the end of the hoses
opposite the manifold gauge.
SERVICE COUPLERS
Never attempt to connect HFC-134a (R-134a) service couplers to a
CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will
not properly connect to the CFC-12 (R-12) system. However, if an
improper connection is attempted, discharging and contamination
may occur.
SHA533D
RHA272D
Shut-off valve rotation A/C service valve
Clockwise Open
Counterclockwise Close
RHA273D
Page 3419 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-86
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
How to Perform Trouble Diagnosis For Quick And Accurate Repair NISSAN TIIDA 2007 Service Repair Manual HAC-86
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
How to Perform Trouble Diagnosis For Quick And Accurate Repair](/manual-img/5/57395/w960_57395-3418.png)
HAC-86
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
How to Perform Trouble Diagnosis For Quick And Accurate RepairINFOID:0000000001547385
WORK FLOW
1.LISTEN TO CUSTOMER COMPLAINT
Listen to customer complaint. Get detailed information about the conditions and environment when the symp-
tom occurs.
>> GO TO 2
2.CHECK FOR SERVICE BULLETINS
Check for any service bulletins.
>> GO TO 3.
3.VERIFY THE SYMPTOM WITH OPERATIONAL CHECK
Verify the symptom with operational check. Refer to HAC-87, "
Operational Check".
Can a symptom be duplicated?
YES >> GO TO 4
NO >> GO TO 5
4.GO TO APPROPRIATE TROUBLE DIAGNOSIS
Go to appropriate trouble diagnosis. Refer to HAC-184, "
SymptomMatrixChart".
Can a symptom be duplicated?
>> GO TO 5.
5.PERFORM THE FRONT AIR CONTROL SELF-DIAGNOSIS
Perform A/C auto amp. self-diagnosis. Refer toHAC-98, "
Front Air Control Self-Diagnosis".
>> If any diagnostic trouble codes set, refer to HAC-104, "
A/C System Self-Diagnosis Code Chart".
>> Confirm the repair by performing operational check. Refer to HAC-87, "
Operational Check".
Page 3420 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
HAC-87
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSPECTION AND ADJUSTMENT
Operational CheckINFOID:0000000001547386
The purpose o NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
HAC-87
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSPECTION AND ADJUSTMENT
Operational CheckINFOID:0000000001547386
The purpose o](/manual-img/5/57395/w960_57395-3419.png)
INSPECTION AND ADJUSTMENT
HAC-87
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INSPECTION AND ADJUSTMENT
Operational CheckINFOID:0000000001547386
The purpose of the operational check is to confirm that the system operates properly.
CHECKING MEMORY FUNCTION
1. Press temperature control switch (UP: ) until 32°C is displayed.
2. Press OFF switch.
3. Turn the ignition switch OFF.
4. Turn the ignition switch ON.
5. Press the AUTO switch.
6. Confirm that the set temperature remains at previous temperature.
7. Press OFF switch.
If NG, go to trouble diagnosis procedure for HAC-198, "
Memory Function Check".
If OK, continue the check.
CHECKING BLOWER
1. Press blower motor switch (UP: ). Blower should operate on low speed. The fan symbol should have one
blade lit.
2. Press blower motor switch (UP: ), and continue checking blower speed and fan symbol until all speeds
are checked.
3. Leave blower on max. speed.
If NG, go to trouble diagnosis procedure for HAC-120, "
Front Blower Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING DISCHARGE AIR
1. Press MODE switch and DEF switch.
2. Each position indicator should change shape.
3. Confirm that discharge air comes out according to the air distribution table. Refer to HAC-94, "
Discharge
Air Flow".
Intake door position is checked in the next step.
If NG, go to trouble diagnosis procedure for HAC-109, "
Mode Door Motor Diagnosis Procedure".
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRESH when the DEF is selected.
CHECKING RECIRCULATION
1. Press recirculation (REC) switch one time. Recirculation LED should illuminate.
2. Press fresh (FRE) switch one time. Fresh LED should illuminate.
3. Listen for intake door position change (you should hear blower sound change slightly).
If NG, go to trouble diagnosis procedure for HAC-116, "
Intake Door Motor Diagnosis Procedure".
If OK, continue the check.
CHECKING TEMPERATURE INCREASE
1. Press temperature control switch (UP: ) until 32°C is displayed.
2. Check for hot air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-193, "
Component Function Check".
If OK, continue the check.
CHECKING TEMPERATURE DECREASE
1. Press temperature control switch (DOWN: ) until 18°C is displayed. Conditions : Engine running at usual operating temperature
Page 3421 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-88
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
INSPECTION AND ADJUSTMENT
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-185, "
Component NISSAN TIIDA 2007 Service Repair Manual HAC-88
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
INSPECTION AND ADJUSTMENT
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-185, "
Component](/manual-img/5/57395/w960_57395-3420.png)
HAC-88
< BASIC INSPECTION >[AUTO AIR CONDITIONER (W/O NAVI)]
INSPECTION AND ADJUSTMENT
2. Check for cold air at discharge air outlets.
If NG, go to trouble diagnosis procedure for HAC-185, "
Component Function Check".
If OK, continue the check.
CHECK A/C SWITCH
1. Press AUTO and A/C switches.
2. A/C switch LED will turn ON.
Confirm that the compressor clutch engages (sound or visual inspection).
If NG, go to trouble diagnosis procedure for HAC-125, "
Magnet Clutch Diagnosis Procedure".
If OK, continue the check.
CHECKING AUTO MODE
1. Press AUTO switch.
2. Display should indicate AUTO.
Confirm that discharge air and blower speed will depend on ambient, in-vehicle, and set temperatures.
If NG, go to trouble diagnosis procedure for HAC-163, "
Front Air Control Power and Ground Diagnosis Pro-
cedure", then if necessary, trouble diagnosis procedure for HAC-125, "Magnet Clutch Diagnosis Procedure".
If all operational checks are OK (symptom cannot be duplicated), go to Incident Simulation Tests in XX-XX,
"*****" and perform tests as outlined to simulate driving conditions environment.
If symptom appears, refer to HAC-86, "
How to Perform Trouble Diagnosis For Quick And Accurate Repair"
and perform applicable trouble diagnosis procedures.
Page 3422 of 5883
FUNCTION INFORMATION
HAC-89
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
FUNCTION DIAGNOSIS
FUNCTION INFORMATION
Component Part LocationINFOID:0000000001547388
ENGINE COMPARTMENT
PASSENGER COMPARTMENT
1. Compressor (magnet clutch) F3 2. Refrigerant pressure sensor E17 3. Ambient sensor E60
AWIIA0602ZZ
Page 3423 of 5883
HAC-90
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
FUNCTION INFORMATION
1. Variable blower control M90, M91 2. Intake door motor M89 3. In-vehicle sensor M93
4. Air mix door motor M88 5. Intake sensor M92 6. Mode door motor M87
7. Sunload sensor M94 8. Front blower motor M62 9. Front air control M50, M51
AWIIA0282ZZ
Page 3424 of 5883
REFRIGERATION SYSTEM
HAC-91
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
REFRIGERATION SYSTEM
Refrigerant CycleINFOID:0000000001547390
Refer to XX-XX, "*****".
Refrigerant System ProtectionINFOID:0000000001547391
Refer to XX-XX, "*****".
