Page 1001 of 5883
DLK-412
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)

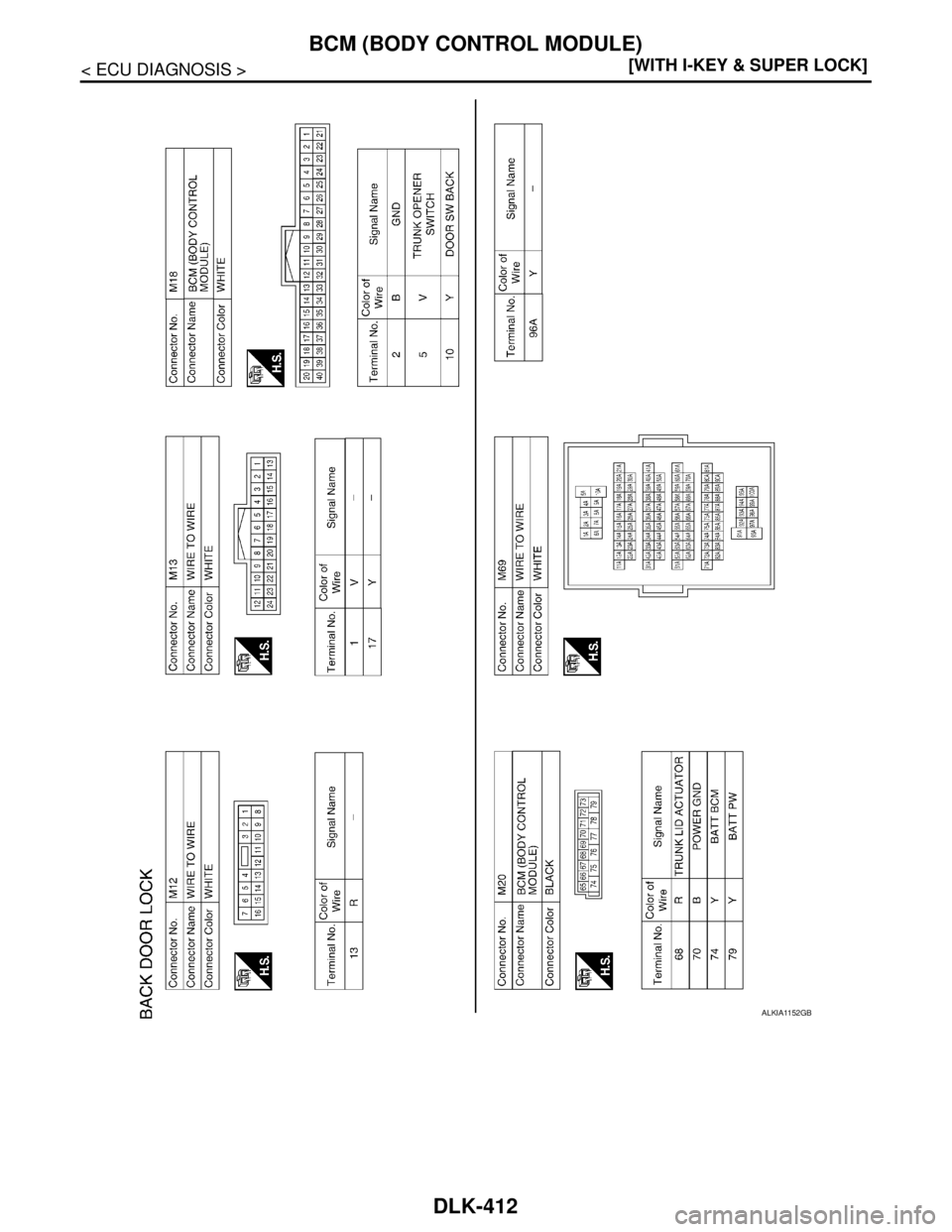

ALKIA1152GB
Page 1002 of 5883
BCM (BODY CONTROL MODULE)
DLK-413
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

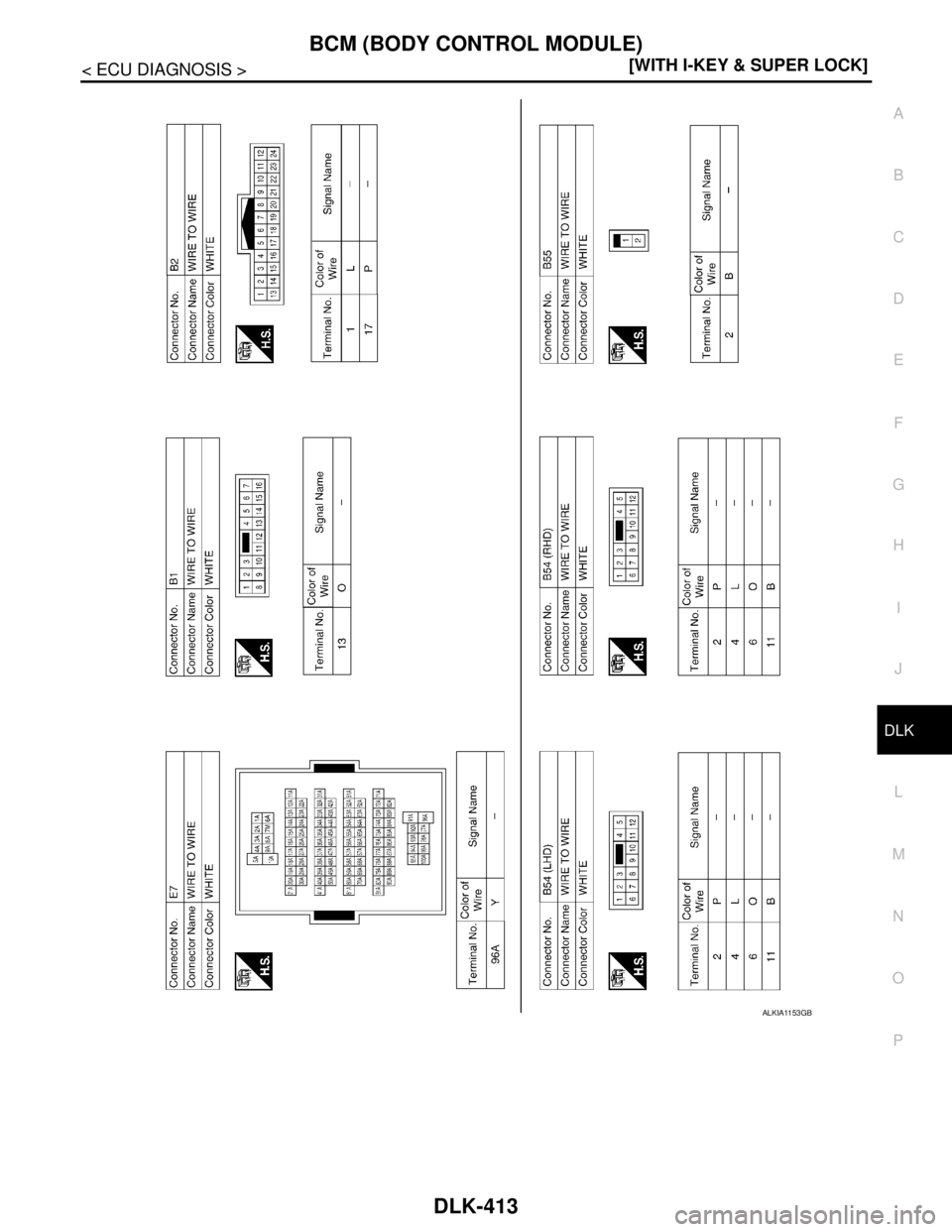

ALKIA1153GB
Page 1003 of 5883
DLK-414
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)

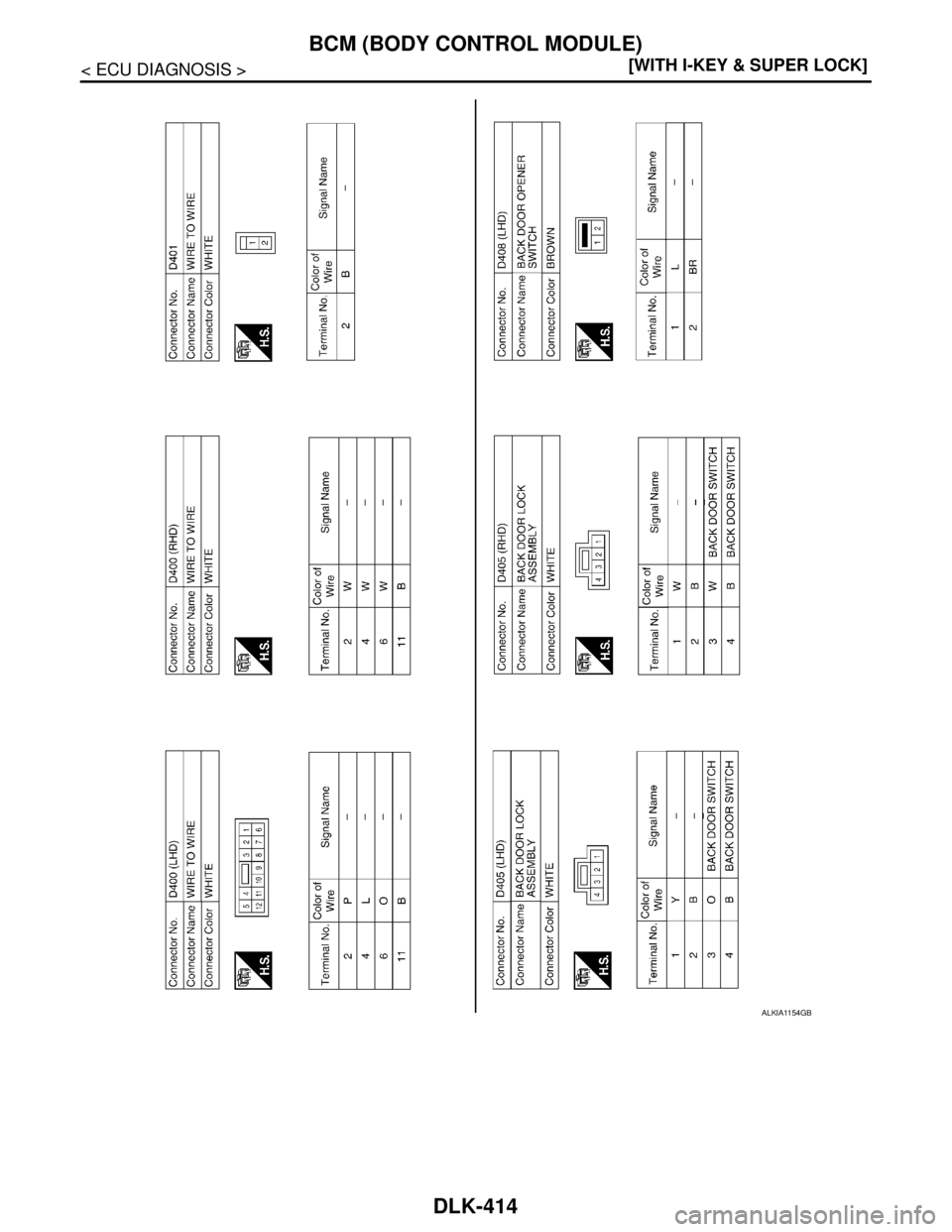

ALKIA1154GB
Page 1004 of 5883
BCM (BODY CONTROL MODULE)
DLK-415
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P

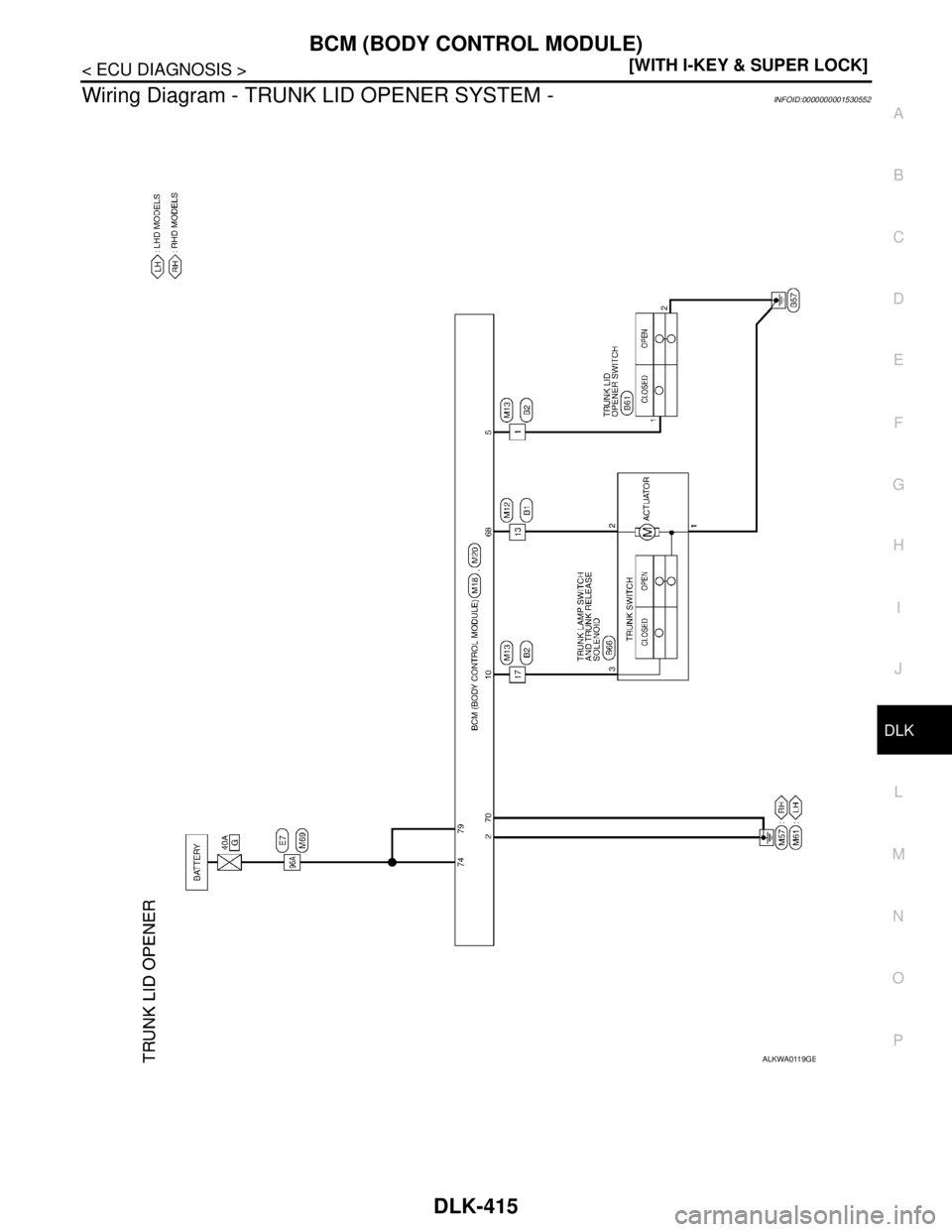

Wiring Diagram - TRUNK LID OPENER SYSTEM -INFOID:0000000001530552
ALKWA0119GB
Page 1005 of 5883
DLK-416
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)

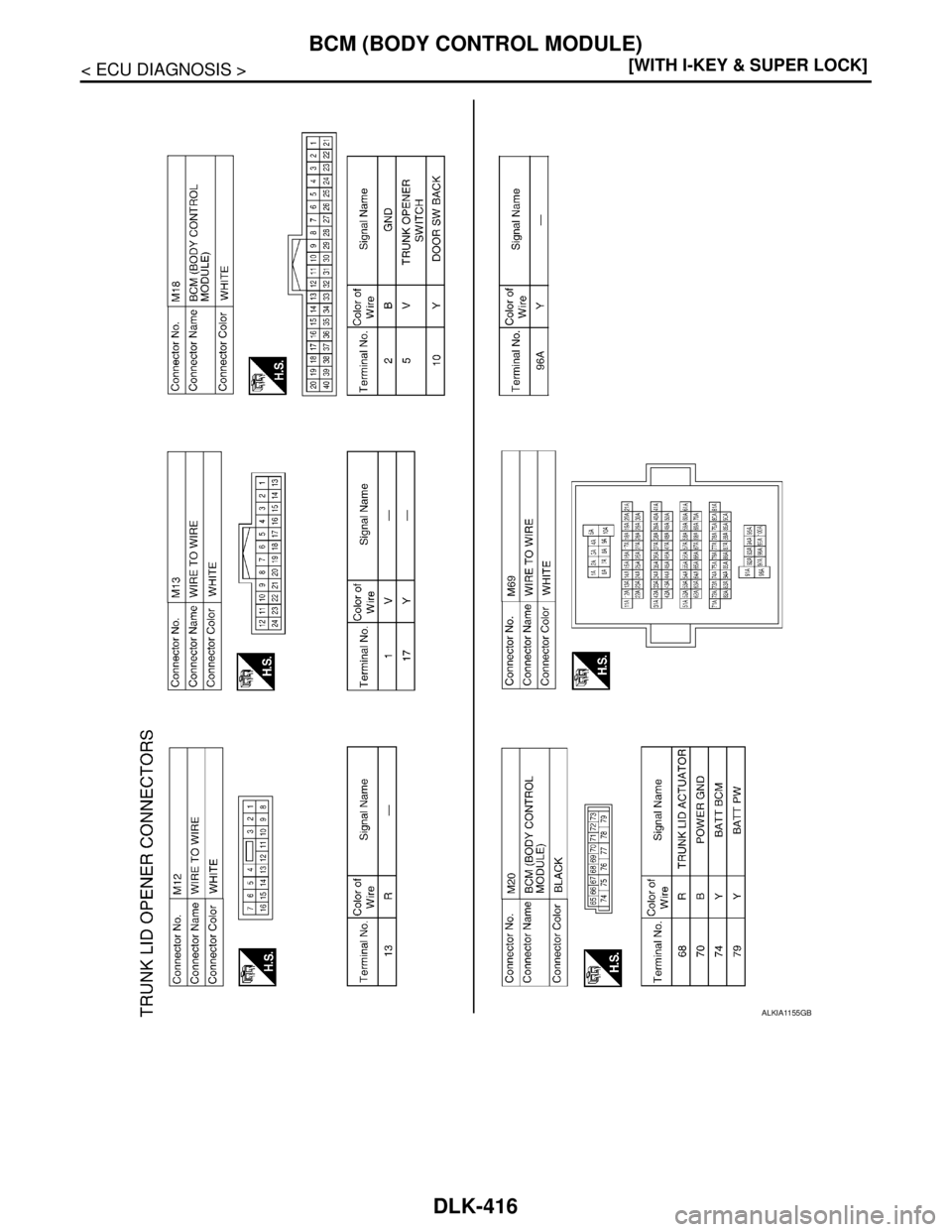

ALKIA1155GB
Page 1006 of 5883
BCM (BODY CONTROL MODULE)
DLK-417
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Fail SafeINFOID:0000000001530553
Fail-safe index
BCM performs fail-safe control when any DTC listed below is detected.

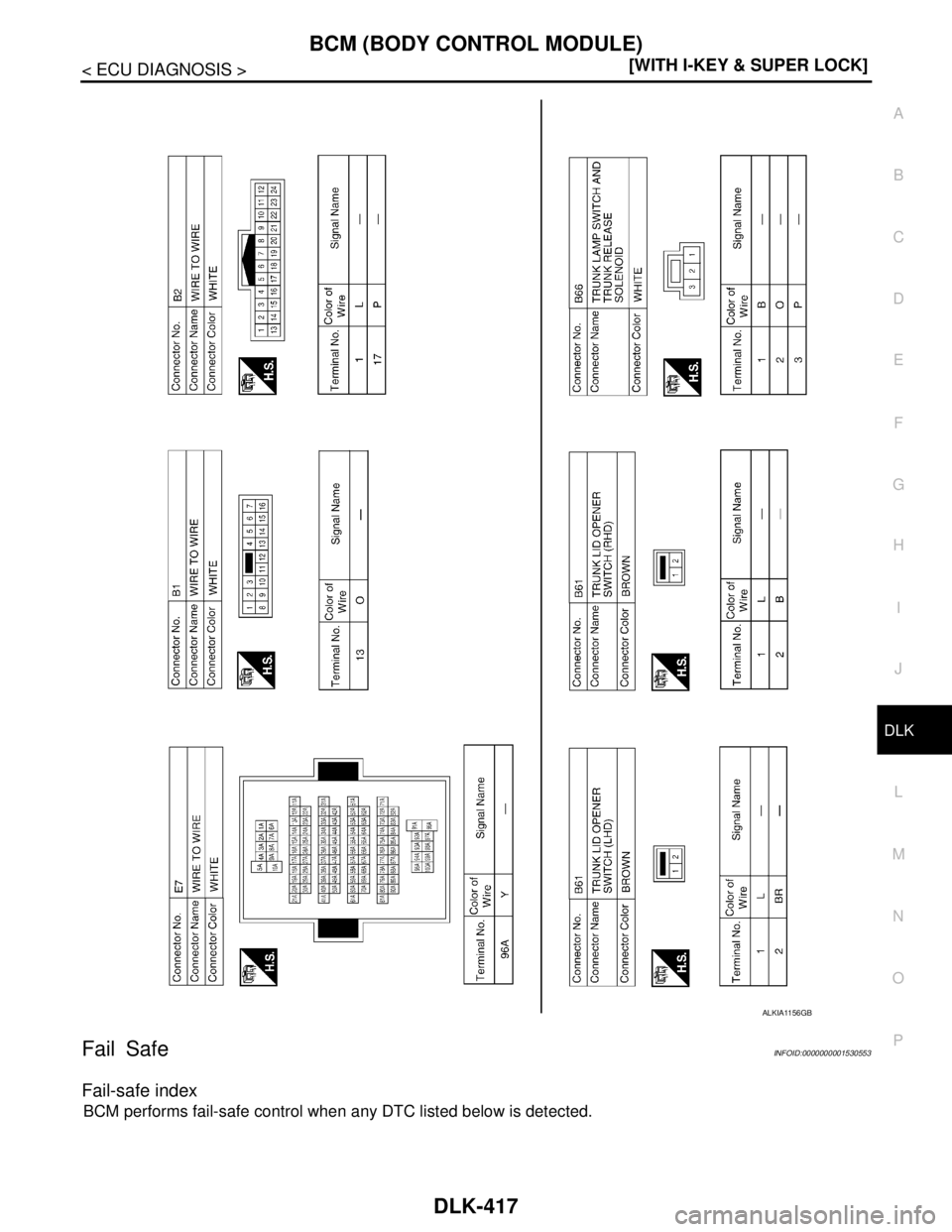

ALKIA1156GB
Page 1007 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-418
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
TURN SIGNAL LAMP CONTROL
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn NISSAN TIIDA 2007 Service Repair Manual DLK-418
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
TURN SIGNAL LAMP CONTROL
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn](/manual-img/5/57395/w960_57395-1006.png)
DLK-418
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
BCM (BODY CONTROL MODULE)
TURN SIGNAL LAMP CONTROL
BCM detects the turn signal lamp circuit status from the terminal voltage.
BCM increases the turn signal lamp blinking speed if the bulb or harness open is detected with the turn signal
lamp operating.
NOTE:
The blinking speed is normal while activating the hazard warning lamp.
LIGHT & RAIN SENSOR MALFUNCTION DETECTION FUNCTION
BCM controls the following items when LIGHT & RAIN sensor has a malfunction.
Auto Light Control
Headlamp is turned ON.
Front Wiper Control
The condition just before the activation of Fail-safe is maintained until the front wiper switch is turned OFF.
DTC Inspection Priority ChartINFOID:0000000001530554
DTC IndexINFOID:0000000001530555
NOTE:
Details of time display
CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-
tion switch OFF → ON again.
PAST: Displays when there is a malfunction that is detected in the past and stored.
1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1
→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter
remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF → ON after returning to the normal condition if the malfunction is detected again.
Display contents of CONSULT Fail-safe Cancellation
B2190: NATS ANTENNA AMP Inhibits engine cranking
Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2191: DIFFERENCE OF KEY Inhibits engine cranking
Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2192: ID DISCORD BCM-ECM Fuel cut (ECM) Erase DTC
B2193: CHAIN OF BCM-ECM Fuel cut (ECM) Erase DTC
B2194: DISCORD BCM-I-KEY Inhibits engine cranking
Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2195: ANTI SCANNING Inhibits engine cranking
Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
B2196: DONGLE NG Inhibits engine cranking
Inhibits steering lock unlocking (Intelligent Key unit)
Fuel cut (ECM)Erase DTC
Priority DTC
1 U1000: CAN COMM CIRCUIT
U1010: CONTROL UNIT (CAN)
2 B2190: NATS ANTENNA AMP
B2191: DIFFERNCE OF KEY
B2192: ID DISCORD BCM-ECM
B2193: CHAIN OF BCM-ECM
B2194: DISCORD BCM-I-KEY
B2195: ANTI SCANNING
B2196: DONGLE NG
Page 1008 of 5883
![NISSAN TIIDA 2007 Service Repair Manual BCM (BODY CONTROL MODULE)
DLK-419
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
CONSULT display TIME Fail-safe Refer to
No DTC is detected.
further testing
may be require NISSAN TIIDA 2007 Service Repair Manual BCM (BODY CONTROL MODULE)
DLK-419
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
CONSULT display TIME Fail-safe Refer to
No DTC is detected.
further testing
may be require](/manual-img/5/57395/w960_57395-1007.png)
BCM (BODY CONTROL MODULE)
DLK-419
< ECU DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
CONSULT display TIME Fail-safe Refer to
No DTC is detected.
further testing
may be required.—— — —
U1000: CAN COMM CIRCUIT 0 1 - 39 —XX-XX, "*****"
U1010: CONTROL UNIT (CAN) 0 1 - 39 —XX-XX, "*****"
B2190: NATS ANTENNA AMP CRNT PAST× With Intelligent Key system XX-XX, "*****"
Without Intelligent Key system XX-XX,
"*****"
B2191: DIFFERENCE OF KEY CRNT PAST× With Intelligent Key system XX-XX, "*****"
Without Intelligent Key system XX-XX,
"*****"
B2192: ID DISCORD BCM-ECM CRNT PAST× With Intelligent Key system XX-XX,
"*****"
Without Intelligent Key system XX-XX,
"*****"
B2193: CHAIN OF BCM-ECM CRNT PAST× With Intelligent Key system XX-XX, "*****"
Without Intelligent Key system XX-XX,
"*****"
B2194: DISCORD BCM-I-KEY CRNT PAST×XX-XX, "*****"
B2195: ANTI SCANNING CRNT PAST× With Intelligent Key system XX-XX, "*****"
Without Intelligent Key system XX-XX,
"*****"
B2196: DONGLE NG CRNT PAST× With Intelligent Key system XX-XX, "*****"
Without Intelligent Key system XX-XX,
"*****"
