NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS SYSTEM (TCM)
TM-39
< FUNCTION DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
4. Turn ignition switch ON. (Do not start engine.)
Does OD OFF indicator lamp come on about 2

Page 4986 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-40
< FUNCTION DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DIAGNOSIS SYSTEM (TCM)

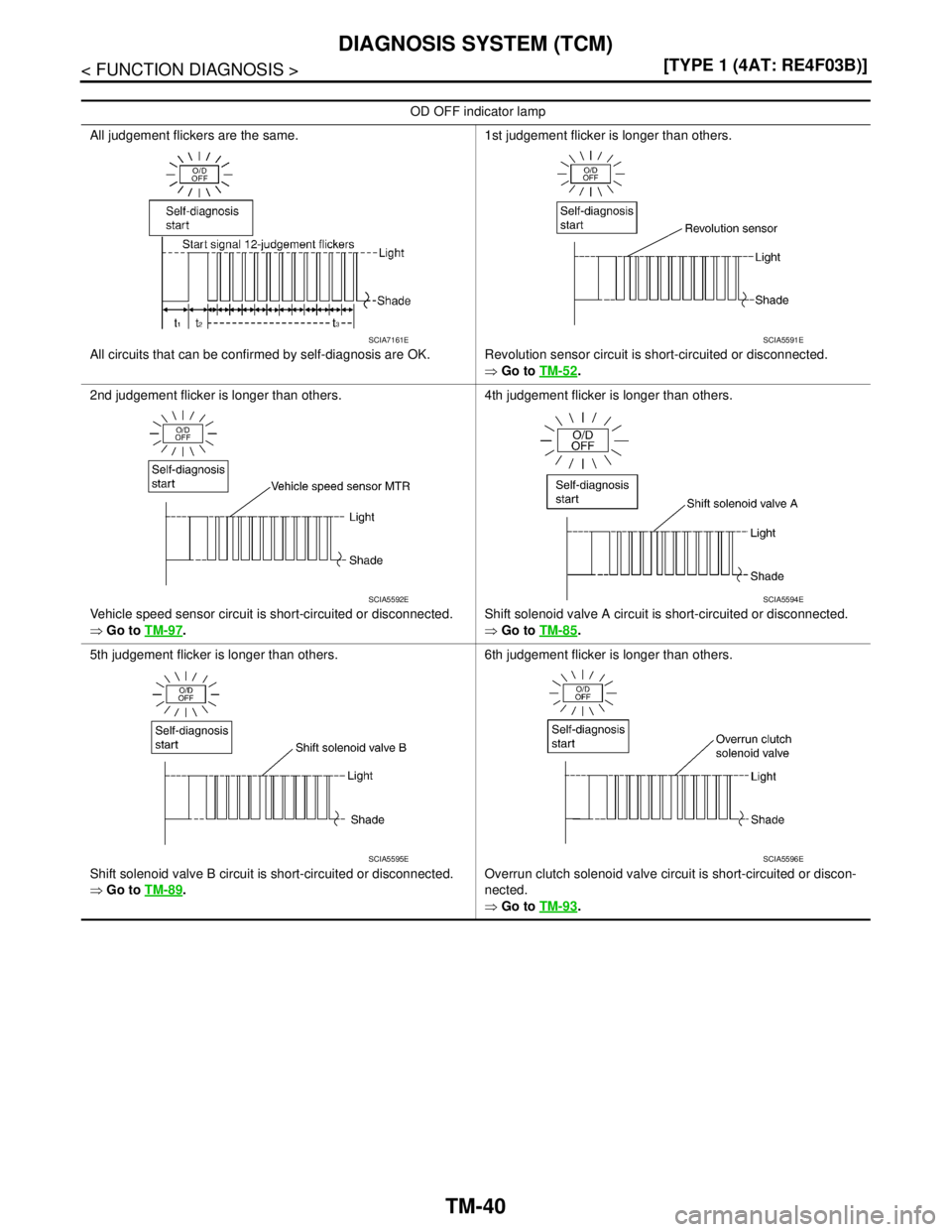

OD OFF indicator lamp
All judgement flickers are the same.
All circuits that can be confirmed by self-diagnosis are OK.1st ju

Page 4987 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS SYSTEM (TCM)
TM-41
< FUNCTION DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
7th judgement flicker is longer than others.
Torque converter clutch solenoid valve circuit i

Page 4988 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-42
< FUNCTION DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DIAGNOSIS SYSTEM (TCM)

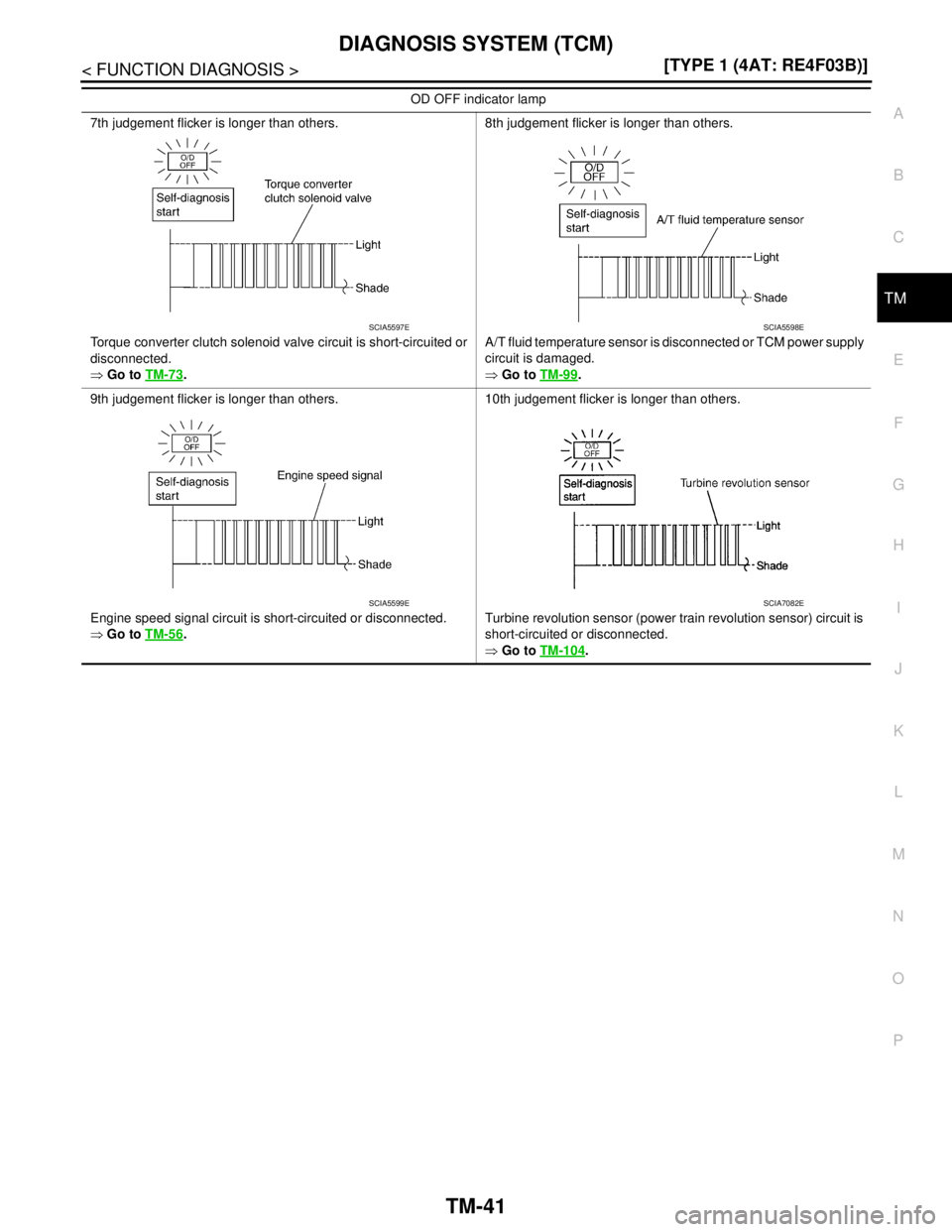

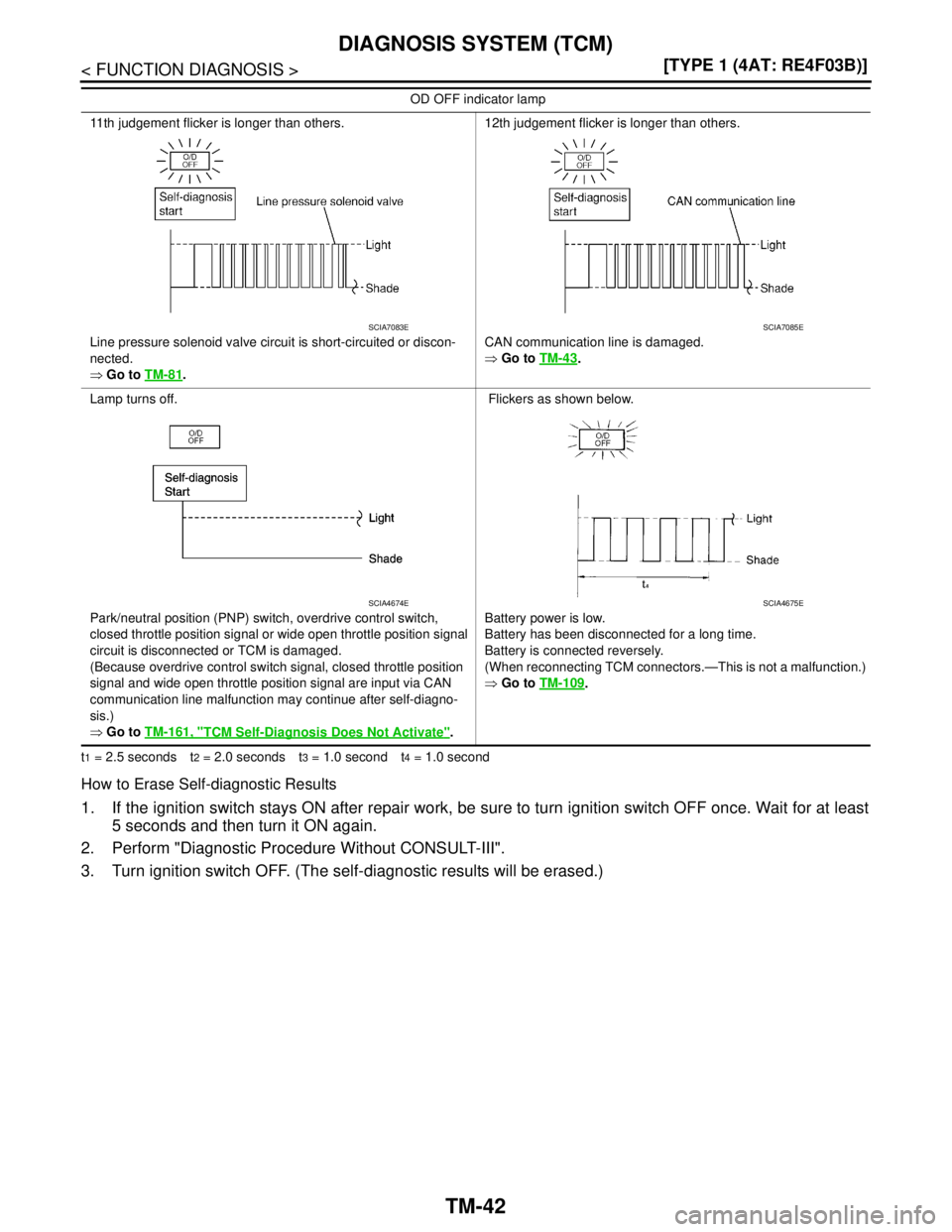

t1 = 2.5 seconds t2 = 2.0 seconds t3 = 1.0 second t4 = 1.0 second
How to Erase Self-diagnostic Results
1. If the ignition swi

Page 4989 of 5883

NISSAN TIIDA 2007 Service Repair Manual DTC U1000 CAN COMMUNICATION LINE
TM-43
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
COMPONENT DIAGNOSIS
DTC U1000 CAN COMMUNICATION LINE
DescriptionINFOID:00000000016

DTC U1000 CAN COMMUNICATION LINE
TM-43
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
COMPONENT DIAGNOSIS
DTC U1000 CAN COMMUNICATION LINE
DescriptionINFOID:0000000001694277
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicINFOID:0000000001694278
This is an OBD self-diagnostic item.
Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-III or 12th judgement flicker without
CONSULT-III is detected when TCM cannot communicate to other control units.
Possible CauseINFOID:0000000001694279
Harness or connector
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureINFOID:0000000001694280
NOTE:
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at least 10
seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-III.
3. Touch “START”.
4. Wait at least 6 seconds or start engine and wait for at least 6 seconds.
5. If DTC is detected, go to TM-43, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Turn ignition switch ON.
2. Wait at least 6 seconds or start engine and wait at least 6 seconds.
3. Perform self-diagnosis. Refer to TM-38, "
Diagnosis Procedure without CONSULT-III".
4. If DTC is detected, go to TM-43, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001694282
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-III
1. Turn ignition switch ON and start engine.
2. Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-III.
Is any malfunction of the
“U1000 CAN COMM CIRCUIT” indicated?
YES >> Print out CONSULT-III screen, GO TO LAN section. Refer to LAN-12, "Precautions for Trouble
Diagnosis".
NO >>INSPECTION END

Page 4990 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-44
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DescriptionINFOID:0000000001694283
The PNP switch assem

TM-44
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DescriptionINFOID:0000000001694283
The PNP switch assembly includes a transaxle range switch.
The transaxle range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001694284
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001694285
This is an OBD self-diagnostic item.
Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-III is detected when TCM does not receive
the correct voltage signal from the switch based on the gear position.
Possible CauseINFOID:0000000001694286
Harness or connectors
[The PNP switch circuit is open or shorted.]
PNP switch
DTC Confirmation ProcedureINFOID:0000000001694287
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-III.
3. Touch “START”.
4. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VEHICLE SPEED: 10 km/h (6 MPH) or more
THROTTLE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
5. If the check result is NG, go to TM-44, "
Diagnosis Procedure".
WITH GST
Follow the procedure “WITH CONSULT-III”.
Diagnosis ProcedureINFOID:0000000001694289
1.CHECK INPUT SIGNAL
Item name Condition Display value
PN POSI SWWhen setting selector lever to “N” or “P” position. ON
When setting selector lever to other positions. OFF
R POSITION SWWhen setting selector lever to “R” position. ON
When setting selector lever to other positions. OFF
D POSITION SWWhen setting selector lever to “D” position. ON
When setting selector lever to other positions. OFF
2 POSITION SWWhen setting selector lever to “2” position. ON
When setting selector lever to other positions. OFF
1 POSITION SWWhen setting selector lever to “1” position. ON
When setting selector lever to other positions. OFF

Page 4991 of 5883

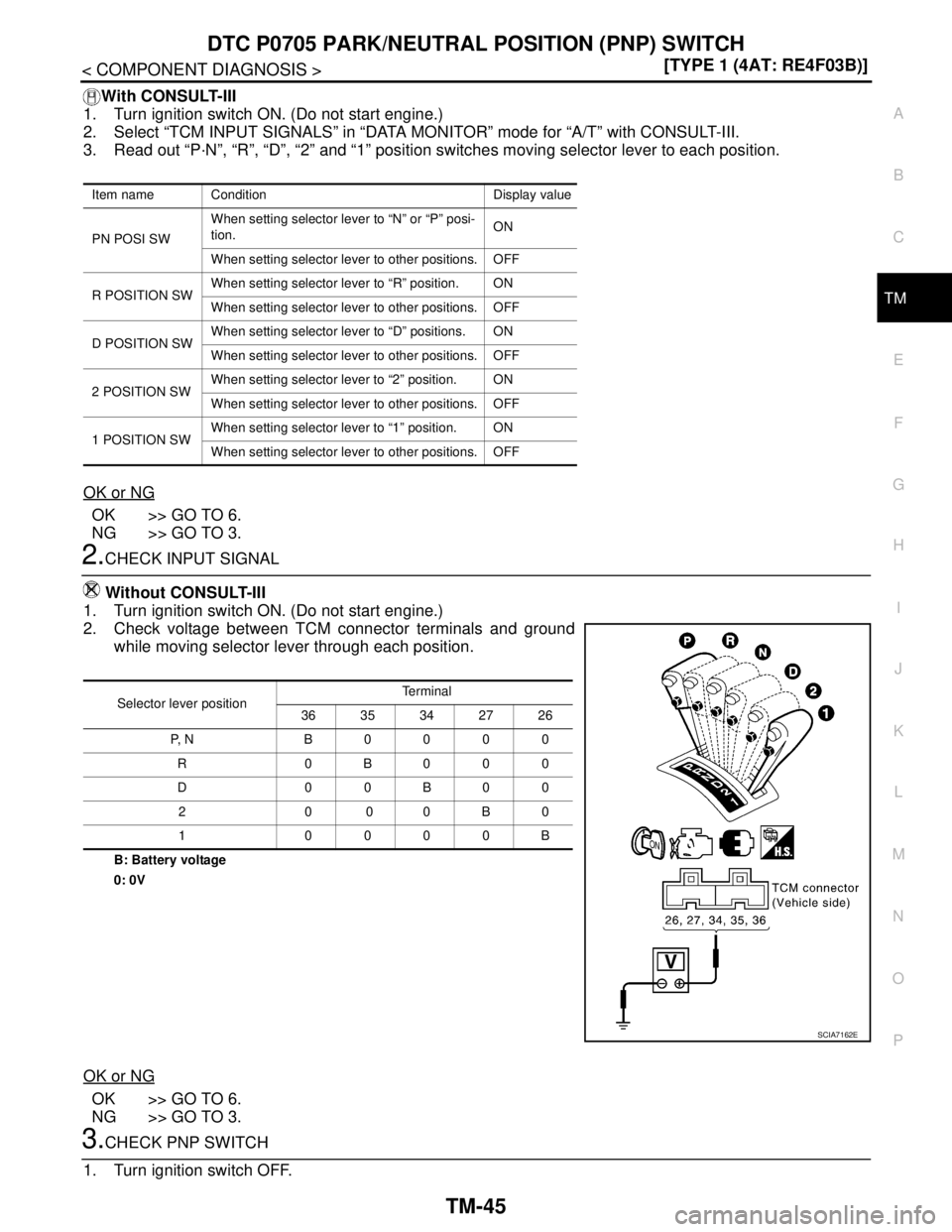

NISSAN TIIDA 2007 Service Repair Manual DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
TM-45
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2.

Page 4992 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-46
< COMPONENT DIAGNOSIS >[TYPE 1 (4AT: RE4F03B)]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

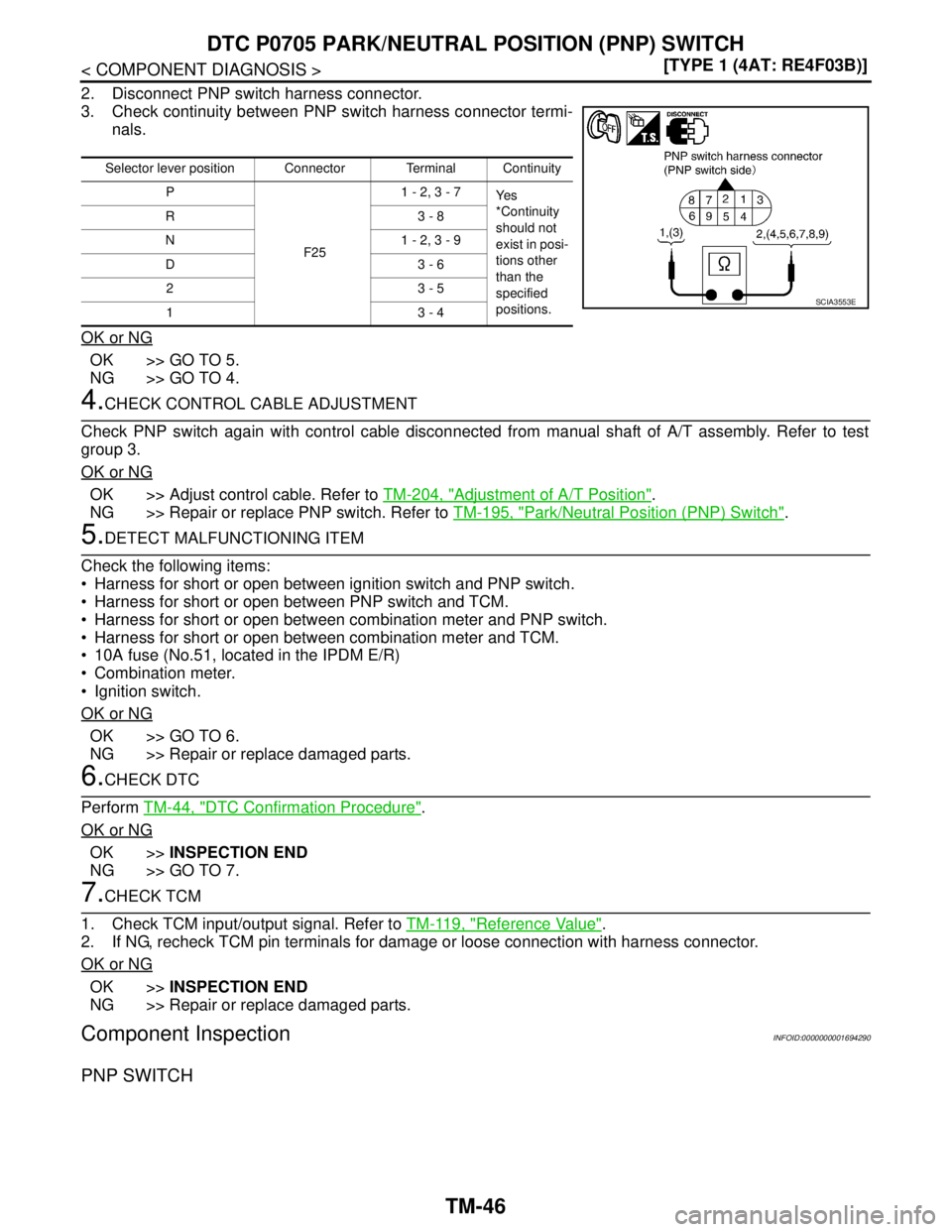

2. Disconnect PNP switch harness connector.
3. Check continuity between PNP switch harness connector t
