REPAIR FOR COMPONENT PARTS
TM-263
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DISASSEMBLY
1. Check operation of high clutch.
a. Apply compressed air into the oil hole (A) of input shaft assem-
bly (high clutch drum) at the location as shown.
CAUTION:
Block the oil hole (A) on the opposite side with lint-free
cloth (B).
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
High clutch piston seal might be damaged.
2. Remove seal rings from input shaft assembly (high clutch drum).
3. Remove snap ring using suitable tool.
4. Remove retaining plate, drive plates and driven plates.
5. Set Tool (A) on cancel cover, and remove snap ring (1) from
input shaft assembly (high clutch drum) while compressing
spring retainer assembly.
CAUTION:
Do not expand snap ring (1) excessively.
1. Seal ring 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate 6. Snap ring
7. Cancel cover 8. Spring retainer assembly 9. High clutch Piston
10. Input shaft assembly (high clutch
drum)
SCIA7032E
SCIA4890E
SCIA4891E
Tool number: KV31103200
SCIA6001J
Page 5210 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-264
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Remove cancel cover (1) and spring retainer assembly (2) from
input shaft assembly (high clutch drum) (3).
CAUT NISSAN TIIDA 2007 Service Repair Manual TM-264
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Remove cancel cover (1) and spring retainer assembly (2) from
input shaft assembly (high clutch drum) (3).
CAUT](/manual-img/5/57395/w960_57395-5209.png)
TM-264
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Remove cancel cover (1) and spring retainer assembly (2) from
input shaft assembly (high clutch drum) (3).
CAUTION:
Do not remove return springs from spring retainers.
7. Apply compressed air into the oil hole (A) at the location as
shown to remove high clutch piston from input shaft assembly
(high clutch drum).
CAUTION:
Do not blow air in too quickly, or high clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth (B).
Block the oil hole on the opposite side with lint-free cloth
(B).
INSPECTION
High Clutch Snap Ring
Check for deformation, fatigue or damage. Replace if necessary.
High Clutch Drive Plates
Check facing for burns, cracks or damage. Replace if necessary.
Measure thickness of facing.
CAUTION:
Measure the thickness at 3 locations and find the average.
Inspect ALL drive plates.
Replace if the thickness is below the allowable limit.
High Clutch Spring Retainer Assembly
Check length (L) of springs retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainers (B).
High Clutch Piston and Cancel Cover
Check for deformation or damage. Replace if necessary.
Input Shaft Assembly (High Clutch Drum)
Check for deformation or damage. Replace if necessary.
Seal Ring Clearance
SCIA7036E
SCIA7033E
Thickness of drive plate
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT162D
Length (L): 20.6 mm (0.811 in)
SCIA7038E
Page 5211 of 5883
![NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-265
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Install new seal rings onto input shaft assembly (high clutch drum).
Measure c NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-265
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Install new seal rings onto input shaft assembly (high clutch drum).
Measure c](/manual-img/5/57395/w960_57395-5210.png)
REPAIR FOR COMPONENT PARTS
TM-265
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Install new seal rings onto input shaft assembly (high clutch drum).
Measure clearance between seal ring and ring groove.
If not within allowable limit, replace input shaft assembly (high
clutch drum).
ASSEMBLY
1. Install high clutch piston by turning it slowly.
CAUTION:
Apply ATF to inner surface of input shaft assembly (high
clutch drum) and high clutch piston.
2. Install spring retainer assembly (2) and cancel cover (1) on input
shaft assembly (high clutch drum) (3).
3. Set Tool A on cancel cover, and install snap ring (1) to input
shaft assembly (high clutch drum) while slowly compressing
spring retainer assembly.
CAUTION:
Do not expand snap ring (1) excessively.
Install spring retainer assembly without tilting.Standard clearance and allowable limit:
Refer to TM-323, "
Input Shaft".
SCIA4901E
S AT 111 F
SCIA7036E
Tool number: KV31103200
SCIA6001J
Page 5212 of 5883
TM-266
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Do not align snap ring gap with cancel cover stopper.
4. Install driven plates (4), (5), drive plates (3) and retaining plate
(2).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Driven plate
Drive plate/Driven plate: 3/6 (1+5)
CAUTION:
Be careful with the order and direction of plates.
5. Install snap ring using suitable tool.
6. Set dial indicator (A) on retaining plate (1), and measure clear-
ance between retaining plate (1) and snap ring (2). If not within
allowable limit, select proper retaining plate (1).
7. Check operation of high clutch. Refer to TM-262, "
High Clutch".
8. Install seal rings to input shaft assembly (high clutch drum).
SAT113F
SCIA5996E
SCIA4891E
Specified clearance
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SCIA5858E
SCIA4890E
Page 5213 of 5883
REPAIR FOR COMPONENT PARTS
TM-267
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
CAUTION:
Roll paper around seal rings to prevent seal rings from spread-
ing.
Forward and Overrun ClutchesINFOID:0000000001730990
COMPONENTS
DISASSEMBLY
SAT198D
1. Dish plate 2. Driven plate 3. Retaining plate
4. Snap ring 5. Dish plate 6. Driven plate
7. Retaining plate 8. Snap ring 9. Forward clutch
10. Drive plate 11. Drive plate 12. Overrun clutch
13. Snap ring 14. Spring retainer assembly 15. Overrun clutch piston
16. D-ring 17. Seal ring 18. Forward clutch piston
19. D-ring 20. Seal ring 21. Forward clutch drum
SCIA7183E
Page 5214 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-268
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

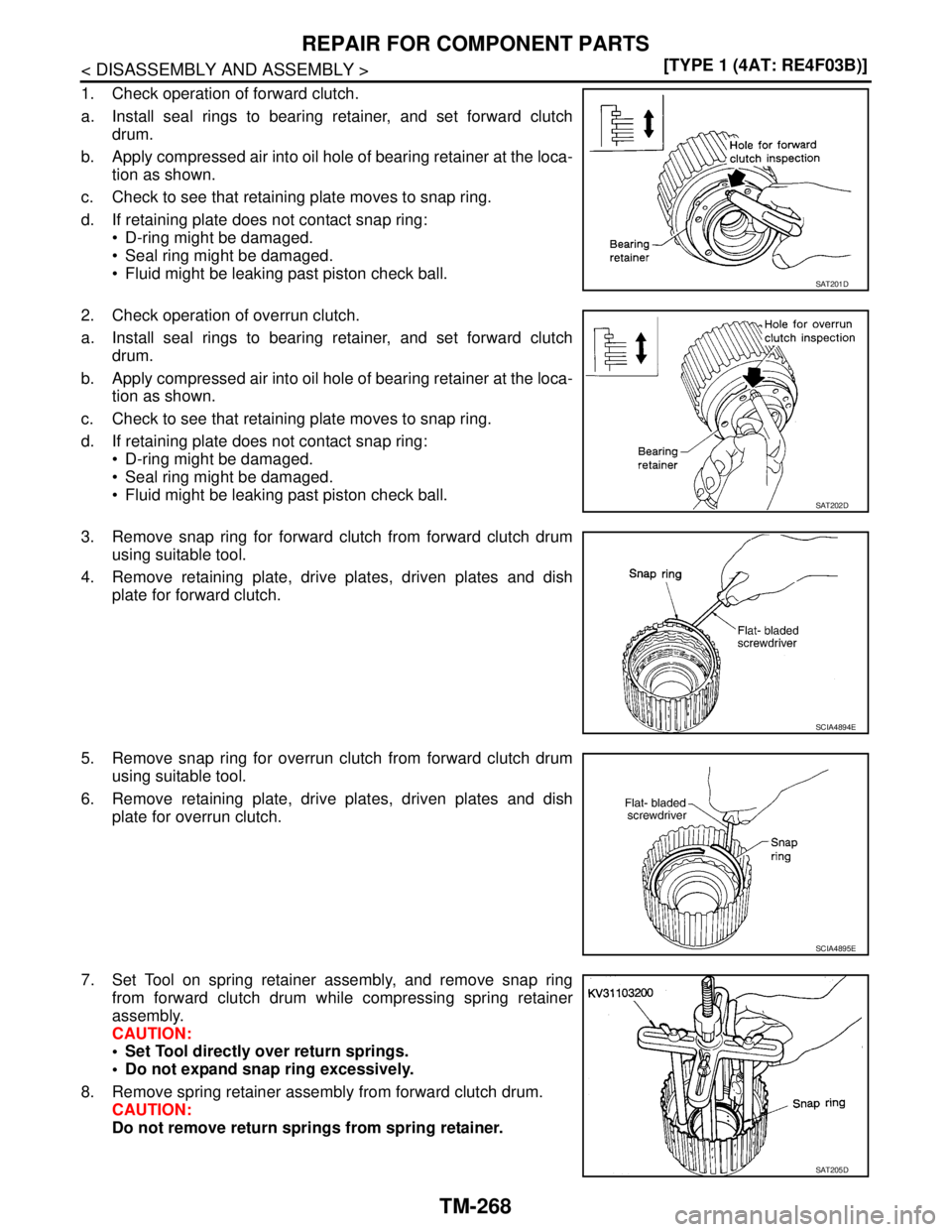

1. Check operation of forward clutch.
a. Install seal rings to bearing retainer, and set forward clutch
drum.
b. A NISSAN TIIDA 2007 Service Repair Manual TM-268
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Check operation of forward clutch.
a. Install seal rings to bearing retainer, and set forward clutch
drum.
b. A](/manual-img/5/57395/w960_57395-5213.png)
TM-268
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Check operation of forward clutch.
a. Install seal rings to bearing retainer, and set forward clutch
drum.
b. Apply compressed air into oil hole of bearing retainer at the loca-
tion as shown.
c. Check to see that retaining plate moves to snap ring.
d. If retaining plate does not contact snap ring:
D-ring might be damaged.
Seal ring might be damaged.
Fluid might be leaking past piston check ball.
2. Check operation of overrun clutch.
a. Install seal rings to bearing retainer, and set forward clutch
drum.
b. Apply compressed air into oil hole of bearing retainer at the loca-
tion as shown.
c. Check to see that retaining plate moves to snap ring.
d. If retaining plate does not contact snap ring:
D-ring might be damaged.
Seal ring might be damaged.
Fluid might be leaking past piston check ball.
3. Remove snap ring for forward clutch from forward clutch drum
using suitable tool.
4. Remove retaining plate, drive plates, driven plates and dish
plate for forward clutch.
5. Remove snap ring for overrun clutch from forward clutch drum
using suitable tool.
6. Remove retaining plate, drive plates, driven plates and dish
plate for overrun clutch.
7. Set Tool on spring retainer assembly, and remove snap ring
from forward clutch drum while compressing spring retainer
assembly.
CAUTION:
Set Tool directly over return springs.
Do not expand snap ring excessively.
8. Remove spring retainer assembly from forward clutch drum.
CAUTION:
Do not remove return springs from spring retainer.
SAT201D
SAT202D
SCIA4894E
SCIA4895E
SAT205D
Page 5215 of 5883
![NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-269
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
9. Install seal rings to bearing retainer (1), and set forward clutch
drum. Then a NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-269
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
9. Install seal rings to bearing retainer (1), and set forward clutch
drum. Then a](/manual-img/5/57395/w960_57395-5214.png)
REPAIR FOR COMPONENT PARTS
TM-269
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

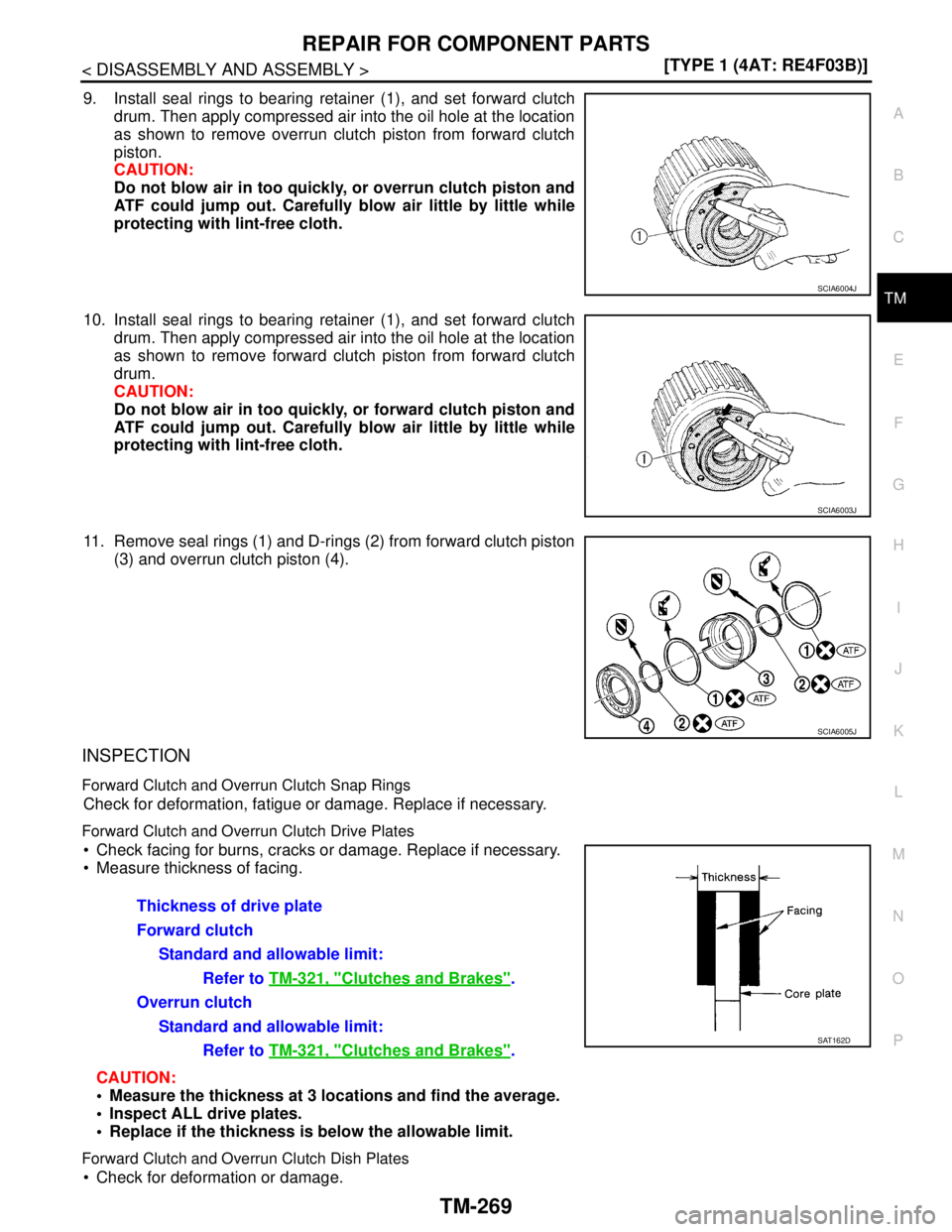

9. Install seal rings to bearing retainer (1), and set forward clutch
drum. Then apply compressed air into the oil hole at the location
as shown to remove overrun clutch piston from forward clutch
piston.
CAUTION:
Do not blow air in too quickly, or overrun clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth.
10. Install seal rings to bearing retainer (1), and set forward clutch
drum. Then apply compressed air into the oil hole at the location
as shown to remove forward clutch piston from forward clutch
drum.
CAUTION:
Do not blow air in too quickly, or forward clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth.
11. Remove seal rings (1) and D-rings (2) from forward clutch piston
(3) and overrun clutch piston (4).
INSPECTION
Forward Clutch and Overrun Clutch Snap Rings
Check for deformation, fatigue or damage. Replace if necessary.
Forward Clutch and Overrun Clutch Drive Plates
Check facing for burns, cracks or damage. Replace if necessary.
Measure thickness of facing.
CAUTION:
Measure the thickness at 3 locations and find the average.
Inspect ALL drive plates.
Replace if the thickness is below the allowable limit.
Forward Clutch and Overrun Clutch Dish Plates
Check for deformation or damage.
SCIA6004J
SCIA6003J
SCIA6005J
Thickness of drive plate
Forward clutch
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
Overrun clutch
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".SAT162D
Page 5216 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-270
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure thickness (t) of dish plate. Replace if damaged, deformed
or worn.
Forward Clutch and Overrun Clutch Spr NISSAN TIIDA 2007 Service Repair Manual TM-270
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure thickness (t) of dish plate. Replace if damaged, deformed
or worn.
Forward Clutch and Overrun Clutch Spr](/manual-img/5/57395/w960_57395-5215.png)
TM-270
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Measure thickness (t) of dish plate. Replace if damaged, deformed
or worn.
Forward Clutch and Overrun Clutch Spring Retainer Assembly
Check length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainer (B)
Forward Clutch Drum
Make sure that check balls do not stick.
Apply compressed air to check ball oil hole from outside of forward
clutch drum. Make sure air leaks past ball.
Apply compressed air to oil hole from inside of forward clutch
drum. Make sure there is no air leakage.
Overrun Clutch Piston
Make sure that check balls do not stick.
Apply compressed air to check ball oil hole opposite return spring.
Make sure there is no air leakage.
Apply compressed air to oil hole on return spring side. Make sure
that air leaks through ball hole.
ASSEMBLY
Thickness of dish plate (t)
Forward clutch: 2.5 mm (0.098 in)
Overrun clutch: 2.15 mm (0.0846 in)
SAT163D
Length (L): 27.7 mm (0.1091 in)
SCIA7025J
SAT213D
SAT212D
