NISSAN TIIDA 2007 Service Repair Manual PARKING BRAKE CONTROL
PB-5
< REMOVAL AND INSTALLATION >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
REMOVAL AND INSTALLATION

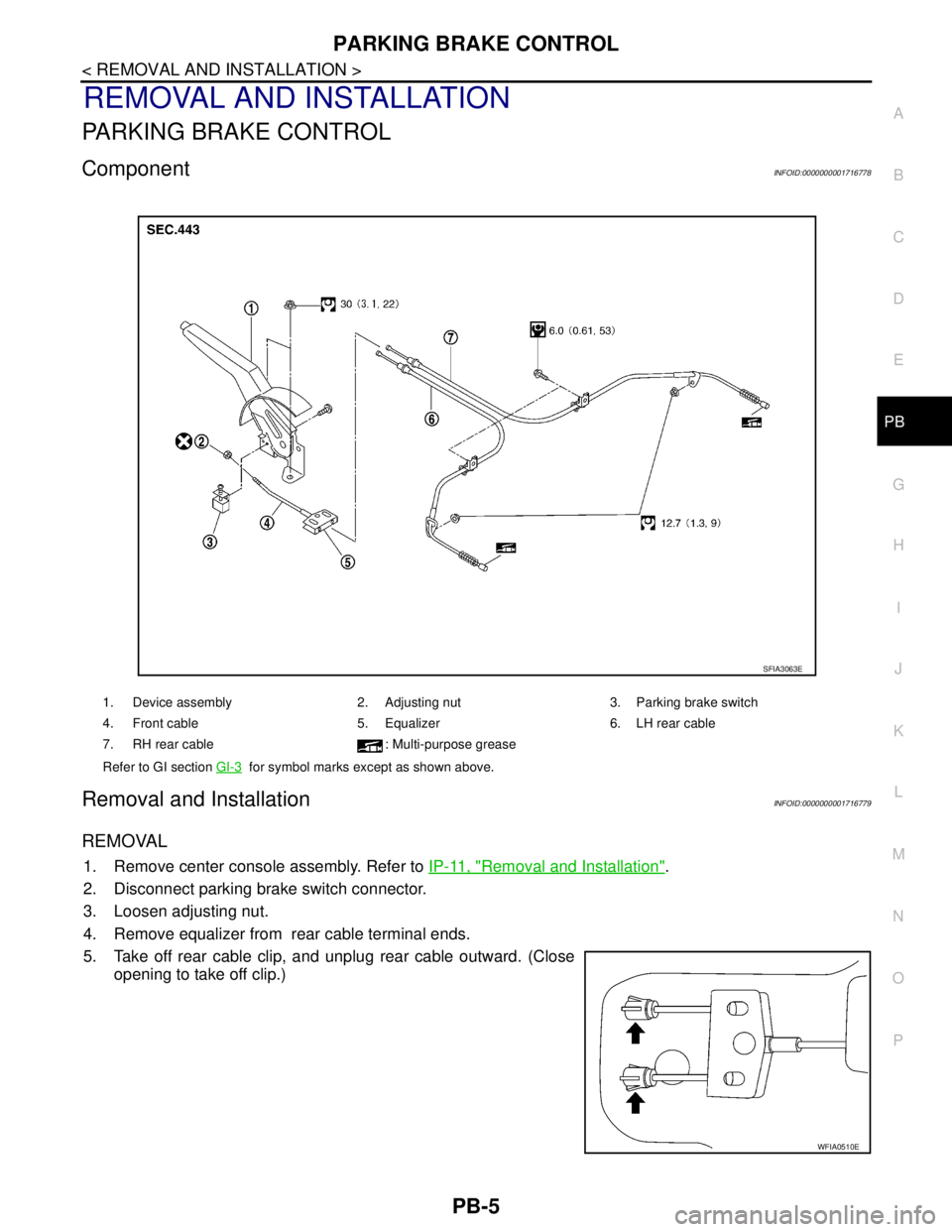

PARKING BRAKE CONTROL
ComponentINFOID:0000000001716778
Removal and InstallationINFOID:0

Page 4410 of 5883

NISSAN TIIDA 2007 Service Repair Manual PB-6
< REMOVAL AND INSTALLATION >
PARKING BRAKE CONTROL
6. Remove device assembly mounting nuts, and remove device assembly from vehicle.
7. Remove rear disc rotor and remove rear cable from the opera

Page 4411 of 5883

NISSAN TIIDA 2007 Service Repair Manual PARKING BRAKE SHOE
PB-7
< REMOVAL AND INSTALLATION >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
PARKING BRAKE SHOE

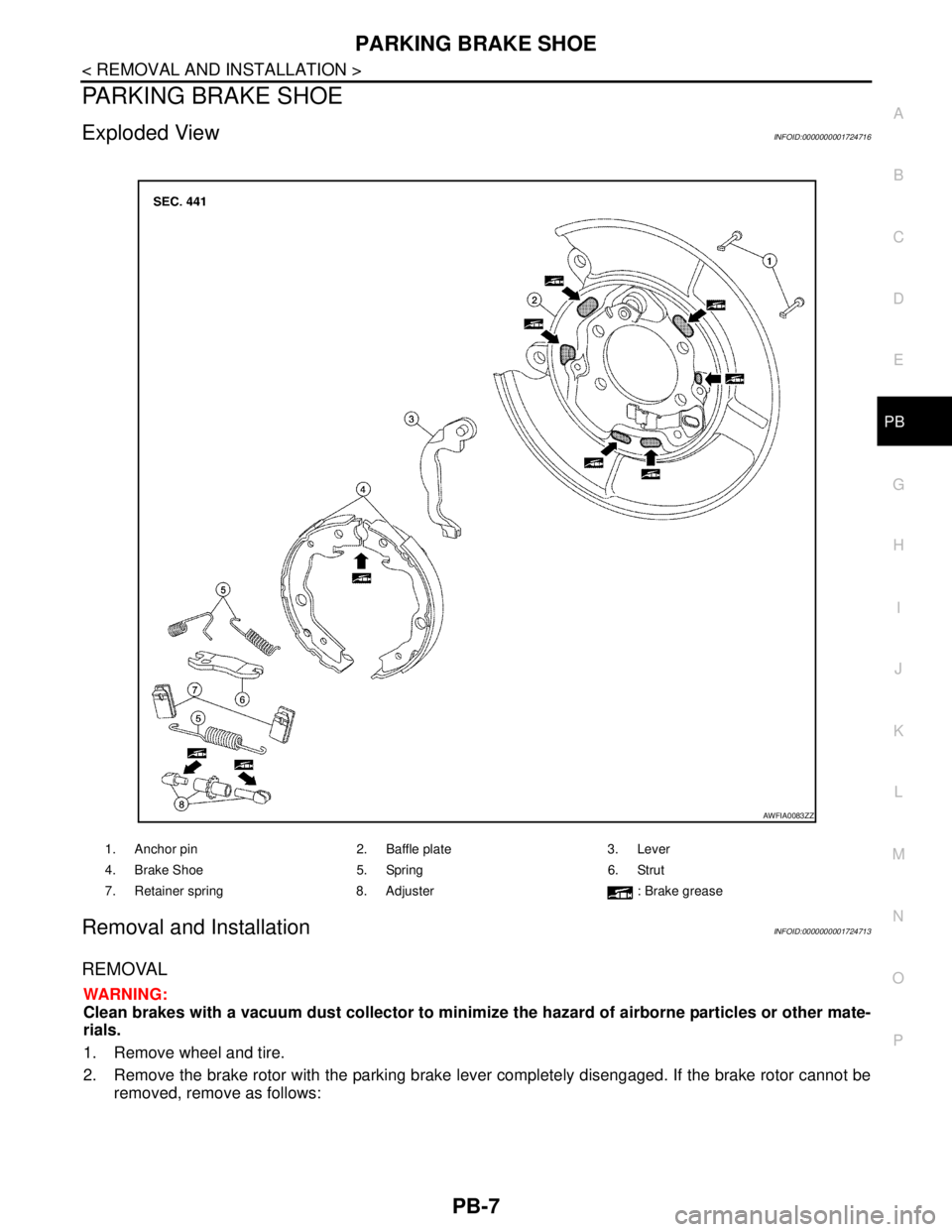

Exploded ViewINFOID:0000000001724716
Removal and InstallationINFOID:0000000001724713
REMOVAL
WAR

Page 4412 of 5883

NISSAN TIIDA 2007 Service Repair Manual PB-8
< REMOVAL AND INSTALLATION >
PARKING BRAKE SHOE

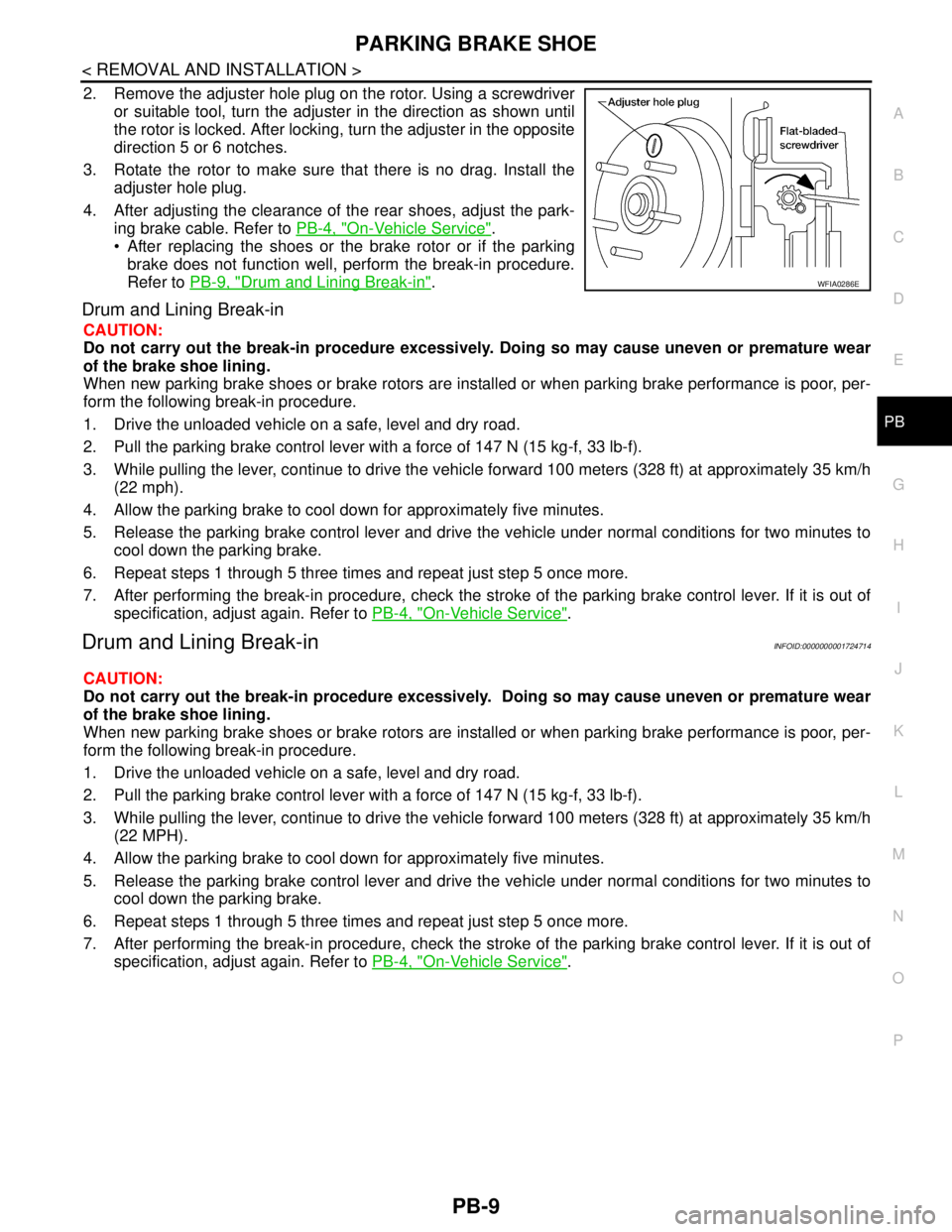

a. Secure the brake rotor with the wheel nut and remove the
adjuster hole plug.
b. Insert a flat-bladed screwdriver or suitable tool through the pl

Page 4413 of 5883

NISSAN TIIDA 2007 Service Repair Manual PARKING BRAKE SHOE
PB-9
< REMOVAL AND INSTALLATION >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
2. Remove the adjuster hole plug on the rotor. Using a screwdriver
or suitable tool, turn the adjuster in the direc

PARKING BRAKE SHOE
PB-9
< REMOVAL AND INSTALLATION >
C
D
E
G
H
I
J
K
L
MA
B
PB
N
O
P
2. Remove the adjuster hole plug on the rotor. Using a screwdriver
or suitable tool, turn the adjuster in the direction as shown until
the rotor is locked. After locking, turn the adjuster in the opposite
direction 5 or 6 notches.
3. Rotate the rotor to make sure that there is no drag. Install the
adjuster hole plug.
4. After adjusting the clearance of the rear shoes, adjust the park-
ing brake cable. Refer to PB-4, "
On-Vehicle Service".
After replacing the shoes or the brake rotor or if the parking
brake does not function well, perform the break-in procedure.
Refer to PB-9, "
Drum and Lining Break-in".
Drum and Lining Break-in
CAUTION:
Do not carry out the break-in procedure excessively. Doing so may cause uneven or premature wear
of the brake shoe lining.
When new parking brake shoes or brake rotors are installed or when parking brake performance is poor, per-
form the following break-in procedure.
1. Drive the unloaded vehicle on a safe, level and dry road.
2. Pull the parking brake control lever with a force of 147 N (15 kg-f, 33 lb-f).
3. While pulling the lever, continue to drive the vehicle forward 100 meters (328 ft) at approximately 35 km/h
(22 mph).
4. Allow the parking brake to cool down for approximately five minutes.
5. Release the parking brake control lever and drive the vehicle under normal conditions for two minutes to
cool down the parking brake.
6. Repeat steps 1 through 5 three times and repeat just step 5 once more.
7. After performing the break-in procedure, check the stroke of the parking brake control lever. If it is out of
specification, adjust again. Refer to PB-4, "
On-Vehicle Service".
Drum and Lining Break-inINFOID:0000000001724714
CAUTION:
Do not carry out the break-in procedure excessively. Doing so may cause uneven or premature wear
of the brake shoe lining.
When new parking brake shoes or brake rotors are installed or when parking brake performance is poor, per-
form the following break-in procedure.
1. Drive the unloaded vehicle on a safe, level and dry road.
2. Pull the parking brake control lever with a force of 147 N (15 kg-f, 33 lb-f).
3. While pulling the lever, continue to drive the vehicle forward 100 meters (328 ft) at approximately 35 km/h
(22 MPH).
4. Allow the parking brake to cool down for approximately five minutes.
5. Release the parking brake control lever and drive the vehicle under normal conditions for two minutes to
cool down the parking brake.
6. Repeat steps 1 through 5 three times and repeat just step 5 once more.
7. After performing the break-in procedure, check the stroke of the parking brake control lever. If it is out of
specification, adjust again. Refer to PB-4, "
On-Vehicle Service".
WFIA0286E

Page 4414 of 5883

NISSAN TIIDA 2007 Service Repair Manual PB-10
< SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Parking Brake ControlINFOID:00000000017
