NISSAN TIIDA 2007 Service Repair Manual EC-388
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
INSPECTION AND ADJUSTMENT
17.DETECT MALFUNCTIONING PART
Check the following.
Check camshaft position sensor (PHASE) and circuit. Refer to EC-52

Page 1738 of 5883

NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-389
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
IDLE SPEED : DescriptionINFOID:0000000001161432
This describes how to check the idle sp

Page 1739 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-390
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
INSPECTION AND ADJUSTMENT
quirement
INFOID:0000000001161437
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switc

EC-390
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
INSPECTION AND ADJUSTMENT
quirement
INFOID:0000000001161437
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
>> END
THROTTLE VALVE CLOSED POSITION LEARNING
THROTTLE VALVE CLOSED POSITION LEARNING : DescriptionINFOID:0000000001161438
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time harness connec-
tor of electric throttle control actuator or ECM is disconnected.
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement
INFOID:0000000001161439
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
>> END
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING : DescriptionINFOID:0000000001161440
Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed
within the specific range. It must be performed under any of the following conditions:
Each time electric throttle control actuator or ECM is replaced.
Idle speed or ignition timing is out of specification.
IDLE AIR VOLUME LEARNING : Special Repair RequirementINFOID:0000000001161441
1.PRECONDITIONING
Make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
Battery voltage: More than 12.9V (At idle)
Engine coolant temperature: 70 - 100°C (158 - 212°F)
Park/neutral position switch: ON
Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light only
small lamps.
Steering wheel: Neutral (Straight-ahead position)
Vehicle speed: Stopped
Transmission: Warmed-up
- For A/T models
With CONSULT-III: Drive vehicle until “FLUID TEMP SE” in “DATA MONITOR” mode of “A/T” system indi-
cates less than 0.9V.
Without CONSULT-III: Drive vehicle for 10 minutes.
- For M/T models
Drive vehicle for 10 minutes.

Page 1740 of 5883

NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-391
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.IDLE AIR VOLUME LEARNING
With

INSPECTION AND ADJUSTMENT
EC-391
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

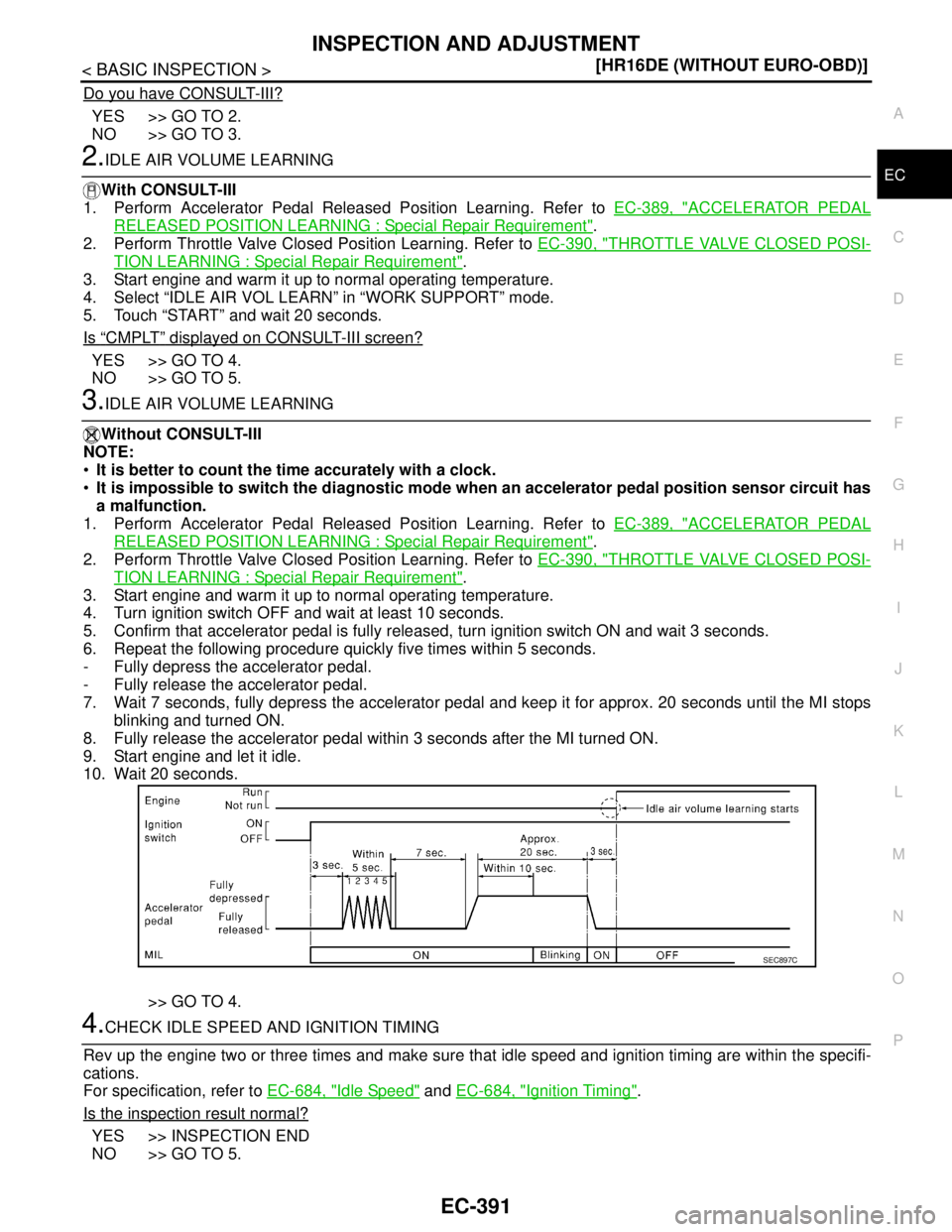

Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.IDLE AIR VOLUME LEARNING
With CONSULT-III
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-389, "
ACCELERATOR PEDAL
RELEASED POSITION LEARNING : Special Repair Requirement".
2. Perform Throttle Valve Closed Position Learning. Refer to EC-390, "
THROTTLE VALVE CLOSED POSI-
TION LEARNING : Special Repair Requirement".
3. Start engine and warm it up to normal operating temperature.
4. Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.
5. Touch “START” and wait 20 seconds.
Is
“CMPLT” displayed on CONSULT-III screen?
YES >> GO TO 4.
NO >> GO TO 5.
3.IDLE AIR VOLUME LEARNING
Without CONSULT-III
NOTE:
It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
1. Perform Accelerator Pedal Released Position Learning. Refer to EC-389, "
ACCELERATOR PEDAL
RELEASED POSITION LEARNING : Special Repair Requirement".
2. Perform Throttle Valve Closed Position Learning. Refer to EC-390, "
THROTTLE VALVE CLOSED POSI-
TION LEARNING : Special Repair Requirement".
3. Start engine and warm it up to normal operating temperature.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
6. Repeat the following procedure quickly five times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
7. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 20 seconds until the MI stops
blinking and turned ON.
8. Fully release the accelerator pedal within 3 seconds after the MI turned ON.
9. Start engine and let it idle.
10. Wait 20 seconds.
>> GO TO 4.
4.CHECK IDLE SPEED AND IGNITION TIMING
Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifi-
cations.
For specification, refer to EC-684, "
Idle Speed" and EC-684, "Ignition Timing".
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 5.
SEC897C

Page 1741 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-392
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
INSPECTION AND ADJUSTMENT
5.DETECT MALFUNCTIONING PART
Check the following
Check that throttle valve is fully closed.
Check PCV valve operati

Page 1742 of 5883

NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-393
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

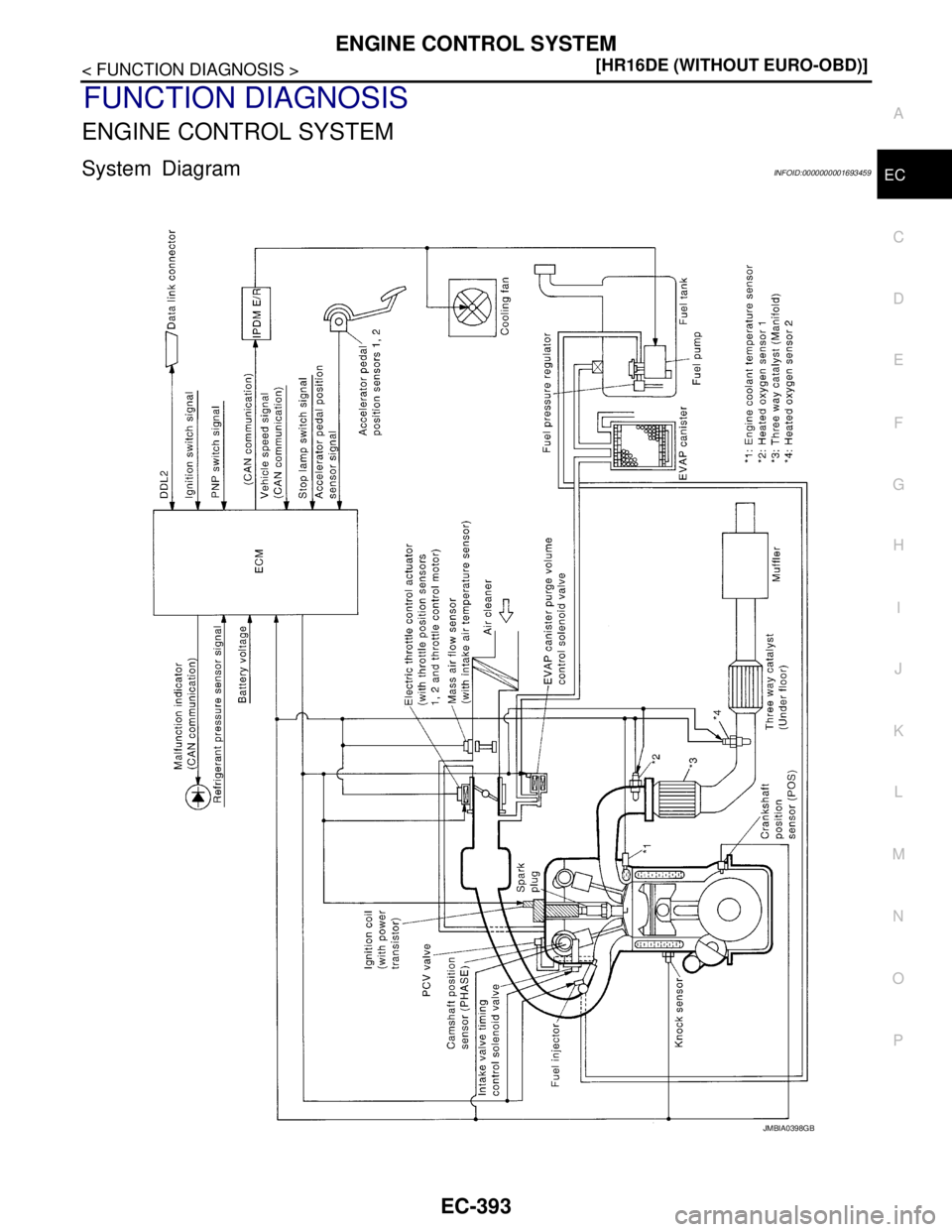

FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM
System DiagramINFOID:0000000001693459
JMBIA0398G

Page 1743 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-394
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM
System Description
INFOID:0000000001693460
ECM performs various controls such as fuel injection control and ignition timi

Page 1744 of 5883

NISSAN TIIDA 2007 Service Repair Manual ENGINE CONTROL SYSTEM
EC-395
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature
