Page 1041 of 5883
DLK-452
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
DOOR
1.
REAR DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
1. Remove the center pillar upper and lower garnishes. Refer to INT-20, "Removal and Installation".
2. Access from inside the vehicle to loosen the hinge nuts. Open the rear door, and raise the rear door at
rear end to adjust.
Surface Height Adjustment
Loosen the front door striker bolts and rear door hinge nuts, and adjust the surface height difference of front
and rear doors according to the fitting standard dimension.
Striker Adjustment
1.
BACK DOOR
Longitudinal Clearance and Surface Height Adjustment
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
Page 1042 of 5883
DOOR
DLK-453
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
1. Open and support the back door.
2. Slightly loosen the hinge nuts.
3. Reposition the door as necessary and tighten the nuts.
4. Confirm the adjustment. Repeat as necessary to obtain the desired fit.
Striker Adjustment
1. Back door assembly 2. Back door hinge 3. Tail lamp assembly
4. Back window glass 5. Roof 6. Rear pillar
A. 6.0 ± 1.0 mm (0.24 ± 0.04 in) B. -0.5 ± 1.0 mm (-0.02 ± 0.04 in) C. 5.0 ± 1.2 mm (0.20 ± 0.05 in)
D. 0.0 ± 1.5 mm (0.0 ± 0.06 in) E. 5.0 ± 2.3 mm ( 0.20 ± 0.9 in) F. 2.7 +1.6 -2.1 mm (0.11 + 0.06 - 0.08 in)
G. 5.0 ± 1.2 mm ( 0.20 ± 0.05 in) H. 0.0 ± 1.5 mm (0.0 ± 0.06 in)
LIIA2668E
Page 1043 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-454
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732024
FRONT DOOR
CAUTION:
When removing and installing the front door assembly, suppor NISSAN TIIDA 2007 Service Repair Manual DLK-454
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732024
FRONT DOOR
CAUTION:
When removing and installing the front door assembly, suppor](/manual-img/5/57395/w960_57395-1042.png)

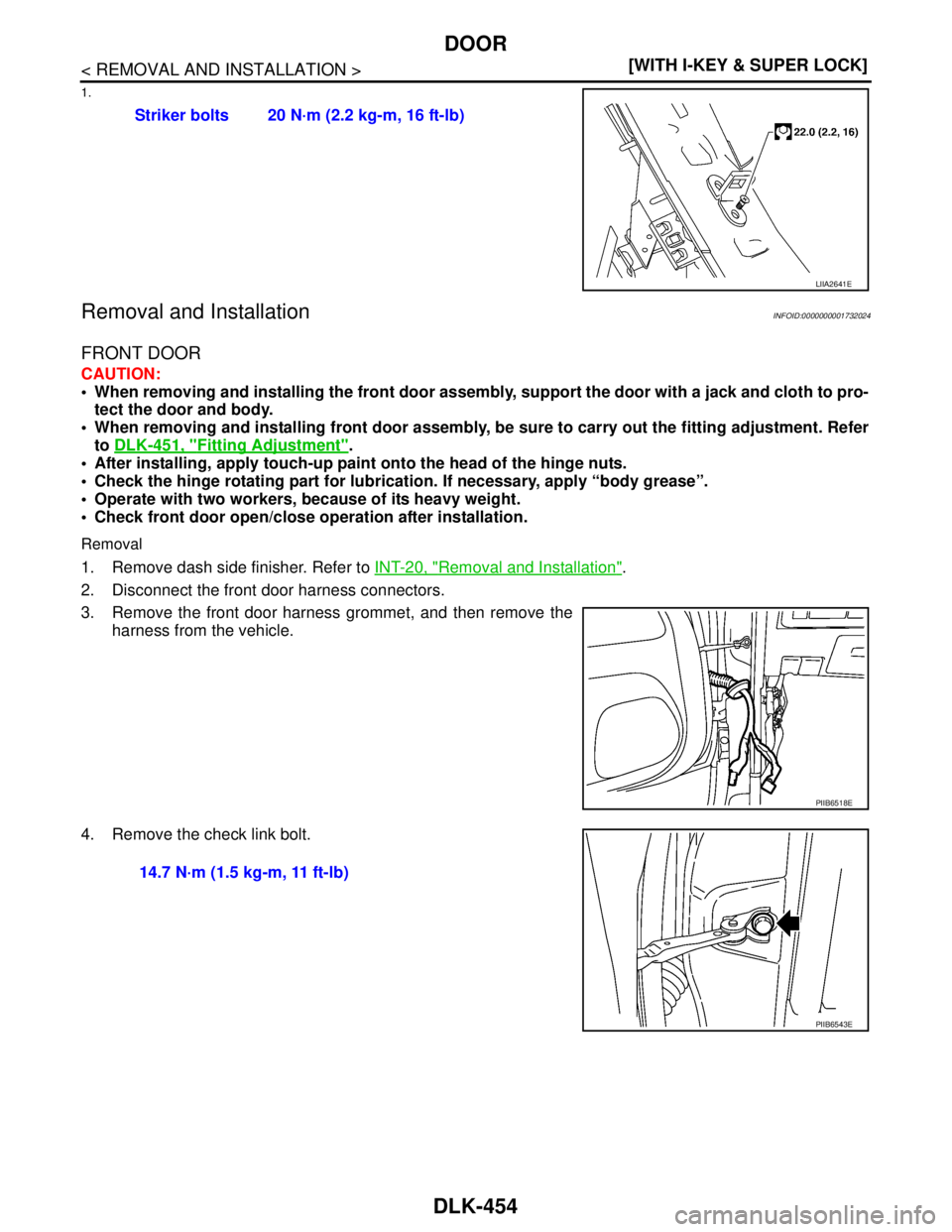

DLK-454
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
DOOR
1.
Removal and InstallationINFOID:0000000001732024
FRONT DOOR
CAUTION:
When removing and installing the front door assembly, support the door with a jack and cloth to pro-
tect the door and body.
When removing and installing front door assembly, be sure to carry out the fitting adjustment. Refer
to DLK-451, "
Fitting Adjustment".
After installing, apply touch-up paint onto the head of the hinge nuts.
Check the hinge rotating part for lubrication. If necessary, apply “body grease”.
Operate with two workers, because of its heavy weight.
Check front door open/close operation after installation.
Removal
1. Remove dash side finisher. Refer to INT-20, "Removal and Installation".
2. Disconnect the front door harness connectors.
3. Remove the front door harness grommet, and then remove the
harness from the vehicle.
4. Remove the check link bolt.Striker bolts 20 N·m (2.2 kg-m, 16 ft-lb)
LIIA2641E
PIIB6518E
14.7 N·m (1.5 kg-m, 11 ft-lb)
PIIB6543E

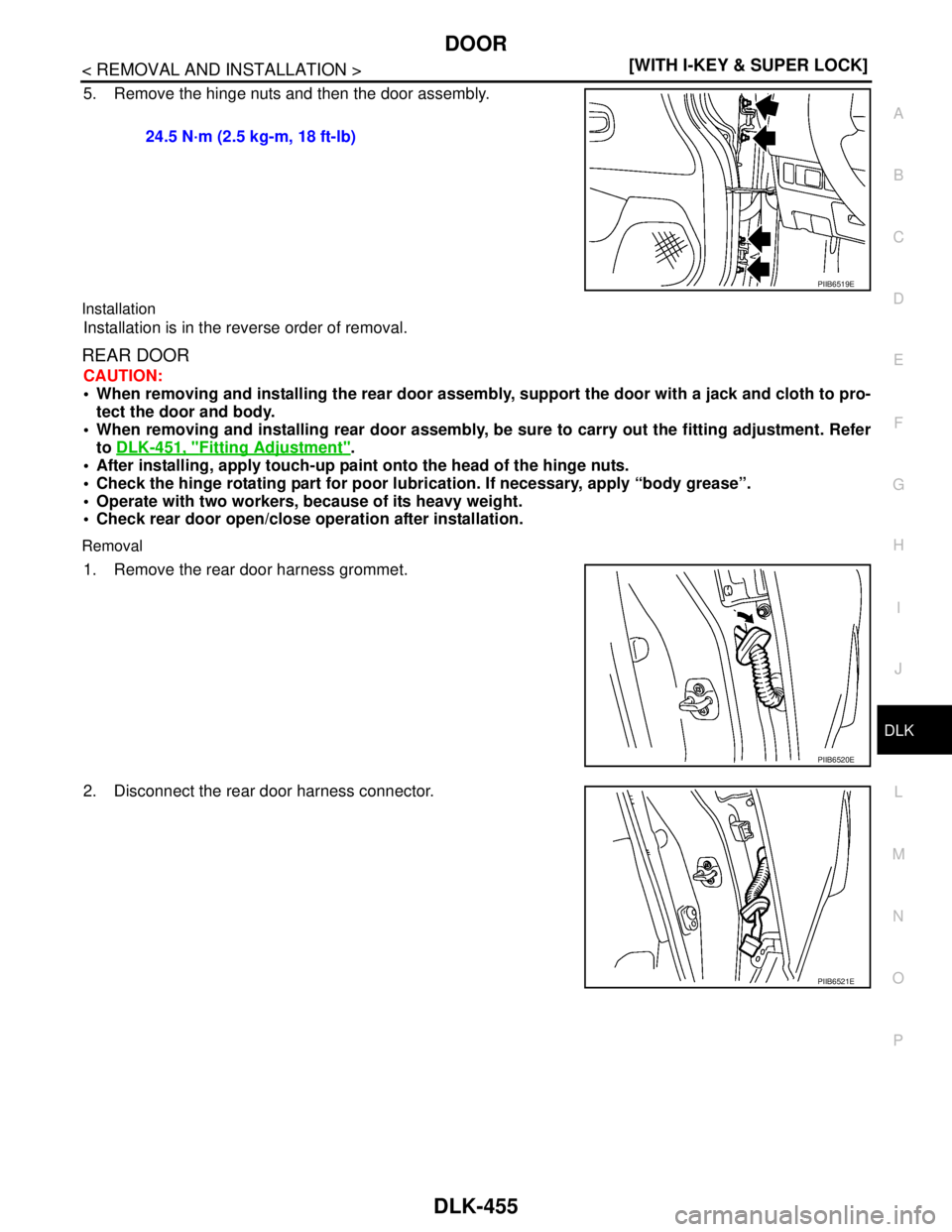

Page 1044 of 5883
DOOR
DLK-455
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
5. Remove the hinge nuts and then the door assembly.
Installation
Installation is in the reverse order of removal.
REAR DOOR
CAUTION:
When removing and installing the rear door assembly, support the door with a jack and cloth to pro-
tect the door and body.
When removing and installing rear door assembly, be sure to carry out the fitting adjustment. Refer
to DLK-451, "
Fitting Adjustment".
After installing, apply touch-up paint onto the head of the hinge nuts.
Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
Operate with two workers, because of its heavy weight.
Check rear door open/close operation after installation.
Removal
1. Remove the rear door harness grommet.
2. Disconnect the rear door harness connector. 24.5 N·m (2.5 kg-m, 18 ft-lb)
PIIB6519E
PIIB6520E
PIIB6521E

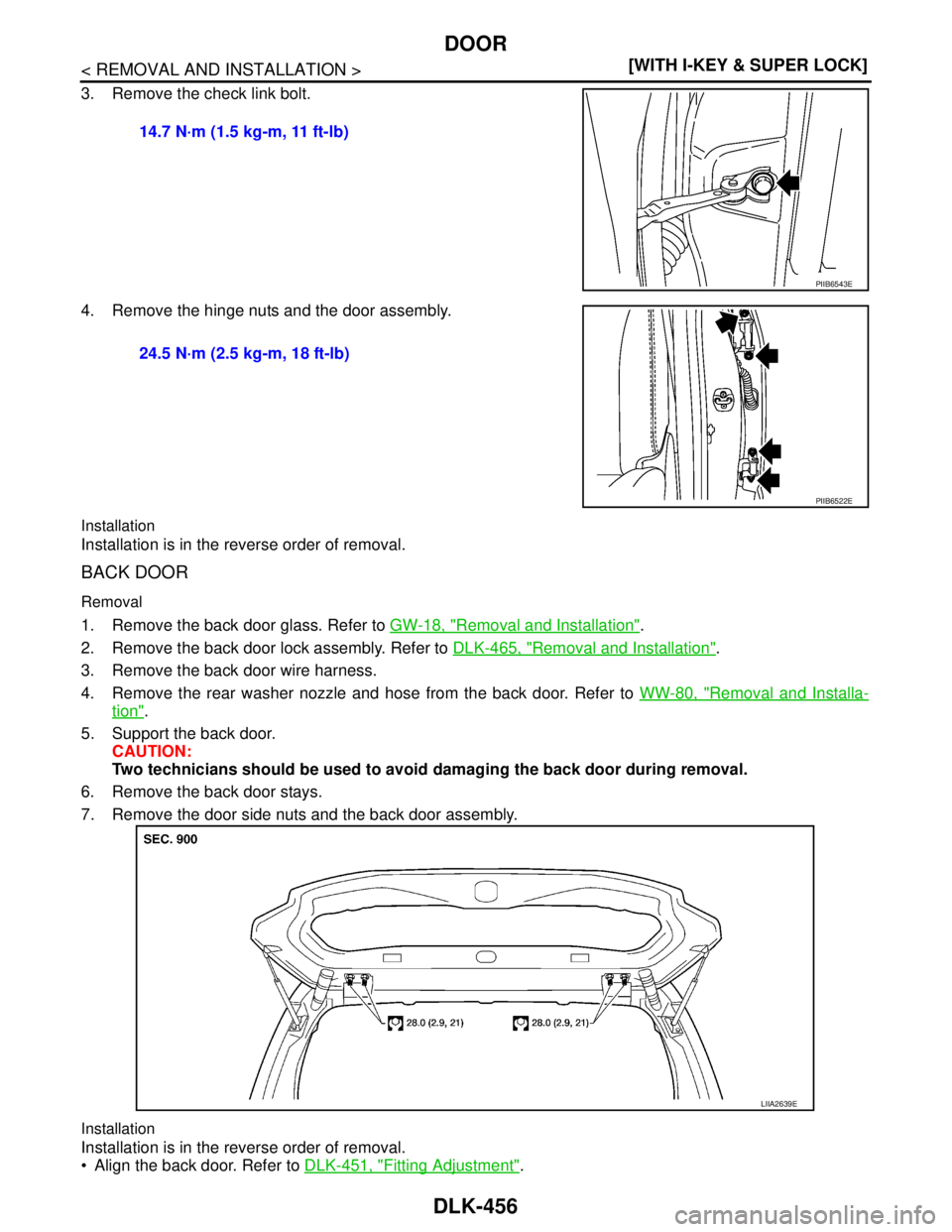

Page 1045 of 5883
DLK-456
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
DOOR
3. Remove the check link bolt.
4. Remove the hinge nuts and the door assembly.
Installation
Installation is in the reverse order of removal.
BACK DOOR
Removal
1. Remove the back door glass. Refer to GW-18, "Removal and Installation".
2. Remove the back door lock assembly. Refer to DLK-465, "
Removal and Installation".
3. Remove the back door wire harness.
4. Remove the rear washer nozzle and hose from the back door. Refer to WW-80, "
Removal and Installa-
tion".
5. Support the back door.
CAUTION:
Two technicians should be used to avoid damaging the back door during removal.
6. Remove the back door stays.
7. Remove the door side nuts and the back door assembly.
Installation
Installation is in the reverse order of removal.
Align the back door. Refer to DLK-451, "
Fitting Adjustment". 14.7 N·m (1.5 kg-m, 11 ft-lb)
PIIB6543E
24.5 N·m (2.5 kg-m, 18 ft-lb)
PIIB6522E
LIIA2639E
Page 1046 of 5883
FUEL FILLER LID OPENER
DLK-457
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FUEL FILLER LID OPENER
Removal and Installation of Fuel Filler Lid OpenerINFOID:0000000001732025
REMOVAL
1. Remove trunk side finisher (RH). Refer to XX-XX, "*****".
2. Remove fuel filler lid opener cable lock ring.
3. Remove front and rear kicking plates. Refer to XX-XX, "*****"
.
4. Remove rear cushion assembly. Refer to XX-XX, "*****"
.
5. Remove the bolts and the fuel filler lid opener handle.
6. Remove fuel filler lid opener cable clips from the vehicle.
7. Remove the fuel filler lid opener cable (LH drive).
8. Remove the fuel filler lid opener cable (RH drive).
PIIB3831J
LIIA2670E
LIIA2629E
ALKIA0651GB
Page 1047 of 5883
DLK-458
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
FUEL FILLER LID OPENER
INSTALLATION
Installation is in the reverse order of removal.
Page 1048 of 5883
![NISSAN TIIDA 2007 Service Repair Manual FRONT DOOR LOCK
DLK-459
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT DOOR LOCK
Component Parts LocationINFOID:0000000001732026
Removal and InstallationI NISSAN TIIDA 2007 Service Repair Manual FRONT DOOR LOCK
DLK-459
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT DOOR LOCK
Component Parts LocationINFOID:0000000001732026
Removal and InstallationI](/manual-img/5/57395/w960_57395-1047.png)

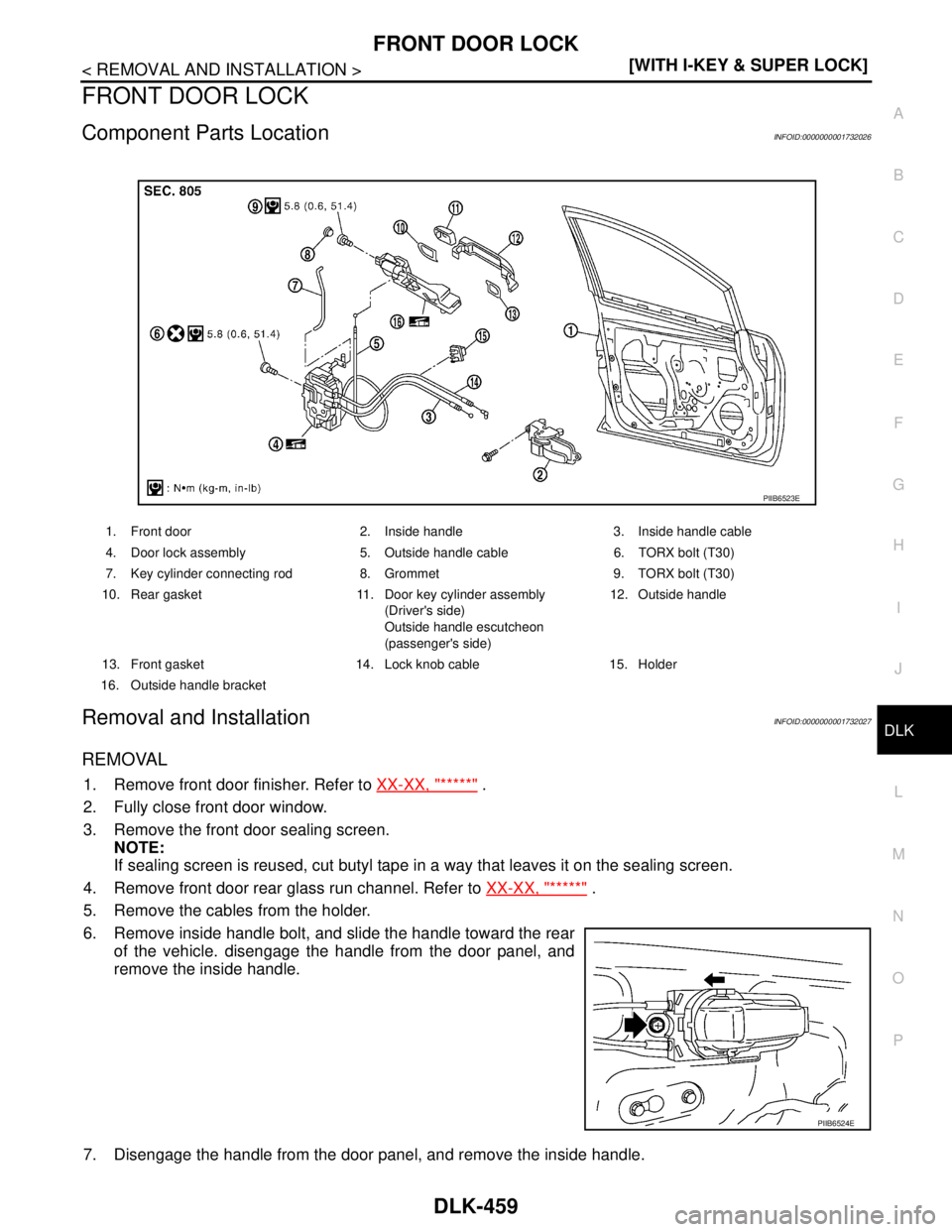

FRONT DOOR LOCK
DLK-459
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT DOOR LOCK
Component Parts LocationINFOID:0000000001732026
Removal and InstallationINFOID:0000000001732027
REMOVAL
1. Remove front door finisher. Refer to XX-XX, "*****" .
2. Fully close front door window.
3. Remove the front door sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.
4. Remove front door rear glass run channel. Refer to XX-XX, "*****"
.
5. Remove the cables from the holder.
6. Remove inside handle bolt, and slide the handle toward the rear
of the vehicle. disengage the handle from the door panel, and
remove the inside handle.
7. Disengage the handle from the door panel, and remove the inside handle.
1. Front door 2. Inside handle 3. Inside handle cable
4. Door lock assembly 5. Outside handle cable 6. TORX bolt (T30)
7. Key cylinder connecting rod 8. Grommet 9. TORX bolt (T30)
10. Rear gasket 11. Door key cylinder assembly
(Driver's side)
Outside handle escutcheon
(passenger's side)12. Outside handle
13. Front gasket 14. Lock knob cable 15. Holder
16. Outside handle bracket
PIIB6523E
PIIB6524E
