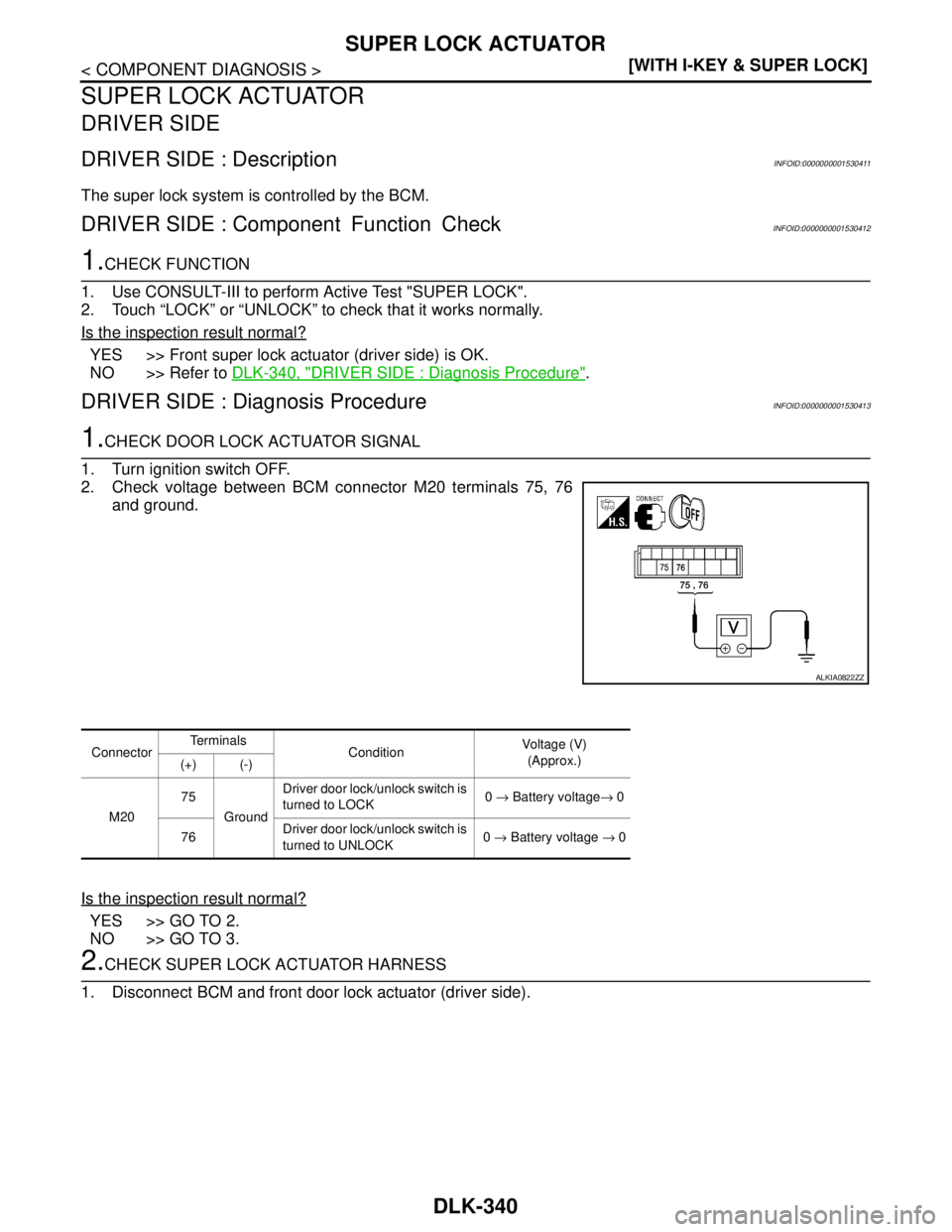

DLK-340
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
SUPER LOCK ACTUATOR
DRIVER SIDE
DRIVER SIDE : DescriptionINFOID:0000000001530411
The super lock system is controlled by the BCM.
DRIVER SIDE : Component Function CheckINFOID:0000000001530412
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test "SUPER LOCK".
2. Touch “LOCK” or “UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Front super lock actuator (driver side) is OK.
NO >> Refer to DLK-340, "
DRIVER SIDE : Diagnosis Procedure".
DRIVER SIDE : Diagnosis ProcedureINFOID:0000000001530413
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 75, 76
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (driver side).
ALKIA0822ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2075
GroundDriver door lock/unlock switch is
turned to LOCK0 → Battery voltage→ 0
76Driver door lock/unlock switch is
turned to UNLOCK0 → Battery voltage → 0
Page 930 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-341
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector (A) M20 terminals 75,
76 and front door lock act NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-341
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector (A) M20 terminals 75,
76 and front door lock act](/manual-img/5/57395/w960_57395-929.png)

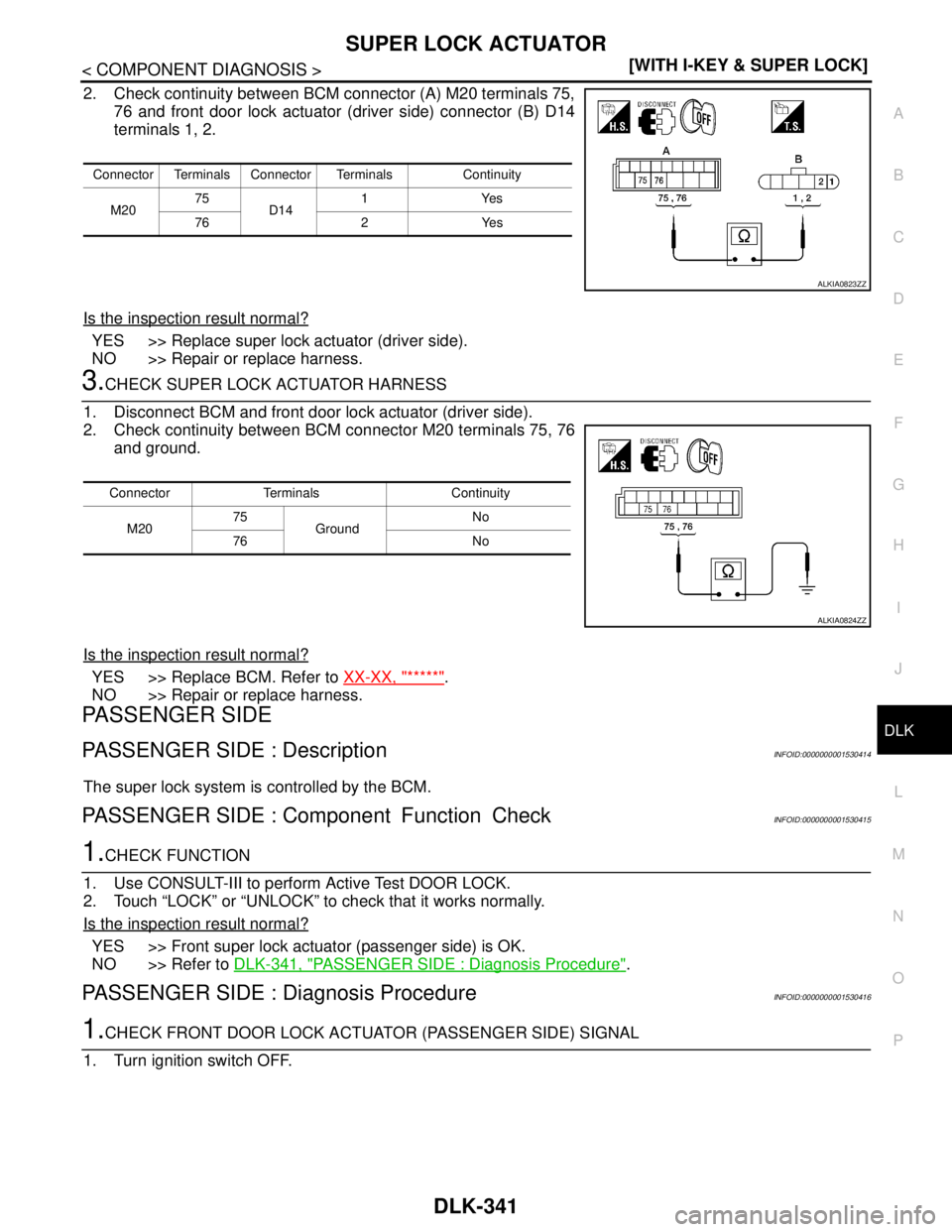

SUPER LOCK ACTUATOR
DLK-341
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector (A) M20 terminals 75,
76 and front door lock actuator (driver side) connector (B) D14
terminals 1, 2.
Is the inspection result normal?
YES >> Replace super lock actuator (driver side).
NO >> Repair or replace harness.
3.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (driver side).
2. Check continuity between BCM connector M20 terminals 75, 76
and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
PASSENGER SIDE
PASSENGER SIDE : DescriptionINFOID:0000000001530414
The super lock system is controlled by the BCM.
PASSENGER SIDE : Component Function CheckINFOID:0000000001530415
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test DOOR LOCK.
2. Touch “LOCK” or “UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Front super lock actuator (passenger side) is OK.
NO >> Refer to DLK-341, "
PASSENGER SIDE : Diagnosis Procedure".
PASSENGER SIDE : Diagnosis ProcedureINFOID:0000000001530416
1.CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL
1. Turn ignition switch OFF.
Connector Terminals Connector Terminals Continuity
M2075
D141Yes
76 2 Yes
ALKIA0823ZZ
Connector Terminals Continuity
M2075
GroundNo
76 No
ALKIA0824ZZ
Page 931 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-342
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2. Check voltage between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO NISSAN TIIDA 2007 Service Repair Manual DLK-342
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2. Check voltage between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO](/manual-img/5/57395/w960_57395-930.png)
DLK-342
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2. Check voltage between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (passenger side).
2. Check continuity between BCM connector (A) M20 terminals 67,
75 and front door lock actuator (passenger side) (B) D114 termi-
nals 1, 2.
Is the inspection result normal?
YES >> Replace super lock actuator (passenger side). Refer to XX-XX, "*****".
NO >> Repair or replace harness.
3.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (passenger side).
ALKIA0825ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2075
GroundDoor lock/unlock switch is turned to LOCK 0 → Battery voltage → 0
67 Door lock/unlock switch is turned to UNLOCK 0 → Battery voltage → 0
ALKIA0826ZZ
BCM connector TerminalFront door lock actuator
(passenger side) connectorTerminal Continuity
M2067
D1142
Ye s
75 1
Page 932 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-343
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector M19 terminals 67, 75
and ground.
Is the inspecti NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-343
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector M19 terminals 67, 75
and ground.
Is the inspecti](/manual-img/5/57395/w960_57395-931.png)

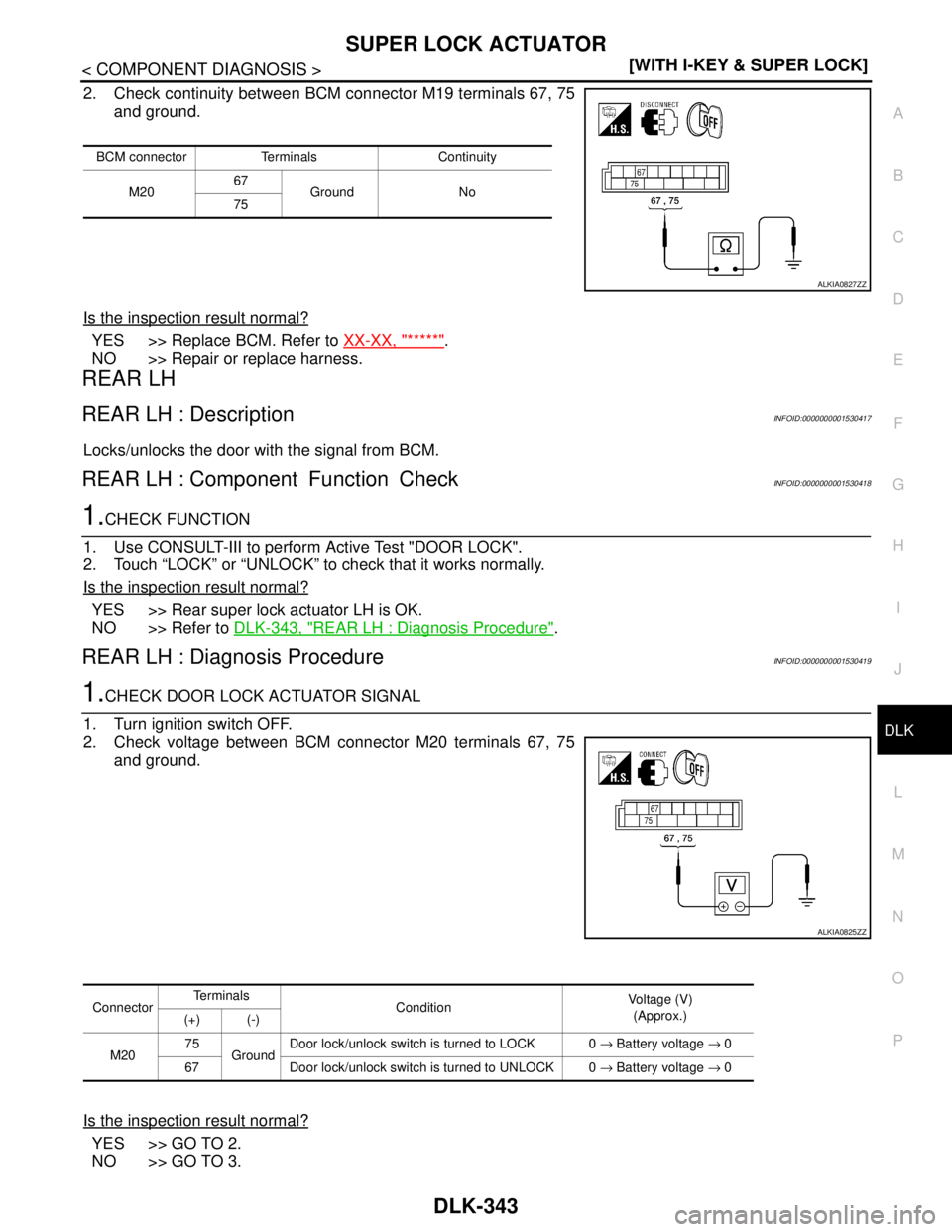

SUPER LOCK ACTUATOR
DLK-343
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector M19 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
REAR LH
REAR LH : DescriptionINFOID:0000000001530417
Locks/unlocks the door with the signal from BCM.
REAR LH : Component Function CheckINFOID:0000000001530418
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test "DOOR LOCK".
2. Touch “LOCK” or “UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Rear super lock actuator LH is OK.
NO >> Refer to DLK-343, "
REAR LH : Diagnosis Procedure".
REAR LH : Diagnosis ProcedureINFOID:0000000001530419
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
BCM connector Terminals Continuity
M2067
Ground No
75
ALKIA0827ZZ
ALKIA0825ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2075
GroundDoor lock/unlock switch is turned to LOCK 0 → Battery voltage → 0
67 Door lock/unlock switch is turned to UNLOCK 0 → Battery voltage → 0
Page 933 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-344
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator LH.
2. Check continuity between BCM conne NISSAN TIIDA 2007 Service Repair Manual DLK-344
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator LH.
2. Check continuity between BCM conne](/manual-img/5/57395/w960_57395-932.png)
DLK-344
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator LH.
2. Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator LH connector (B) D205 terminals
1, 2.
Is the inspection result normal?
YES >> Replace rear super lock actuator LH.
NO >> Repair or replace harness.
3.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and each door lock actuator.
2. Check continuity between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
REAR RH
REAR RH : DescriptionINFOID:0000000001530420
Locks/unlocks the door with the signal from BCM.
REAR RH : Component Function CheckINFOID:0000000001530421
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test "DOOR LOCK".
2. Touch “LOCK” or “UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Rear super lock actuator RH is OK.
NO >> Refer to XX-XX, "*****"
.
ALKIA0828ZZ
BCM connector TerminalRear door lock actuator LH
connectorTerminal Continuity
M2067
D2052
Ye s
75 1
BCM connector Terminals Continuity
M2067
Ground No
75
ALKIA0827ZZ
Page 934 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-345
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR RH : Diagnosis ProcedureINFOID:0000000001530422
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. NISSAN TIIDA 2007 Service Repair Manual SUPER LOCK ACTUATOR
DLK-345
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR RH : Diagnosis ProcedureINFOID:0000000001530422
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1.](/manual-img/5/57395/w960_57395-933.png)

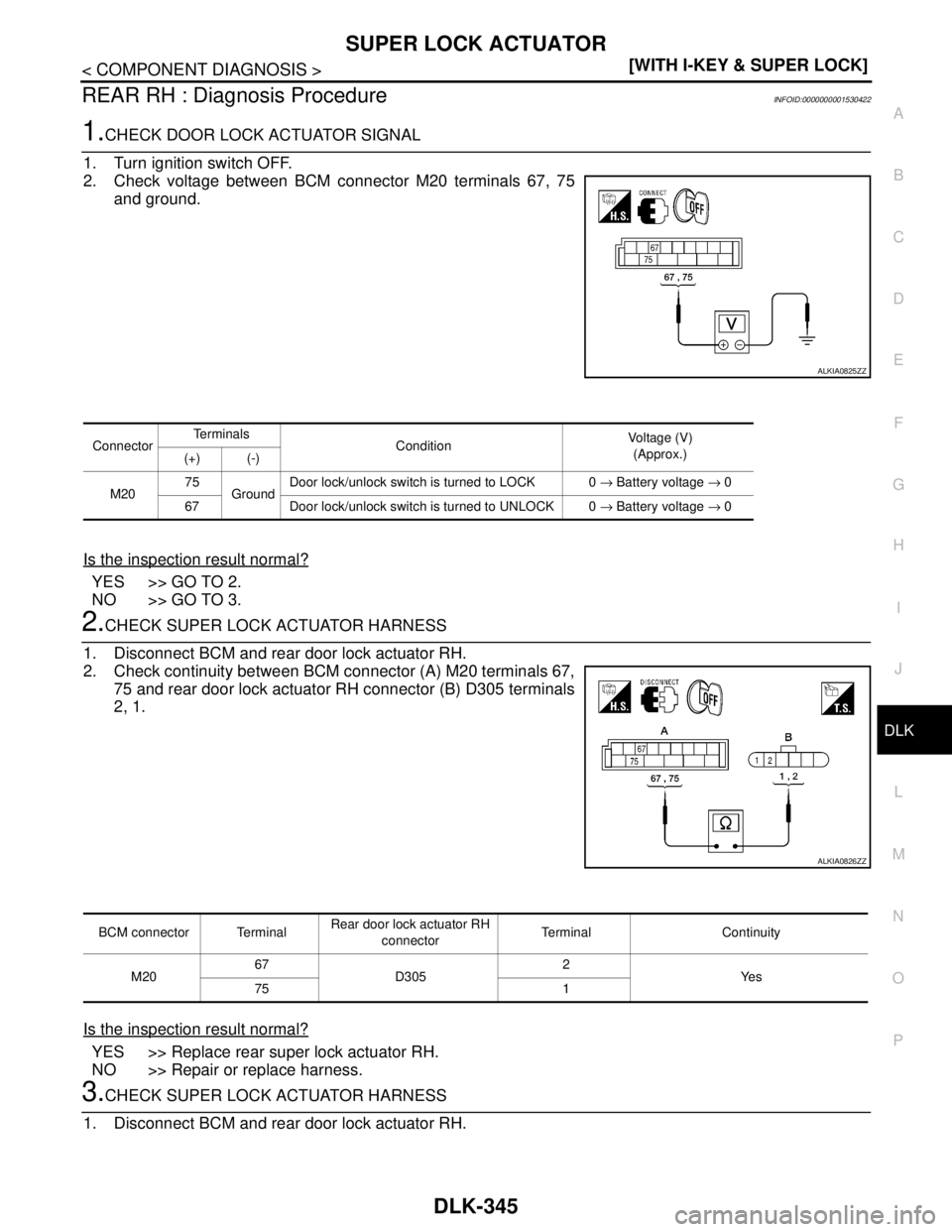

SUPER LOCK ACTUATOR
DLK-345
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
REAR RH : Diagnosis ProcedureINFOID:0000000001530422
1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 67, 75
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator RH.
2. Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator RH connector (B) D305 terminals
2, 1.
Is the inspection result normal?
YES >> Replace rear super lock actuator RH.
NO >> Repair or replace harness.
3.CHECK SUPER LOCK ACTUATOR HARNESS
1. Disconnect BCM and rear door lock actuator RH.
ALKIA0825ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2075
GroundDoor lock/unlock switch is turned to LOCK 0 → Battery voltage → 0
67 Door lock/unlock switch is turned to UNLOCK 0 → Battery voltage → 0
ALKIA0826ZZ
BCM connector TerminalRear door lock actuator RH
connectorTerminal Continuity
M2067
D3052
Ye s
75 1
Page 935 of 5883
DLK-346
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
SUPER LOCK ACTUATOR
2. Check continuity between BCM connector (A) M20 terminals 67,
75 and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
BCM connector Terminals Continuity
M2067
Ground No
75
ALKIA0827ZZ
Page 936 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TRUNK LID OPENER ACTUATOR
DLK-347
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK LID OPENER ACTUATOR
DescriptionINFOID:0000000001530345
Performs trunk lid open NISSAN TIIDA 2007 Service Repair Manual TRUNK LID OPENER ACTUATOR
DLK-347
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK LID OPENER ACTUATOR
DescriptionINFOID:0000000001530345
Performs trunk lid open](/manual-img/5/57395/w960_57395-935.png)
TRUNK LID OPENER ACTUATOR
DLK-347
< COMPONENT DIAGNOSIS >[WITH I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
TRUNK LID OPENER ACTUATOR
DescriptionINFOID:0000000001530345
Performs trunk lid open with signal from BCM.
Component Function CheckINFOID:0000000001530346
1.CHECK FUNCTION
1. Perform Active Test TRUNK/GLASS HATCH with CONSULT-III.
2. Touch “OPEN” and check that trunk lid opens.
Is the inspection result normal?
YES >> Trunk lid opener actuator is OK.
NO >> Refer to DLK-347, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001530347
1.CHECK OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Ensure door lock system is unlocked.
3. Check voltage between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> GO TO 2
2.CHECK TRUNK LID OPENER ACTUATOR CIRCUIT
1. Disconnect BCM and trunk lamp switch and trunk release solenoid connectors.
2. Check continuity between BCM connector (A) M20 terminal 68
and trunk lamp switch and trunk release solenoid connector (B)
B66 terminal 2.
ALKIA0765ZZ
Te r m i n a l s
Condition of trunk lid open-
er switchVoltage (V)
(Approx.) (+)
(–)
BCM connector Terminal
M20 68 Ground ON 0 → Battery voltage → 0
ALKIA0766ZZ
