Page 5833 of 5883

NISSAN TIIDA 2007 Service Repair Manual REAR WIPER AUTO STOP SIGNAL CIRCUIT WW-31 < COMPONENT DIAGNOSIS > C D E F G H I J K MA B WW N O P 1. Turn the ignition switch OFF. 2. Disconnect BCM. 3. Check continuity between BCM harness connector

Page 5834 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-32 < COMPONENT DIAGNOSIS > HEADLAMP WASHER RELAY HEADLAMP WASHER RELAY Component InspectionINFOID:0000000001366625 1. CHECK HEADLAMP WASHER RELAY 1. Turn the ignition switch OFF. 2. Disconnect head

Page 5835 of 5883

NISSAN TIIDA 2007 Service Repair Manual HEADLAMP WASHER CIRCUIT WW-33 < COMPONENT DIAGNOSIS > C D E F G H I J K MA B WW N O P HEADLAMP WASHER CIRCUIT Component Function CheckINFOID:0000000001366626 1. CHECK HEADLAMP WASHER OPERATION CONSULT

Page 5836 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-34 < COMPONENT DIAGNOSIS > HEADLAMP WASHER CIRCUIT 1. Turn the ignition switch OFF. 2. Install headlamp washer relay. 3. Turn the ignition switch ON. 4. Select "HEADLAMP WASHER" of IPDM E/R active

Page 5837 of 5883

NISSAN TIIDA 2007 Service Repair Manual HEADLAMP WASHER CIRCUIT WW-35 < COMPONENT DIAGNOSIS > C D E F G H I J K MA B WW N O P Does continuity exist? YES >> GO TO 8 NO >> Repair or replace harness. 8. CHECK HEADLAMP WASHER PUMP SHORT CIRCUIT

Page 5838 of 5883

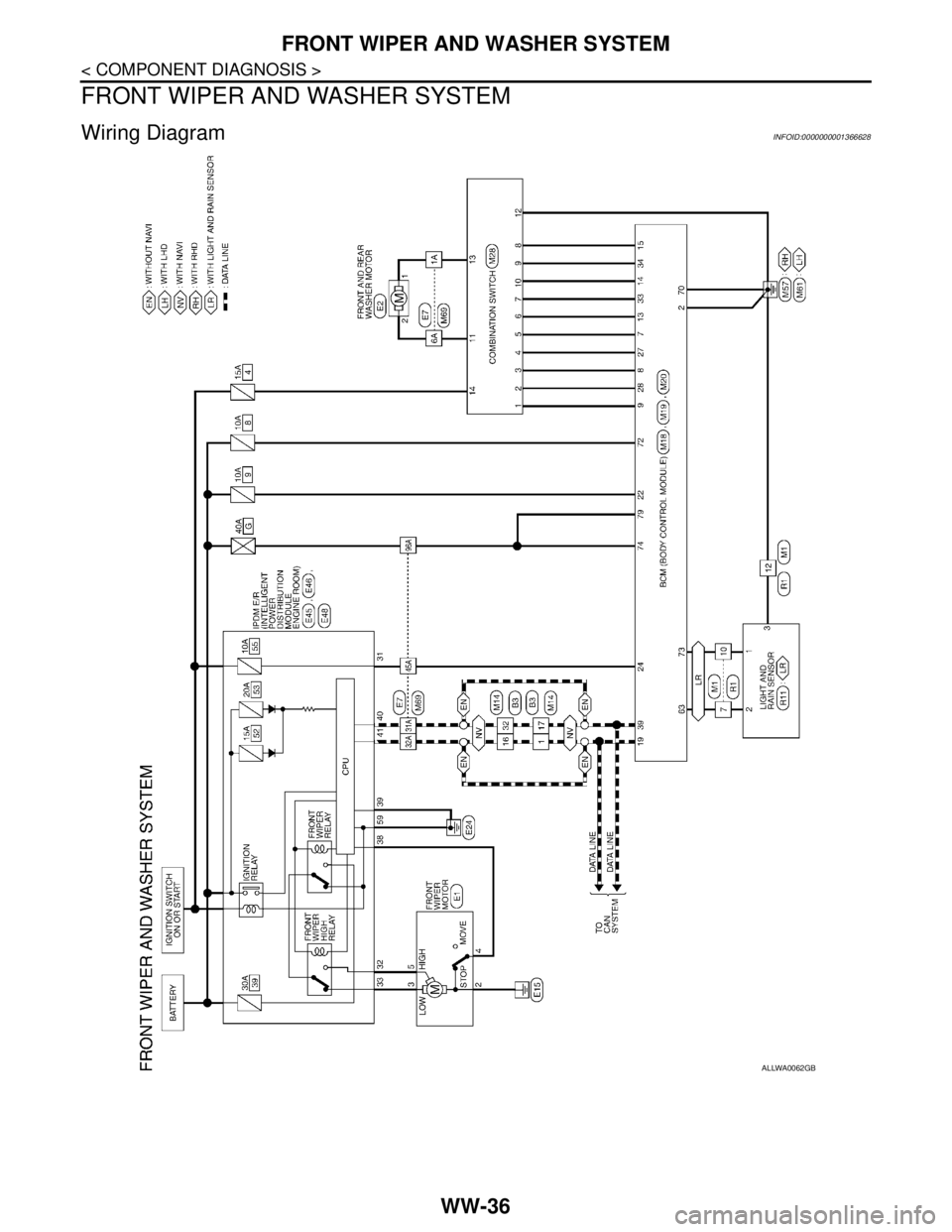

NISSAN TIIDA 2007 Service Repair Manual WW-36 < COMPONENT DIAGNOSIS > FRONT WIPER AND WASHER SYSTEM FRONT WIPER AND WASHER SYSTEM Wiring DiagramINFOID:0000000001366628 ALLWA0062GB

Page 5839 of 5883

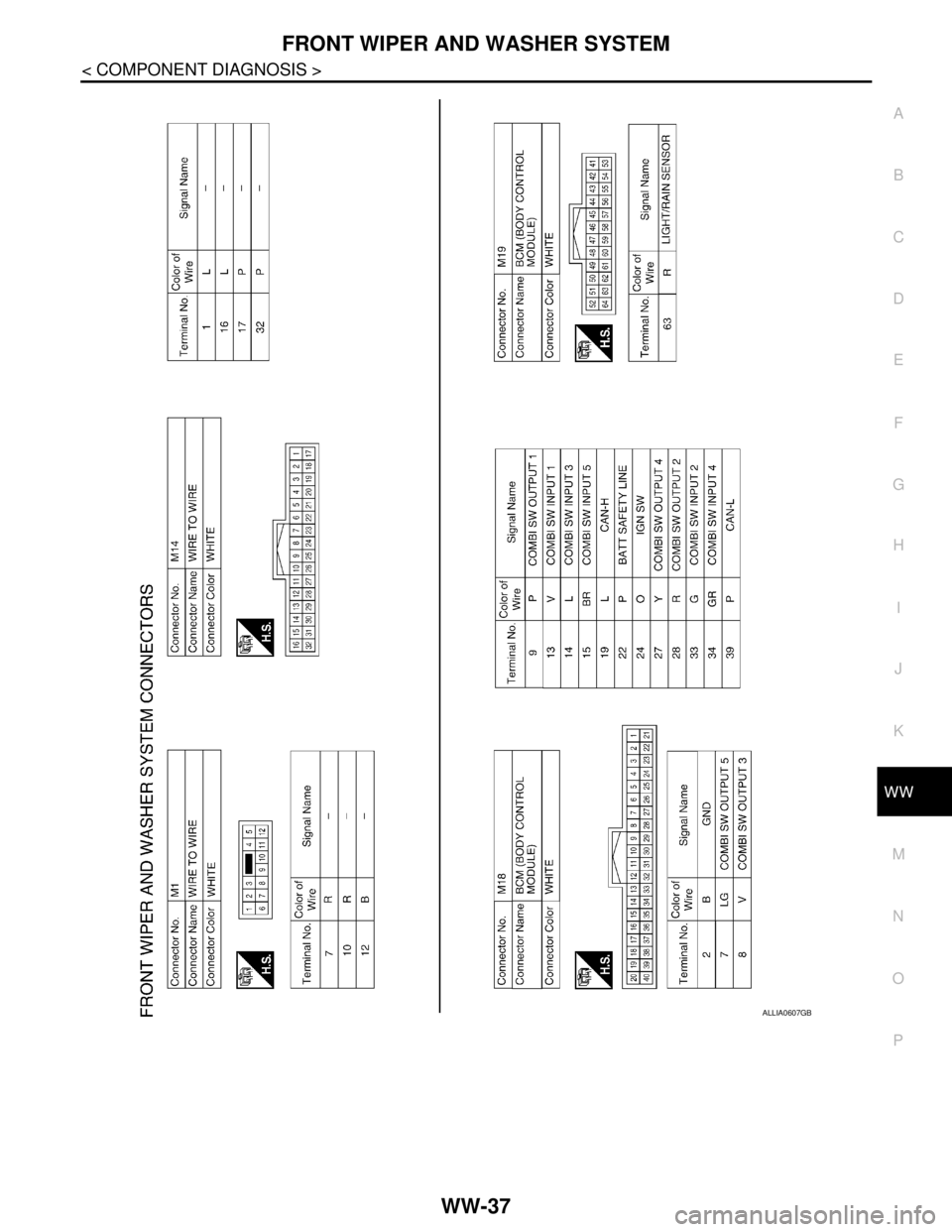

NISSAN TIIDA 2007 Service Repair Manual FRONT WIPER AND WASHER SYSTEM WW-37 < COMPONENT DIAGNOSIS > C D E F G H I J K MA B WW N O P ALLIA0607GB

Page 5840 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-38 < COMPONENT DIAGNOSIS > FRONT WIPER AND WASHER SYSTEM ALLIA0608GB
