Page 1057 of 5883
DLK-468
< REMOVAL AND INSTALLATION >[WITH I-KEY & SUPER LOCK]
TRUNK LID
4. Remove the bolts (a) and the trunk lid striker (1).
INSTALLATION
Installation is in the reverse order of removal.
LIIA2934E
Page 1058 of 5883
DIAGNOSIS AND REPAIR WORKFLOW
DLK-469
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
BASIC INSPECTION

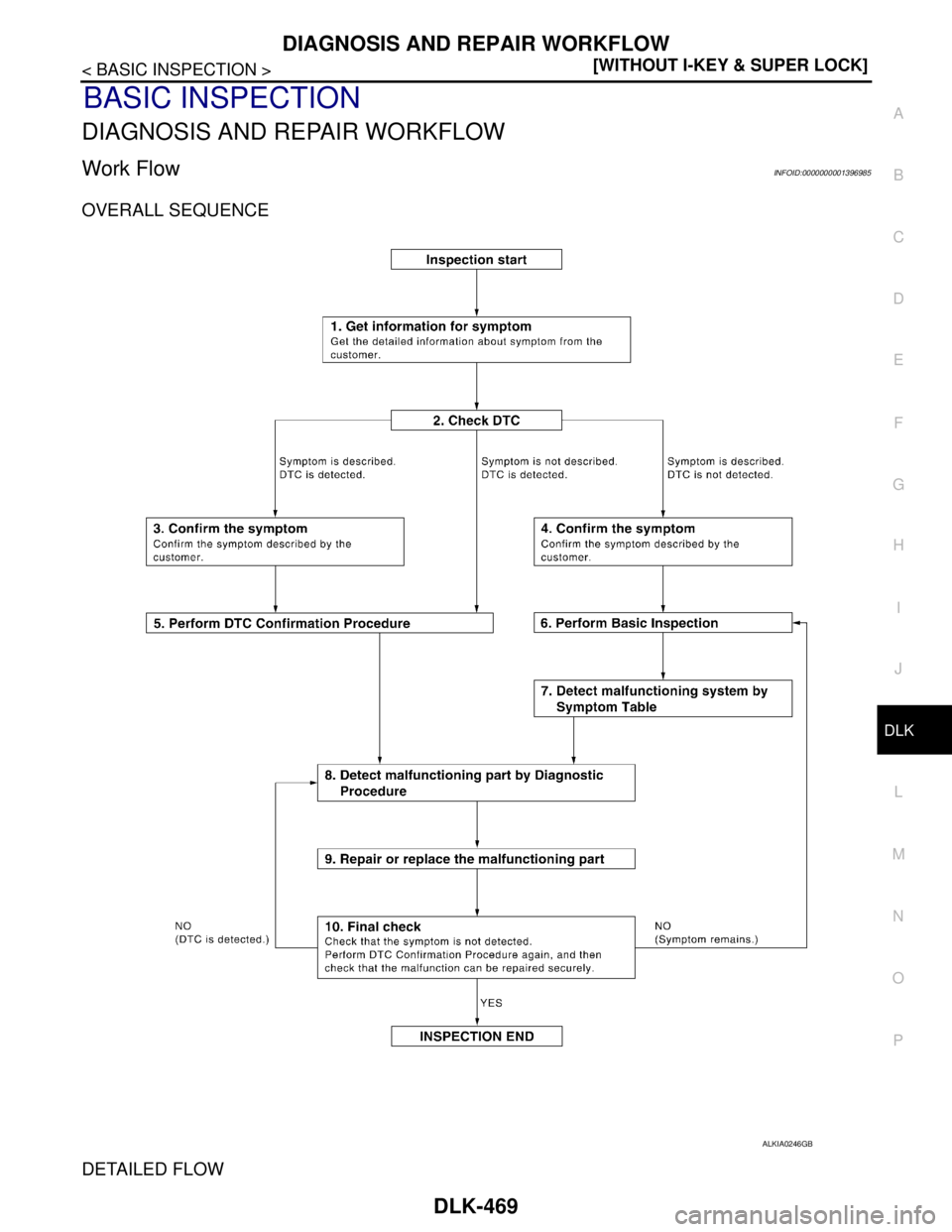

DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001396985
OVERALL SEQUENCE
DETAILED FLOW
ALKIA0246GB
Page 1059 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DLK-470
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and NISSAN TIIDA 2007 Service Repair Manual DLK-470
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and](/manual-img/5/57395/w960_57395-1058.png)
DLK-470
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2.CHECK DTC
1. Check DTC for BCM.
2. Perform the following procedure if DTC is displayed.
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
If two or more DTCs are detected, refer to DLK-565, "
DTCInspectionPriorityChart" and determine trouble
diagnosis order.
Is DTC detected?
YES >> GO TO 8.
NO >> Refer to XX-XX, "*****"
.
6.PERFORM BASIC INSPECTION
Perform Basic Inspection, refer to DLK-582, "
Basic Inspection".
Inspection End>>GO TO 7.
7.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to Symptom Table based on the confirmed symptom in step 4.
>> GO TO 8.
8.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.
>> GO TO 9.
Page 1060 of 5883
DIAGNOSIS AND REPAIR WORKFLOW
DLK-471
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
9.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it.
>> GO TO 10.
10.FINAL CHECK
When DTC was detected in step 2, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Does the symptom reappear?
YES (DTC is detected)>>GO TO 8.
YES (Symptom remains)>>GO TO 6.
NO >>INSPECTION END
Page 1061 of 5883
DLK-472
< BASIC INSPECTION >[WITHOUT I-KEY & SUPER LOCK]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001396986
Perform the system initialization when replacing or registering Keyfob and ignition key.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000001396987
Refer to the CONSULT-III Operation Manual-NATS.
Page 1062 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK FUNCTION
DLK-473
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FUNCTION DIAGNOSIS
DOOR LOCK FUNCTION
DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SW NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK FUNCTION
DLK-473
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FUNCTION DIAGNOSIS
DOOR LOCK FUNCTION
DOOR LOCK AND UNLOCK SWITCH
DOOR LOCK AND UNLOCK SW](/manual-img/5/57395/w960_57395-1061.png)
DOOR LOCK FUNCTION
DLK-473
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FUNCTION DIAGNOSIS
DOOR LOCK FUNCTION
DOOR LOCK AND UNLOCK SWITCH

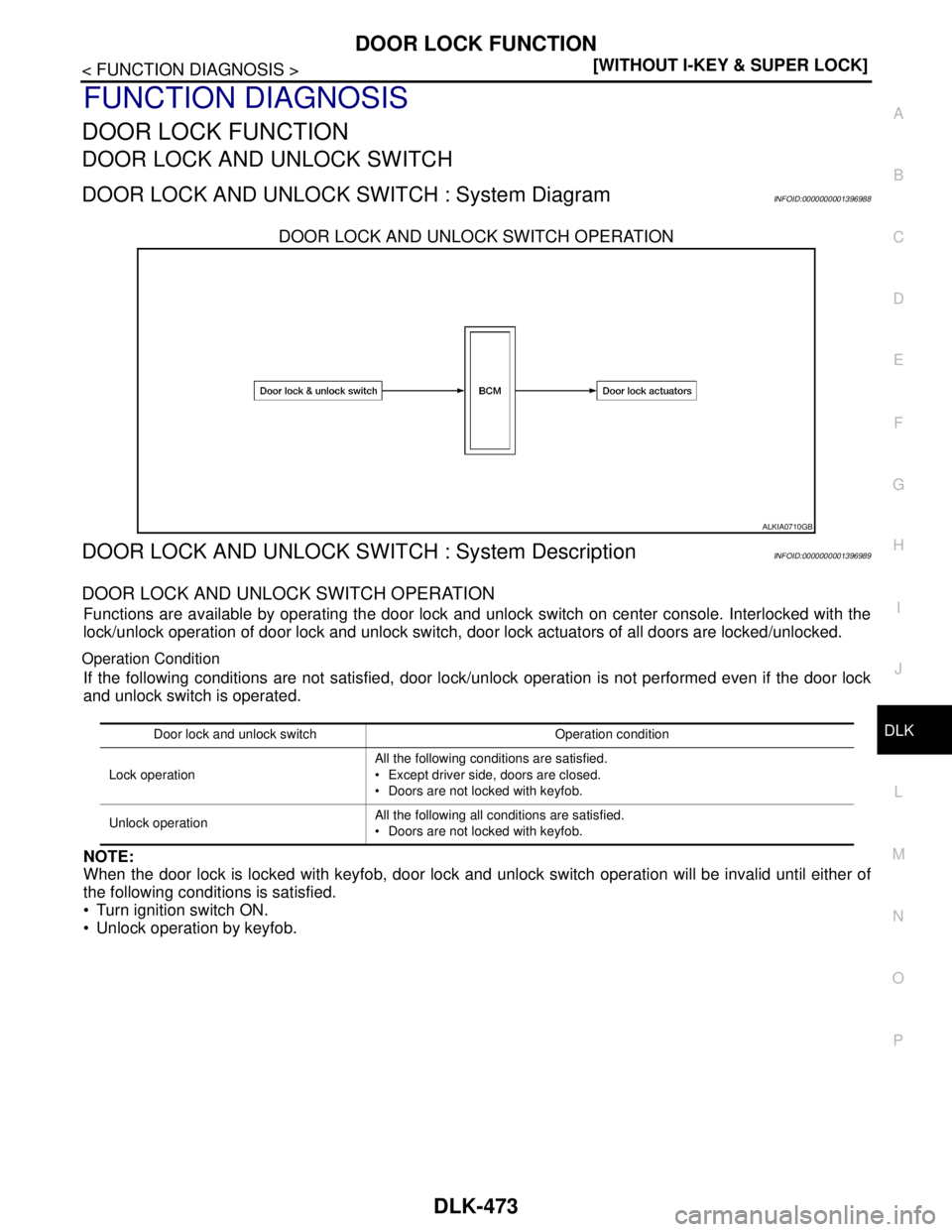

DOOR LOCK AND UNLOCK SWITCH : System DiagramINFOID:0000000001396988
DOOR LOCK AND UNLOCK SWITCH OPERATION
DOOR LOCK AND UNLOCK SWITCH : System DescriptionINFOID:0000000001396989
DOOR LOCK AND UNLOCK SWITCH OPERATION
Functions are available by operating the door lock and unlock switch on center console. Interlocked with the
lock/unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.
Operation Condition
If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.
NOTE:
When the door lock is locked with keyfob, door lock and unlock switch operation will be invalid until either of
the following conditions is satisfied.
Turn ignition switch ON.
Unlock operation by keyfob.
ALKIA0710GB
Door lock and unlock switch Operation condition
Lock operationAll the following conditions are satisfied.
Except driver side, doors are closed.
Doors are not locked with keyfob.
Unlock operationAll the following all conditions are satisfied.
Doors are not locked with keyfob.
Page 1063 of 5883
DLK-474
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
DOOR LOCK FUNCTION

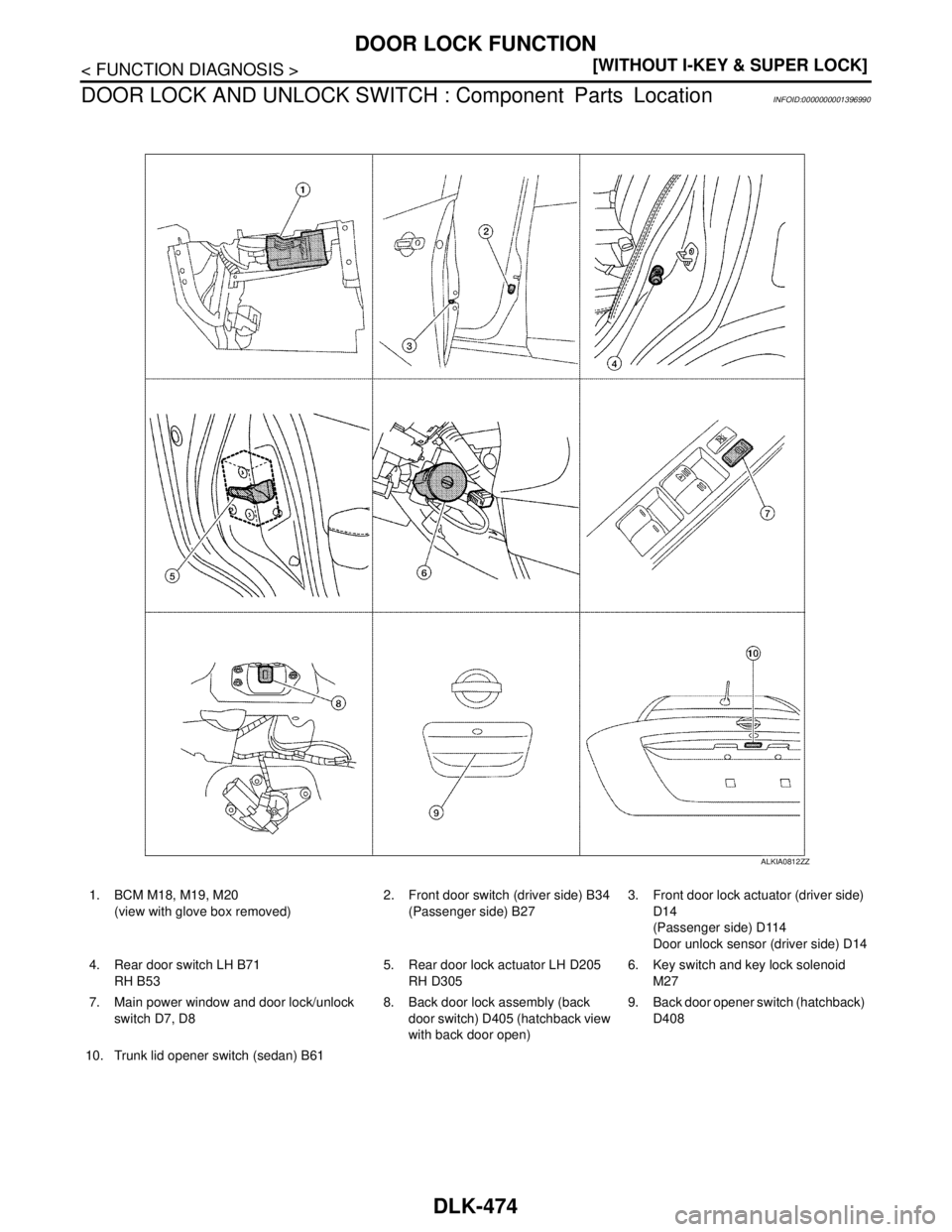

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location
INFOID:0000000001396990
ALKIA0812ZZ
1. BCM M18, M19, M20
(view with glove box removed)2. Front door switch (driver side) B34
(Passenger side) B273. Front door lock actuator (driver side)
D14
(Passenger side) D114
Door unlock sensor (driver side) D14
4. Rear door switch LH B71
RH B535. Rear door lock actuator LH D205
RH D3056. Key switch and key lock solenoid
M27
7. Main power window and door lock/unlock
switch D7, D88. Back door lock assembly (back
door switch) D405 (hatchback view
with back door open)9. Back door opener switch (hatchback)
D408
10. Trunk lid opener switch (sedan) B61
Page 1064 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK FUNCTION
DLK-475
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK AND UNLOCK SWITCH : Component DescriptionINFOID:0000000001396991
REMOTE KEYLESS NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK FUNCTION
DLK-475
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK AND UNLOCK SWITCH : Component DescriptionINFOID:0000000001396991
REMOTE KEYLESS](/manual-img/5/57395/w960_57395-1063.png)
DOOR LOCK FUNCTION
DLK-475
< FUNCTION DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK AND UNLOCK SWITCH : Component DescriptionINFOID:0000000001396991
REMOTE KEYLESS ENTRY
REMOTE KEYLESS ENTRY : System DiagramINFOID:0000000001396992
KEYFOB OPERATION
REMOTE KEYLESS ENTRY : System DescriptionINFOID:0000000001396993
KEYFOB OPERATION
The multi remote control system can be locked and unlocked by pressing door lock and unlock button of key-
fob.
DOOR LOCK AND UNLOCK OPERATION
When door lock and unlock button of keyfob is pressed, door lock
and unlock signal transmits from keyfob to BCM. When BCM
receives the door lock and unlock signal, it operates door lock actua-
tor.
1. Integrated door lock keyfob.
2. Integrated ignition key/emergency key.
3. Key number plate.
OPERATION CONDITION
OPERATION AREA
To ensure that the keyfob works effectively, use within 100 cm range of each door, however the operable
range may differ according to surroundings.
Item Function
BCM Controls the door lock and unlock function.
Door switch Detects door state (open or closed).
Door lock and unlock switchTransmits door lock and unlock signal to BCM. Door lock and unlock switch indicator is built
in door lock and unlock switch.
Door lock actuator Receives door lock and unlock signal from BCM and locks and unlocks each door.
ALKIA0836GB
ALKIA0821ZZ
Remote controller operation Operation condition
Lock/unlock Key switch is OFF (key is removed from ignition key cylinder).
