EC-20
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
DIAGNOSIS AND REPAIR WORKFLOW
YES >> GO TO 7.
NO >> GO TO 9.
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT-III
Make sure that “MAS A/F SE-B1”, “B/FUEL SCHDL” and “A/F ALPHA-B1” are within the SP value using CON-
SULT-III in “SPEC” of “DATA MONITOR” mode. Refer to EC-116, "
Component Function Check".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-117, "
Diagnosis Procedure".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-366, "
Symptom Table" based on the confirmed symptom in
step 4, and determine the trouble diagnosis order based on possible causes and symptom.
>> GO TO 10.
10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to Circuit Inspection in GI-
58, "Circuit Inspection".
Is malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check the voltage of related ECM terminals using CON-
SULT-III. Refer to EC-328, "
Reference Value".
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it. Refer to EC-94, "
Diagnosis Description".
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
NO >> Before returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM.
(Refer to EC-94, "
Diagnosis Description".) If the completion of SRT is needed, drive vehicle under
the specific DRIVING PATTERN in EC-363, "
HowtoSetSRTCode".
Diagnostic Work SheetINFOID:0000000001161122
DESCRIPTION
Page 1370 of 5883
DIAGNOSIS AND REPAIR WORKFLOW
EC-21
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about a incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the one on the next page in order
to organize all the information for troubleshooting.
Some conditions may cause the MI to come on steady or blink and
DTC to be detected. Examples:
Vehicle ran out of fuel, which caused the engine to misfire.
WORKSHEET SAMPLE
SEF907L
MTBL0017
Page 1371 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-22
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
BASIC INSPECTION : Special Repair RequirementINFOID:0000000001161123
1.INSPECTIO NISSAN TIIDA 2007 Service Repair Manual EC-22
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
BASIC INSPECTION : Special Repair RequirementINFOID:0000000001161123
1.INSPECTIO](/manual-img/5/57395/w960_57395-1370.png)

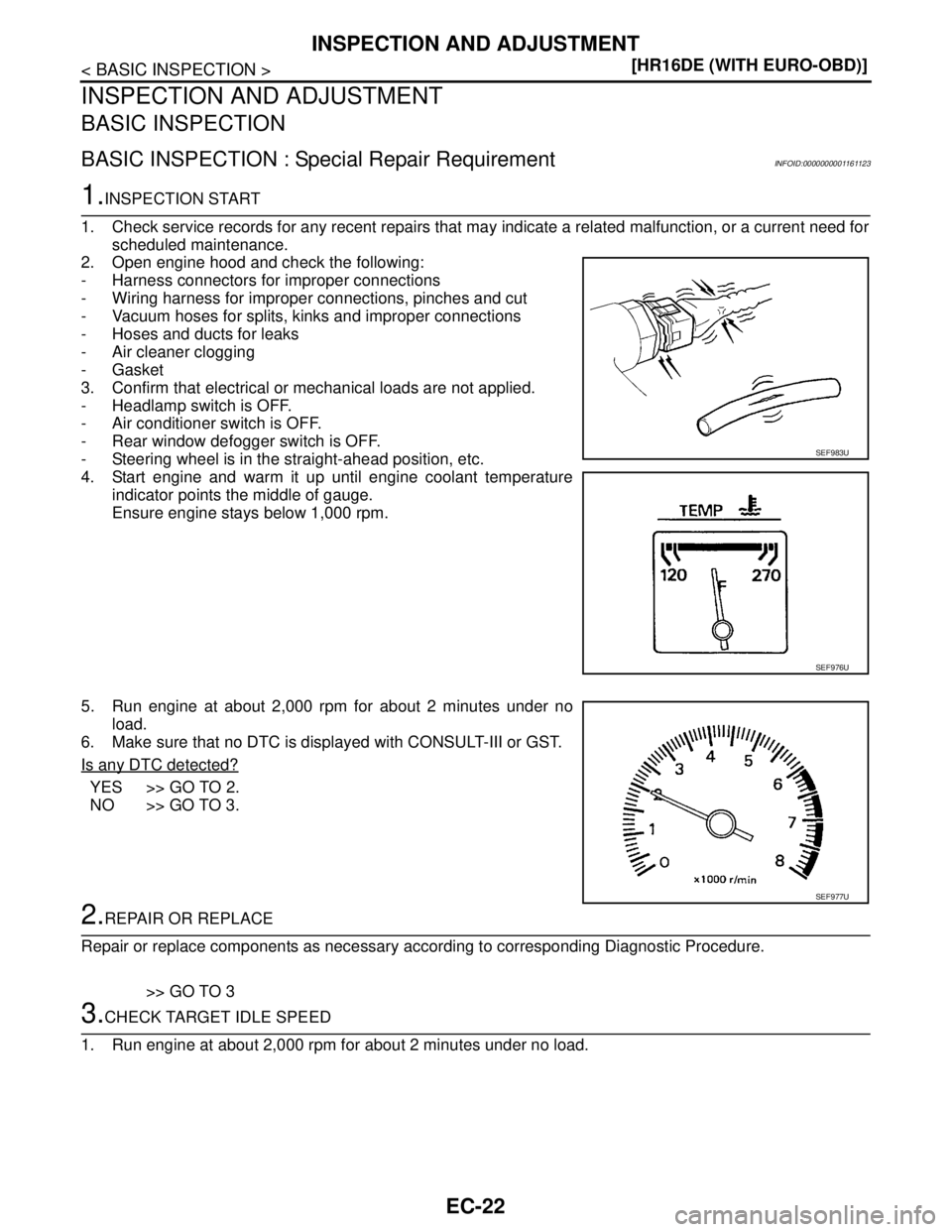

EC-22
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
BASIC INSPECTION : Special Repair RequirementINFOID:0000000001161123
1.INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
- Harness connectors for improper connections
- Wiring harness for improper connections, pinches and cut
- Vacuum hoses for splits, kinks and improper connections
- Hoses and ducts for leaks
- Air cleaner clogging
- Gasket
3. Confirm that electrical or mechanical loads are not applied.
- Headlamp switch is OFF.
- Air conditioner switch is OFF.
- Rear window defogger switch is OFF.
- Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature
indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no
load.
6. Make sure that no DTC is displayed with CONSULT-III or GST.
Is any DTC detected?
YES >> GO TO 2.
NO >> GO TO 3.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3
3.CHECK TARGET IDLE SPEED
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
SEF983U
SEF976U
SEF977U
Page 1372 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-23
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idl NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-23
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idl](/manual-img/5/57395/w960_57395-1371.png)

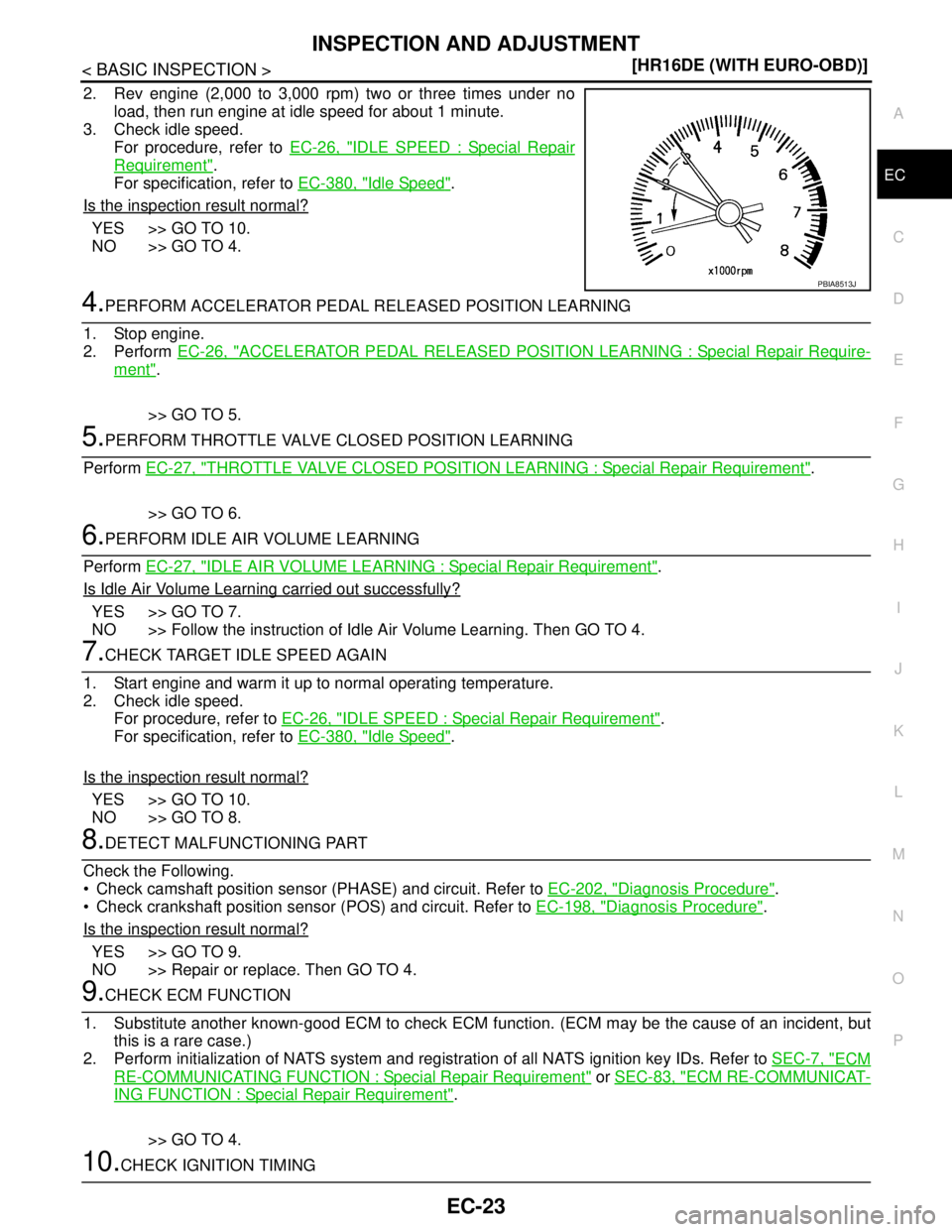

INSPECTION AND ADJUSTMENT
EC-23
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Rev engine (2,000 to 3,000 rpm) two or three times under no
load, then run engine at idle speed for about 1 minute.
3. Check idle speed.
For procedure, refer to EC-26, "
IDLE SPEED : Special Repair
Requirement".
For specification, refer to EC-380, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 4.
4.PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-26, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> GO TO 5.
5.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 6.
6.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
Is Idle Air Volume Learning carried out successfully?
YES >> GO TO 7.
NO >> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.
7.CHECK TARGET IDLE SPEED AGAIN
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
For procedure, refer to EC-26, "
IDLE SPEED : Special Repair Requirement".
For specification, refer to EC-380, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the Following.
Check camshaft position sensor (PHASE) and circuit. Refer to EC-202, "
Diagnosis Procedure".
Check crankshaft position sensor (POS) and circuit. Refer to EC-198, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 9.
NO >> Repair or replace. Then GO TO 4.
9.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to SEC-7, "
ECM
RE-COMMUNICATING FUNCTION : Special Repair Requirement" or SEC-83, "ECM RE-COMMUNICAT-
ING FUNCTION : Special Repair Requirement".
>> GO TO 4.
10.CHECK IGNITION TIMING
PBIA8513J
Page 1373 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-24
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
1. Run engine at idle.
2. Check ignition timing with a timing light.
For procedure, refer to EC-26, "
IGNITION TIMING : Spe NISSAN TIIDA 2007 Service Repair Manual EC-24
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
1. Run engine at idle.
2. Check ignition timing with a timing light.
For procedure, refer to EC-26, "
IGNITION TIMING : Spe](/manual-img/5/57395/w960_57395-1372.png)

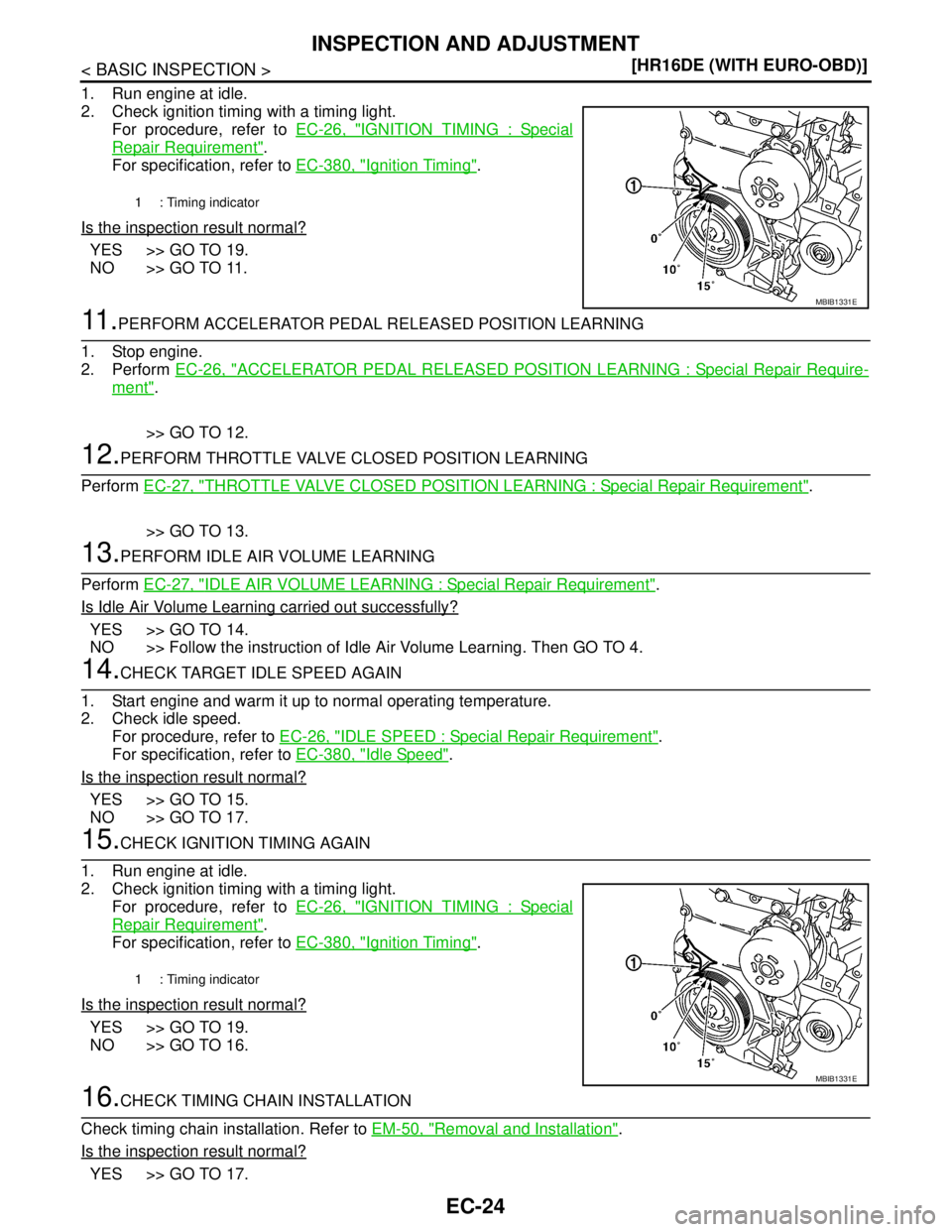

EC-24
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
1. Run engine at idle.
2. Check ignition timing with a timing light.
For procedure, refer to EC-26, "
IGNITION TIMING : Special
Repair Requirement".
For specification, refer to EC-380, "
Ignition Timing".
Is the inspection result normal?
YES >> GO TO 19.
NO >> GO TO 11.
11 .PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-26, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> GO TO 12.
12.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 13.
13.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
Is Idle Air Volume Learning carried out successfully?
YES >> GO TO 14.
NO >> Follow the instruction of Idle Air Volume Learning. Then GO TO 4.
14.CHECK TARGET IDLE SPEED AGAIN
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
For procedure, refer to EC-26, "
IDLE SPEED : Special Repair Requirement".
For specification, refer to EC-380, "
Idle Speed".
Is the inspection result normal?
YES >> GO TO 15.
NO >> GO TO 17.
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light.
For procedure, refer to EC-26, "
IGNITION TIMING : Special
Repair Requirement".
For specification, refer to EC-380, "
Ignition Timing".
Is the inspection result normal?
YES >> GO TO 19.
NO >> GO TO 16.
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-50, "
Removal and Installation".
Is the inspection result normal?
YES >> GO TO 17.
1 : Timing indicator
MBIB1331E
1 : Timing indicator
MBIB1331E
Page 1374 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-25
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
NO >> Repair the timing chain installation. Then GO TO 4.
17.DETECT MALFUNCTIONING PART
Che NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-25
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
NO >> Repair the timing chain installation. Then GO TO 4.
17.DETECT MALFUNCTIONING PART
Che](/manual-img/5/57395/w960_57395-1373.png)
INSPECTION AND ADJUSTMENT
EC-25
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
NO >> Repair the timing chain installation. Then GO TO 4.
17.DETECT MALFUNCTIONING PART
Check the following.
Check camshaft position sensor (PHASE) and circuit. Refer to EC-202, "
Diagnosis Procedure".
Check crankshaft position sensor (POS) and circuit. Refer to EC-198, "
Diagnosis Procedure".
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair or replace. Then GO TO 4.
18.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to SEC-7, "
ECM
RE-COMMUNICATING FUNCTION : Special Repair Requirement" or SEC-83, "ECM RE-COMMUNICAT-
ING FUNCTION : Special Repair Requirement".
>> GO TO 4.
19.INSPECTION END
If ECM is replaced during this BASIC INSPECTION procedure, go to EC-25, "
ADDITIONAL SERVICE WHEN
REPLACING CONTROL UNIT : Special Repair Requirement".
>> INSPECTION END
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000001161124
When replacing ECM, this procedure must be performed.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000001161125
1.PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS
Refer to SEC-7, "
ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement".
>> GO TO 2.
2.PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
Refer to EC-26, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Requirement".
>> GO TO 3.
3.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-27, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement".
>> GO TO 4.
4.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-27, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
>> END
IDLE SPEED
Page 1375 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EC-26
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
IDLE SPEED : Description
INFOID:0000000001161126
This describes how to check the idle speed. For the actual procedure, foll NISSAN TIIDA 2007 Service Repair Manual EC-26
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
IDLE SPEED : Description
INFOID:0000000001161126
This describes how to check the idle speed. For the actual procedure, foll](/manual-img/5/57395/w960_57395-1374.png)
EC-26
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
INSPECTION AND ADJUSTMENT
IDLE SPEED : Description
INFOID:0000000001161126
This describes how to check the idle speed. For the actual procedure, follow the instructions in “BASIC
INSPECTION”.
IDLE SPEED : Special Repair RequirementINFOID:0000000001161127
1.CHECK IDLE SPEED
With CONSULT-III
Check idle speed in “DATA MONITOR” mode with CONSULT-III.
With GST
Check idle speed with Service $01 of GST.
>> INSPECTION END
IGNITION TIMING
IGNITION TIMING : DescriptionINFOID:0000000001161128
This describes how to check the ignition timing. For the actual procedure, follow the instructions in “BASIC
INSPECTION”.
IGNITION TIMING : Special Repair RequirementINFOID:0000000001161129
1.CHECK IGNITION TIMING
1. Attach timing light to No.1 ignition coil wire harness (1) as
shown.
2. Check ignition timing.
>> INSPECTION END
ACCELERATOR PEDAL RELEASED POSITION LEARNING
ACCELERATOR PEDAL RELEASED POSITION LEARNING : DescriptionINFOID:0000000001161130
Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each
time harness connector of accelerator pedal position sensor or ECM is disconnected.
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Re-
2 : Timing light
: Vehicle front
PBIB2955E
1 : Timing indicator
MBIB1331E
Page 1376 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-27
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
quirementINFOID:0000000001161131
1.START
1. Make sure that accelerator pedal is fully relea NISSAN TIIDA 2007 Service Repair Manual INSPECTION AND ADJUSTMENT
EC-27
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
quirementINFOID:0000000001161131
1.START
1. Make sure that accelerator pedal is fully relea](/manual-img/5/57395/w960_57395-1375.png)
INSPECTION AND ADJUSTMENT
EC-27
< BASIC INSPECTION >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
quirementINFOID:0000000001161131
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON and wait at least 2 seconds.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and wait at least 2 seconds.
5. Turn ignition switch OFF and wait at least 10 seconds.
>> END
THROTTLE VALVE CLOSED POSITION LEARNING
THROTTLE VALVE CLOSED POSITION LEARNING : DescriptionINFOID:0000000001161132
Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time harness connec-
tor of electric throttle control actuator or ECM is disconnected.
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement
INFOID:0000000001161133
1.START
1. Make sure that accelerator pedal is fully released.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
Make sure that throttle valve moves during above 10 seconds by confirming the operating sound.
>> END
IDLE AIR VOLUME LEARNING
IDLE AIR VOLUME LEARNING : DescriptionINFOID:0000000001161134
Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps each engine idle speed
within the specific range. It must be performed under any of the following conditions:
Each time electric throttle control actuator or ECM is replaced.
Idle speed or ignition timing is out of specification.
IDLE AIR VOLUME LEARNING : Special Repair RequirementINFOID:0000000001161135
1.PRECONDITIONING
Make sure that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
Battery voltage: More than 12.9V (At idle)
Engine coolant temperature: 70 - 100°C (158 - 212°F)
Park/neutral position switch: ON
Electric load switch: OFF
(Air conditioner, headlamp, rear window defogger)
On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light only
small lamps.
Steering wheel: Neutral (Straight-ahead position)
Vehicle speed: Stopped
Transmission: Warmed-up
- For A/T models with CONSULT-III
Drive vehicle until “ATF TEMP SE 1” in “DATA MONITOR” mode of “A/T” system indicates less than 0.9V.
- For A/T models without CONSULT-III and M/T models.
Drive vehicle for 10 minutes
Do you have CONSULT-III?
YES >> GO TO 2.
