Page 2009 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-660
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ECM

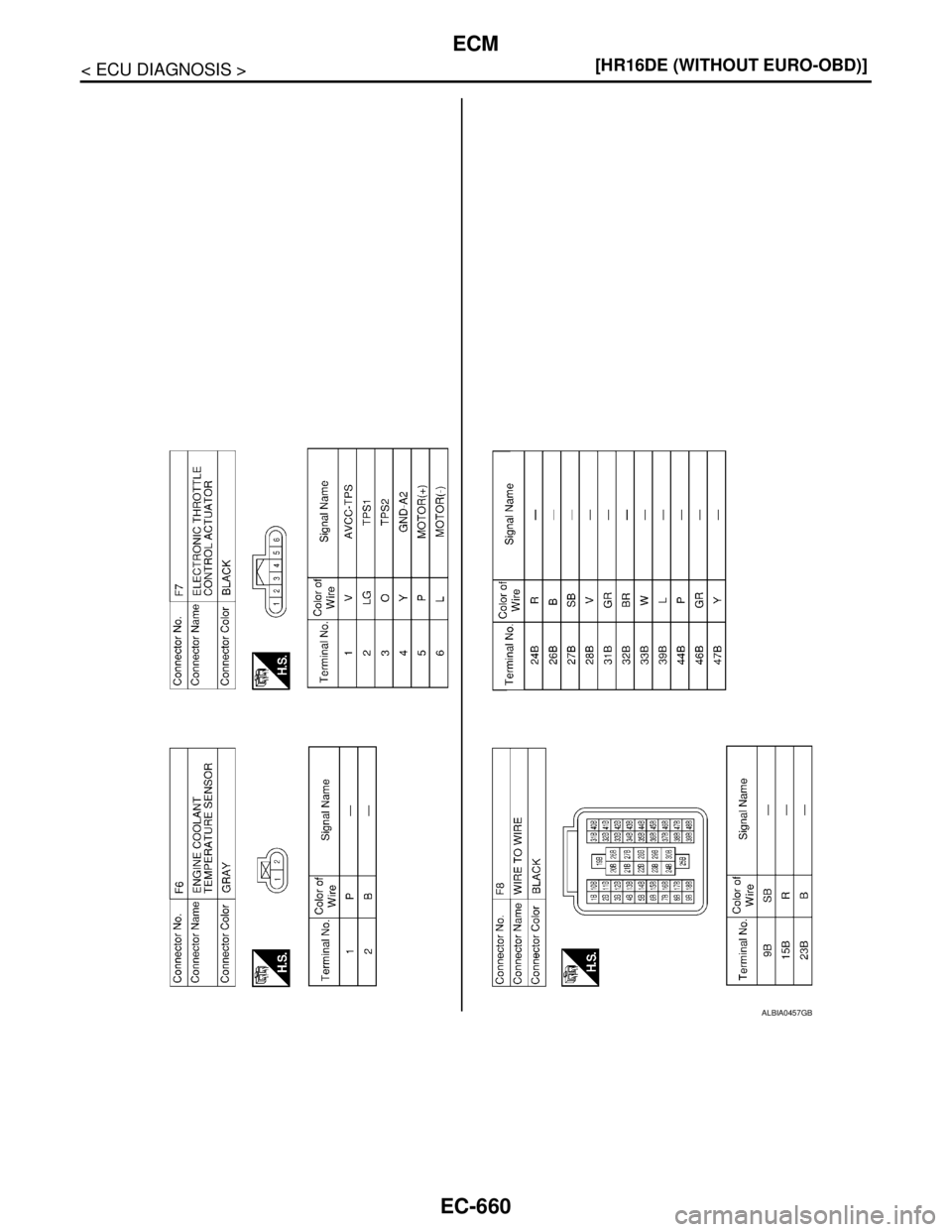

ALBIA0457GB

Page 2010 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-661
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

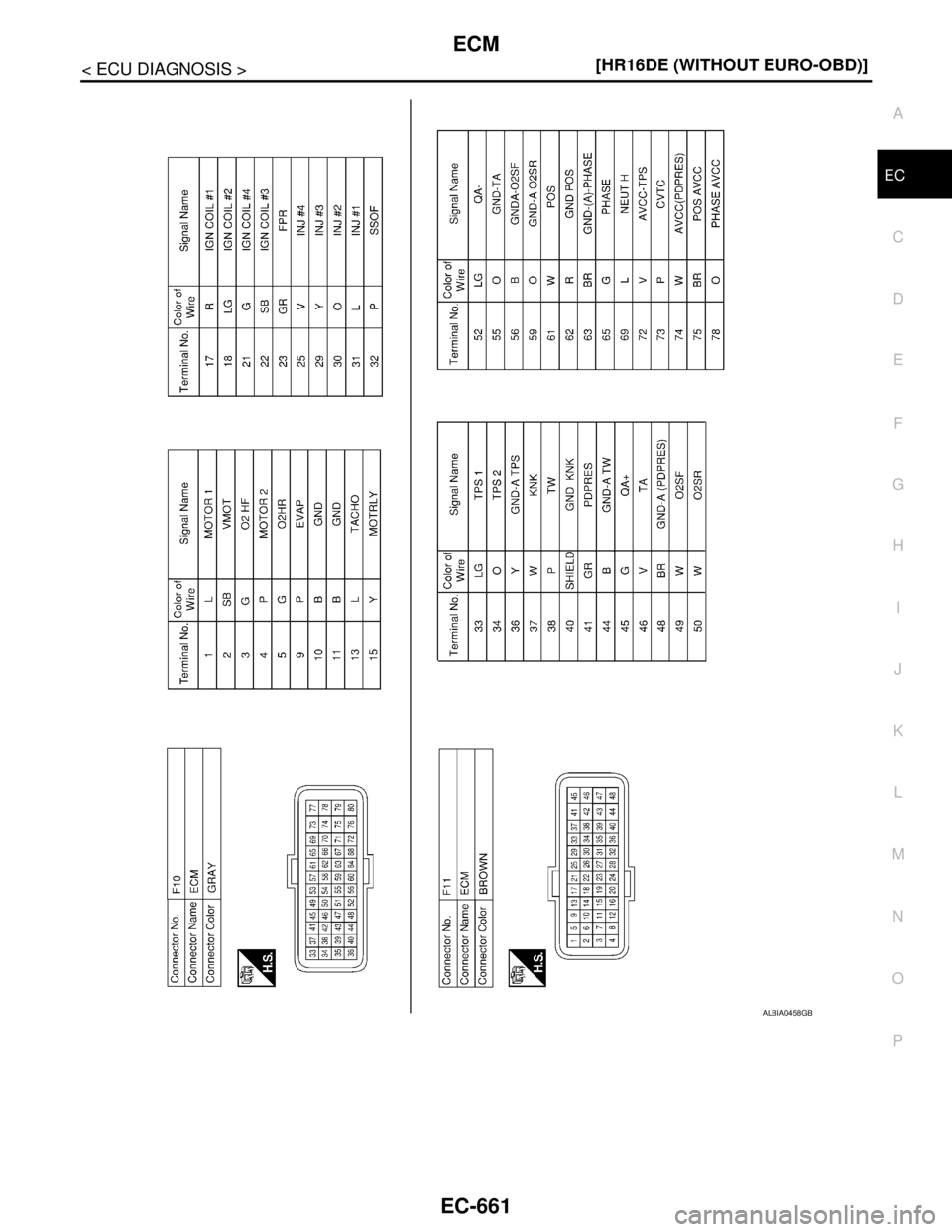

ALBIA0458GB

Page 2011 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-662
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ECM

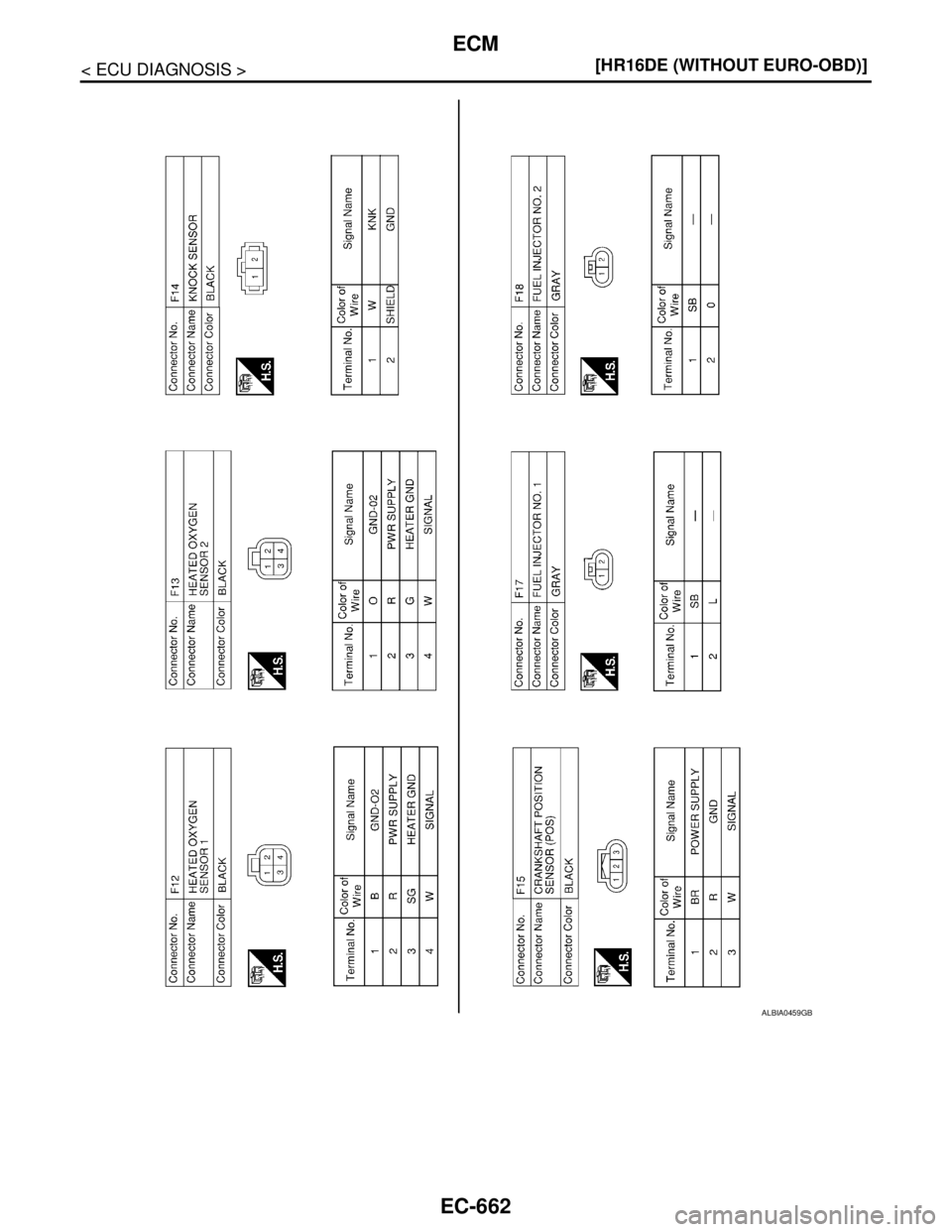

ALBIA0459GB

Page 2012 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-663
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

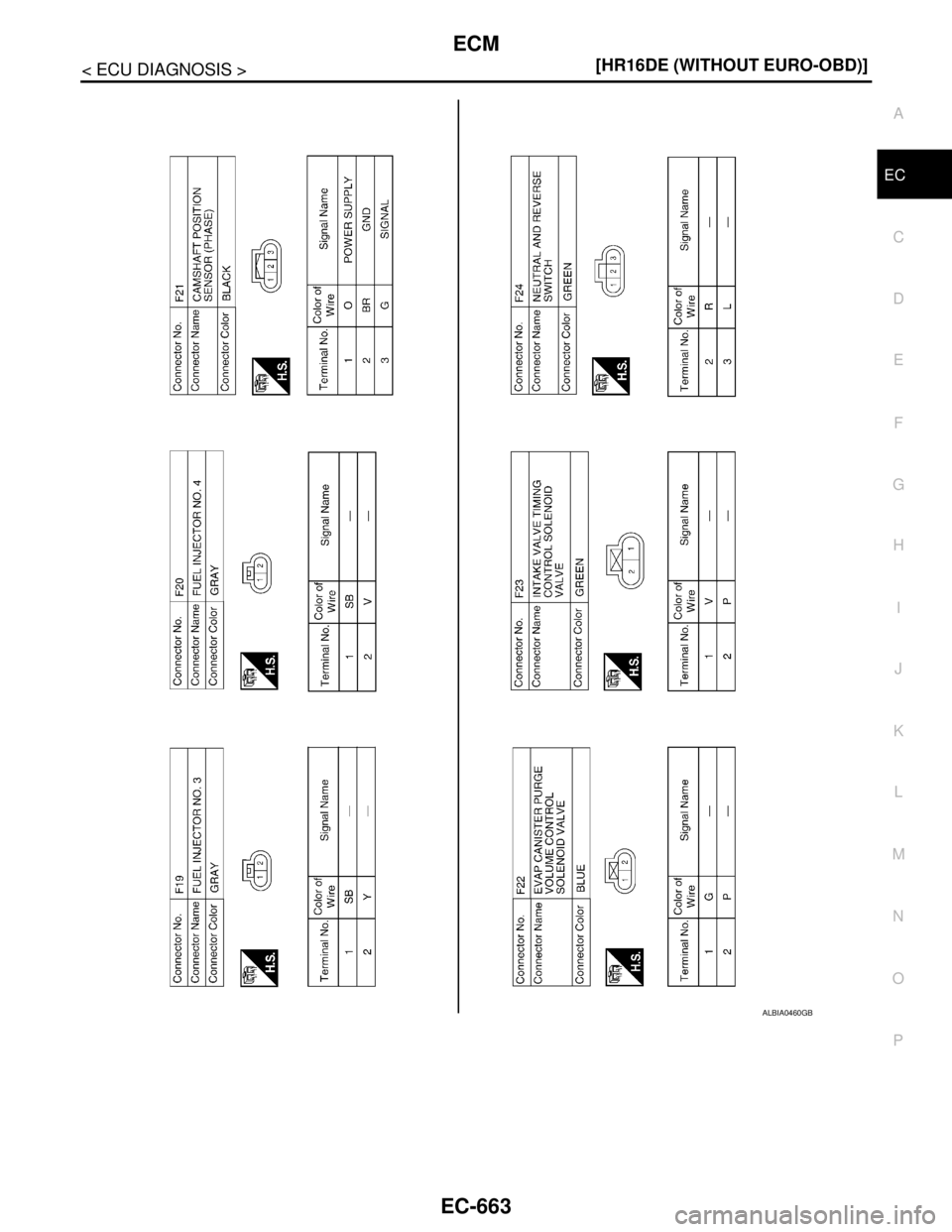

ALBIA0460GB

Page 2013 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-664
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ECM

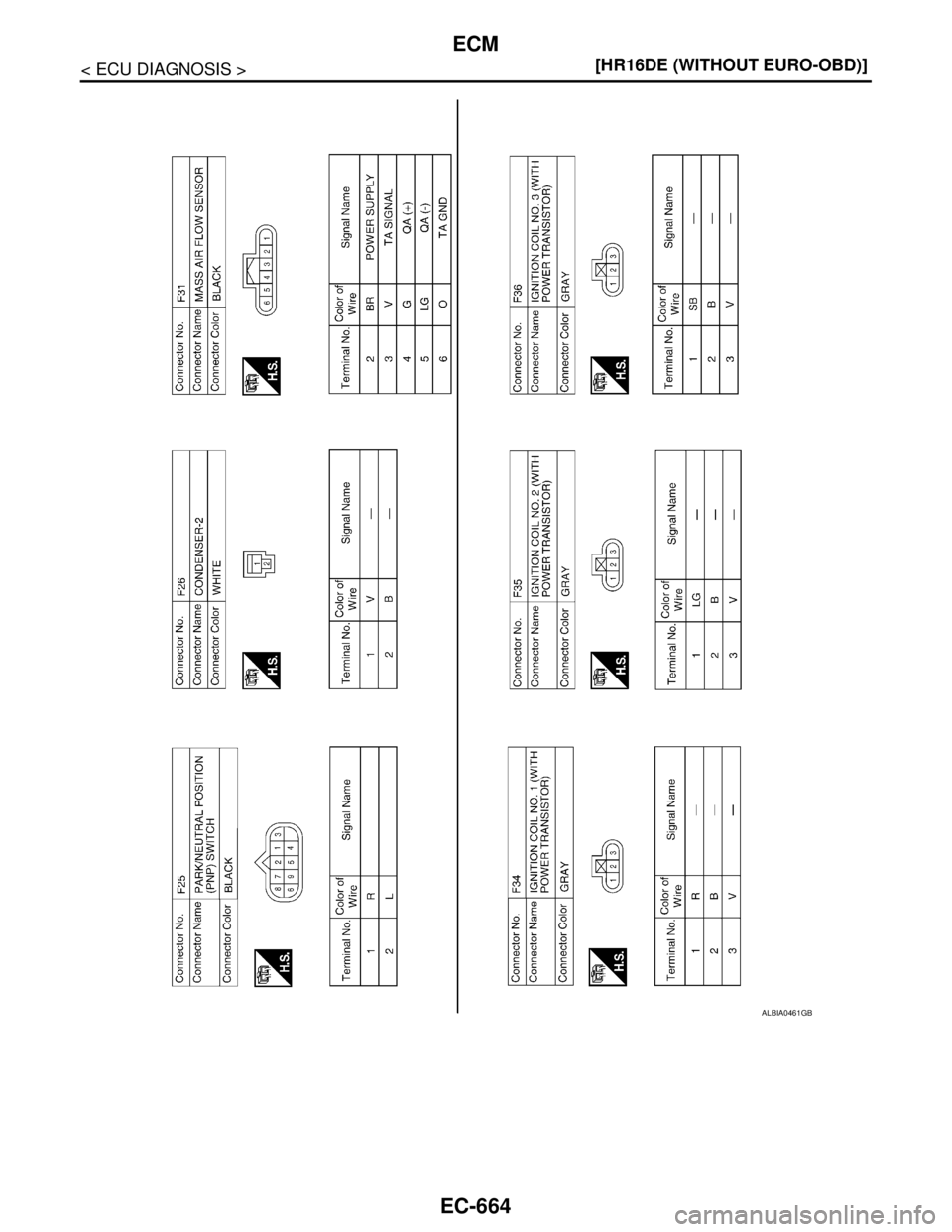

ALBIA0461GB

Page 2014 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-665
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Fail SafeINFOID:0000000001693501
NON DTC RELATED ITEM
ALBIA0462GB

Page 2015 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-666
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ECM
DTC RELATED ITEM
Engine operating condi-
tion in fail-safe modeDetected items RemarksReference
page
Engine speed will not
rise more than 2,500

EC-666
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ECM
DTC RELATED ITEM
Engine operating condi-
tion in fail-safe modeDetected items RemarksReference
page
Engine speed will not
rise more than 2,500 rpm
due to the fuel cutMalfunction indicator
lamp circuitWhen there is an open circuit on MI circuit, the ECM cannot warn the
driver by lighting up MI when there is malfunction on engine control
system.
Therefore, when electrical controlled throttle and part of ECM related
diagnoses are continuously detected as NG for 5 trips, ECM warns the
driver that engine control system malfunctions and MI circuit is open by
means of operating fail-safe function.
The fail-safe function also operates when above diagnoses except MI
circuit are detected and demands the driver to repair the malfunction.EC-630
DTC No. Detected items Engine operating condition in fail-safe mode
P0011 Intake valve timing control The signal is not energized to the intake valve timing control solenoid valve and the valve
control does not function.
P0102
P0103Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.
P0117
P0118Engine coolant tempera-
ture sensor circuitEngine coolant temperature will be determined by ECM based on the time after turning
ignition switch ON or START.
CONSULT-III displays the engine coolant temperature decided by ECM.
ConditionEngine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON
or START40°C (104°F)
More than approx. 4 minutes after
ignition ON or START80°C (176°F)
Except as shown above40 - 80°C (104 - 176°F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.
P0122
P0123
P0222
P0223
P2135Throttle position sensor The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor.
P0605 ECM (When ECM calculation function is malfunctioning:)
ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
ECM deactivates ASCD operation.
P1121 Electric throttle control ac-
tuator(When electric throttle control actuator does not function properly due to the return spring
malfunction:)
ECM controls the electric throttle actuator by regulating the throttle opening around the
idle position. The engine speed will not rise more than 2,000 rpm.
(When throttle valve opening angle in fail-safe mode is not in specified range:)
ECM controls the electric throttle control actuator by regulating the throttle opening to 20
degrees or less.
(When ECM detects the throttle valve is stuck open:)
While the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the
engine stalls.
The engine can restart in P or N (A/T), Neutral (M/T) position, and engine speed will not
exceed 1,000 rpm or more.
P1122 Electric throttle control
functionECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1124
P1126Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

Page 2016 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-667
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC Inspection Priority ChartINFOID:0000000001693502
If some DTCs are displayed at the same time, perform inspec

ECM
EC-667
< ECU DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
DTC Inspection Priority ChartINFOID:0000000001693502
If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.
DTC IndexINFOID:0000000001693503
×:Applicable —: Not applicable
P1128 Throttle control motor ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1229 Sensor power supply ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
P1805 Brake switch ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
P2122
P2123
P2127
P2128
P2138Accelerator pedal position
sensorThe ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
So, the acceleration will be poor. DTC No. Detected items Engine operating condition in fail-safe mode
Priority Detected items (DTC)
1 U1000 U1001 CAN communication line
U1010 CAN communication
P0102 P0103 Mass air flow sensor
P0117 P0118 Engine coolant temperature sensor
P0122 P0123 P0222 P0223 P1225 P1226 P2135 Throttle position sensor
P0327 P0328 Knock sensor
P0335 Crankshaft position sensor (POS)
P0340 Camshaft position sensor (PHASE)
P0605 ECM
P1229 Sensor power supply
P1610 - P1615 NATS
P1706 Park/neutral position (PNP) switch
P2122 P2123 P2127 P2128 P2138 Accelerator pedal position sensor
2 P0132 P0134 Heated oxygen sensor 1
P0138 Heated oxygen sensor 2
P1065 ECM
P 1111 I n t a k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e
P1122 Electric throttle control function
P1124 P1126 Throttle control motor relay
P1128 Throttle control motor
P1217 Engine over temperature (OVERHEAT)
P1805 Brake switch
P1564 ASCD steering switch
P1572 ASCD brake switch
P1574 ASCD vehicle speed sensor
3 P0011 Intake valve timing control
P1121 Electric throttle control actuator
P1212 ESP communication line
DTC*1Items
(CONSULT-III screen terms)Trip MI Reference page
CONSULT-III
ECM*
2
U1000
1000*3CAN COMM CIRCUIT 2 —EC-481
U1001
1001*3CAN COMM CIRCUIT 2 —EC-481
