REMOVAL AND INSTALLATION
TRANSAXLE ASSEMBLY
Exploded ViewINFOID:0000000001731428
Removal and InstallationINFOID:0000000001731429
REMOVAL
1. Remove the engine and transaxle as an assembly. Refer to EM-89, "Removal and Installation".

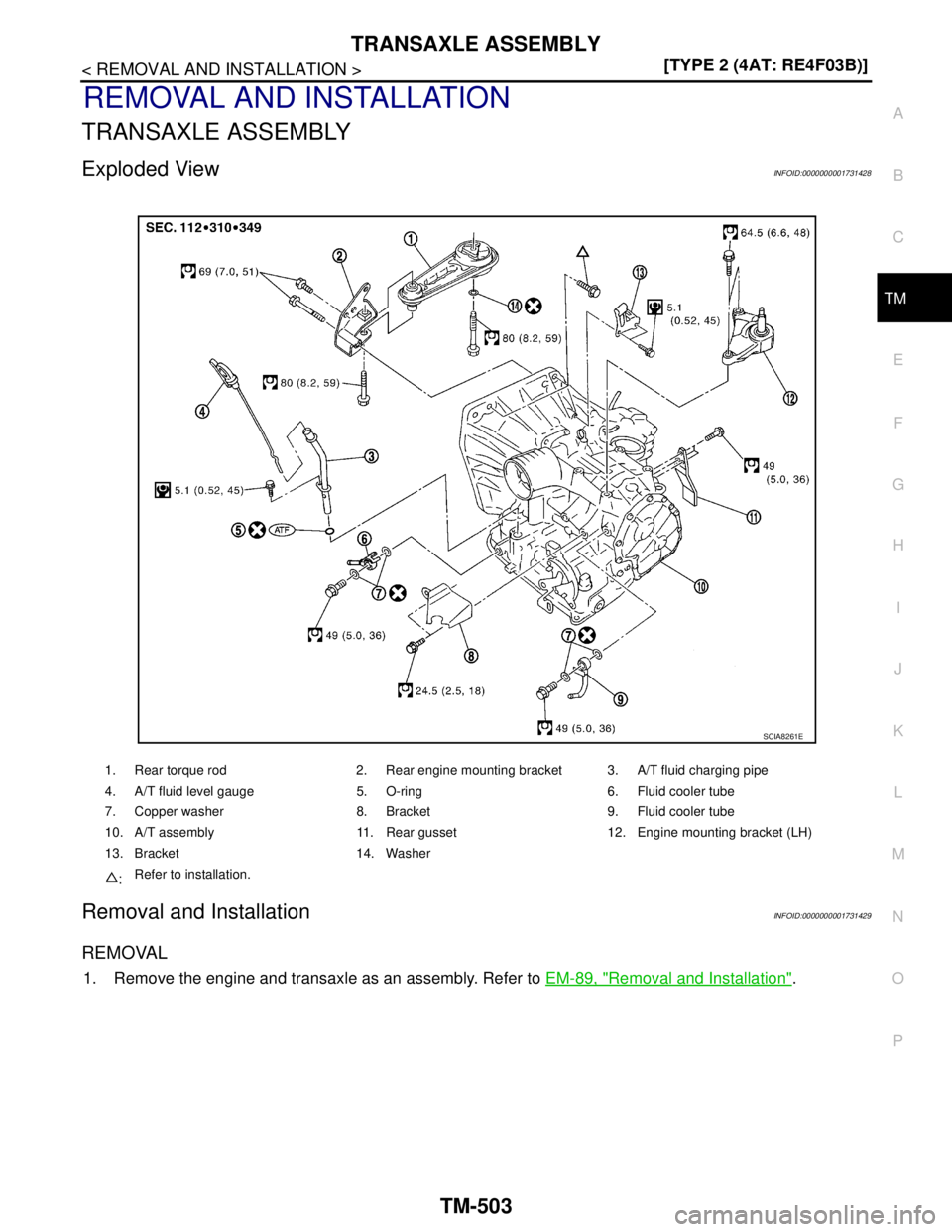

1. Rear torque rod 2. Rear engine mounting bracket 3. A/T fluid charging pipe
4. A/T fluid level gauge 5. O-ring 6. Fluid cooler tube
7. Copper washer 8. Bracket 9. Fluid cooler tube
10. A/T assembly 11. Rear gusset 12. Engine mounting bracket (LH)
13. Bracket 14. Washer
: Refer to installation.
SCIA8261E
Page 5450 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-504
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
TRANSAXLE ASSEMBLY
2. Disconnect the following connectors and remove the wire har-
ness.
Turbine revolution sensor (power train revolution NISSAN TIIDA 2007 Service Repair Manual TM-504
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
TRANSAXLE ASSEMBLY
2. Disconnect the following connectors and remove the wire har-
ness.
Turbine revolution sensor (power train revolution](/manual-img/5/57395/w960_57395-5449.png)
TM-504
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
TRANSAXLE ASSEMBLY
2. Disconnect the following connectors and remove the wire har-
ness.
Turbine revolution sensor (power train revolution sensor) har-
ness connector (1)
Terminal cord assembly harness connector (2)
PNP switch connector (3)
Revolution sensor harness connector (4)
3. Remove the four drive plate to torque converter bolts.
NOTE:
Rotate the crankshaft clockwise as viewed from front of engine
for access to drive plate to torque converter bolts.
4. Put matching marks on the drive plate and torque converter.
CAUTION:
For matching marks, use paint. Never damage the drive plate or torque converter.
5. Remove the transaxle to engine and engine to transaxle bolts.
6. Separate the transaxle from the engine.
CAUTION:
Secure torque converter to prevent it from dropping.
7. If necessary, remove the following from the transaxle:
Fluid cooler tubes (1) and copper washers
A/T fluid level gauge (2) and charging pipe (3)
PNP switch
Air breather hose
Engine mounting bracket (LH)
Any necessary brackets
INSPECTION
WCIA0647E
WCIA0616E
WCIA0648E
Page 5451 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TRANSAXLE ASSEMBLY
TM-505
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
When installing the torque converter to the transaxle measure dis-
tance A.
INSTALLATION
I NISSAN TIIDA 2007 Service Repair Manual TRANSAXLE ASSEMBLY
TM-505
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
When installing the torque converter to the transaxle measure dis-
tance A.
INSTALLATION
I](/manual-img/5/57395/w960_57395-5450.png)
TRANSAXLE ASSEMBLY
TM-505
< REMOVAL AND INSTALLATION >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
When installing the torque converter to the transaxle measure dis-
tance A.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing an engine or transmission you must make sure any dowels are installed correctly
during re-assembly.
Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drive
train components.
Do not reuse O-rings and copper washers. Refer to TM-503, "
Exploded View".
When turning crankshaft, turn it clockwise as viewed from the front of the engine.
When tightening the bolts for the torque converter while securing the crankshaft pulley bolt, be sure
to confirm the tightening torque of the crankshaft pulley bolt. Refer to EM-50, "
Removal and Installa-
tion".
After converter is installed to drive plate, rotate crankshaft several turns to check that transaxle
rotates freely without binding.
When installing the transaxle to the engine, align the matching mark on the drive plate with the matching
mark on the torque converter.
When securing the transaxle assembly to the engine, attach the
bolts in accordance with the following standard.
(A): A/T to engine
(B): Engine to A/T
Align the positions for the bolts on drive plate with those of the
torque converter, and temporarily tighten bolts. Then, tighten bolts
to the specified torque.
After completing installation, check for A/T fluid leakage, A/T fluid
level and A/T positions. Refer to TM-171, "
Checking A/T Fluid" and
TM-497, "
Checking of A/T Position". Dimension A: 16.2 mm (0.638 in) or more
SAT430D
Bolt No. 1234
Number of bolts 2 2 1 3
Bolt length “L”
[mm (in)]40 (1.57) 44 (1.73) 69 (2.72) 49 (1.93)
Tightening torque
[N·m (kg-m, ft-lb)]48 (4.9, 35)
SCIA7096E
Converter bolts : 51 N·m (5.2 kg-m, 38 ft-lb)
WCIA0616E
Page 5452 of 5883
TM-506
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
OVERHAUL
DISASSEMBLY AND ASSEMBLY
OVERHAUL
ComponentINFOID:0000000001731430
SCIA7177E
Page 5453 of 5883
OVERHAUL
TM-507
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

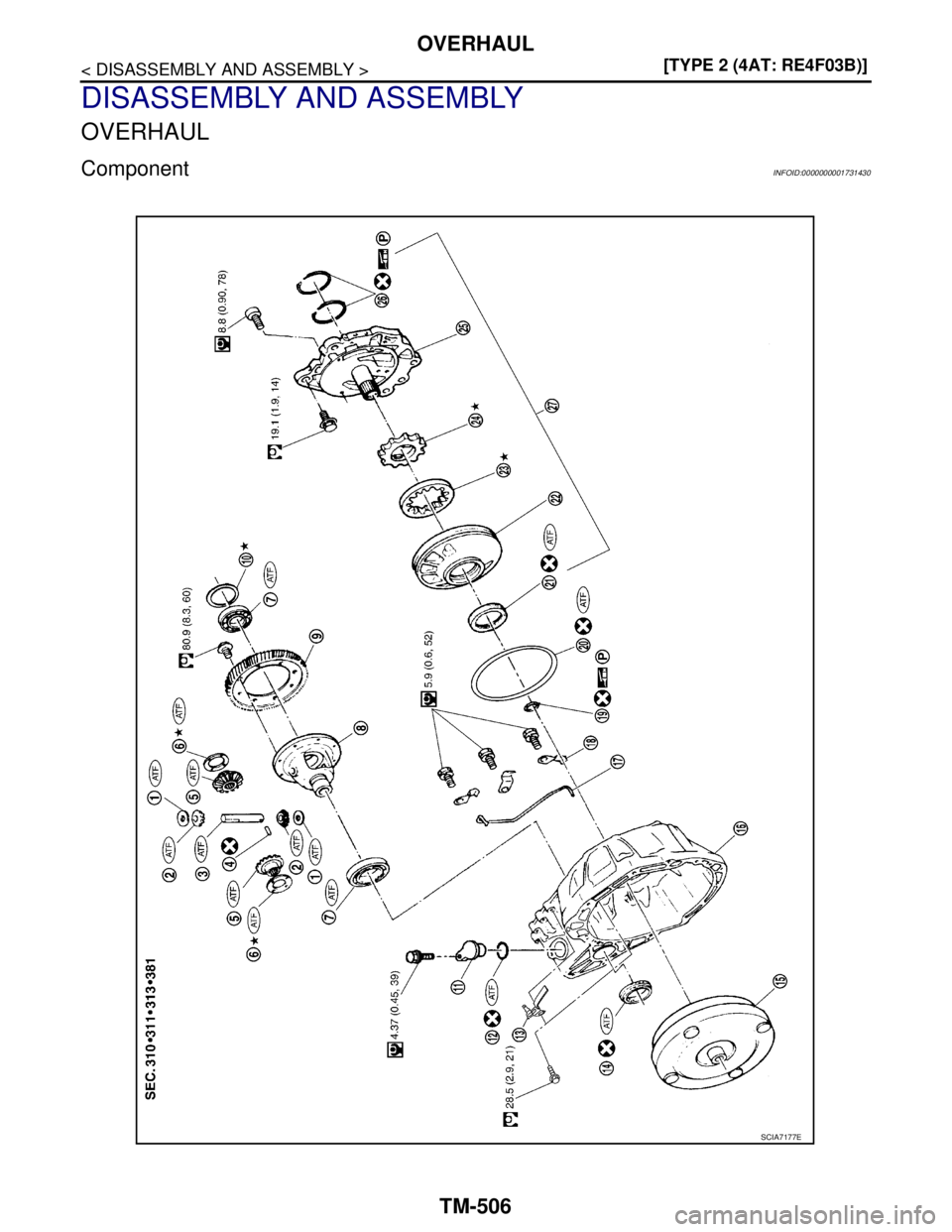

1. Pinion mate gear thrust washer 2. Pinion mate gear 3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Differential case 9. Final gear
10. Differential side bearing adjusting
shim11. Plug 12. O-ring
13. Bracket 14. RH differential side oil seal 15. Torque converter
16. Converter housing 17. Differential lubricant tube 18. Clip
19. O-ring 20. O-ring 21. Oil pump housing oil seal
22. Oil pump housing 23. Outer gear 24. Inner gear
25. Oil pump cover 26. Seal ring 27. Oil pump assembly
Page 5454 of 5883
TM-508
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
OVERHAUL

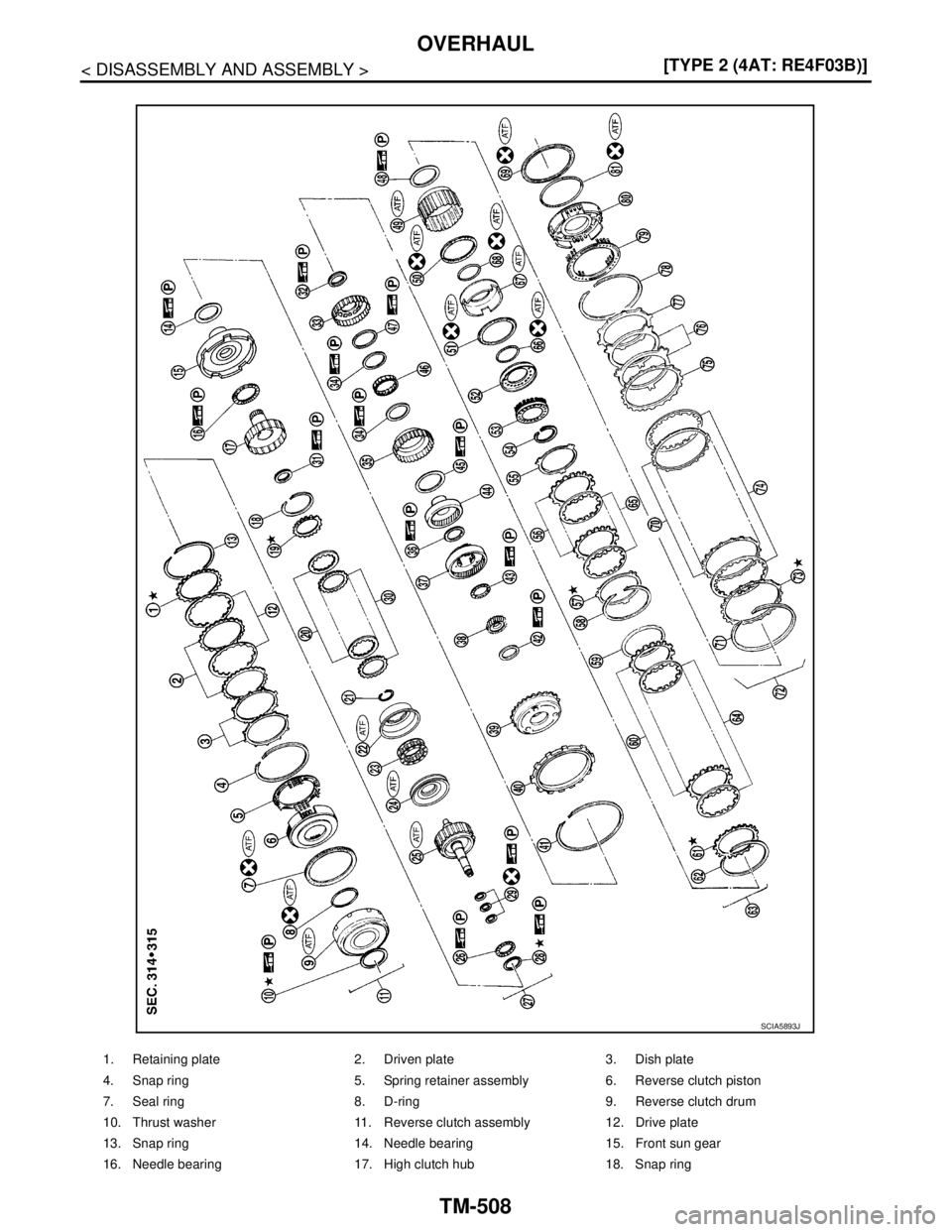

1. Retaining plate 2. Driven plate 3. Dish plate
4. Snap ring 5. Spring retainer assembly 6. Reverse clutch piston
7. Seal ring 8. D-ring 9. Reverse clutch drum
10. Thrust washer 11. Reverse clutch assembly 12. Drive plate
13. Snap ring 14. Needle bearing 15. Front sun gear
16. Needle bearing 17. High clutch hub 18. Snap ring
SCIA5893J
Page 5455 of 5883
![NISSAN TIIDA 2007 Service Repair Manual OVERHAUL
TM-509
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
19. Retaining plate 20. Drive plate 21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24. NISSAN TIIDA 2007 Service Repair Manual OVERHAUL
TM-509
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
19. Retaining plate 20. Drive plate 21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24.](/manual-img/5/57395/w960_57395-5454.png)
OVERHAUL
TM-509
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
19. Retaining plate 20. Drive plate 21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24. High clutch piston
25. Input shaft assembly (high clutch
drum)26. Needle bearing 27. High clutch assembly
28. Bearing race 29. Seal ring 30. Driven plate
31. Needle bearing 32. Needle bearing 33. Overrun clutch hub
34. End bearing 35. Forward clutch hub 36. Needle bearing
37. Rear planetary carrier 38. Rear sun gear 39. Front planetary carrier
40. Low one-way clutch 41. Snap ring 42. Needle bearing
43. Needle bearing 44. Rear internal gear 45. Thrust washer
46. Forward one-way clutch 47. Thrust washer 48. Thrust washer
49. Forward clutch drum 50. Seal ring 51. Seal ring
52. Overrun clutch piston 53. Spring retainer assembly 54. Snap ring
55. Dish plate 56. Driven plate 57. Retaining plate
58. Snap ring 59. Dish plate 60. Driven plate
61. Retaining plate 62. Snap ring 63. Forward clutch assembly and over-
run clutch assembly
64. Drive plate 65. Drive plate 66. D-ring
67. Forward clutch piston 68. D-ring 69. Seal ring
70. Driven plate 71. Snap ring 72. Low & reverse brake assembly
73. Retaining plate 74. Drive plate 75. Retaining plate
76. Dish plate 77. Driven plate 78. Snap ring
79. Spring retainer assembly 80. Low & reverse brake piston 81. D-ring
Page 5456 of 5883
TM-510
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
OVERHAUL
1. Snap ring 2. Governor cap 3. O-ring
4. Lock nut 5. Anchor end pin 6. Transaxle case
7. Reduction pinion gear bearing 8. Reduction pinion gear 9. Brake band
10. Output shaft 11. Seal ring 12. Output shaft bearing
13. Seal ring 14. Bearing retainer 15. O-ring

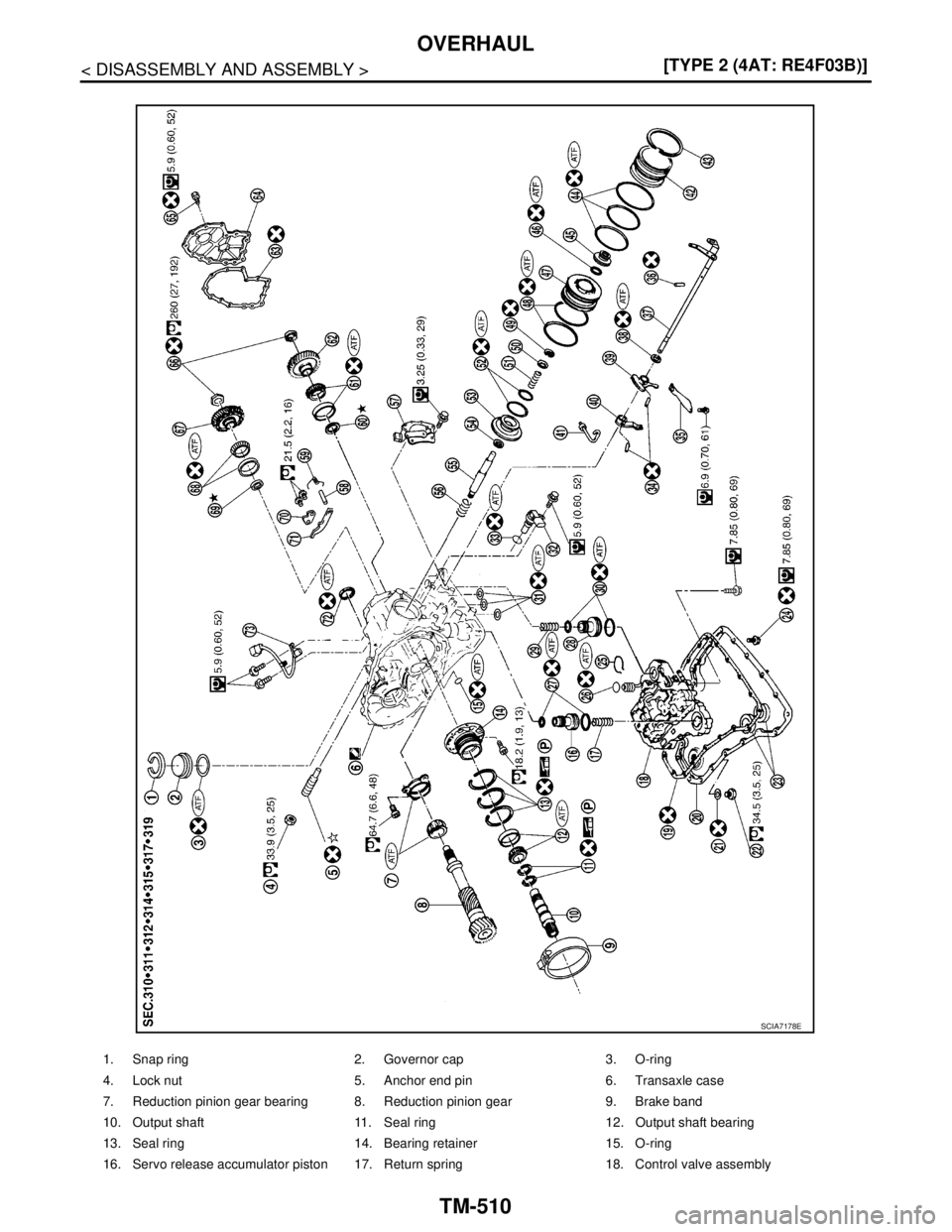

16. Servo release accumulator piston 17. Return spring 18. Control valve assembly
