Page 5489 of 5883
REPAIR FOR COMPONENT PARTS
TM-543
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
g. Install bolts (E) from bottom of control valve lower body (1).
Using bolts (E) as guides, install separating plate (2) as a set.
h. Install support plates (3) on control valve lower body (1).
i. Install control valve lower body (1) on control valve inter body (2)
using reamer bolts (F) as guides, and tighten reamer bolts (F)
slightly.
2. Install O-rings on solenoid valves and terminal body.
3. Install and tighten bolts.
(1): Control valve upper body
(2): Control valve inter body
(3): Control valve lower body
(4): Support plate
SCIA7013E
SCIA7014E
SCIA7180E
SCIA7058E
Page 5490 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-544
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Bolt length, number and location:
*: Reamer bolt and nut.
a. Install and tighten bolts (B) to the specified torque NISSAN TIIDA 2007 Service Repair Manual TM-544
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Bolt length, number and location:
*: Reamer bolt and nut.
a. Install and tighten bolts (B) to the specified torque](/manual-img/5/57395/w960_57395-5489.png)
TM-544
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Bolt length, number and location:
*: Reamer bolt and nut.
a. Install and tighten bolts (B) to the specified torque.
b. Install solenoid valve assembly (1) on control valve assembly.
c. Tighten bolts (A), (C) and (G) to the specified torque.
d. Remove reamer bolts (F), and then set oil strainer (1) on control
valve assembly
e. Install and tighten bolts (A), (D), reamer bolts (F) and nuts to the
specified torque.
f. Tighten bolts (E) to the specified torque.
Bolt symbol A B C D E F*G
Bolt length “ ” [mm (in)]
13.5
(0.531)58.0
(2.283) 40.0
(1.575)66.0
(2.598)33.0
(1.299)78.0
(3.071)18.0
(0.709)
Number of bolts 6 3 6 11 2 2 1
Tightening torque
[N·m (kg-m, in-lb)]7.84 (0.80, 69)3.92
(0.40, 35)7.84 (0.80, 69)
Bolts: 7.84 N·m (0.80 kg-m, 69 in-lb)
ATL0032D
Bolts: 7.84 N·m (0.80 kg-m, 69 in-lb)
SCIA7008E
Nuts and bolts: 7.84 N·m (0.80 kg-m, 69 in-lb)
SCIA7131E
Bolts: 3.92 N·m (0.40 kg-m, 35 in-lb)
ATL0035D
Page 5491 of 5883
REPAIR FOR COMPONENT PARTS
TM-545
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

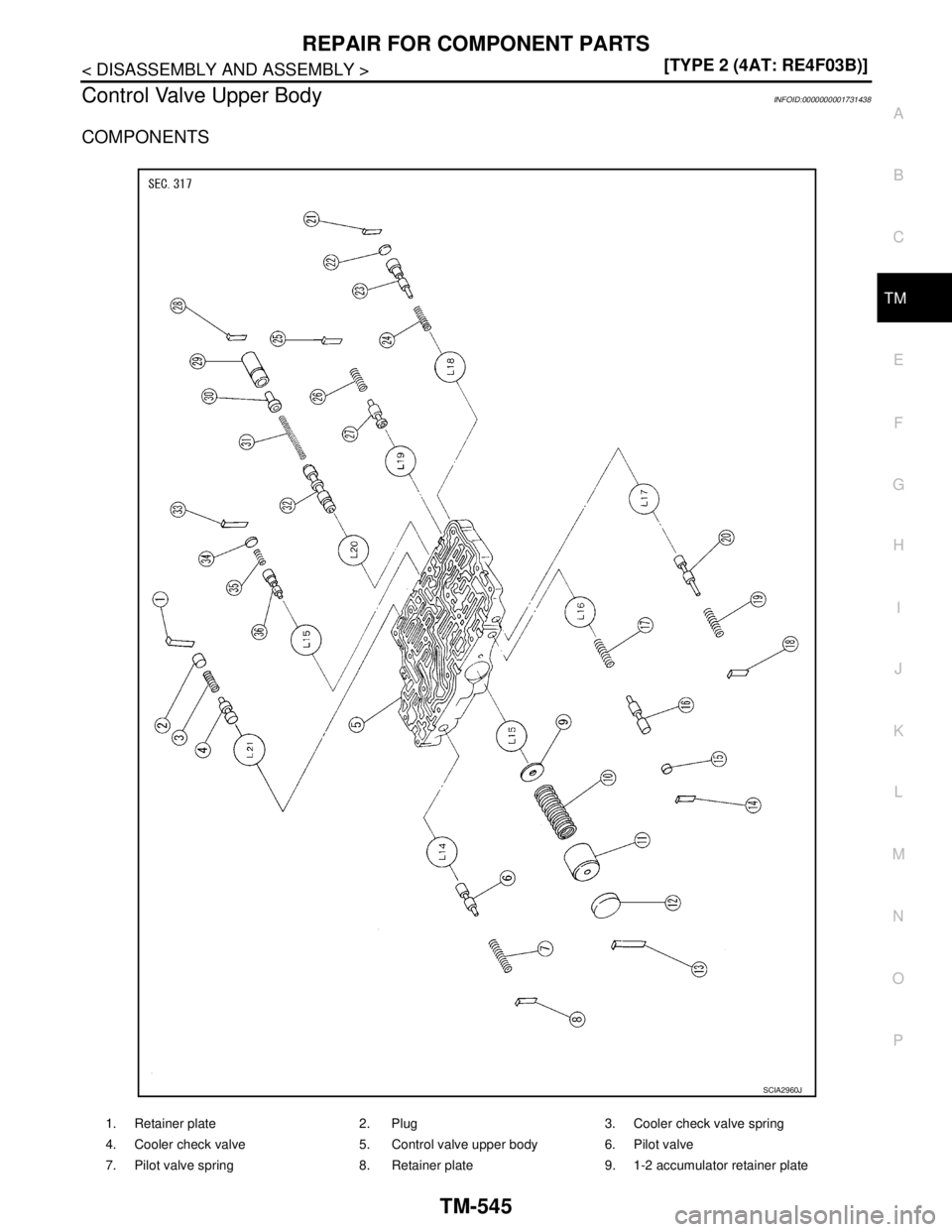

Control Valve Upper BodyINFOID:0000000001731438
COMPONENTS
1. Retainer plate 2. Plug 3. Cooler check valve spring
4. Cooler check valve 5. Control valve upper body 6. Pilot valve
7. Pilot valve spring 8. Retainer plate 9. 1-2 accumulator retainer plate
SCIA2960J
Page 5492 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-546
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

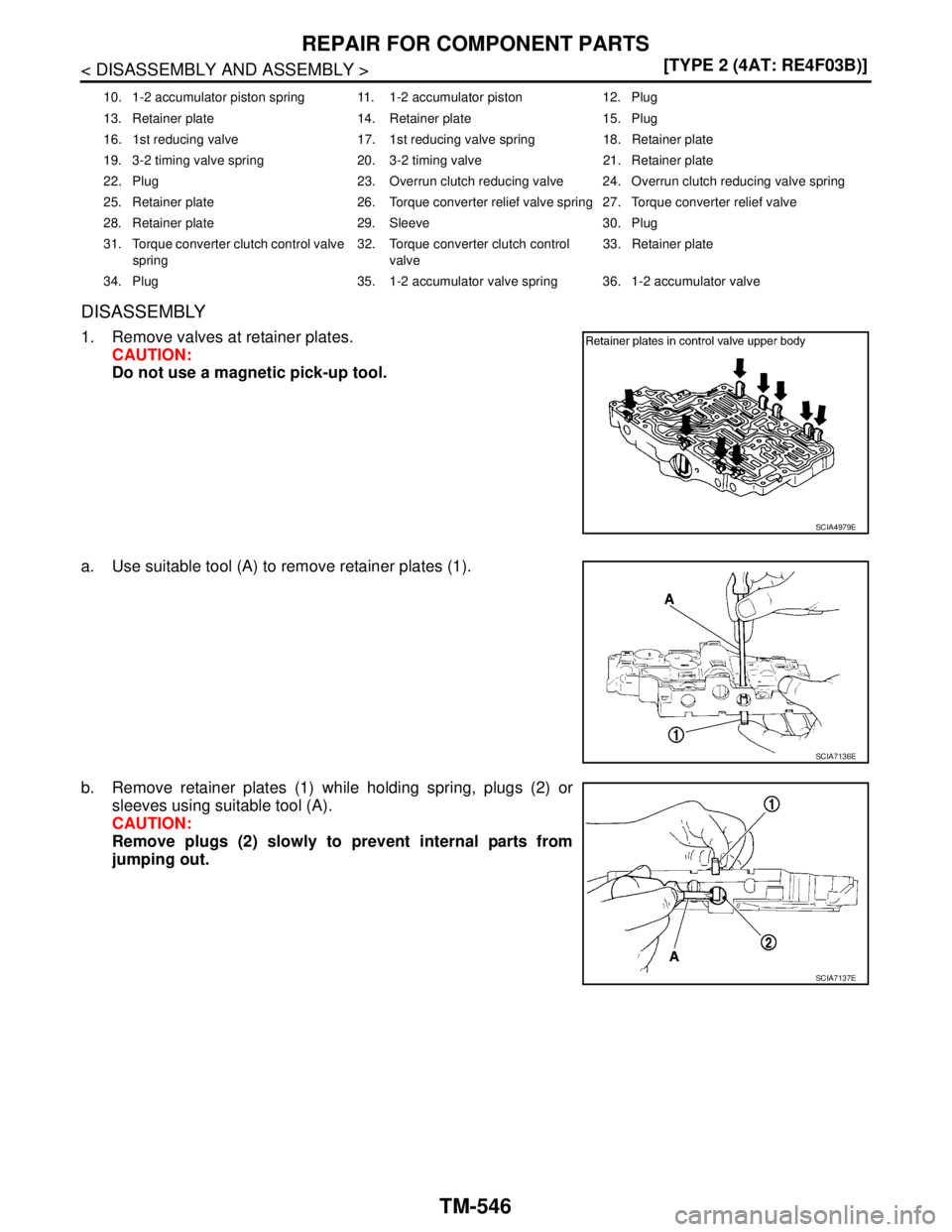

DISASSEMBLY
1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use suitable tool NISSAN TIIDA 2007 Service Repair Manual TM-546
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use suitable tool](/manual-img/5/57395/w960_57395-5491.png)
TM-546
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove valves at retainer plates.
CAUTION:
Do not use a magnetic pick-up tool.
a. Use suitable tool (A) to remove retainer plates (1).
b. Remove retainer plates (1) while holding spring, plugs (2) or
sleeves using suitable tool (A).
CAUTION:
Remove plugs (2) slowly to prevent internal parts from
jumping out.
10. 1-2 accumulator piston spring11. 1-2 accumulator piston 12. Plug
13. Retainer plate 14. Retainer plate 15. Plug
16. 1st reducing valve 17. 1st reducing valve spring 18. Retainer plate
19. 3-2 timing valve spring 20. 3-2 timing valve 21. Retainer plate
22. Plug 23. Overrun clutch reducing valve 24. Overrun clutch reducing valve spring
25. Retainer plate 26. Torque converter relief valve spring 27. Torque converter relief valve
28. Retainer plate 29. Sleeve 30. Plug
31. Torque converter clutch control valve
spring32. Torque converter clutch control
valve33. Retainer plate
34. Plug 35. 1-2 accumulator valve spring 36. 1-2 accumulator valve
SCIA4979E
SCIA7136E
SCIA7137E
Page 5493 of 5883
![NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-547
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

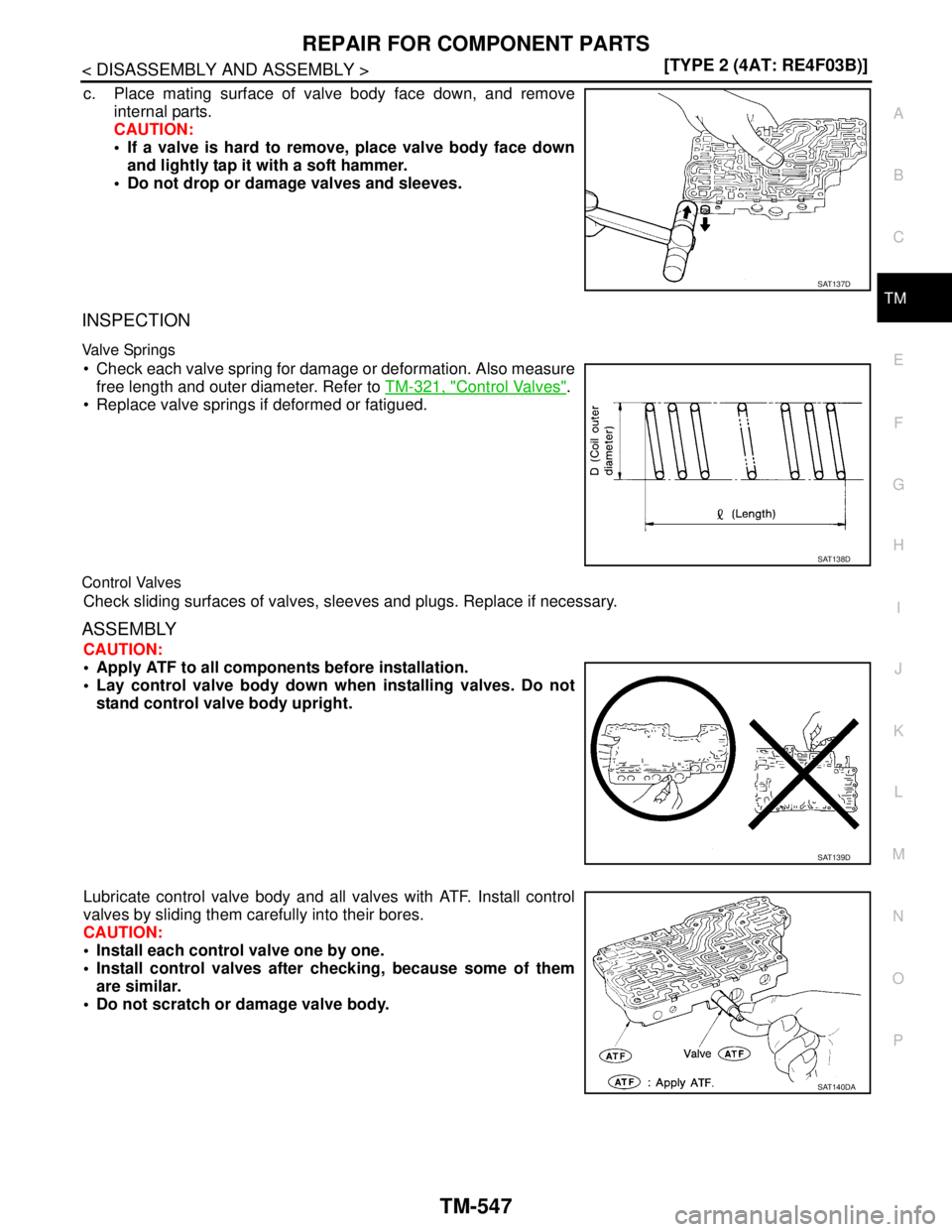

c. Place mating surface of valve body face down, and remove
internal parts.
CAUTIO NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS
TM-547
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
c. Place mating surface of valve body face down, and remove
internal parts.
CAUTIO](/manual-img/5/57395/w960_57395-5492.png)
REPAIR FOR COMPONENT PARTS
TM-547
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
c. Place mating surface of valve body face down, and remove
internal parts.
CAUTION:
If a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.
Do not drop or damage valves and sleeves.
INSPECTION
Va l v e Sp r i n g s
Check each valve spring for damage or deformation. Also measure
free length and outer diameter. Refer to TM-321, "
Control Valves".
Replace valve springs if deformed or fatigued.
Control Valves
Check sliding surfaces of valves, sleeves and plugs. Replace if necessary.
ASSEMBLY
CAUTION:
Apply ATF to all components before installation.
Lay control valve body down when installing valves. Do not
stand control valve body upright.
Lubricate control valve body and all valves with ATF. Install control
valves by sliding them carefully into their bores.
CAUTION:
Install each control valve one by one.
Install control valves after checking, because some of them
are similar.
Do not scratch or damage valve body.
SAT137D
SAT138D
SAT139D
SAT140DA
Page 5494 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-548
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

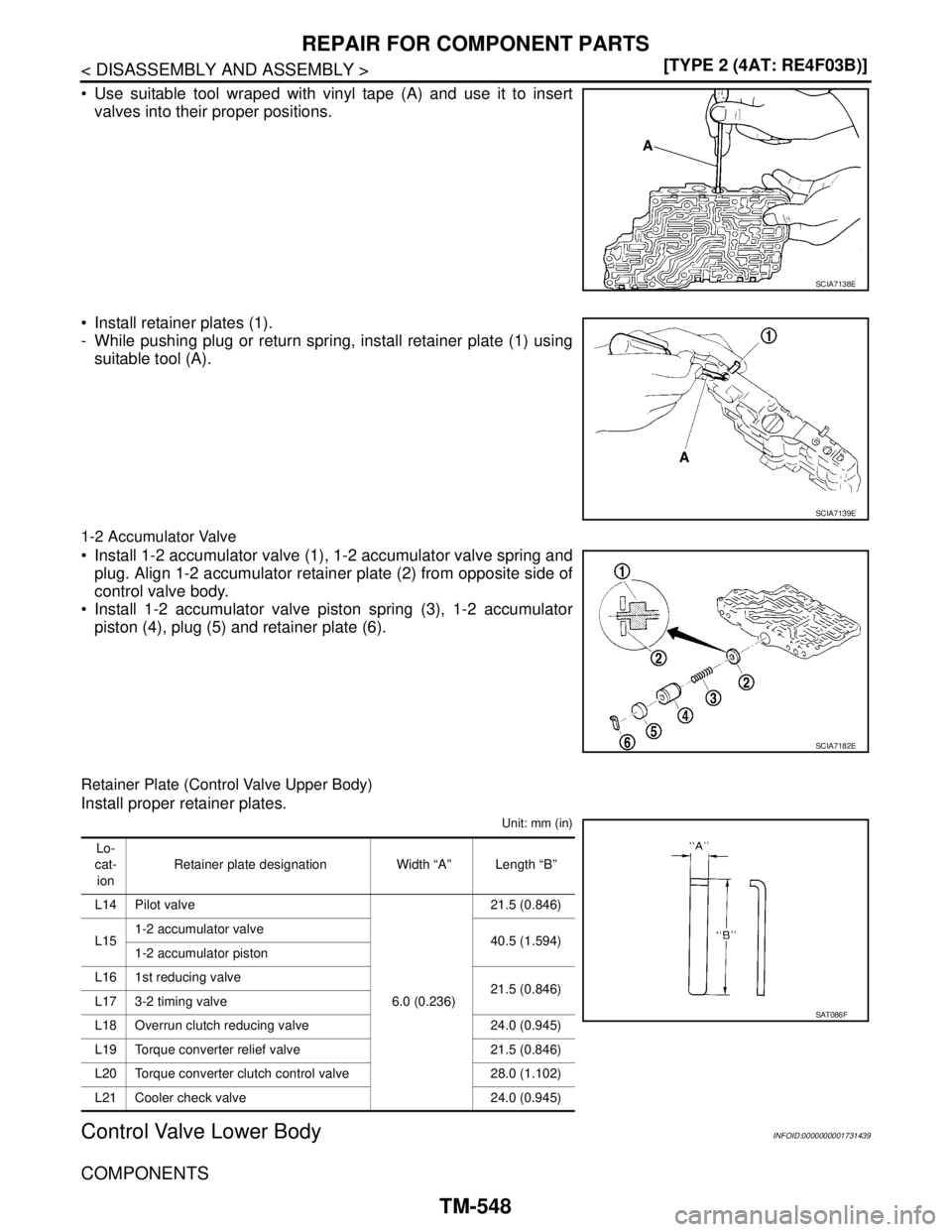

Use suitable tool wraped with vinyl tape (A) and use it to insert
valves into their proper positions.
Install NISSAN TIIDA 2007 Service Repair Manual TM-548
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Use suitable tool wraped with vinyl tape (A) and use it to insert
valves into their proper positions.
Install](/manual-img/5/57395/w960_57395-5493.png)
TM-548
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
Use suitable tool wraped with vinyl tape (A) and use it to insert
valves into their proper positions.
Install retainer plates (1).
- While pushing plug or return spring, install retainer plate (1) using
suitable tool (A).
1-2 Accumulator Valve
Install 1-2 accumulator valve (1), 1-2 accumulator valve spring and
plug. Align 1-2 accumulator retainer plate (2) from opposite side of
control valve body.
Install 1-2 accumulator valve piston spring (3), 1-2 accumulator
piston (4), plug (5) and retainer plate (6).
Retainer Plate (Control Valve Upper Body)
Install proper retainer plates.
Unit: mm (in)
Control Valve Lower BodyINFOID:0000000001731439
COMPONENTS
SCIA7138E
SCIA7139E
SCIA7182E
Lo-
cat-
ionRetainer plate designation Width “A” Length “B”
L14 Pilot valve
6.0 (0.236)21.5 (0.846)
L151-2 accumulator valve
40.5 (1.594)
1-2 accumulator piston
L16 1st reducing valve
21.5 (0.846)
L17 3-2 timing valve
L18 Overrun clutch reducing valve 24.0 (0.945)
L19 Torque converter relief valve 21.5 (0.846)
L20 Torque converter clutch control valve 28.0 (1.102)
L21 Cooler check valve 24.0 (0.945)
SAT086F
Page 5495 of 5883
REPAIR FOR COMPONENT PARTS
TM-549
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

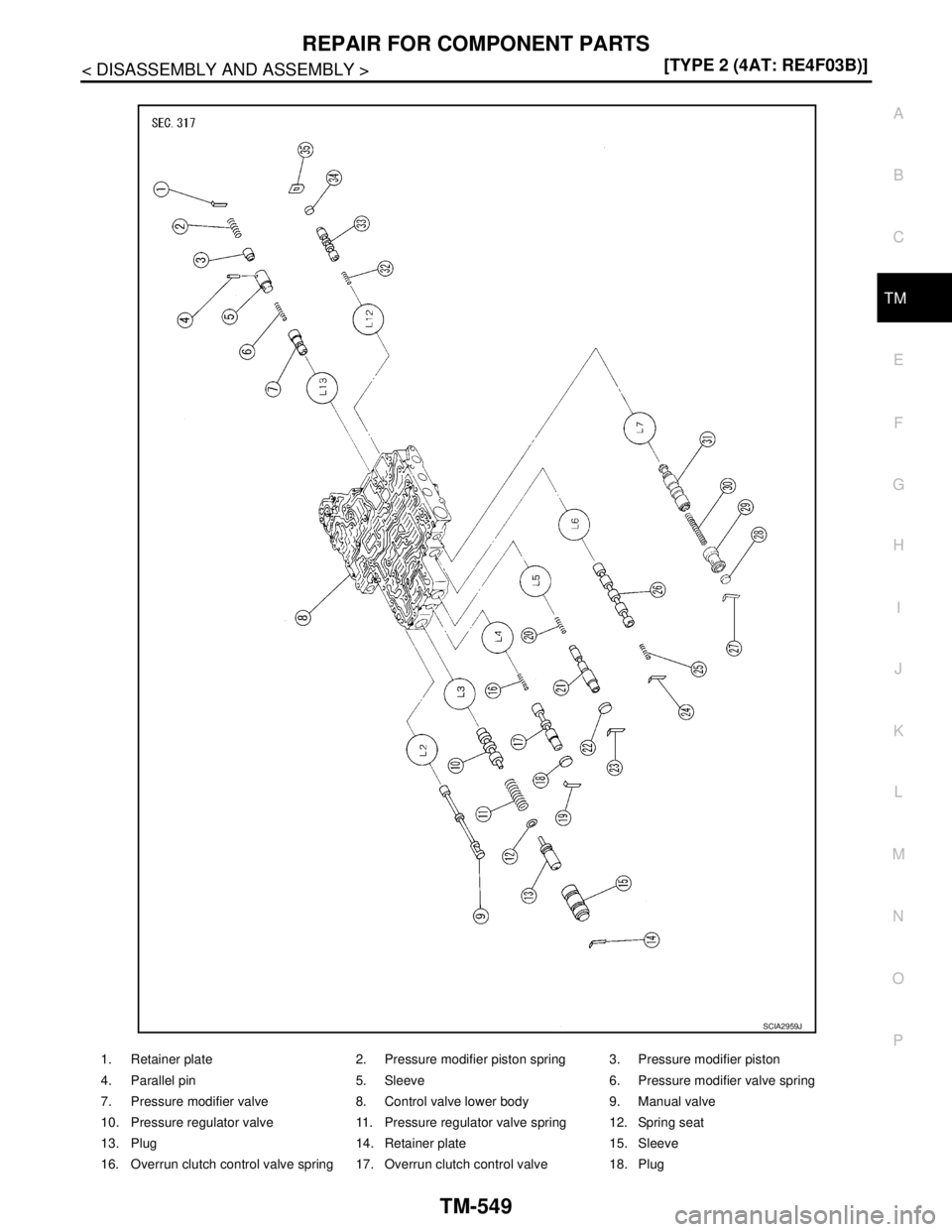

1. Retainer plate 2. Pressure modifier piston spring 3. Pressure modifier piston
4. Parallel pin 5. Sleeve 6. Pressure modifier valve spring
7. Pressure modifier valve 8. Control valve lower body 9. Manual valve
10. Pressure regulator valve 11. Pressure regulator valve spring 12. Spring seat
13. Plug 14. Retainer plate 15. Sleeve
16. Overrun clutch control valve spring 17. Overrun clutch control valve 18. Plug
SCIA2959J
Page 5496 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-550
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

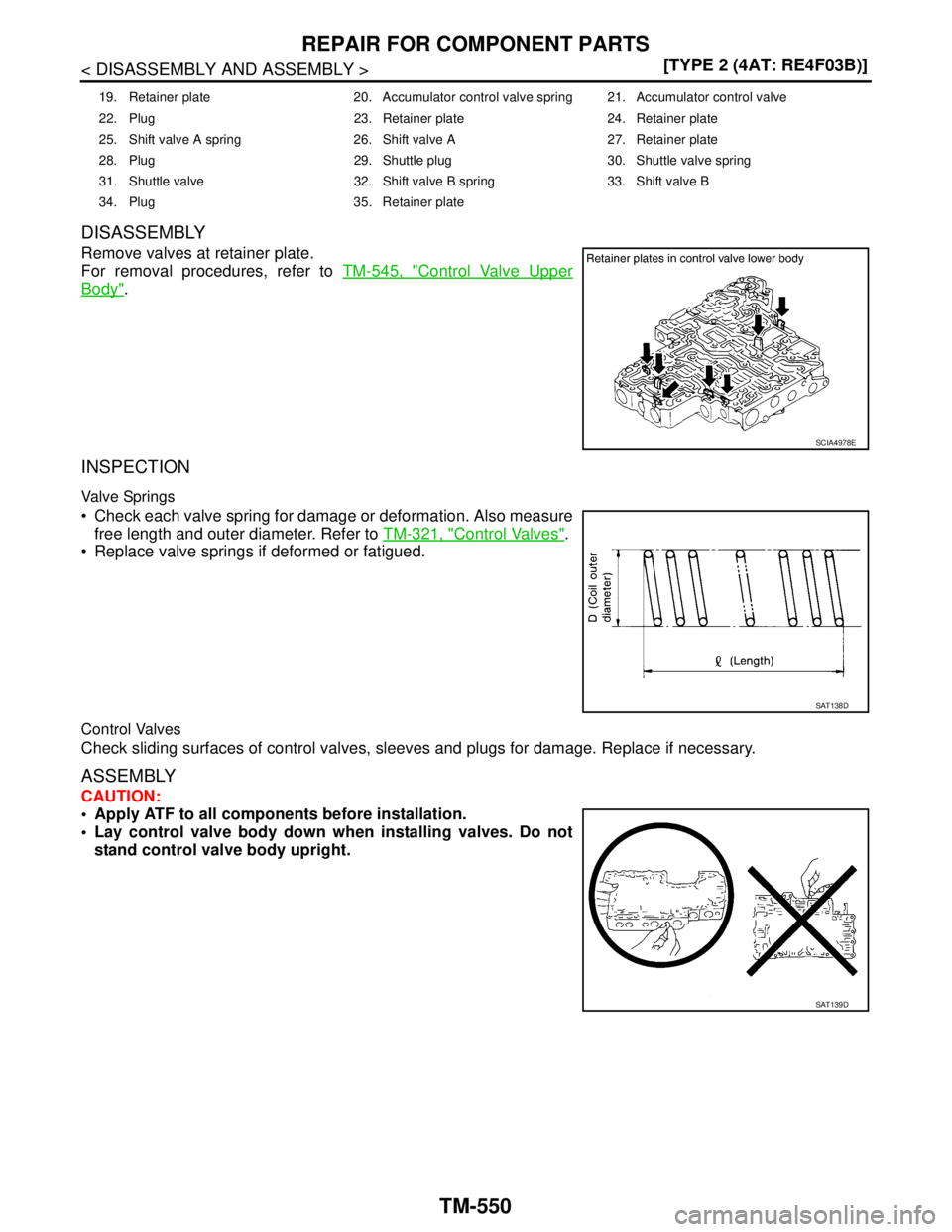

DISASSEMBLY
Remove valves at retainer plate.
For removal procedures, refer to TM-545, "
Control Valve Upper
Body". NISSAN TIIDA 2007 Service Repair Manual TM-550
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
Remove valves at retainer plate.
For removal procedures, refer to TM-545, "
Control Valve Upper
Body".](/manual-img/5/57395/w960_57395-5495.png)
TM-550
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
Remove valves at retainer plate.
For removal procedures, refer to TM-545, "
Control Valve Upper
Body".
INSPECTION
Valve Springs
Check each valve spring for damage or deformation. Also measure
free length and outer diameter. Refer to TM-321, "
Control Valves".
Replace valve springs if deformed or fatigued.
Control Valves
Check sliding surfaces of control valves, sleeves and plugs for damage. Replace if necessary.
ASSEMBLY
CAUTION:
Apply ATF to all components before installation.
Lay control valve body down when installing valves. Do not
stand control valve body upright.
19. Retainer plate 20. Accumulator control valve spring 21. Accumulator control valve
22. Plug 23. Retainer plate 24. Retainer plate
25. Shift valve A spring 26. Shift valve A 27. Retainer plate
28. Plug 29. Shuttle plug 30. Shuttle valve spring
31. Shuttle valve 32. Shift valve B spring 33. Shift valve B
34. Plug 35. Retainer plate
SCIA4978E
SAT138D
SAT139D
