EXHAUST SYSTEM
EX-15
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EX
N
P O
When installing each mounting rubbers, avoid twisting or unusual extension in up/down and right/
left directions.
Exhaust Manifold to Exhaust Front Tube
1. Securely insert seal bearing (2) into catalyst (1) side in the direc-
tion shown.
Exhaust front tube (5)
CAUTION:
Be careful not to damage seal bearing surface when install-
ing.
2. Install spring (3), tighten nut (4).
Be careful that the stud bolt nut does not interfere with the
flanged area ( ).
Make sure the spring (3) sits properly on the flange surface by
aligning it to the locator dimples.
Exhaust Front Tube to Center Muffler
1. Securely insert seal bearing (2) into exhaust front tube (1) side
in the direction shown.
Center muffler (5)
CAUTION:
Be careful not to damage seal bearing surface when install-
ing.
2. With spring (3), tighten bolt (4).
Be careful that the stud bolt does not interfere with the flanged
area ( ).
Make sure the spring (3) sits properly on the flange surface by
aligning it to the locator dimples.
INSPECTION AFTER INSTALLATION
With the engine running, check exhaust tube joints for exhaust leakage and unusual noise.
Check to ensure that brackets and mounting rubbers are installed properly and free from undue stress.
Improper installation could result in excessive noise and vibration.
InspectionINFOID:0000000001696394
INSPECTION AFTER INSTALLATION
With the engine running, check exhaust tube joints for gas leakage and unusual noises.
Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
PBIC3797E
PBIC3798E
Page 3002 of 5883

EXL-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION EXL
A
B
EXL
N
O
P
CONTENTS
EXTERIOR LIGHTING SYSTEM
BASIC INSPECTION ....................................5

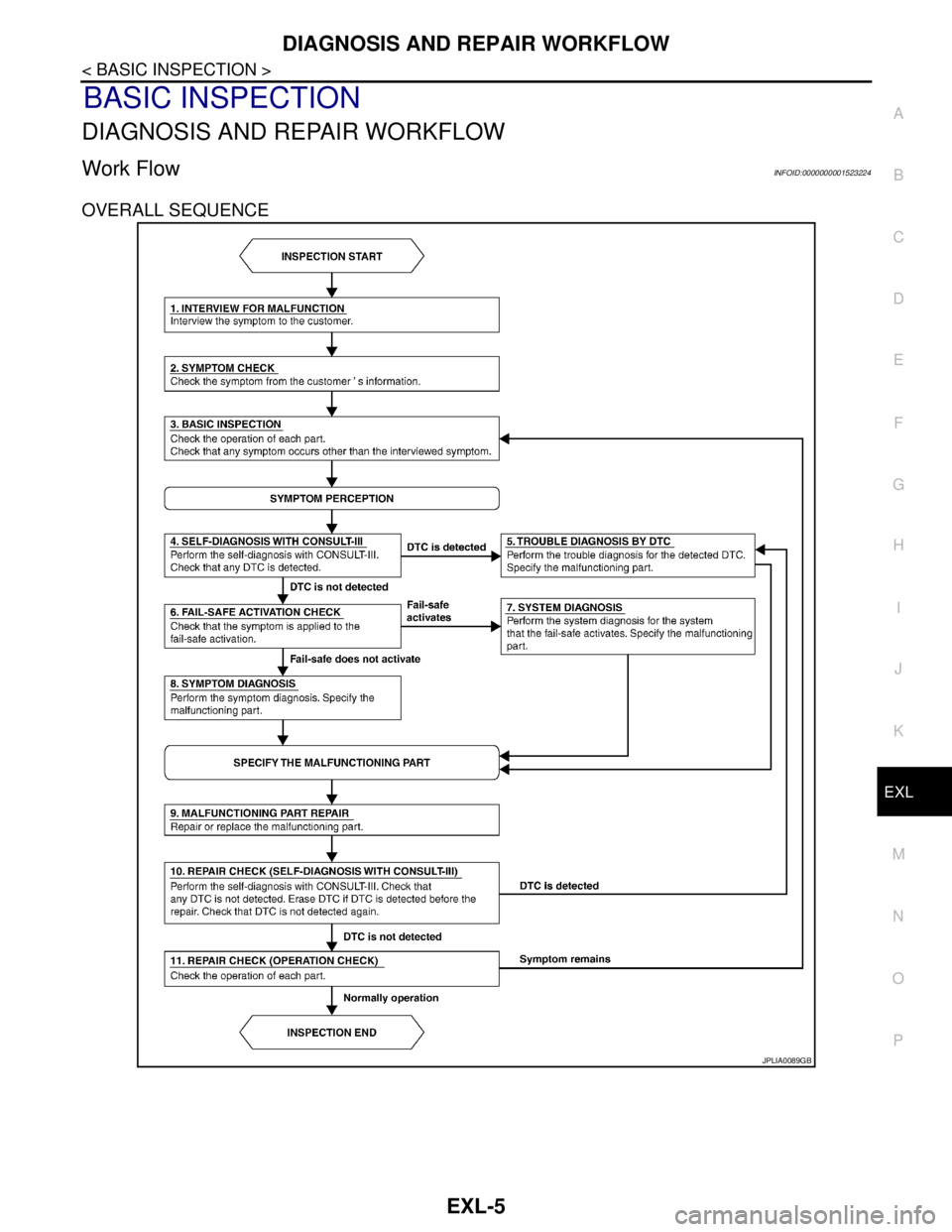

DIAGNOSIS AND REPAIR WORKFLOW ..........5
Work Flow .................................................................5
FUNCTION DIAGNOSIS ...............................8
HEADLAMP (HALOGEN) ...................................8
System Diagram ........................................................8
System Description ...................................................8
Component Parts Location ........................................8
Component Description .............................................8
HEADLAMP (XENON) .......................................10
System Diagram ......................................................10
System Description .................................................10
Component Parts Location ......................................10
Component Description ..........................................11
AUTO LIGHT SYSTEM ......................................12
System Diagram ......................................................12
System Description .................................................12
Component Parts Location ......................................12
Component Description ...........................................13
HEADLAMP AIMING SYSTEM (MANUAL) .......14
System Diagram ......................................................14
System Description .................................................14
Component Parts Location ......................................14
Component Description ...........................................14
HEADLAMP AIMING SYSTEM (AUTOMAT-
IC) .......................................................................
15
System Diagram ......................................................15
System Description .................................................15
Component Parts Location ......................................15
Component Description ...........................................15
DAYTIME LIGHT SYSTEM ................................17
System Diagram ......................................................17
System Description .................................................17
Component Parts Location ......................................17
Component Description ..........................................18
FRONT FOG LAMP ..........................................19
System Diagram ......................................................19
System Description ..................................................19
Component Parts Location ......................................19
Component Description ...........................................20
REAR FOG LAMP .............................................21
System Diagram ......................................................21
System Description ..................................................21
Component Parts Location ......................................21
Component Description ..........................................21
TURN SIGNAL AND HAZARD WARNING
LAMPS ..............................................................
22
System Diagram ......................................................22
System Description ..................................................22
Component Parts Location ......................................22
Component Description ...........................................23
PARKING, LICENSE PLATE AND TAIL
LAMPS ..............................................................
24
System Diagram ......................................................24
System Description ..................................................24
Component Parts Location ......................................25
Component Description ...........................................25
DIAGNOSIS SYSTEM (BCM) ...........................26
COMMON ITEM .........................................................26
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
26
BCM ...........................................................................26
BCM : CONSULT-III Function (BCM - BCM) ...........26
HEADLAMP ...............................................................26
HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................
26
FLASHER ...................................................................27
Page 3003 of 5883

EXL-2
FLASHER : CONSULT-III Function (BCM -
FLASHER) ..............................................................
27
COMB SW .................................................................28
COMB SW : CONSULT-III Function (BCM -
COMB SW) .............................................................
28
BATTERY SAVER ....................................................28
BATTERY SAVER : CONSULT-III Function (BCM
- BATTERY SAVER) ..............................................
28
DIAGNOSIS SYSTEM (IPDM E/R) ....................30
CONSULT - III Function (IPDM E/R) ......................30
DIAGNOSIS SYSTEM (HEADLAMP LEVEL-
IZER) ..................................................................
31
CONSULT-III Function ...........................................31
COMPONENT DIAGNOSIS ........................32
POWER SUPPLY AND GROUND CIRCUIT .....32
BCM (BODY CONTROL MODULE) .........................32
BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................
32
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) .............................
32
IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................
32
HEADLAMP (HI) CIRCUIT ................................33
HEADLAMP (HALOGEN) .........................................33
HEADLAMP (HALOGEN) : Description ..................33
HEADLAMP (HALOGEN) : Component Function
Check .....................................................................
33
HEADLAMP (HALOGEN) : Diagnosis Procedure ...33
HEADLAMP (XENON) ..............................................34
HEADLAMP (XENON) : Description .......................34
HEADLAMP (XENON) : Component Function
Check .....................................................................
34
HEADLAMP (XENON) : Diagnosis Procedure .......35
HEADLAMP (LO) CIRCUIT ...............................37
HEADLAMP (HALOGEN) .........................................37
HEADLAMP (HALOGEN) : Description ..................37
HEADLAMP (HALOGEN) : Component Function
Check .....................................................................
37
HEADLAMP (HALOGEN) : Diagnosis Procedure ...37
HEADLAMP (XENON) ..............................................38
HEADLAMP (XENON) : Description .......................38
HEADLAMP (XENON) : Component Function
Check .....................................................................
38
HEADLAMP (XENON) : Diagnosis Procedure .......39
FRONT FOG LAMP CIRCUIT ...........................41
Description ..............................................................41
Component Function Check ...................................41
Diagnosis Procedure ...............................................41
REAR FOG LAMP CIRCUIT .............................43
Description ..............................................................43
Component Function Check ...................................43
Diagnosis Procedure ...............................................43
PARKING LAMP CIRCUIT ................................46
WITH DAYTIME LIGHT SYSTEM .............................46
WITH DAYTIME LIGHT SYSTEM : Description .....46
WITH DAYTIME LIGHT SYSTEM : Component
Function Check .......................................................
46
WITH DAYTIME LIGHT SYSTEM : Diagnosis Pro-
cedure .....................................................................
46
WITHOUT DAYTIME LIGHT SYSTEM .....................48
WITHOUT DAYTIME LIGHT SYSTEM : Descrip-
tion ..........................................................................
48
WITHOUT DAYTIME LIGHT SYSTEM : Compo-
nent Function Check ...............................................
48
WITHOUT DAYTIME LIGHT SYSTEM : Diagno-
sis Procedure ..........................................................
49
TURN SIGNAL LAMP CIRCUIT ........................52
Description ..............................................................52
Component Function Check ...................................52
Diagnosis Procedure ...............................................52
LIGHT & RAIN SENSOR ...................................55
Description ..............................................................55
Component Function Check ...................................55
Diagnosis Procedure ...............................................55
HEADLAMP AIMER SWITCH ...........................57
Description ..............................................................57
Diagnosis Procedure ...............................................57
HEADLAMP (HALOGEN) .................................58
Wiring Diagram .......................................................58
HEADLAMP (XENON) .......................................59
Wiring Diagram .......................................................59
AUTO LIGHT SYSTEM .....................................60
Wiring Diagram .......................................................60
HEADLAMP AIMING SYSTEM (MANUAL) ......61
Wiring Diagram .......................................................61
HEADLAMP AIMING SYSTEM (AUTOMAT-
IC) ......................................................................
62
Wiring Diagram .......................................................62
DAYTIME LIGHT SYSTEM ...............................63
Wiring Diagram .......................................................63
FRONT FOG LAMP ...........................................64
Wiring Diagram .......................................................64
REAR FOG LAMP .............................................65
Wiring Diagram .......................................................65
Page 3004 of 5883

EXL-3
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
TURN SIGNAL AND HAZARD WARNING
LAMPS ...............................................................
66
Wiring Diagram .......................................................66
PARKING, LICENSE PLATE AND TAIL
LAMPS ...............................................................
67
WITH DAYTIME LIGHT SYSTEM .............................67
WITH DAYTIME LIGHT SYSTEM : Wiring Dia-
gram ........................................................................
67
WITHOUT DAYTIME LIGHT SYSTEM ......................67
WITHOUT DAYTIME LIGHT SYSTEM : Wiring Di-
agram ......................................................................
68
STOP LAMP .......................................................69
Wiring Diagram .......................................................69
BACK-UP LAMP ................................................70
Wiring Diagram .......................................................70
ECU DIAGNOSIS .........................................71
BCM (BODY CONTROL MODULE) ...................71
Description ..............................................................71
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................
72
Description ..............................................................72
SYMPTOM DIAGNOSIS ..............................73
EXTERIOR LIGHTING SYSTEM SYMPTOMS ....73
Symptom Table .......................................................73
NORMAL OPERATING CONDITION .................75
Description ..............................................................75
BOTH SIDE HEADLAMPS DO NOT SWITCH
TO HIGH BEAM .................................................
76
Description ..............................................................76
Diagnosis Procedure ...............................................76
BOTH SIDE HEADLAMPS (LO) ARE NOT
TURNED ON .......................................................
77
Description ..............................................................77
Diagnosis Procedure ...............................................77
PARKING, LICENSE PLATE AND TAIL
LAMPS ARE NOT TURNED ON ........................
78
Description ..............................................................78
Diagnosis Procedure ...............................................78
BOTH SIDE FRONT FOG LAMPS ARE NOT
TURNED ON .......................................................
79
Description ..............................................................79
Diagnosis Procedure ...............................................79
PRECAUTION ..............................................80
PRECAUTIONS ..................................................80
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
80
ON-VEHICLE MAINTENANCE ....................81
HEADLAMP ......................................................81
Aiming Adjustment ...................................................81
FRONT FOG LAMP ..........................................83
Aiming Adjustment ...................................................83
ON-VEHICLE REPAIR .................................84
HEADLAMP ......................................................84
Bulb Replacement ...................................................84
Removal and Installation .........................................84
Disassembly and Assembly - Halogen ....................85
Disassembly and Assembly - Xenon .......................86
FRONT FOG LAMP ..........................................87
Bulb Replacement ...................................................87
Removal and Installation .........................................87
HEADLAMP AIMING CONTROL ......................88
Removal and Installation of Headlamp Aiming
Switch ......................................................................
88
Removal and Installation of Height Sensor .............89
AUTO LIGHT SYSTEM .....................................91
Removal and Installation of Light and Rain Sensor
....
91
SIDE TURN SIGNAL LAMP ..............................92
Bulb Replacement ...................................................92
Removal and Installation .........................................92
REAR COMBINATION LAMP ...........................93
Bulb Replacement ...................................................93
Removal and Installation .........................................93
Disassembly and Assembly .....................................93
HIGH-MOUNTED STOP LAMP ........................96
Bulb Replacement ...................................................96
Removal and Installation .........................................96
LICENSE PLATE LAMP ...................................98
Bulb Replacement ...................................................98
Removal and Installation .........................................98
REAR FOG LAMP ...........................................100
Bulb Replacement .................................................100
Removal and Installation .......................................100
LIGHTING & TURN SIGNAL SWITCH ...........101
Removal and Installation .......................................101
HAZARD SWITCH ..........................................102
Removal and Installation .......................................102
SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................
103
Page 3005 of 5883
EXL-4
BULB SPECIFICATIONS ................................103
Headlamp ..............................................................103
Exterior Lamp ........................................................103
Page 3006 of 5883
DIAGNOSIS AND REPAIR WORKFLOW
EXL-5
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001523224
OVERALL SEQUENCE
JPLIA0089GB
Page 3007 of 5883

EXL-6
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Find out what the customer's concerns are.
>> GO TO 2
2.SYMPTOM CHECK
Verify the symptom from the customer's information.
>> GO TO 3
3.BASIC INSPECTION
Check the operation of each part. Check that any concerns occur other than those mentioned in the customer
interview.
>> GO TO 4
4.SELF-DIAGNOSIS WITH CONSULT-III
Perform the self diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5
NO >> GO TO 6
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.
>> GO TO 9
6.FAIL-SAFE ACTIVATION CHECK
Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7
NO >> GO TO 8
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis. Specify the malfunctioning part.
>> GO TO 9
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 11
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)
Perform the self diagnosis with CONSULT-III. Verfied that no DTCs are detected. Erase all DTCs detected
prior to the repair. Verify that DTC is not detected again.
Is any DTC detected?
Page 3008 of 5883
DIAGNOSIS AND REPAIR WORKFLOW
EXL-7
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
YES >> GO TO 5
NO >> GO TO 11
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> INSPECTION END
NO >> GO TO 3
