REPAIR FOR COMPONENT PARTS
TM-567
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
DISASSEMBLY
1. Check operation of low & reverse brake.

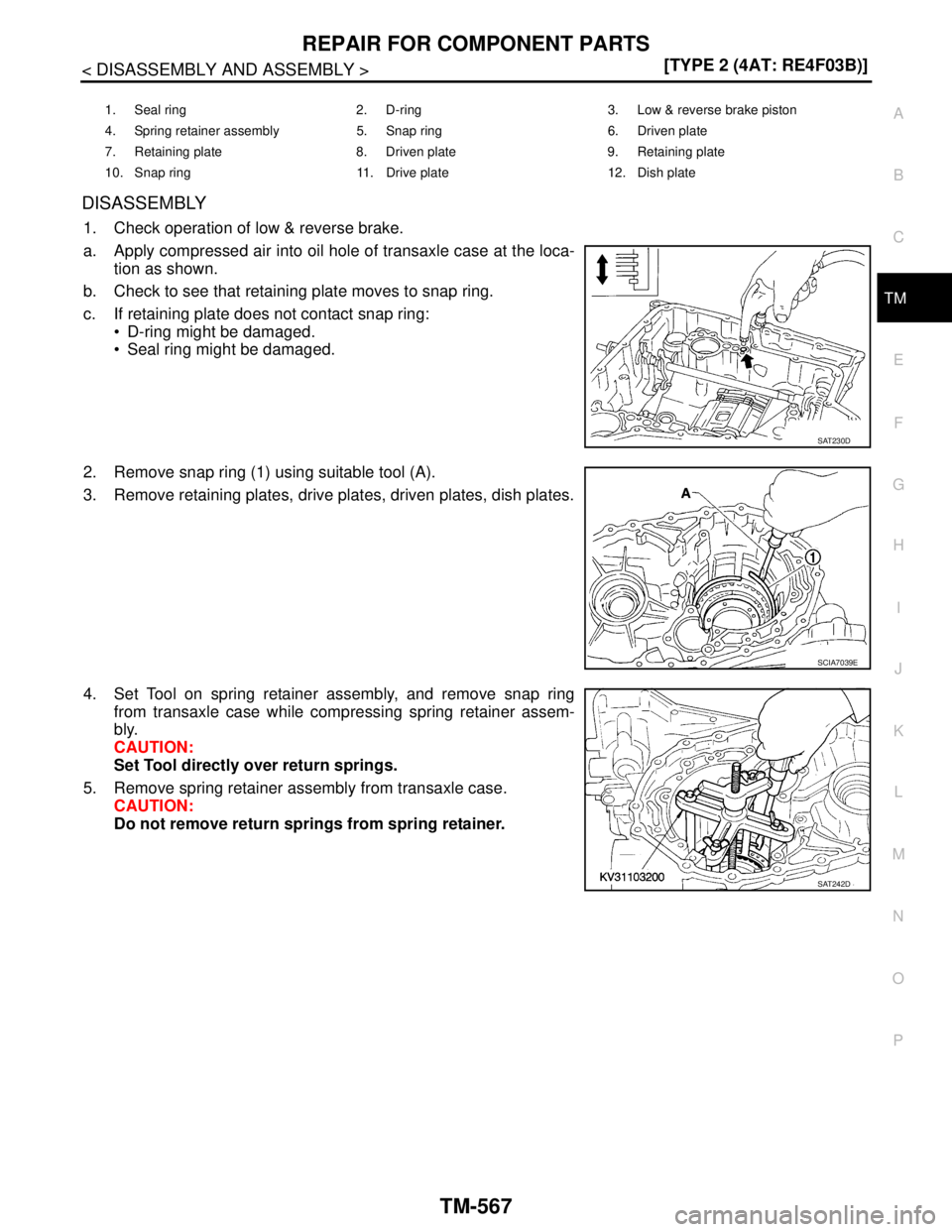

a. Apply compressed air into oil hole of transaxle case at the loca-
tion as shown.
b. Check to see that retaining plate moves to snap ring.
c. If retaining plate does not contact snap ring:
D-ring might be damaged.
Seal ring might be damaged.
2. Remove snap ring (1) using suitable tool (A).
3. Remove retaining plates, drive plates, driven plates, dish plates.
4. Set Tool on spring retainer assembly, and remove snap ring
from transaxle case while compressing spring retainer assem-
bly.
CAUTION:
Set Tool directly over return springs.
5. Remove spring retainer assembly from transaxle case.
CAUTION:
Do not remove return springs from spring retainer.
1. Seal ring 2. D-ring 3. Low & reverse brake piston
4. Spring retainer assembly 5. Snap ring 6. Driven plate
7. Retaining plate 8. Driven plate 9. Retaining plate
10. Snap ring 11. Drive plate 12. Dish plate
SAT230D
SCIA7039E
SAT242D
Page 5514 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-568
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Apply compressed air into the oil hole on transaxle case as
shown to raise piston while strongly pressing the w NISSAN TIIDA 2007 Service Repair Manual TM-568
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
6. Apply compressed air into the oil hole on transaxle case as
shown to raise piston while strongly pressing the w](/manual-img/5/57395/w960_57395-5513.png)
TM-568
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

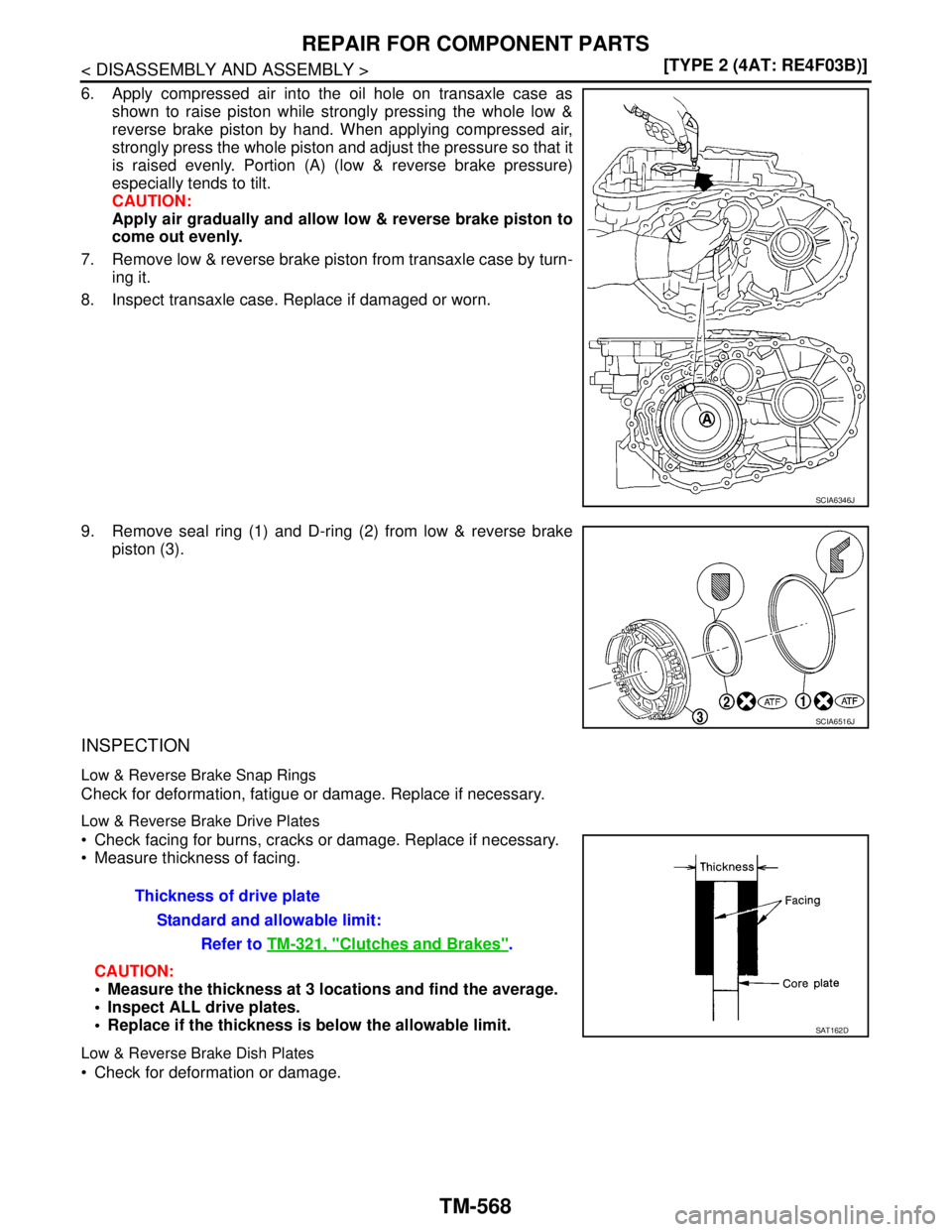

6. Apply compressed air into the oil hole on transaxle case as
shown to raise piston while strongly pressing the whole low &
reverse brake piston by hand. When applying compressed air,
strongly press the whole piston and adjust the pressure so that it
is raised evenly. Portion (A) (low & reverse brake pressure)
especially tends to tilt.
CAUTION:
Apply air gradually and allow low & reverse brake piston to
come out evenly.
7. Remove low & reverse brake piston from transaxle case by turn-
ing it.
8. Inspect transaxle case. Replace if damaged or worn.
9. Remove seal ring (1) and D-ring (2) from low & reverse brake
piston (3).
INSPECTION
Low & Reverse Brake Snap Rings
Check for deformation, fatigue or damage. Replace if necessary.
Low & Reverse Brake Drive Plates
Check facing for burns, cracks or damage. Replace if necessary.
Measure thickness of facing.
CAUTION:
Measure the thickness at 3 locations and find the average.
Inspect ALL drive plates.
Replace if the thickness is below the allowable limit.
Low & Reverse Brake Dish Plates
Check for deformation or damage.
SCIA6346J
SCIA6516J
Thickness of drive plate
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT162D
Page 5515 of 5883
REPAIR FOR COMPONENT PARTS
TM-569
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Measure thickness (t) of dish plate. Replace if damaged, deformed
or worn.
Low & Reverse Brake Spring Retainer Assembly
Check length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.
CAUTION:
Do not remove return springs (A) from spring retainer (B)
ASSEMBLY
1. Install seal ring (1) and D-ring (2) on low & reverse brake piston
(3).
2. Install low & reverse brake piston in transaxle case while turning
it.
CAUTION:
Apply ATF to inner surface of transaxle case.Thickness of dish plate (t): 2.93 mm (0.1154 in)
SAT163D
Length (L): 26.3 mm (1.035 in)
SCIA7025J
SCIA6516J
SAT239D
Page 5516 of 5883
TM-570
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

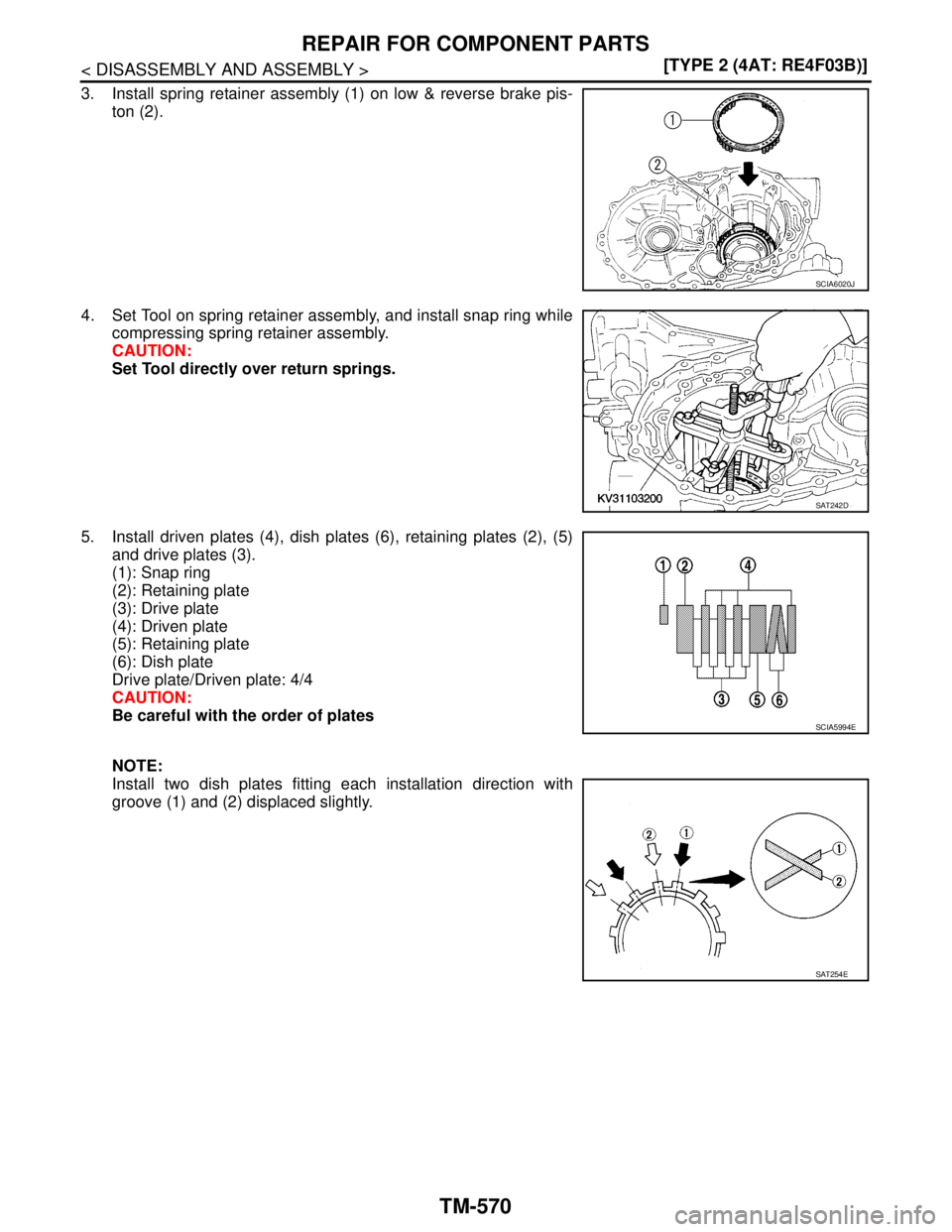

3. Install spring retainer assembly (1) on low & reverse brake pis-
ton (2).
4. Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.
CAUTION:
Set Tool directly over return springs.
5. Install driven plates (4), dish plates (6), retaining plates (2), (5)
and drive plates (3).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Retaining plate
(6): Dish plate
Drive plate/Driven plate: 4/4
CAUTION:
Be careful with the order of plates
NOTE:
Install two dish plates fitting each installation direction with
groove (1) and (2) displaced slightly.
SCIA6020J
SAT242D
SCIA5994E
SAT254E
Page 5517 of 5883
REPAIR FOR COMPONENT PARTS
TM-571
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

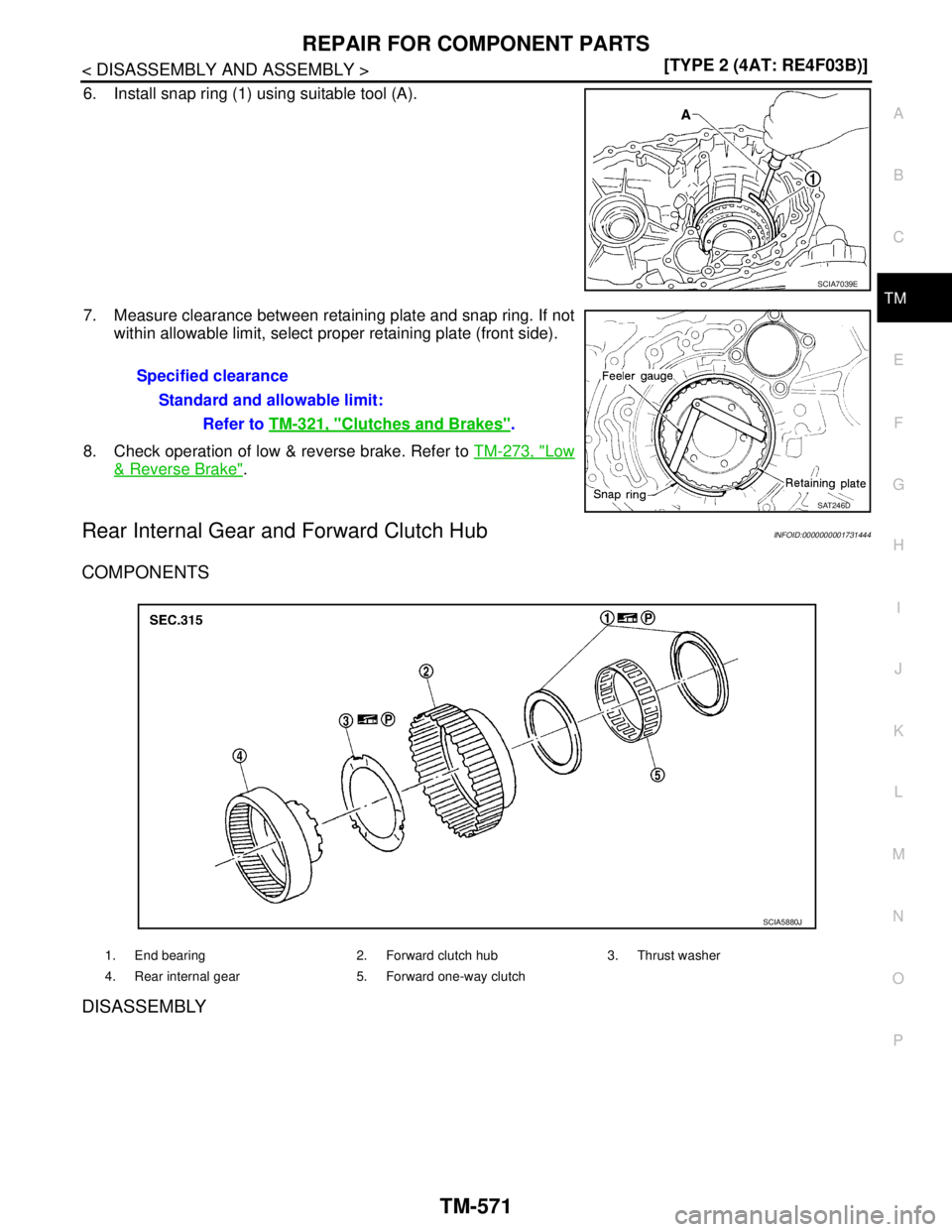

6. Install snap ring (1) using suitable tool (A).
7. Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate (front side).
8. Check operation of low & reverse brake. Refer to TM-273, "
Low
& Reverse Brake".
Rear Internal Gear and Forward Clutch HubINFOID:0000000001731444
COMPONENTS
DISASSEMBLY
SCIA7039E
Specified clearance
Standard and allowable limit:
Refer to TM-321, "
Clutches and Brakes".
SAT246D
1. End bearing 2. Forward clutch hub 3. Thrust washer
4. Rear internal gear 5. Forward one-way clutch
SCIA5880J
Page 5518 of 5883
TM-572
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Remove forward clutch hub from rear internal gear.
2. Remove end bearing (1) from rear internal gear (2).
3. Remove thrust washer from rear internal gear.
4. Remove end bearing (2) from forward one-way clutch (3).
(1): Forward clutch hub
5. Remove forward one-way clutch from forward clutch hub.
SAT251D
SCIA7028E
SCIA3691E
SCIA7026E
SAT255D
Page 5519 of 5883
REPAIR FOR COMPONENT PARTS
TM-573
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
INSPECTION
Rear Internal Gear and Forward Clutch Hub
Check rubbing surfaces for wear or damage. Replace if necessary.
(1): Rear internal gear
(2): Forward clutch hub
End Bearings and Forward One-way Clutch
Check end bearings (1) for deformation and damage. Replace if
necessary.
Check forward one-way clutch (2) for wear and damage. Replace if
necessary.
ASSEMBLY

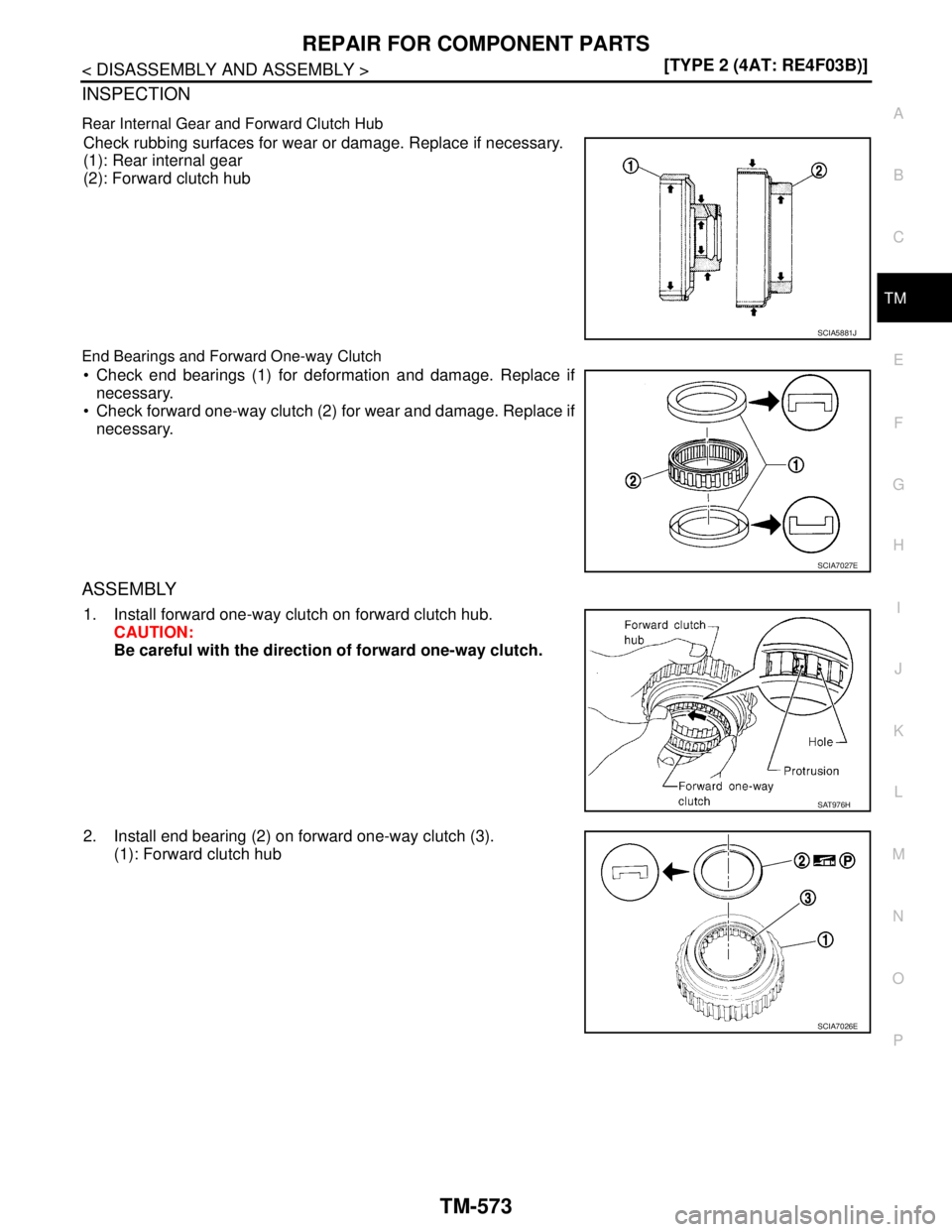

1. Install forward one-way clutch on forward clutch hub.
CAUTION:
Be careful with the direction of forward one-way clutch.
2. Install end bearing (2) on forward one-way clutch (3).
(1): Forward clutch hub
SCIA5881J
SCIA7027E
SAT976H
SCIA7026E
Page 5520 of 5883
TM-574
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS

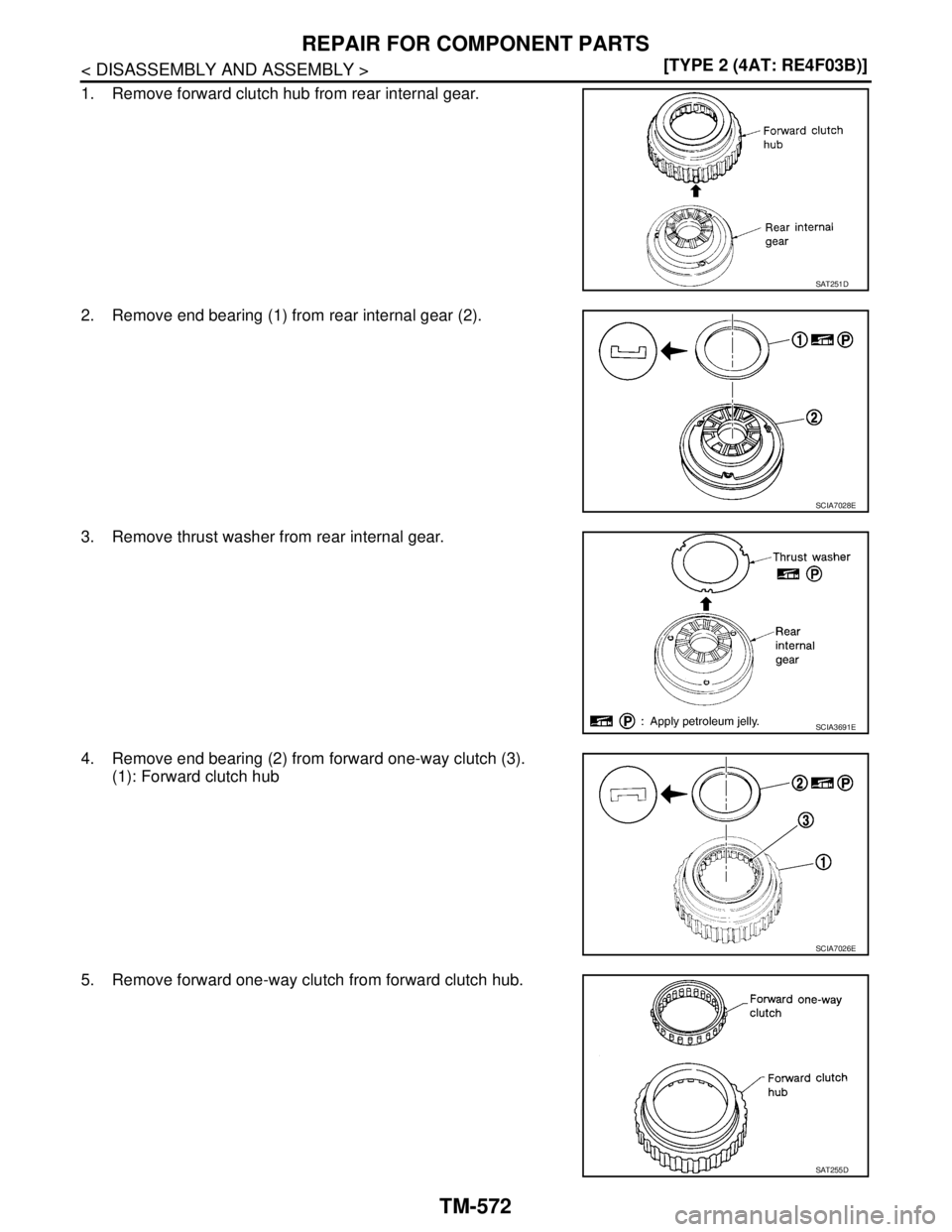

3. Install thrust washer on rear internal gear.
CAUTION:
Align pawls of thrust washer with holes of rear internal
gear.
4. Install end bearing (1) on rear internal gear (2).
5. Install forward clutch hub on rear internal gear.
CAUTION:
Check operation of forward one-way clutch.
Hold rear internal gear and turn forward clutch hub.
Check forward clutch hub for correct locking and unlock-
ing directions.
If not as shown, check the installation direction of forward
one-way clutch.
Output Shaft, Output Gear, Idler Gear, Reduction Pinion Gear and Bearing Retainer
INFOID:0000000001731445
COMPONENTS
SCIA3690E
SCIA7028E
AAT426
