Page 2881 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-234
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
HOW TO SELECT PISTON AND BEARING
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear left side of cylinder block (L)

EM-234
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
HOW TO SELECT PISTON AND BEARING
1. “Main Bearing Selection Table” rows correspond to main bearing
housing grade on rear left side of cylinder block (L).
If there is a correction stamp mark on cylinder block, use it as
a correct reference.
2. Apply main journal diameter grade stamped on crankshaft front
side to column in the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
CAUTION:
There are two main bearing selection tables. One is for No. 1, 4 and 5 journals and the other is for
No. 2 and 3 journals. Make certain to use the appropriate table. This is due to differences in the
specified clearances.
4. Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
Service part is available as a set of both upper and lower.
When Cylinder Block and Crankshaft are Reused
1. Measure the dimensions of the cylinder block main bearing housing inner diameter and crankshaft main
journal diameter individually. Refer to EM-219, "
Inspection After Disassembly" and EM-219, "Inspection
After Disassembly".
2. Apply the measured dimension to the “Main Bearing Selection Table”.
3. Read the symbol at the cross point of selected row and column in the “Main Bearing Selection Table”.
CAUTION:
There are two main bearing selection tables. One is for No. 1, 4 and 5 journals and the other is for
No. 2 and 3 journals. Make certain to use the appropriate table. This is due to differences in the
specified clearances.
4. Apply the symbol obtained to the “Main Bearing Grade Table” to select main bearing.
NOTE:
A : Correction stamp
B : Standard stamp
C : Cylinder No. 1 bore grade
D : Cylinder No. 2 bore grade
E : Cylinder No. 3 bore grade
F : Cylinder No. 4 bore grade
G : No. 1 main bearing housing grade
H : No. 2 main bearing housing grade
I : No. 3 main bearing housing grade
J : No. 4 main bearing housing grade
K : No. 5 main bearing housing grade
: Engine front
PBIC3264J
A : No. 1 pin journal diameter grade
B : No. 2 pin journal diameter grade
C : No. 3 pin journal diameter grade
D : No. 4 pin journal diameter grade
E : No. 1 main journal diameter grade
F : No. 2 main journal diameter grade
G : No. 3 main journal diameter grade
H : No. 4 main journal diameter grade
I : No. 5 main journal diameter grade
PBIC3261J

Page 2882 of 5883

NISSAN TIIDA 2007 Service Repair Manual HOW TO SELECT PISTON AND BEARING
EM-235
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Service part is available as a set of both upper and lower.

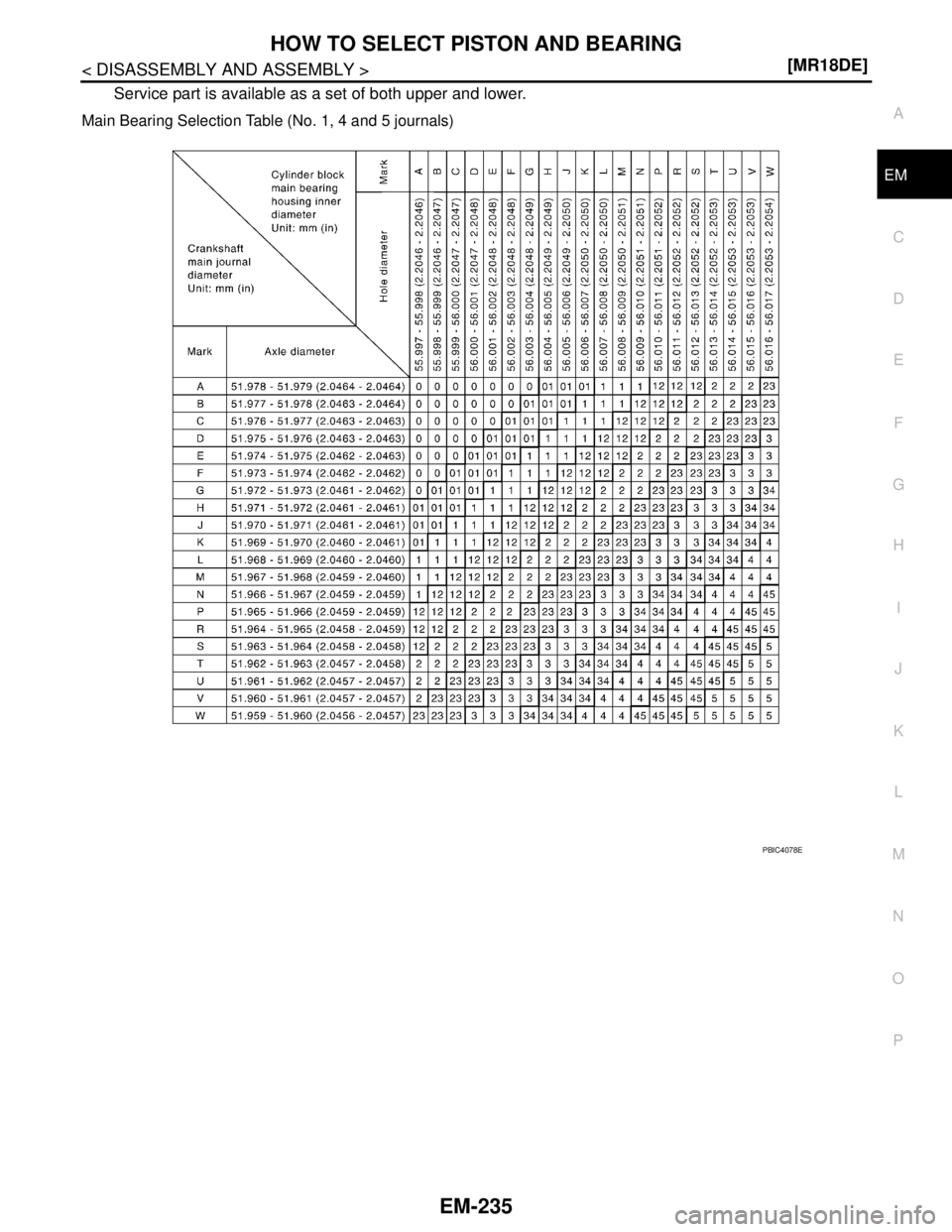

Main Bearing Selection Table (N

Page 2883 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-236
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
HOW TO SELECT PISTON AND BEARING

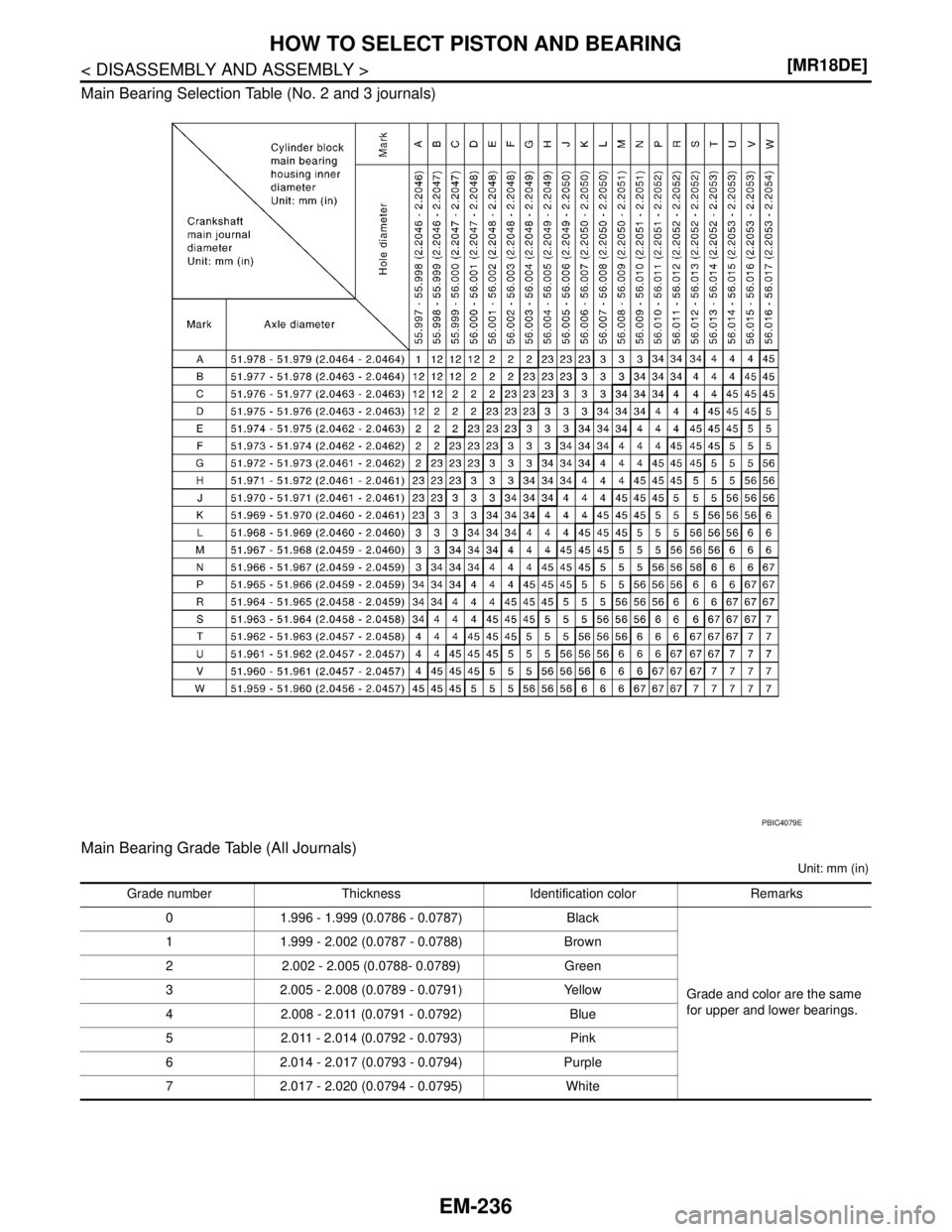

Main Bearing Selection Table (No. 2 and 3 journals)
Main Bearing Grade Table (All Journals)
Unit: mm (in)
PBIC4079E
Grade n

Page 2884 of 5883

NISSAN TIIDA 2007 Service Repair Manual HOW TO SELECT PISTON AND BEARING
EM-237
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O Use Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not ob

Page 2885 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-238
< SERVICE DATA AND SPECIFICATIONS (SDS) [MR18DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and LimitINFOID:00000

Page 2886 of 5883

NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-239
< SERVICE DATA AND SPECIFICATIONS (SDS) [MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Unit: mm (in)
VA LV E
Va l v e Ti m i n g
Unit: degree
( ): Valve timing

Page 2887 of 5883

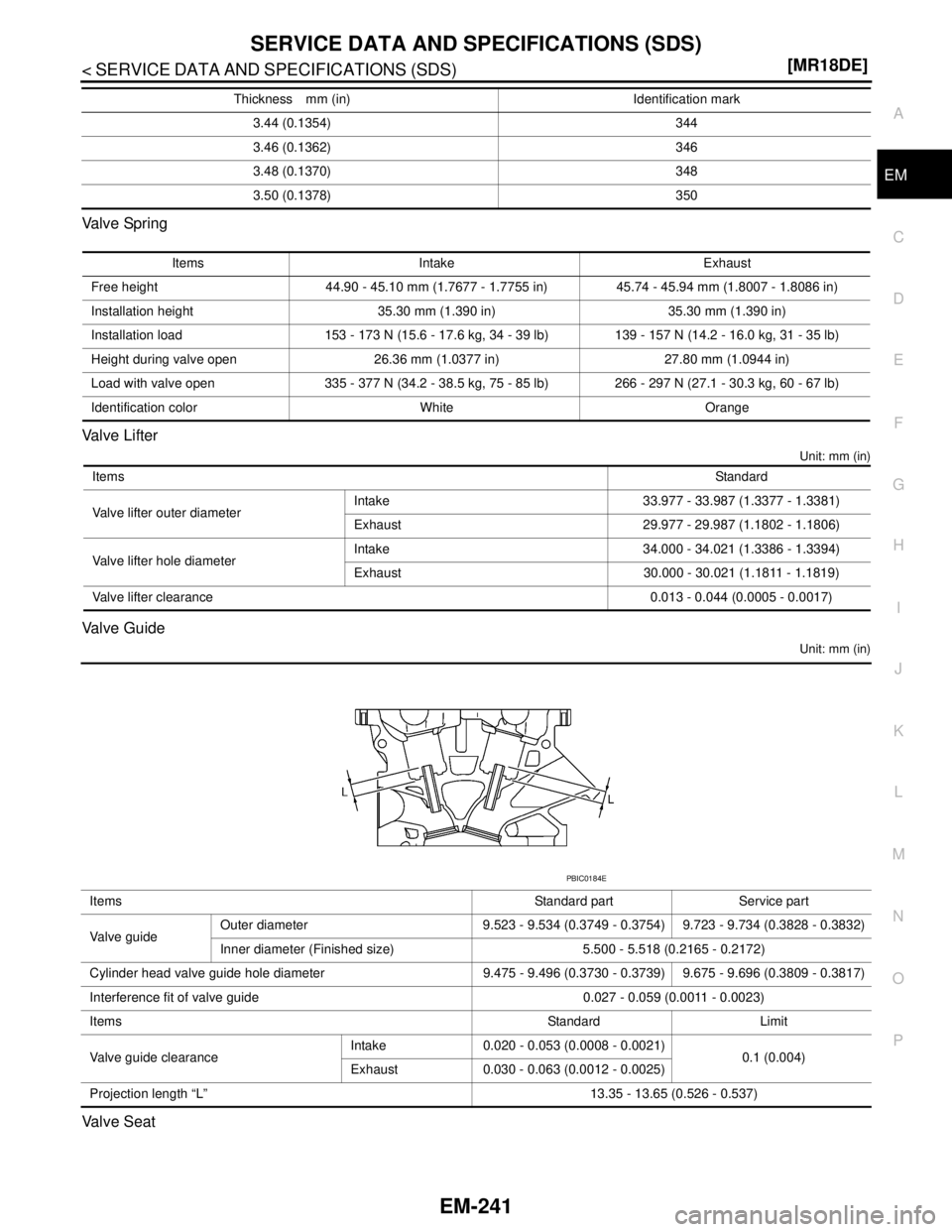

NISSAN TIIDA 2007 Service Repair Manual EM-240
< SERVICE DATA AND SPECIFICATIONS (SDS) [MR18DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Valve Clearance
Unit: mm (in)
*: Approximately 80°C (176°F)
Available Valve Lifter
Valve stem diameter

Page 2888 of 5883

NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-241
< SERVICE DATA AND SPECIFICATIONS (SDS) [MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O Va l v e Sp r i n g
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in)
