Page 3729 of 5883
IP-14
< SERVICE INFORMATION >
INSTRUMENT PANEL ASSEMBLY
8. Remove instrument side finisher.
a. Insert a suitable tool into space of instrument side finisher.
b. Disengage instrument side finisher metal clips, and then remove
instrument side finisher.
9. Remove side ventilator assembly (LH).
a. Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against A and B as shown to disengage the pawls.
b. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly upper pawls, and then
remove the side ventilator.
10. Remove steering lock escutcheon.
11. Remove screws, and disengage pawls then remove the steering column cover.
12. Remove cluster lid A.
a. Remove screws from instrument upper panel right side.
PIIB2440E
WIIA1226E
PIIB3976E
PIIB3969E
Page 3730 of 5883

INSTRUMENT PANEL ASSEMBLY
IP-15
< SERVICE INFORMATION >
C
D
E
F
G
H
I
K
L
MA
B
IP
N
O
P
b. Lift the instrument upper panel up, disengage metal clips.
c. Pull backward and disengage clips.
d. Remove cluster lid A.
13. Remove the combination meter. Refer to IP-10, "
Component Parts".
14. Remove the instrument lower finisher.
a. Disengage pawls and remove fuse block lid.
b. Remove the screws.
c. Pull backward while disengaging the instrument lower finisher
clip and pawls.
d. Disconnect the harness connectors, and then remove instru-
ment lower finisher.
15. Remove glove box. Refer to IP-23, "
Disassembly and Assembly".
16. Remove side ventilator assembly.
a. Insert a suitable tool into the side ventilator assembly from cen-
ter console side, disengage the clips and pawl of instrument
panel pad.
b. Reach through the glove box compartment by hand to the back-
side of the side ventilator and push against A as shown to
engage the pawl.
c. Insert a suitable tool into the bottom gap of side ventilator
assembly after removing the instrument side mask and push
against B as shown to disengage the pawl.
PIIB2880E
ALJIA0096ZZ
PIIB3977E
PIIB6385E
Page 3731 of 5883

IP-16
< SERVICE INFORMATION >
INSTRUMENT PANEL ASSEMBLY
d. Lift the side ventilator assembly up from the bottom, pull back-
ward while disengaging the side ventilator assembly upper
pawls, and then remove the side ventilator assembly.
17. Remove the front passenger air bag module. Refer to SR-9, "
Removal and Installation".
18. Remove instrument upper mask.
a. Insert a remover into backside space of instrument upper mask.
b. Disconnect harness connector, and then remove instrument
upper mask.
19. Remove instrument finisher D.
a. Insert a remover into upper space of instrument finisher D.
b. Disengage clips and pawls, then remove instrument finisher D.
20. Remove controller. Refer to TM-203, "
Selector Lever Knob Removal and Installation".
21. Remove instrument upper panel assembly.
a. Remove bolts and screws.
b. Pull backward and remove instrument upper panel assembly.
22. Remove lighting & turn signal switch. Refer to EXL-101, "
Removal and Installation".
23. Remove wiper & washer switch. Refer to WW-76, "
Removal and Installation".
24. Remove hood opener handle and fuel filler lid opener handle. Refer to DLK-215, "
Removal and Installa-
tion of Hood Lock Control".
25. Remove screws, and then remove instrument panel & pad from passenger door opening portion.
Installation
Installation is in the reverse order of removal.
PIIB3979E
PIIB2445E
PIIB2446E
PIIB2881E
Page 3732 of 5883
INSTRUMENT PANEL ASSEMBLY
IP-17
< SERVICE INFORMATION >
C
D
E
F
G
H
I
K
L
MA
B
IP
N
O
P
CLUSTER LID A
Removal
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove front pillar garnish. Refer to INT-20, "
Removal and Installation".
3. Pull up instrument side panel and disengage pawls.
4. Remove instrument side panel.
5. Remove LH instrument panel side cover.
a. Using a suitable tool insert into upper space of instrument panel
side cover.
b. Disengage pawls, and then remove instrument panel side cover.
6. Insert a remover into space of instrument side finisher.
7. Disengage metal clips, and then remove instrument side fin-
isher.
WIIA1224E
PIIB2439J
PIIB2448E
PIIB2440E
Page 3733 of 5883
IP-18
< SERVICE INFORMATION >
INSTRUMENT PANEL ASSEMBLY
8. Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.
9. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.
10. Remove screws, and disengage pawls.
11. Remove steering column cover upper.

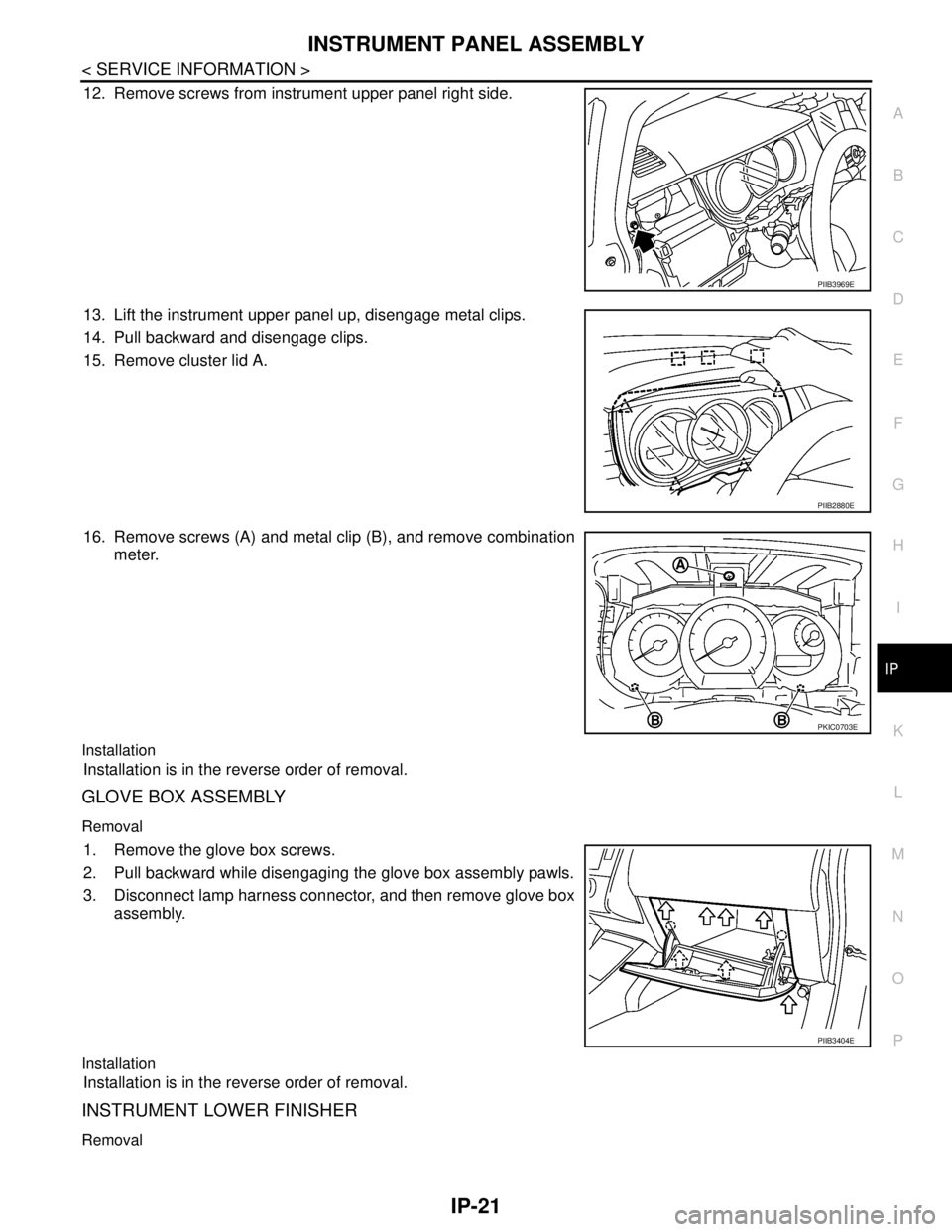

12. Remove screws from instrument upper panel right side.
13. Lift the instrument upper panel up, disengage metal clips.
14. Pull backward and disengage clips.
15. Remove cluster lid A.
Installation
Installation is in the reverse order of removal.
CLUSTER LID C
Removal
WIIA1226E
PIIB3976E
PIIB3969E
PIIB2880E
Page 3734 of 5883
INSTRUMENT PANEL ASSEMBLY
IP-19
< SERVICE INFORMATION >
C
D
E
F
G
H
I
K
L
MA
B
IP
N
O
P
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove screws.
3. Pull back, and disengage pawls and metal clips.
4. Disconnect harness connector, and then remove cluster lid C.
Installation
Installation is in the reverse order of removal.
COMBINATION METER
Removal
1. Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.
2. Remove front pillar garnish. Refer to INT-20, "
Removal and Installation".
3. Pull up instrument side panel and disengage pawls.
4. Remove instrument side panel.
WIIA1224E
WIIA1225E
WIIA1224E
PIIB2439J
Page 3735 of 5883
IP-20
< SERVICE INFORMATION >
INSTRUMENT PANEL ASSEMBLY
5. Remove LH instrument panel side cover.
a. Using a suitable tool insert into upper space of instrument panel
side cover.
b. Disengage pawls, and then remove instrument panel side cover.
6. Insert a remover into space of instrument side finisher.
7. Disengage metal clips, and then remove instrument side fin-
isher.
8. Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.
9. Lift the side ventilator up from the bottom, pull backward while
disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.
10. Remove screws, and disengage pawls.
11. Remove steering column cover upper.
PIIB2448E
PIIB2440E
WIIA1226E
PIIB3976E
Page 3736 of 5883
INSTRUMENT PANEL ASSEMBLY
IP-21
< SERVICE INFORMATION >
C
D
E
F
G
H
I
K
L
MA
B
IP
N
O
P
12. Remove screws from instrument upper panel right side.
13. Lift the instrument upper panel up, disengage metal clips.
14. Pull backward and disengage clips.
15. Remove cluster lid A.
16. Remove screws (A) and metal clip (B), and remove combination
meter.
Installation
Installation is in the reverse order of removal.
GLOVE BOX ASSEMBLY
Removal
1. Remove the glove box screws.
2. Pull backward while disengaging the glove box assembly pawls.
3. Disconnect lamp harness connector, and then remove glove box
assembly.
Installation
Installation is in the reverse order of removal.
INSTRUMENT LOWER FINISHER
Removal
PIIB3969E
PIIB2880E
PKIC0703E
PIIB3404E
