Page 2665 of 5883
EM-18
< ON-VEHICLE MAINTENANCE >[HR16DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Removal and InstallationINFOID:0000000001381387
REMOVAL
1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover (1) and remove it (C).
3. Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.
4. Remove the air cleaner filter (1) from the holder (2).
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to MA-7, "
Periodic Maintenance".
Blow air into the back side of air cleaner filter until no objects spray
out.
INSTALLATION
Installation is in the reverse order of removal.
Install the air cleaner cover (1) in the direction shown.
PBIC3557J
PBIC3558J
SMA384C
2 : Air cleaner filter
3 : Holder
PBIC3559J
Page 2666 of 5883
SPARK PLUG
EM-19
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

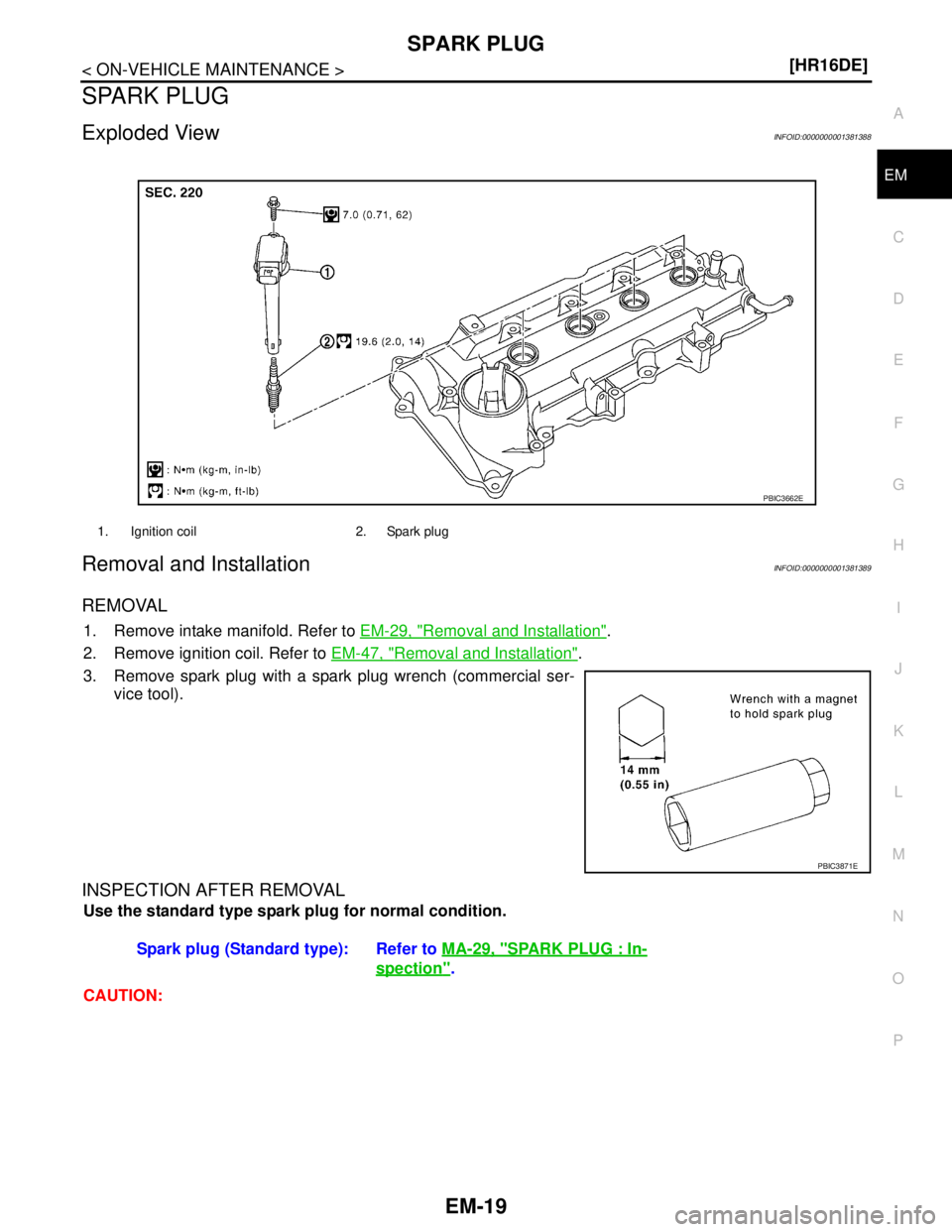

SPARK PLUG
Exploded ViewINFOID:0000000001381388
Removal and InstallationINFOID:0000000001381389
REMOVAL
1. Remove intake manifold. Refer to EM-29, "Removal and Installation".
2. Remove ignition coil. Refer to EM-47, "
Removal and Installation".
3. Remove spark plug with a spark plug wrench (commercial ser-
vice tool).
INSPECTION AFTER REMOVAL
Use the standard type spark plug for normal condition.
CAUTION:
1. Ignition coil 2. Spark plug
PBIC3662E
PBIC3871E
Spark plug (Standard type): Refer to MA-29, "SPARK PLUG : In-
spection".
Page 2667 of 5883
EM-20
< ON-VEHICLE MAINTENANCE >[HR16DE]
SPARK PLUG
Never drop or shock spark plug.
Never use a wire brush for cleaning.
If plug tip is covered with carbon, spark plug cleaner may be
used.
Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is the reverse order of removal.Cleaner air
pressure:Less than 588 kPa (6 kg/cm
2, 85 psi)
Cleaning time: Less than 20 seconds
SMA773C
JPBIA0031ZZ
Plug type : Platinum tipped
Make : NGK
Part number : PLZKAR6AP-11
Gap (nominal) : 1.1 mm (0.043 in)
Page 2668 of 5883
![NISSAN TIIDA 2007 Service Repair Manual CAMSHAFT VALVE CLEARANCE
EM-21
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000001381391
INSPECTION
Perform inspectio NISSAN TIIDA 2007 Service Repair Manual CAMSHAFT VALVE CLEARANCE
EM-21
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000001381391
INSPECTION
Perform inspectio](/manual-img/5/57395/w960_57395-2667.png)
CAMSHAFT VALVE CLEARANCE
EM-21
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CAMSHAFT VALVE CLEARANCE
Inspection and AdjustmentINFOID:0000000001381391
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to EM-47, "
Exploded View".
2. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke.
Rotate crankshaft pulley (2) clockwise and align TDC mark
(without paint mark) (A) to timing indicator (1) on front cover.
At the same time, make sure that both intake and exhaust cam
noses of No. 1 cylinder face outside as shown.
If they do not face outside, rotate crankshaft pulley once more
(360 degrees) and align as shown.
b. Use a feeler gauge, measure the clearance between valve lifter
and camshaft.
By referring to the figure, measure the valve clearances at
locations marked “×” as shown in the table below [locations
indicated with black arrow ( ) shown] with a feeler gauge.
B : White paint mark (Not use for service)
PBIC3673E
1 : Camshaft (INT)
2 : Camshaft (EXH)
: Engine front
PBIC3359J
Valve Clearance: Refer to EM-123, "Camshaft".
SEM139D
A : No. 1 cylinder compression TDC
: Engine front
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
Measurement po-
sitionEXH××
INT××
PBIC3707E
Page 2669 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-22
< ON-VEHICLE MAINTENANCE >[HR16DE]
CAMSHAFT VALVE CLEARANCE
c. Rotate crankshaft pulley (2) one revolution (360 degrees) and
align TDC mark (without paint mark) (A) to timing indicator (1) on
fr NISSAN TIIDA 2007 Service Repair Manual EM-22
< ON-VEHICLE MAINTENANCE >[HR16DE]
CAMSHAFT VALVE CLEARANCE
c. Rotate crankshaft pulley (2) one revolution (360 degrees) and
align TDC mark (without paint mark) (A) to timing indicator (1) on
fr](/manual-img/5/57395/w960_57395-2668.png)
EM-22
< ON-VEHICLE MAINTENANCE >[HR16DE]
CAMSHAFT VALVE CLEARANCE
c. Rotate crankshaft pulley (2) one revolution (360 degrees) and
align TDC mark (without paint mark) (A) to timing indicator (1) on
front cover.
By referring to the figure, measure the valve clearance at loca-
tions marked “×” as shown in the table below [locations indi-
cated with black arrow ( ) shown] with a feeler gauge.
3. If out of standard, perform adjustment procedure.
ADJUSTMENT
Perform adjustment depending on selected head thickness of valve lifter.
1. Remove camshaft. Refer to EM-59, "
Exploded View".
2. Remove valve lifters at the locations that are out of the standard.
3. Measure the center thickness of the removed valve lifters with a
micrometer (A).
4. Use the equation below to calculate valve lifter thickness for replacement.
B : White paint mark (Not use for service)
PBIC3673E
A : No. 4 cylinder compression TDC
: Engine front
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
Measurement
pointEXH××
INT××
PBIC3708E
PBIC3195J
Valve lifter thickness calculation: t = t1 + (C1– C2)
t = Valve lifter thickness to be replaced
t
1= Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance:
Intake : 0.30 mm (0.012 in)
Exhaust : 0.33 mm (0.013 in)
Page 2670 of 5883
CAMSHAFT VALVE CLEARANCE
EM-23
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Thickness of new valve lifter (B) can be identified by stamp
mark (A) on the reverse side (inside the cylinder).
Stamp mark “300” indicates 3.00 mm (0.118 in) in thickness.
NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50 mm (0.1181 to 0.1378 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to EM-123, "
Camshaft".
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-59, "
Exploded View".
7. Manually rotate crankshaft pulley a few rotations.
8. Make sure that valve clearances for cold engine are within specifications by referring to the specified val-
ues.
9. Install all removed parts in the reverse order of removal.
10. Warm up the engine, and check for unusual noise and vibration.
PBIC3196J
Page 2671 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC- NISSAN TIIDA 2007 Service Repair Manual EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-](/manual-img/5/57395/w960_57395-2670.png)
EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-377, "
Inspection" (EURO-OBD), EC-681, "Inspection" (WITHOUT
EURO-OBD).
3. Remove ignition coil and spark plug from each cylinder. Refer to EM-47, "
Exploded View".
4. Connect an engine tachometer (not required in use of CONSULT-III).
5. Install a compression tester (B) with an adapter (commercial
service tool) (A) onto spark plug hole.
Use the adapter whose picking up end inserted to spark plug
hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
6. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.
CAUTION:
Always use fully a changed battery to obtain the specified engine speed.
If the engine speed is out of the specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.
If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.
If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylinder
head gasket.
7. After inspection is completed, install removed parts.
8. Start the engine, and confirm that the engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-469, "
Description".
PBIC3730E
SBIA0533E
Compression Pressure: Refer to EM-122, "General Specification".
Page 2672 of 5883
DRIVE BELT IDLER PULLEY
EM-25
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE REPAIR
DRIVE BELT IDLER PULLEY
Exploded ViewINFOID:0000000001381393
Removal and InstallationINFOID:0000000001381394
REMOVAL
1. Remove drive belt. Refer to EM-16, "Removal and Installation".
2. Remove the lock nut, and then remove the plate, idler pulley, and washer.
3. Remove the center shaft together with the spacer with inserting the adjusting bolt.
INSTALLATION
1 : Generator bracket
2 : Center shaft
3 : Spacer
4 : Adjusting bolt
5: Washer
6 : Idler pulley
7: Plate
PBIC3644E
