Page 1673 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-324
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
MALFUNCTION INDICATOR
MALFUNCTION INDICATOR
DescriptionINFOID:0000000001671112
The Malfunction Indicator (MI) is located on the combination mete

Page 1674 of 5883

NISSAN TIIDA 2007 Service Repair Manual POSITIVE CRANKCASE VENTILATION
EC-325
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
POSITIVE CRANKCASE VENTILATION
DescriptionINFOID:0000000001671115
This system retu

Page 1675 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-326
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
REFRIGERANT PRESSURE SENSOR
REFRIGERANT PRESSURE SENSOR
DescriptionINFOID:0000000001671117
The refrigerant pressure sensor is installed at the co

Page 1676 of 5883

NISSAN TIIDA 2007 Service Repair Manual REFRIGERANT PRESSURE SENSOR
EC-327
< COMPONENT DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E8, F8
Harne

Page 1677 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-328
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
ECU DIAGNOSIS
ECM
Reference ValueINFOID:0000000001161405
VALUES ON THE DIAGNOSIS TOOL
Remarks:
Specification data are reference values.
Specifi

EC-328
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
ECU DIAGNOSIS
ECM
Reference ValueINFOID:0000000001161405
VALUES ON THE DIAGNOSIS TOOL
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
*Specification data may not be directly related to their components signals/values/operations.
I.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the
specification data in spite of the ignition timing not being adjusted to the specification data. this IGN TIMING
monitors the data calculated by the ECM according to the signals input from the camshaft position sensor and
other ignition timing related sensors.
Monitor Item Condition Values/Status
ENG SPEED Run engine and compare CONSULT-III value with the tachometer indication.Almost the same speed as
the tachometer indication.
MAS A/F SE-B1 See EC-117, "
Diagnosis Procedure".
B/FUEL SCHDL See EC-117, "
Diagnosis Procedure".
A/F ALPHA-B1 See EC-117, "
Diagnosis Procedure".
COOLAN TEMP/S Engine: After warming up More than 70°C (158F)
HO2S1 (B1) Engine: After warming up Maintaining engine speed at 2,000 rpm0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S2 (B1) Revving engine from idle up to 3,000 rpm quickly after the following conditions
are met.
- Engine: After warming up
- After keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load0 - 0.3V ←→ Approx. 0.6 -
1.0V
HO2S1 MNTR (B1) Engine: After warming up Maintaining engine speed at 2,000 rpmLEAN ←→ RICH
Changes more than 5 times
during 10 seconds
HO2S2 MNTR (B1) Revving engine from idle up to 3,000 rpm quickly after the following conditions
are met.
- Engine: After warming up
- After keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no loadLEAN ←→ RICH
VHCL SPEED SE Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication.Almost the same speed as
speedometer indication
BATTERY VOLT Ignition switch: ON (Engine stopped) 11 - 14V
ACCEL SEN 1 Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 4.0 - 4.8V
ACCEL SEN 2 Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.6 - 0.9V
Accelerator pedal: Fully depressed 3.9 - 4.8V
THRL SEN 1-B1 Ignition switch: ON
(Engine stopped)
Shift lever: D (A/T) or 1st (M/T)Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
THRL SEN 2-B1 Ignition switch: ON
(Engine stopped)
Shift lever: D (A/T) or 1st (M/T)Accelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
START SIGNAL Ignition switch: ON → START → ON OFF → ON → OFF
CLSD THL POS Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF

Page 1678 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-329
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
AIR COND SIG Engine: After warming up, idle the
engineAir conditioner switch: OFF OFF
Air conditioner switch: ON

ECM
EC-329
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
AIR COND SIG Engine: After warming up, idle the
engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
P/N POSI SW Ignition switch: ONShift lever: P or N (A/T), Neutral (M/T) ON
Shift lever: Except above OFF
PW/ST SIGNAL Engine: After warming up, idle the
engineSteering wheel: Not being turned OFF
Steering wheel: Being turned ON
LOAD SIGNAL Ignition switch: ONRear window defogger switch: ON
and/or Lighting switch: 2nd positionON
Rear window defogger switch and lighting
switch: OFFOFF
IGNITION SW Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW Engine: After warming up, idle the
engineHeater fan switch: ON ON
Heater fan switch: OFF OFF
BRAKE SW Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1 Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 10° - 20° BTDC
2,000 rpm 25° - 45° BTDC
CAL/ALD VALUE Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 10% - 35%
2,500 rpm 10% - 35%
MASS AIRFLOW Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 1.0 - 4.0 g·m/s
2,500 rpm 2.0 - 10.0 g·m/s
PURG VOL C/V Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 0%
2,000 rpm 0% - 50%
INT/V TIM (B1) Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle−5° - 5°CA
2,000 rpm Approx. 0° - 40
°CA
INT/V SOL (B1) Engine: After warming up
Shift lever: P or N (A/T), Neutral
(M/T)
Air conditioner switch: OFF
No loadIdle 0% - 2%
2,000 rpm Approx. 0% - 90%
AIR COND RLY Engine: After warming up, idle the
engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates)ON Monitor Item Condition Values/Status

Page 1679 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-330
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
FUEL PUMP RLY For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF
THRTL RELAY Ignition switch: ON

EC-330
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ECM
FUEL PUMP RLY For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF
THRTL RELAY Ignition switch: ON ON
COOLING FAN Engine: After warning up, idle the
engine
Air conditioner switch: OFFEngine coolant temperature is 98°C
(208°F) or lessOFF
Engine coolant temperature is between
98°C (208°F) and 99°C (210°F)LOW
Engine coolant temperature is 100°C
(212°F) or moreHIGH
HO2S1 HTR (B1) Engine: After warming up
Engine speed: Below 3,600rpmON
Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1) Engine speed: Below 3,900 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no loadON
VEHICLE SPEED Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication.Almost the same speed as
the speedometer indication
IDL A/V LEARN Engine: runningIdle air volume learning has not been per-
formed yet.YET
Idle air volume learning has already been
performed successfully.CMPLT
TRVL AFTER MIL Ignition switch: ONVehicle has traveled after MI has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
O2 SEN HTR DTY Engine coolant temperature when engine started: More than 80°C (176F)
Engine speed: Below 3,600 rpmApprox. 30%
AC PRESS SEN Engine: Idle
Both A/C switch and blower fan switch: ON (Compressor operates)1.0 - 4.0V
VHCL SPEED SE Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication.Almost the same speed as
the speedometer indication
SET VHCL SPD Engine: Running ASCD: OperatingThe preset vehicle speed is
displayed
MAIN SW Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch: Re-
leasedOFF
SET SW Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
BRAKE SW1
(ASCD brake switch) Ignition switch: ON Brake pedal: Fully released (A/T)
Brake pedal and clutch pedal: Fully re-
leased (M/T)ON
Brake pedal: Slightly depressed (A/T)
Brake pedal and/or clutch pedal: Slight-
ly depressed (M/T)OFF
BRAKE SW2
(Stop lamp switch) Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON Monitor Item Condition Values/Status

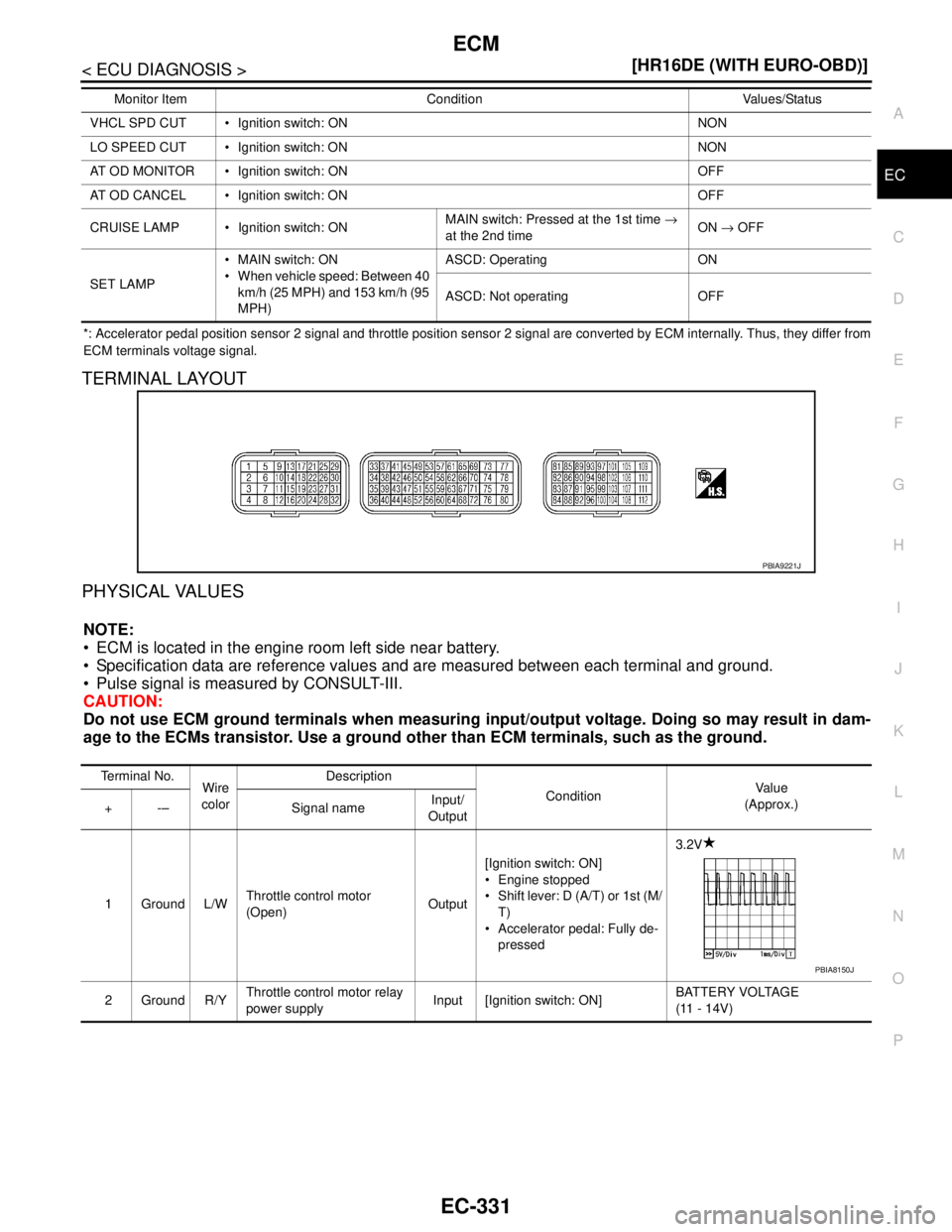

Page 1680 of 5883

NISSAN TIIDA 2007 Service Repair Manual ECM
EC-331
< ECU DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally
