NISSAN TIIDA 2007 Service Repair Manual STR-2
STARTER MOTOR ............................................24
Removal and Installation ........................................24
K9K
BASIC INSPECTION ...................................
25
DIA

Page 4914 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW
STR-3
< BASIC INSPECTION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001728600

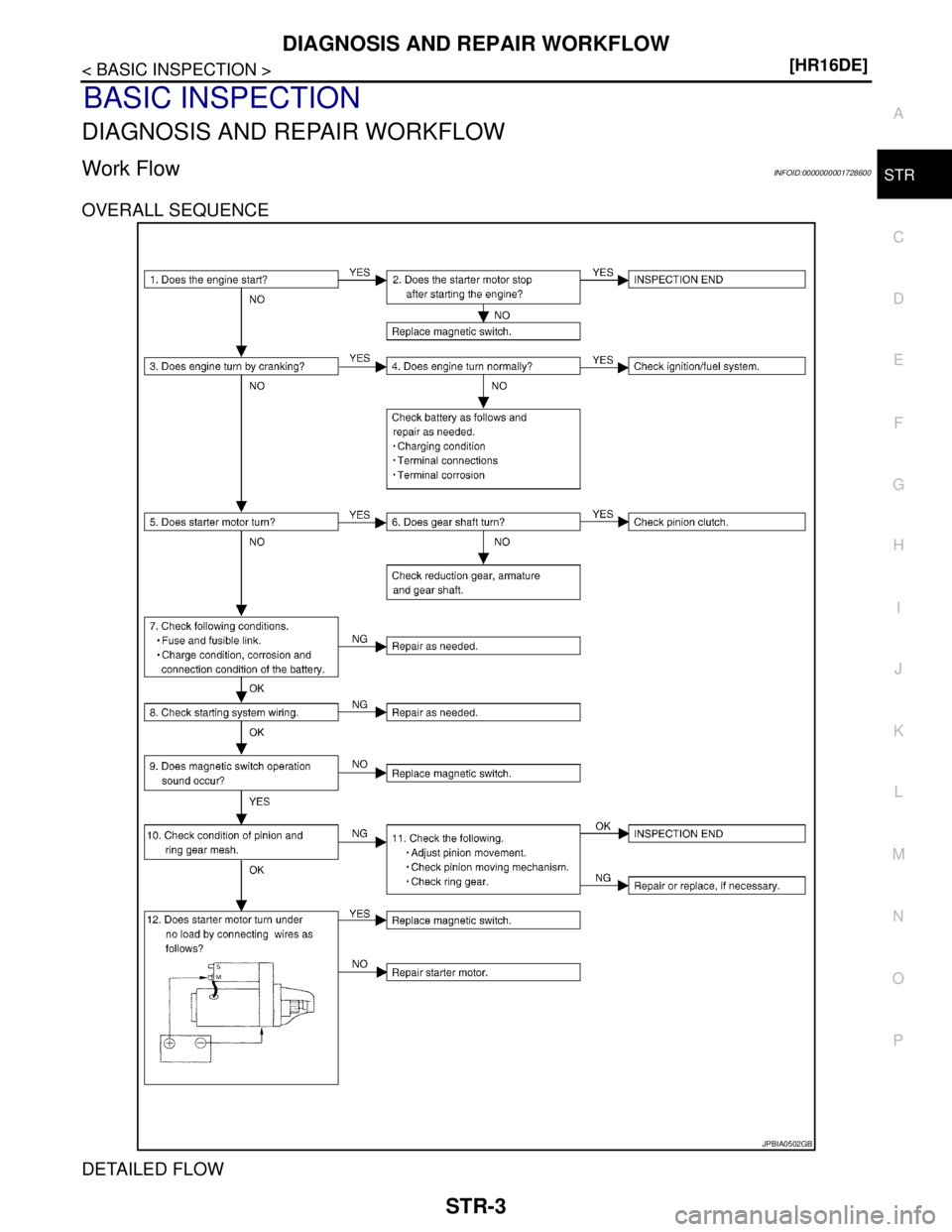

OVERALL SEQUENCE
DETAI

Page 4915 of 5883

NISSAN TIIDA 2007 Service Repair Manual STR-4
< BASIC INSPECTION >[HR16DE]
DIAGNOSIS AND REPAIR WORKFLOW
NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.
1.CHECK ENGINE START
Crank the

Page 4916 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW
STR-5
< BASIC INSPECTION >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
9.CHECK MAGNETIC SWITCH OPERATION SOUND
Check that a magnetic switch operation sound can be heard when

Page 4917 of 5883

NISSAN TIIDA 2007 Service Repair Manual STR-6
< FUNCTION DIAGNOSIS >[HR16DE]
STARTING SYSTEM
FUNCTION DIAGNOSIS
STARTING SYSTEM
System DiagramINFOID:0000000001712878
System DescriptionINFOID:0000000001712879
The starter motor plunger closes

Page 4918 of 5883

NISSAN TIIDA 2007 Service Repair Manual STARTING SYSTEM
STR-7
< FUNCTION DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
Component DescriptionINFOID:0000000001712881
Component part Description
PNP switchPNP switch supplies power to the

Page 4919 of 5883

NISSAN TIIDA 2007 Service Repair Manual STR-8
< COMPONENT DIAGNOSIS >[HR16DE]
B TERMINAL CIRCUIT
COMPONENT DIAGNOSIS
B TERMINAL CIRCUIT
DescriptionINFOID:0000000001712882
Terminal "2" (B) is constantly supplied with battery power.
Diagnosis

Page 4920 of 5883

NISSAN TIIDA 2007 Service Repair Manual S CONNECTOR CIRCUIT
STR-9
< COMPONENT DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
S CONNECTOR CIRCUIT
DescriptionINFOID:0000000001712884
Terminal "1" (S) is the power supply for the starter m

S CONNECTOR CIRCUIT
STR-9
< COMPONENT DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
S CONNECTOR CIRCUIT
DescriptionINFOID:0000000001712884
Terminal "1" (S) is the power supply for the starter motor magnetic switch. Terminal 1 is supplied with power
when the ignition switch is turned to the START position while the selector lever is in the P or N position.
Diagnosis ProcedureINFOID:0000000001712885
CAUTION:
Perform diagnosis under the condition that engine cannot start by the following procedure.
1. Remove fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is released.

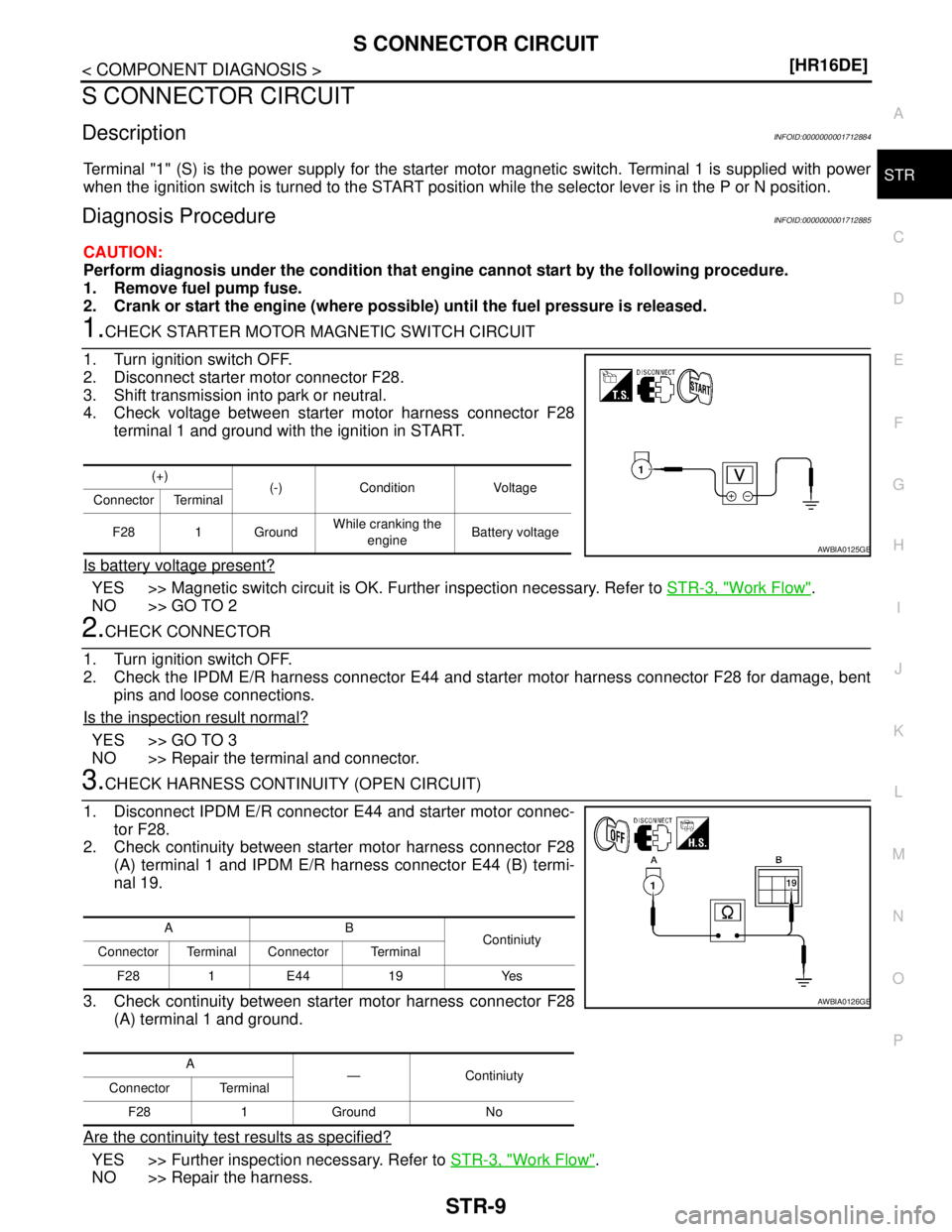

1.CHECK STARTER MOTOR MAGNETIC SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect starter motor connector F28.
3. Shift transmission into park or neutral.
4. Check voltage between starter motor harness connector F28
terminal 1 and ground with the ignition in START.
Is battery voltage present?
YES >> Magnetic switch circuit is OK. Further inspection necessary. Refer to STR-3, "Work Flow".
NO >> GO TO 2
2.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Check the IPDM E/R harness connector E44 and starter motor harness connector F28 for damage, bent
pins and loose connections.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair the terminal and connector.
3.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect IPDM E/R connector E44 and starter motor connec-
tor F28.
2. Check continuity between starter motor harness connector F28
(A) terminal 1 and IPDM E/R harness connector E44 (B) termi-
nal 19.
3. Check continuity between starter motor harness connector F28
(A) terminal 1 and ground.
Are the continuity test results as specified?
YES >> Further inspection necessary. Refer to STR-3, "Work Flow".
NO >> Repair the harness.
(+)
(-) Condition Voltage
Connector Terminal
F28 1 GroundWhile cranking the
engineBattery voltage
AWBIA0125GB
AB
Continiuty
Connector Terminal Connector Terminal
F28 1 E44 19 Yes
A
— Continiuty
Connector Terminal
F28 1 Ground No
AWBIA0126GB
