CAN COMMUNICATION SYSTEM
LAN-37
< COMPONENT DIAGNOSIS >[CAN]
C
D
E
F
G
H
I
J
K
L B A
O
P N

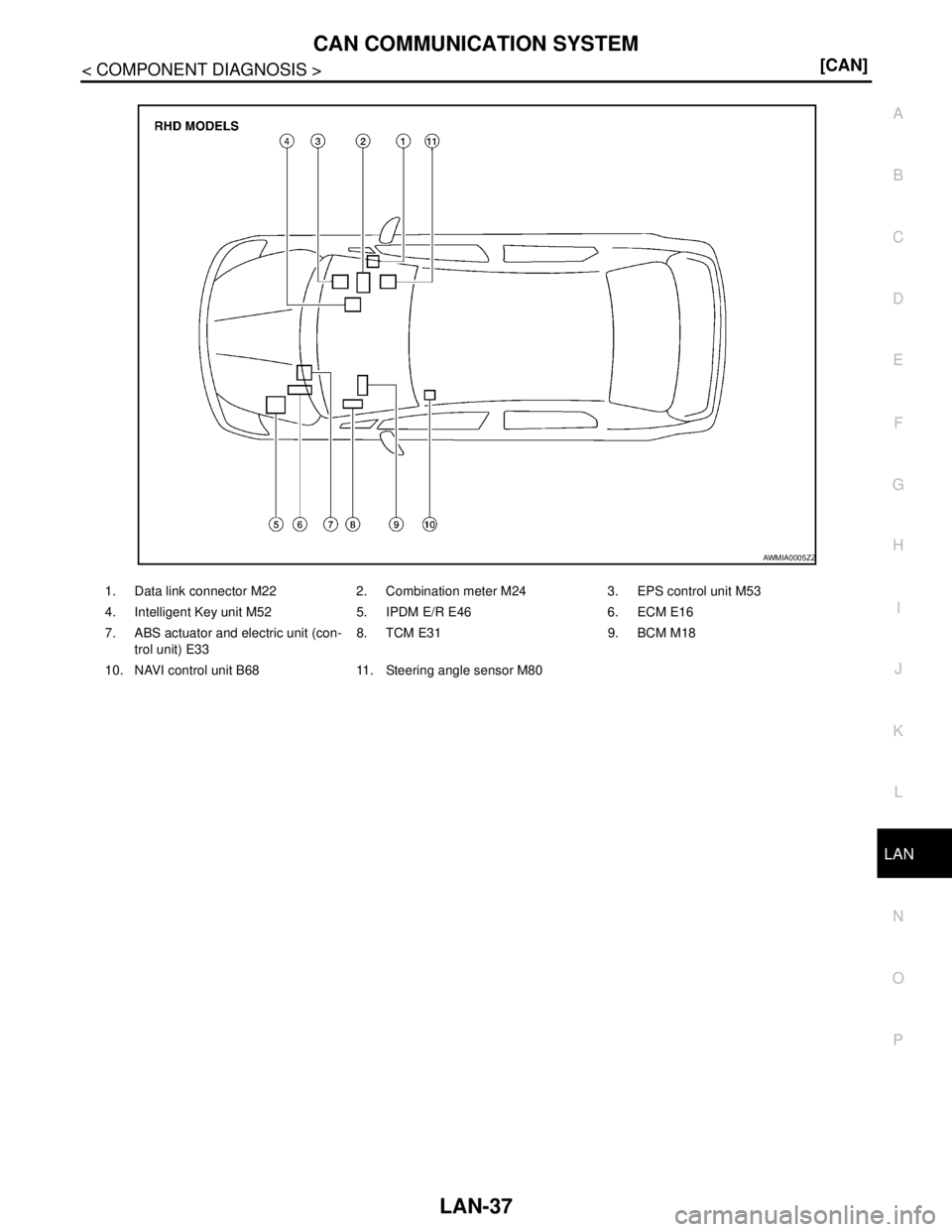

1. Data link connector M22 2. Combination meter M24 3. EPS control unit M53
4. Intelligent Key unit M52 5. IPDM E/R E46 6. ECM E16
7. ABS actuator and electric unit (con-
trol unit) E338. TCM E31 9. BCM M18
10. NAVI control unit B68 11. Steering angle sensor M80
AWMIA0005ZZ
Page 3778 of 5883
LAN-38
< COMPONENT DIAGNOSIS >[CAN]
CAN COMMUNICATION SYSTEM
Wiring Diagram - CAN SYSTEM -
INFOID:0000000001162775

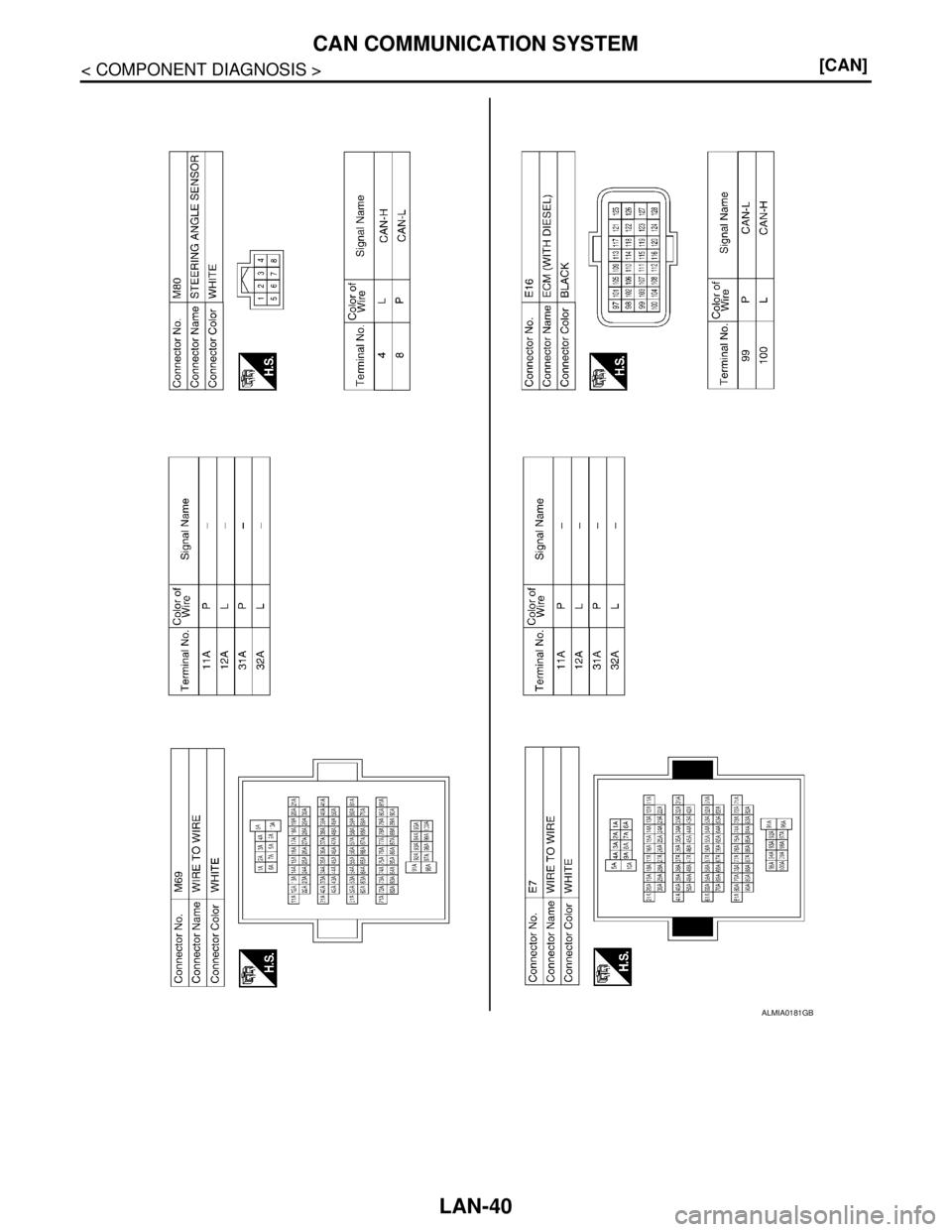

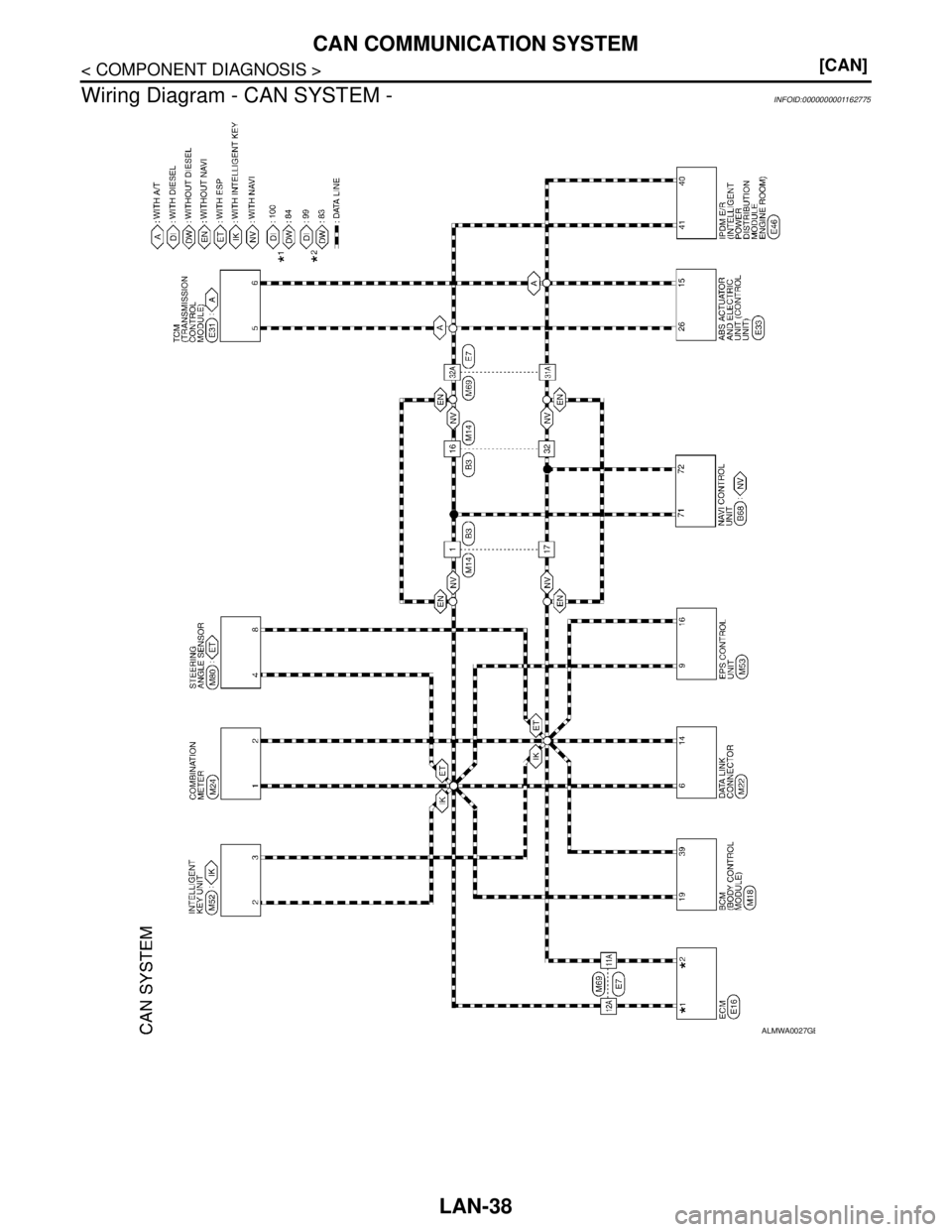

ALMWA0027GB
Page 3779 of 5883
LAN
CAN COMMUNICATION SYSTEM
LAN-39
< COMPONENT DIAGNOSIS >[CAN]
C
D
E
F
G
H
I
J
K
L B A
O
P N

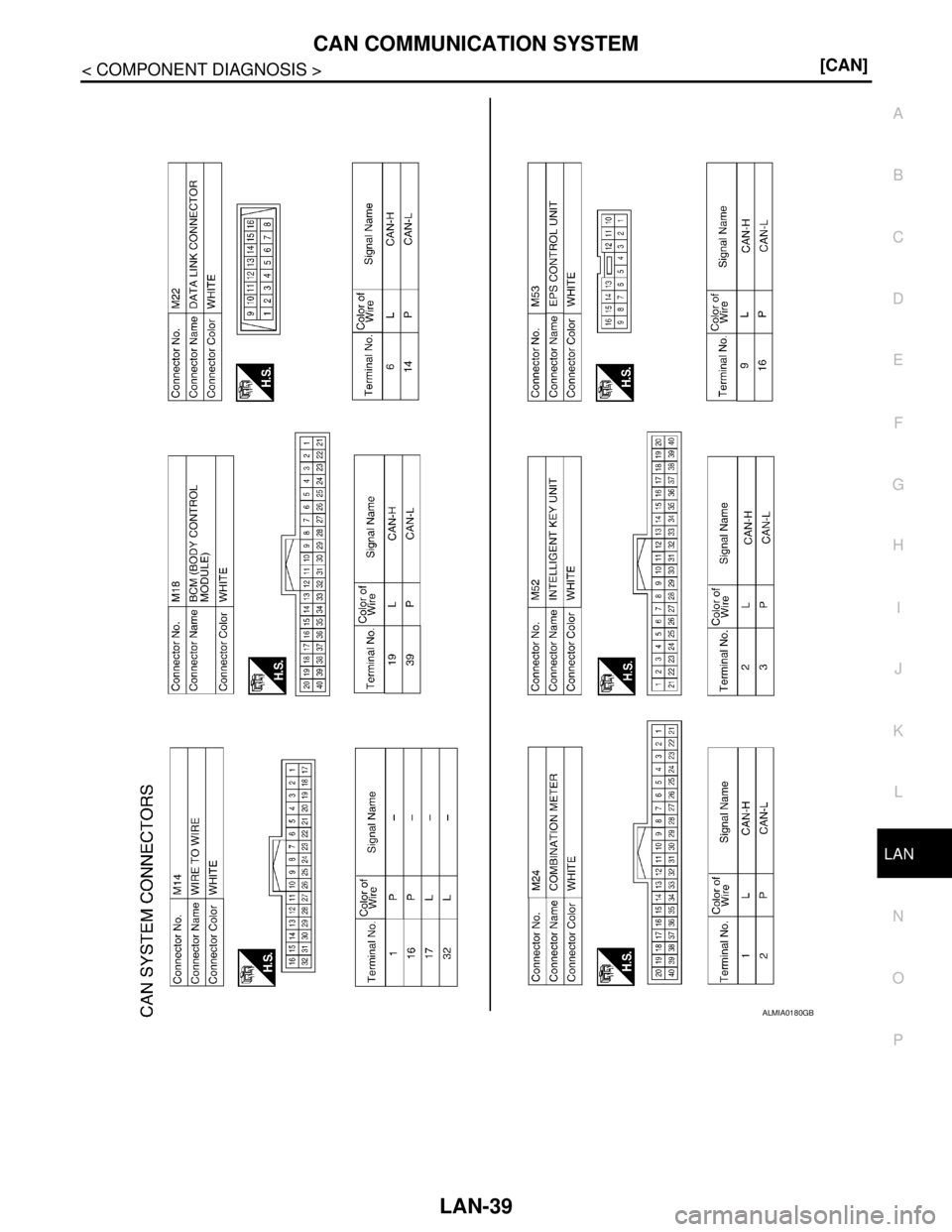

ALMIA0180GB
Page 3780 of 5883
LAN-40
< COMPONENT DIAGNOSIS >[CAN]
CAN COMMUNICATION SYSTEM

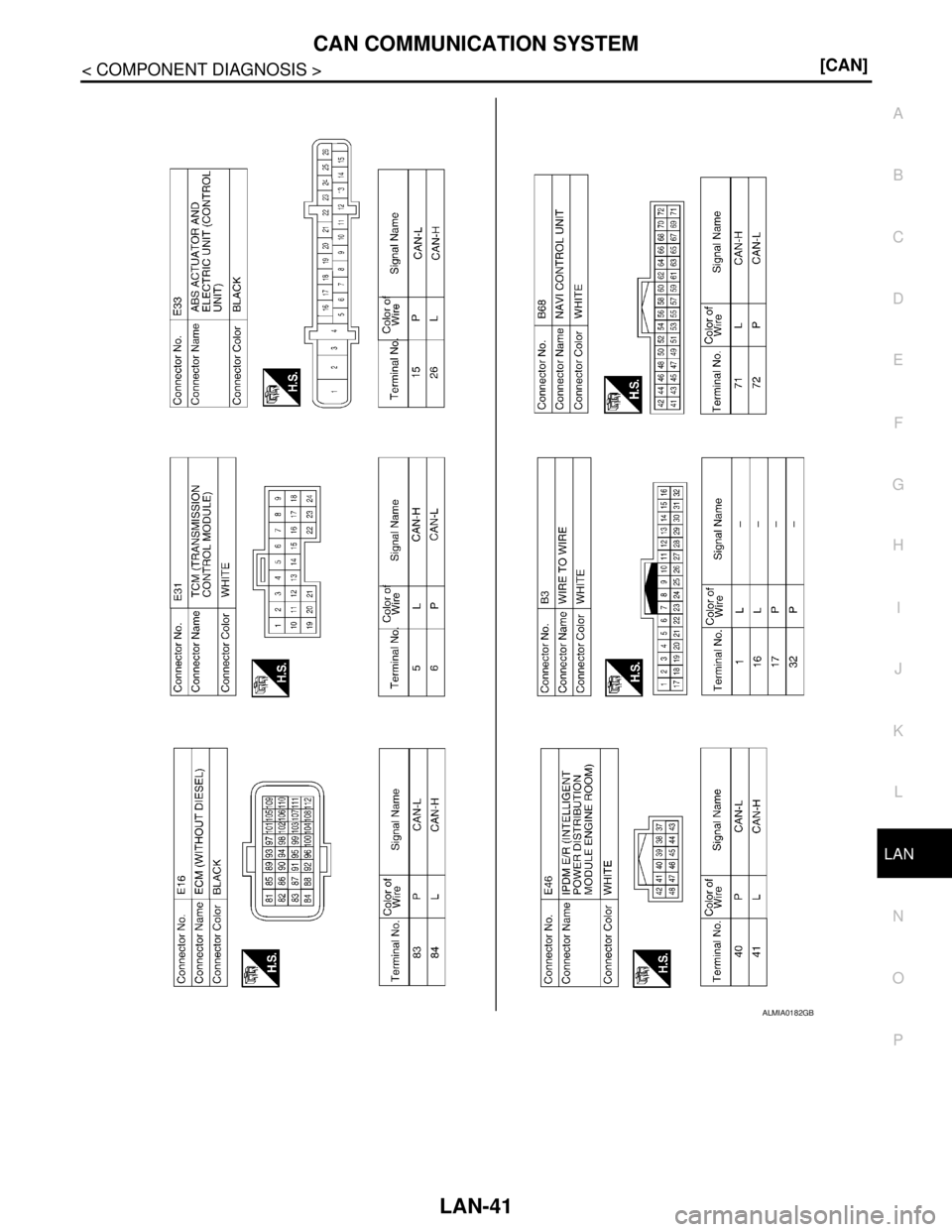

ALMIA0181GB
