HOOD
1. Check that the secondary latch is properly engaged with the secondary striker (B: 6.8 mm (0.268 in) with
hood's own weight.
2. While operating the hood release handle, carefully check that the front end of the hood is raised by
approx. 20 mm (0.79 in). Also check that the hood release handle returns to the original position.
3. Check that the secondary hood release operates at 29.4 N (3.0 kg) or below.
4. Confirm static closing force of the hood is 343 – 441 N·m (35 – 44 kg-m).
5. Check the hood lock lubrication condition. If necessary, apply
“body grease” to the points as shown.
1. Hood striker 2. Primary latch 3. Secondary striker
4. Secondary latch
PIIB5794E
PIIB6514E
Page 1178 of 5883
![NISSAN TIIDA 2007 Service Repair Manual RADIATOR CORE SUPPORT
DLK-589
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732039
REMOVAL
Ra NISSAN TIIDA 2007 Service Repair Manual RADIATOR CORE SUPPORT
DLK-589
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732039
REMOVAL
Ra](/manual-img/5/57395/w960_57395-1177.png)
RADIATOR CORE SUPPORT
DLK-589
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
RADIATOR CORE SUPPORT
Removal and InstallationINFOID:0000000001732039
REMOVAL
Radiator Core Support Upper
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
3. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-585
.
4. Remove the air guide and hood lock cable clip.
5. Remove the washer tank inlet. Refer to WW-64, "
Removal and Installation" .
6. Remove the radiator core support upper.
Radiator Core Support Lower
1. Remove the air duct. Refer to EM-27, "Removal and Installation" (HR16DE), EM-154, "Removal and
Installation" (MR18DE), or EM-269, "Removal and Installation" (K9K).
2. Remove the front bumper. Refer to EXT-13, "
Removal and Installation" .
3. Remove the headlamp (LH/RH). Refer to EXL-84, "
Removal and Installation" .
4. Remove the hood lock assembly, and remove hood lock cable. Refer to DLK-585
.
5. Remove the air guide and hood lock cable mounting clip.
6. Remove the front bumper reinforcement. Refer to EXT-13, "
Removal and Installation".
7. Remove the radiator core lower stay.
8. Remove the undercover.
PIIB6515E

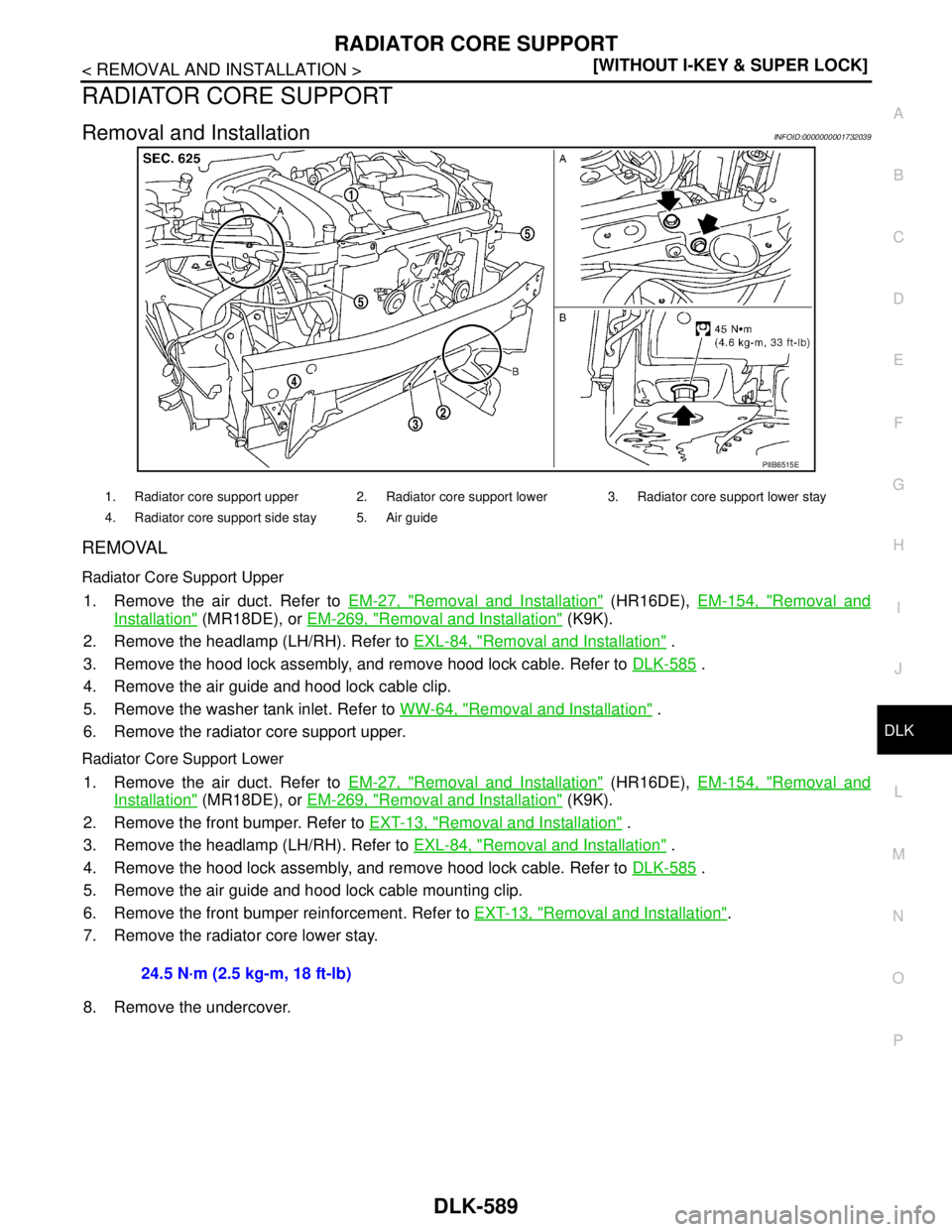

1. Radiator core support upper 2. Radiator core support lower 3. Radiator core support lower stay
4. Radiator core support side stay 5. Air guide
24.5 N·m (2.5 kg-m, 18 ft-lb)
Page 1179 of 5883
DLK-590
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
RADIATOR CORE SUPPORT
9. Remove radiator core support lower side stay.
10. Tie a cord to all radiator core upper supports of the radiator and
condenser.
NOTE:
To prevent the compressor and radiator from being dropped
when the radiator core lower support is removed.
11. Remove the bolts, and lower radiator core lower supports.
12. Remove the radiator core lower supports.
INSTALLATION
Installation is in the reverse order of removal. 55.0 N·m (5.6 kg-m, 41 ft-lb)
PIIB2800J
PIIB2799J
Page 1180 of 5883
FRONT FENDER
DLK-591
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
FRONT FENDER
Removal and InstallationINFOID:0000000001732040
REMOVAL
1. Remove the headlamp assemblies. Refer to EXL-84, "Removal and Installation".
2. Remove the cowl top cover (LH/RH). Refer to EXT-20, "
Removal and Installation".
3. Remove the front fender protector. Refer to DLK-591, "
Removal and Installation".
4. Remove the bolt and the front fender.
CAUTION:
While removing use a shop cloth to protect the vechicle body from damage.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing, apply touch-up paint onto the head of the front fender bolts.
After installing, check front fender adjustment. Refer to DLK-583, "
Fitting Adjustment" and DLK-592,
"Fitting Adjustment".

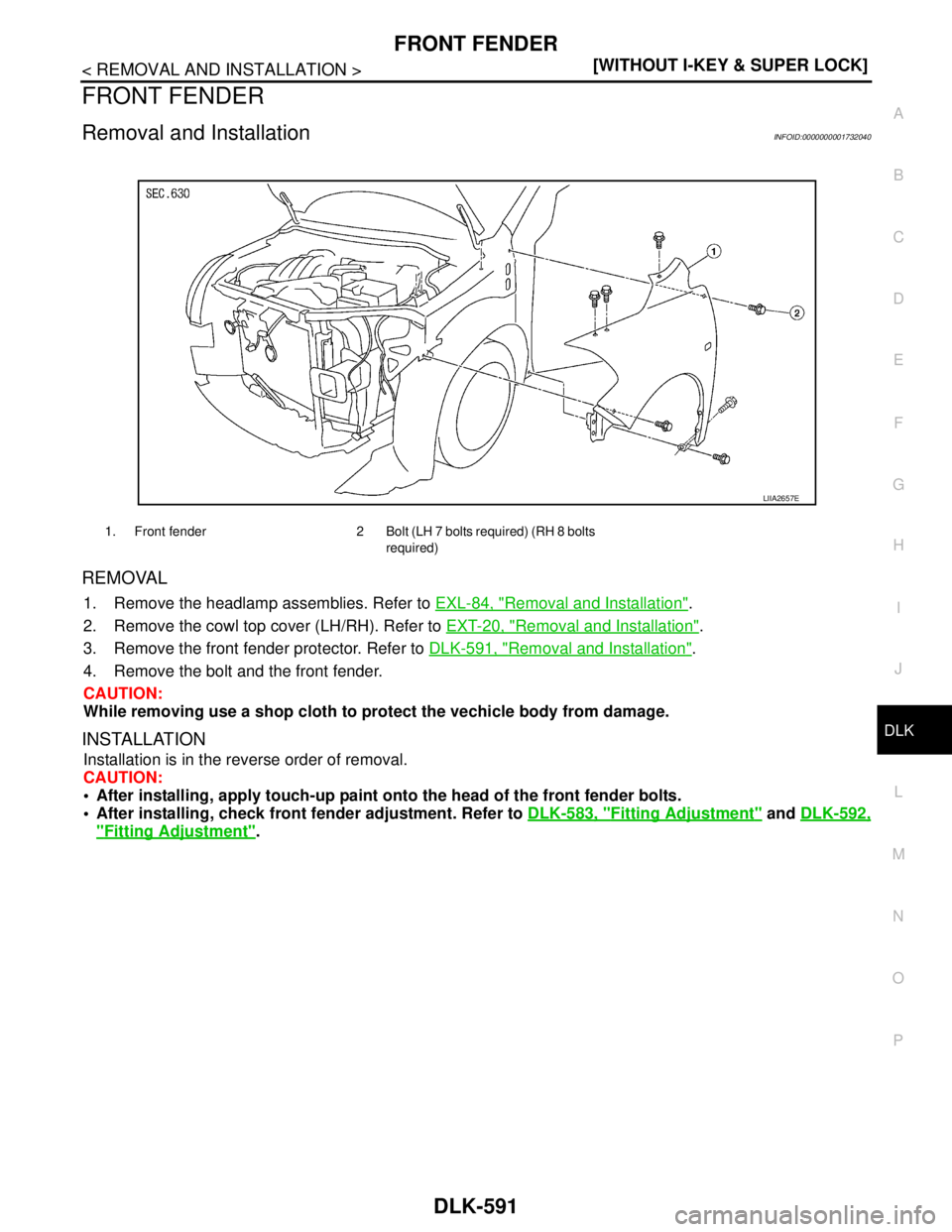

1. Front fender 2 Bolt (LH 7 bolts required) (RH 8 bolts
required)
LIIA2657E
Page 1181 of 5883
DLK-592
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
DOOR
DOOR
Fitting AdjustmentINFOID:0000000001732041
FRONT DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
Access from inside the fender to loosen the hinge bolts. Raise the front door at rear end to adjust.
Surface Height Adjustment
Loosen the front door bolts, and adjust the surface height difference of fender and front door according to the
fitting standard dimension.
Striker Adjustment

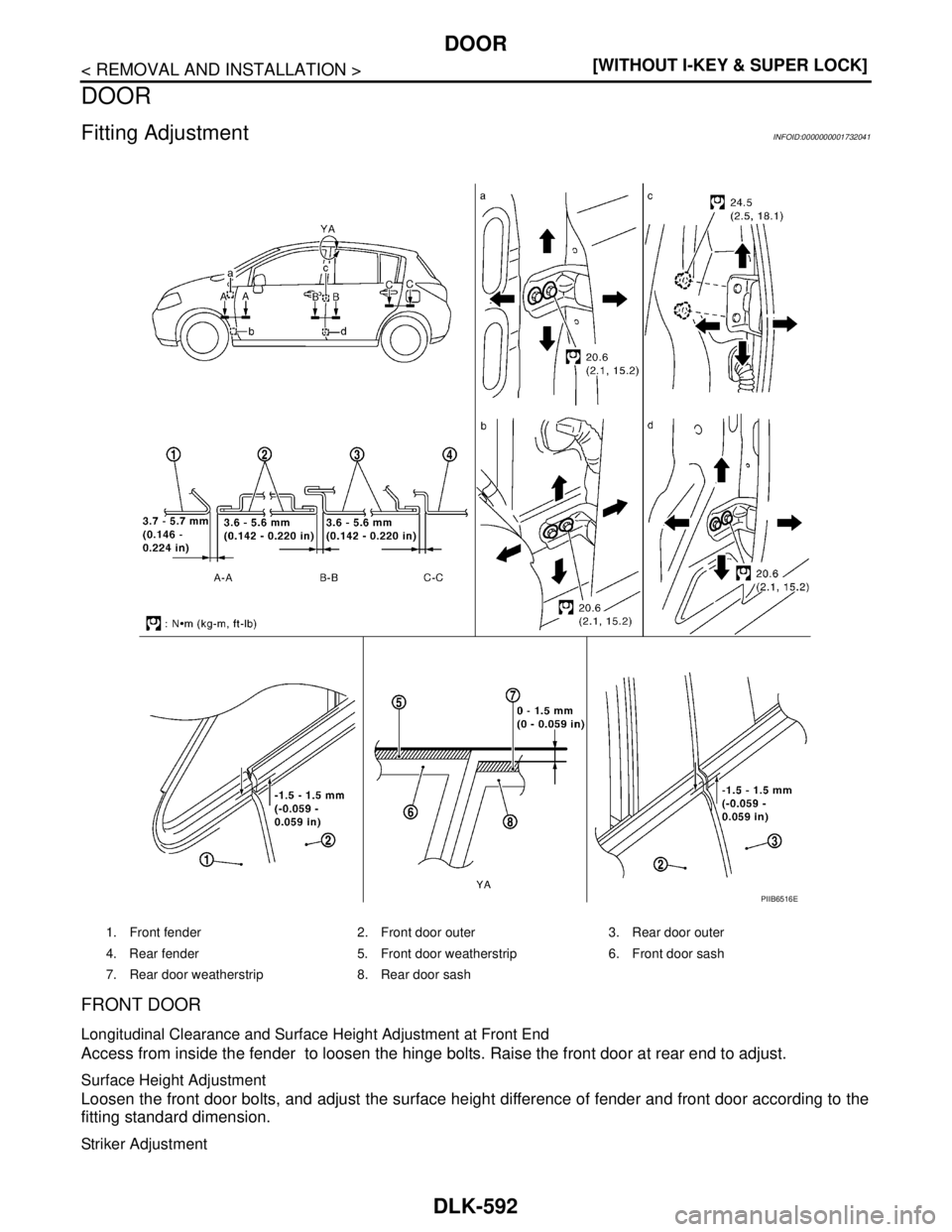

1. Front fender 2. Front door outer 3. Rear door outer
4. Rear fender 5. Front door weatherstrip 6. Front door sash
7. Rear door weatherstrip 8. Rear door sash
PIIB6516E
Page 1182 of 5883

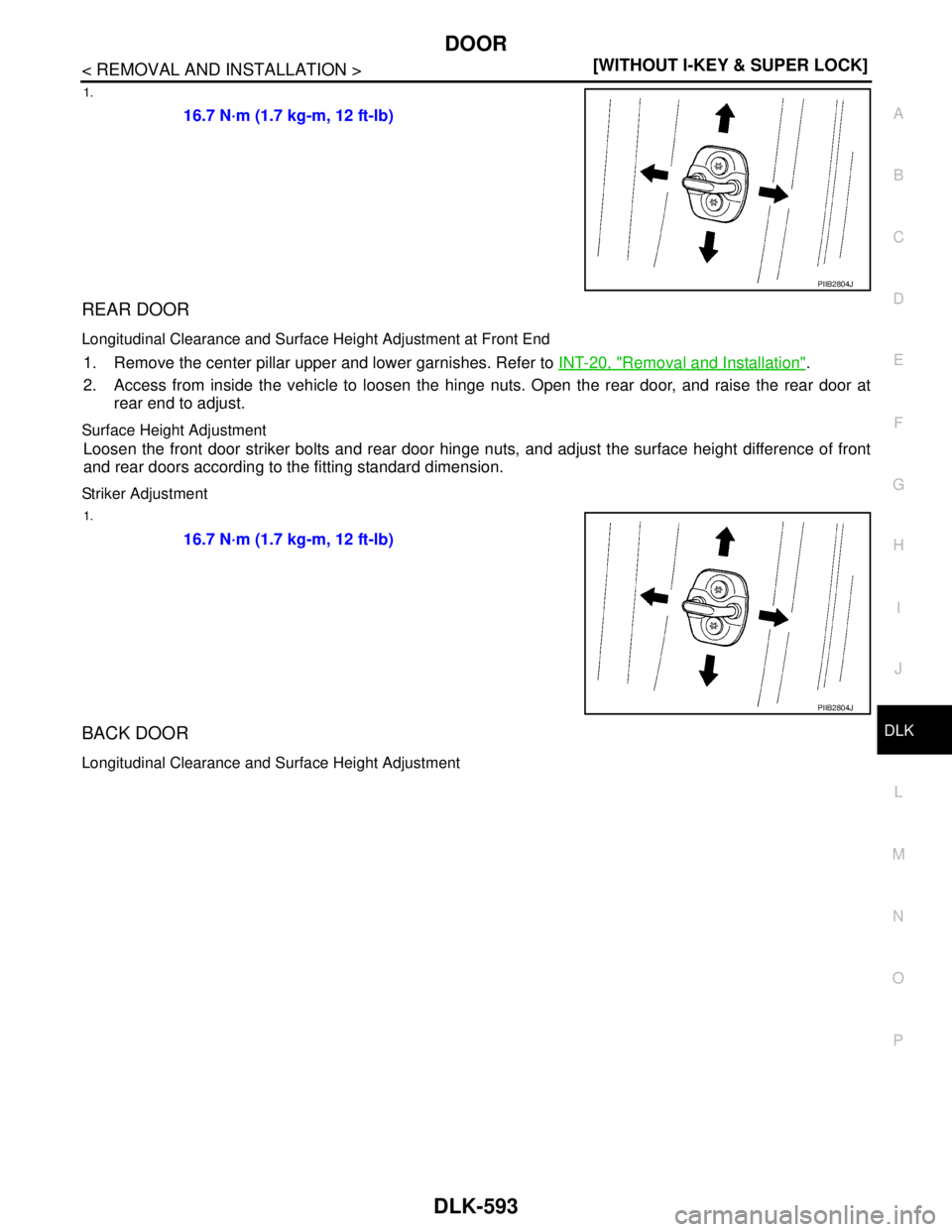

DOOR
DLK-593
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
1.
REAR DOOR
Longitudinal Clearance and Surface Height Adjustment at Front End
1. Remove the center pillar upper and lower garnishes. Refer to INT-20, "Removal and Installation".
2. Access from inside the vehicle to loosen the hinge nuts. Open the rear door, and raise the rear door at
rear end to adjust.
Surface Height Adjustment
Loosen the front door striker bolts and rear door hinge nuts, and adjust the surface height difference of front
and rear doors according to the fitting standard dimension.
Striker Adjustment
1.
BACK DOOR
Longitudinal Clearance and Surface Height Adjustment
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
16.7 N·m (1.7 kg-m, 12 ft-lb)
PIIB2804J
Page 1183 of 5883
DLK-594
< REMOVAL AND INSTALLATION >[WITHOUT I-KEY & SUPER LOCK]
DOOR
1. Open and support the back door.
2. Slightly loosen the hinge nuts.
3. Reposition the door as necessary and tighten the nuts.
4. Confirm the adjustment. Repeat as necessary to obtain the desired fit.
Striker Adjustment

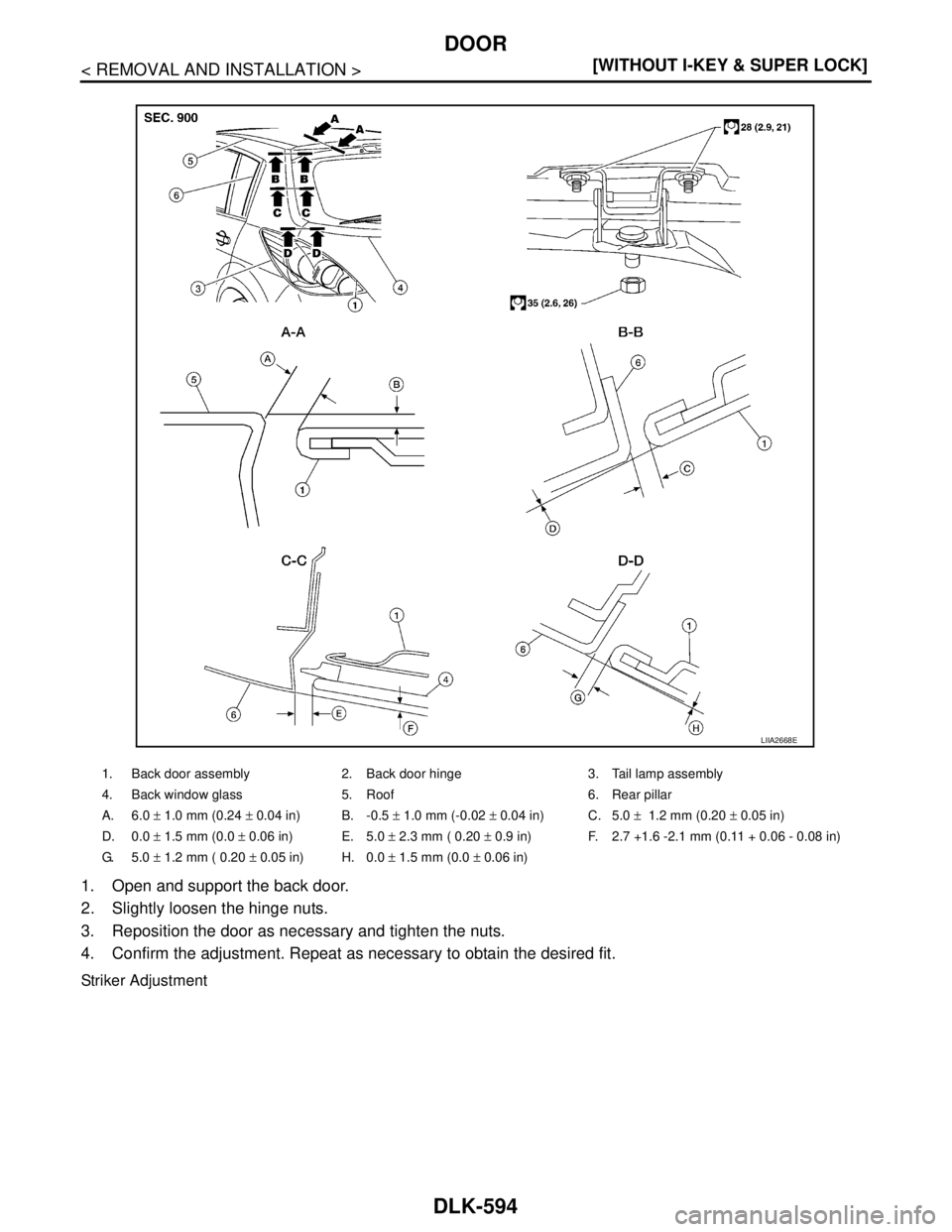

1. Back door assembly 2. Back door hinge 3. Tail lamp assembly
